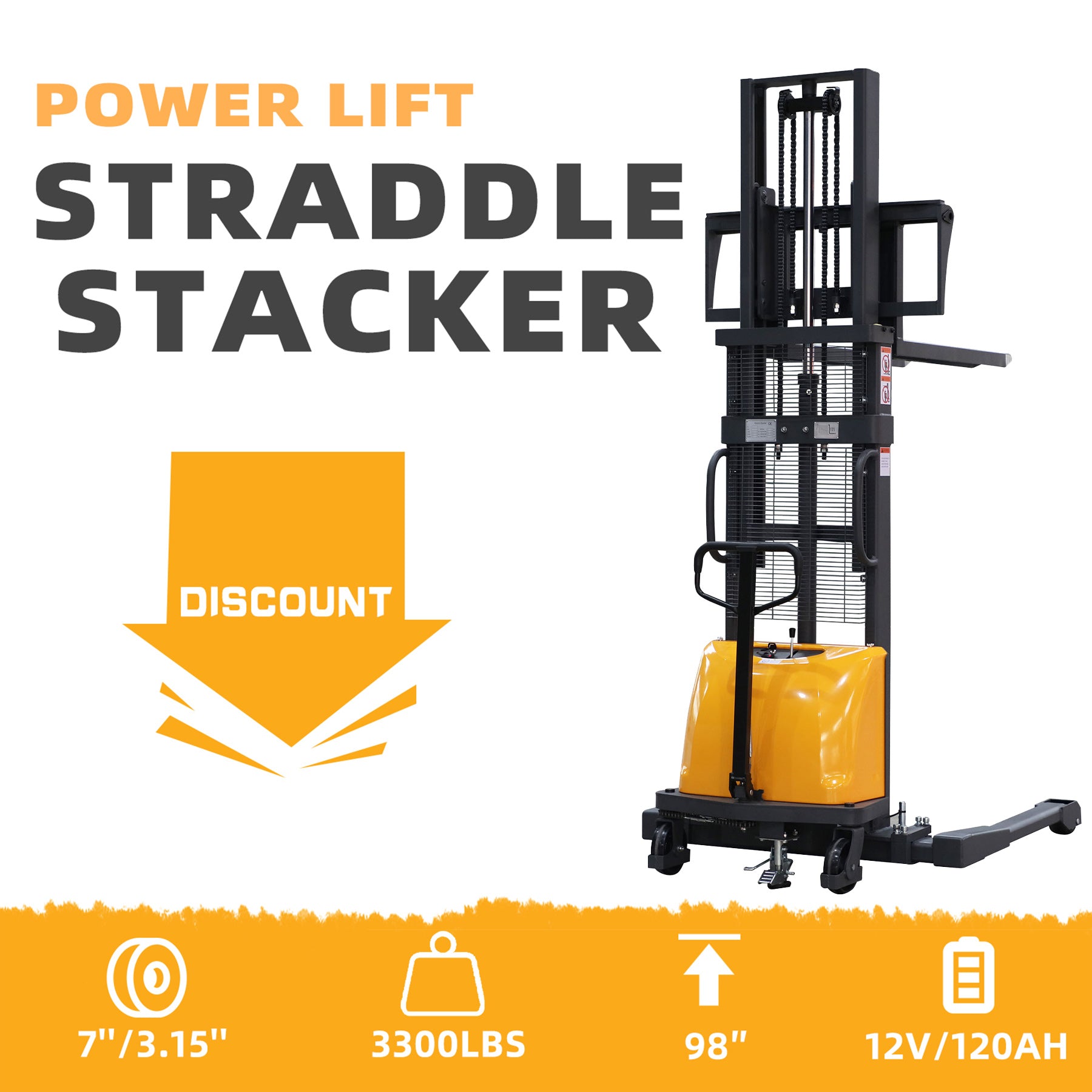

Semi-Electric Power Lift Straddle Stacker 3300Lbs 98"Lifting
Regular price
$3,590.00
Sale price
$3,590.00
Regular price
$3,887.00
Semi-Electric Power Lift Straddle Stacker 3300Lbs 98"Lifting
Regular price
$3,590.00
Sale price
$3,590.00
Regular price
$3,887.00
Product description
MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING
- 1,500-watt lift motor.
- Special chain steering system.
- Easy operation for lifting and lowering.
- Strong battery with 12V/100AH capacity and over charge design.
- Adjustable forks & straddle legs.
| MODEL NO. | LOAD CAPACITY | LEGS TYPE | BATTERY CAPACITY | LIFTING HEIGHT | HEIGHT LOWERED | WT (LBS) | PRICE EACH |
| A-3016 | 3,300 lbs | Fixed | 12V/100AH | 118'' | 3.5'' | 910 | $3337 |
| A-3011 | 3,300 lbs | Straddle | 12V/100AH | 98" | 3.5'' | 950 | $3537 |
| A-3012 | 3,300 lbs | Straddle | 12V/100AH | 118" | 3.5'' | 990 | $3737 |
DIMENSIONS:
- Overall Length：68.7"
- Overall Width: 44½"-60.3"
- Recommended Aisle Width：90"
- Turning Radius: 59.3"
- Mast Height Lowered: 72.8”
- Mast Height Raised: 120.4"
- Load Center: 15.7"
- Wheel Diameter: 7''/3.15''
FORKS:
- Fork height, Lowered: 3.5''
- Thickness: 2.3''
- Width: 5.6''
- Length: 42''
- Adjustable fork width ：11.8"~36.6"
FEATURES:
- Foot pedal brake for safety and ramp usage.
- Equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.
- With hydraulic leveler control lifting and lowering, speed is adjustable.
SPEED:
- Lifting speed(laden/unladen) : 2/3.2mph
- Lowering speed(laden/unladen) : 3.9/3.5mph
SPECIFICATIONS:
- Not explosion proof.
- This stacker is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it's not in use.
Click Here :Assemble the welded fork.
