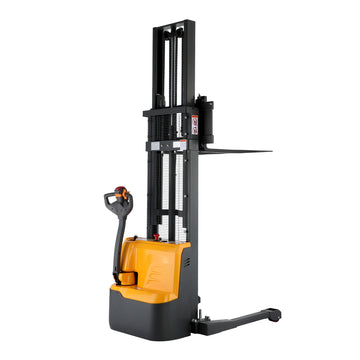

Powered Forklift Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs. 118" lifting A-3042
Regular price
$5,300.00
Sale price
$5,300.00
Regular price
$5,537.00
Powered Forklift Full Electric Walkie Stacker 2640lbs Cap. Straddle Legs. 118" lifting A-3042
Regular price
$5,300.00
Sale price
$5,300.00
Regular price
$5,537.00
Product description
Product reviews
THE BEST CHOICE FOR NARROW SITE
- 650-watt drive motor, 2,200-watt lift motor.
- Forks are adjustable to fit most pallets.
- Curtis (US Brand) Controller.
- Use GEL battery free to maintain.
- Both sides of button for lifting and lowering operation.
- Multi-function display shows the working hours, battery status and low-voltage protection.
*FULLY POWERED STACKERS
| MODEL NO. | LOAD CAPACITY | BATTERY CAPACITY | HEIGHT RAISED | WHEEL DIAMETER | WT(LBS) | PRICE EACH |
|
A-3038 |
2,640 lbs | 24V/105AH | 98'' | 7.7" | 1,250 | $4997 |
|
A-3042 |
2,640 lbs | 24V/105AH | 118'' | 7.7" | 1,270 | $5497 |
| A-3022 | 3,300 lbs | 24V/125AH | 98'' | 7.7" | 1,420 | $6497 |
| A-3023 | 3,300 lbs | 24V/125AH | 118'' | 7.7" | 1,466 | $6797 |
| A-3035 | 2,640lbs | 24V/60AH | 118" | 7.7" | 1,270 | $6237 |
*SHIPS ASSEMBLED VIA MOTOR FREIGHT
*REPLACEMENT PARTS
| MODEL NO. | BATTERY TYPE | BATTERY CAPACITY | WT. (LBS) | DIMENSIONS | PRICE EACH | 2 PCS PRICE |
| S-1005 | Gel Battery | 24V/105AH | 115 | 10.2x6.6x8.5" | $600 | $1,150 |
DIMENSIONS
- Overall Length: 70"
- Recommended Aisle Width: 89.7"
- Turning Radius : 58.6"
- Mast Height Lowered: 84.4'
- Mast Height Raised : 141.7''
- Load center : 23.6"
- Ground Clearance: 1.38"
FORKS
- Fork height, Lowered : 3.15''
- Adjustable Forks: 7.8"-31.5"
- Thickness: 1.3"
- Width: 3.9"
- Length: 42"
STRADDLE LEGS
- Height: 4.7"
- Adjustable range: 44" - 60"
FEATURES
- Smooth rolling polyurethane wheels.180° steering arc.
- 110V Built-in Charger.
- 6 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries.
SPEED
- Travel speed(laden/unladen) : 2.8/3.1mph
- Lifting speed(laden/unladen) : 3.5/5.5inch/s
- Lowering speed(laden/unladen) : 4.7/3.9inch/s
SPECIFICATIONS
- Not explosion proof.
- This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the forklift once a month even it's not in use.
Click Here :A-3021 Detail Page
⚠️ Installation Video: https://youtu.be/lm6kGFClfA8
