1 7
12V/120AH
12V/120AH
Battery
2200 lbs.
2200 lbs.
Capacity
118"
118"
Max Lift Ht.
56.1"
56.1"
Turning Radius
APOLLOLIFT  |  SKU: A-3008

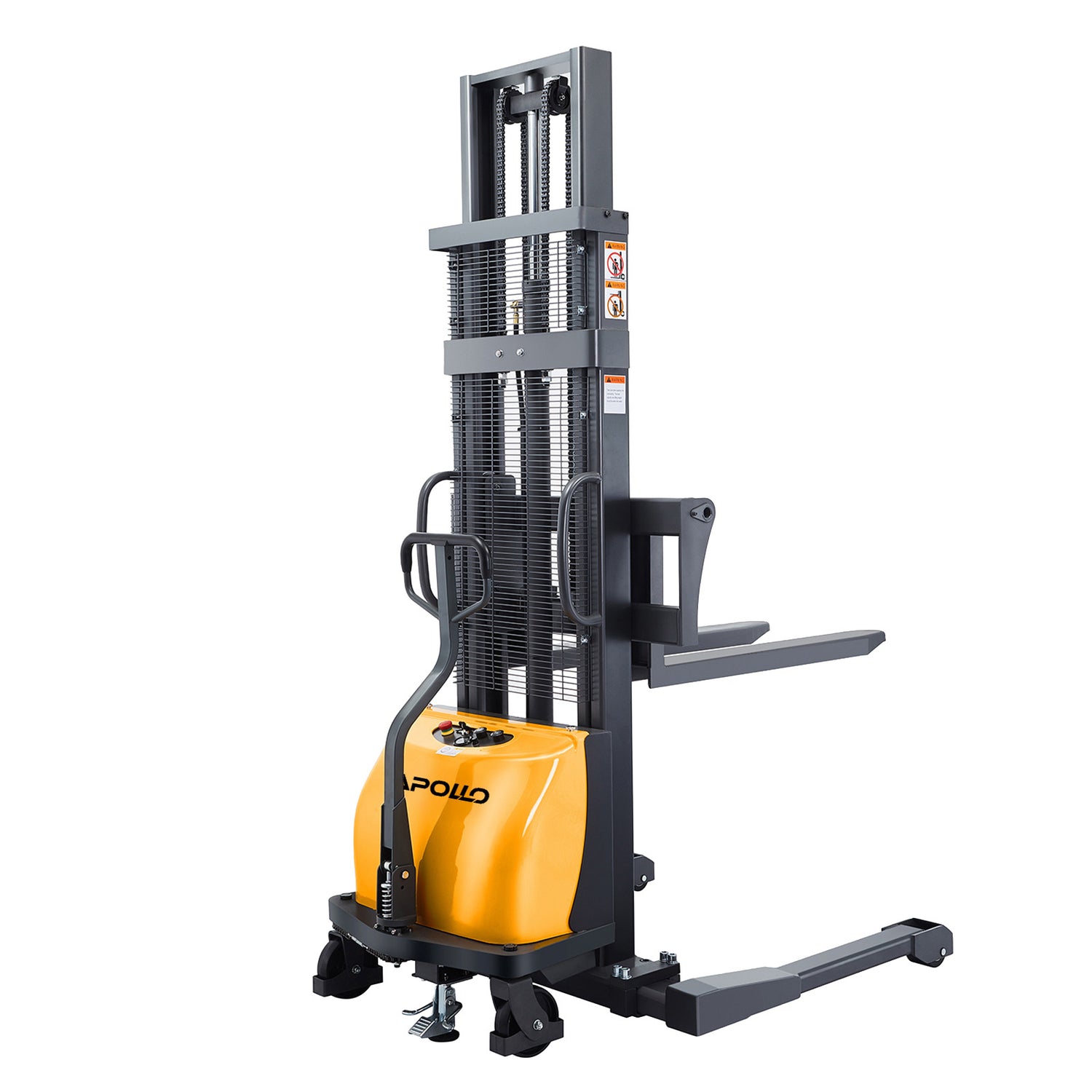

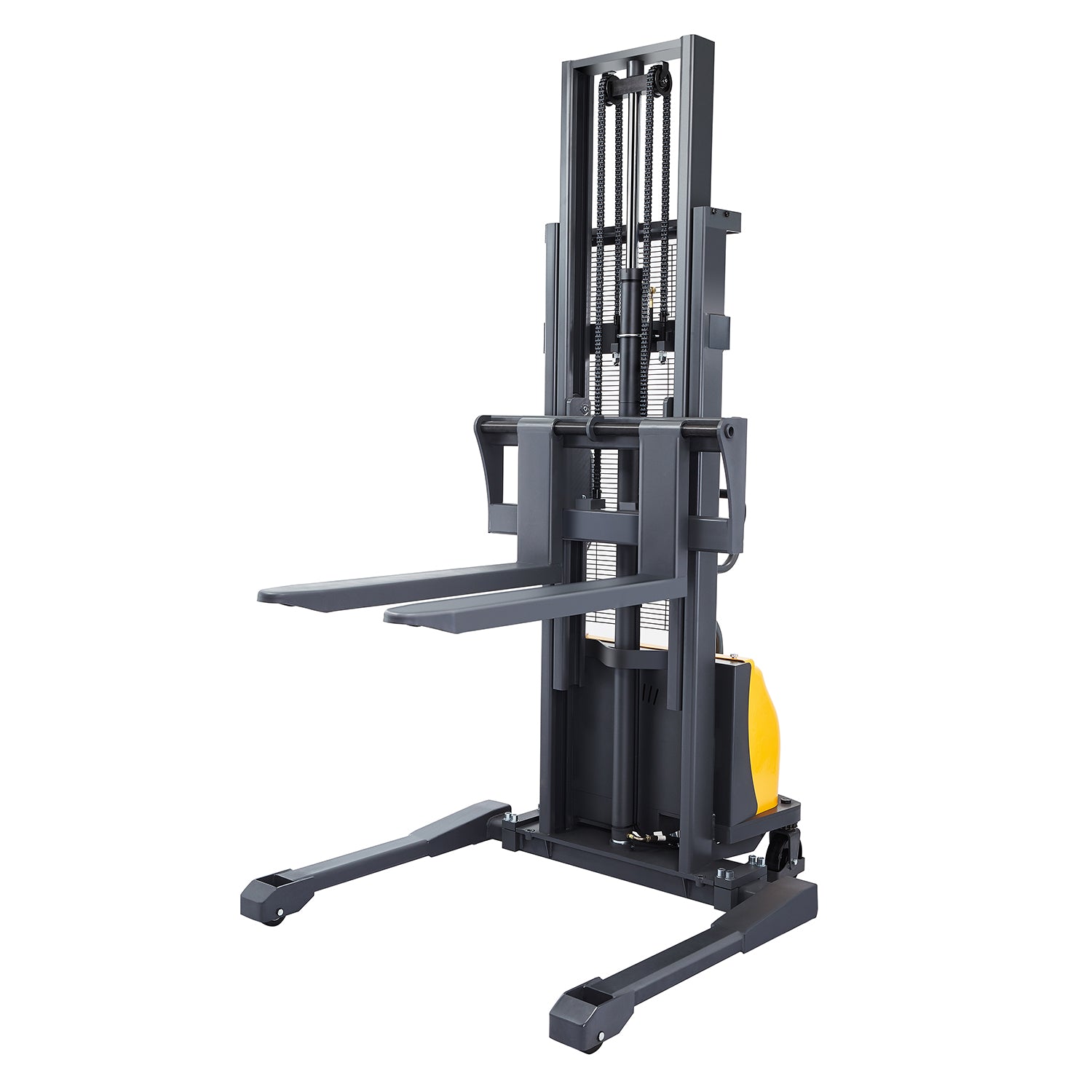

Semi-Electric Straddle Stacker| 2200 lbs. | 98" or 118" Lifting Height| 12V/120AH| Straddle-Leg

$2,749.00
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

The “standard-height, most-people-need-this” choice: Perfect for everyday racking and staging without going tall-mast. max lift height 118", mast lowered height 84.4"

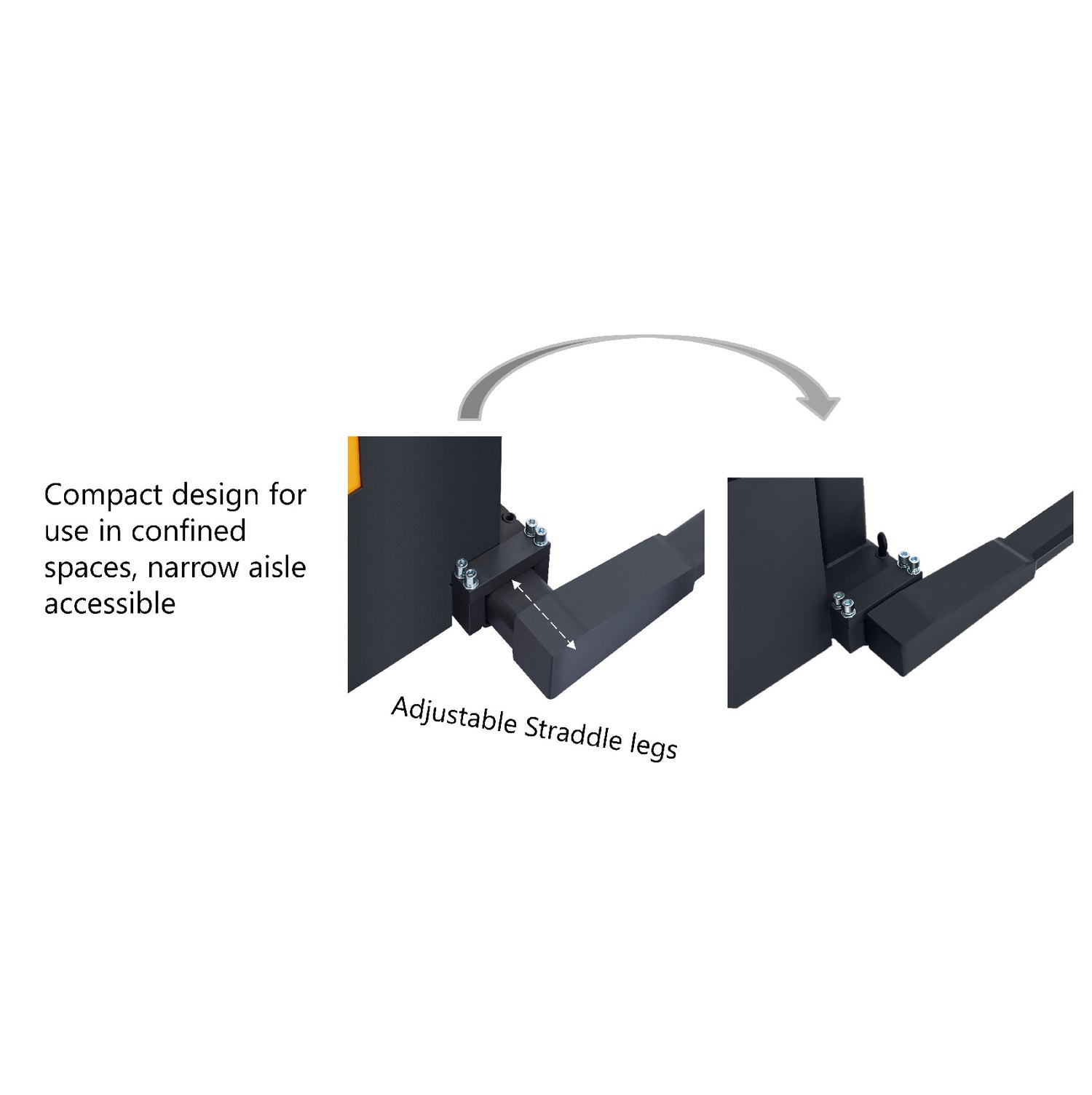

Safe pick when pallet type is mixed or unknown: Straddle legs are the closed-deck-safe default for U.S. warehouses. support leg type Straddle, compatible pallet types All

Light-duty capacity that keeps things moving: Great for daily replenishment, picking support, and backroom workflows. capacity 2200 lbs

Built for typical aisles and back-of-house layouts: Easy to operate in common warehouse lanes. aisle width 94.1"

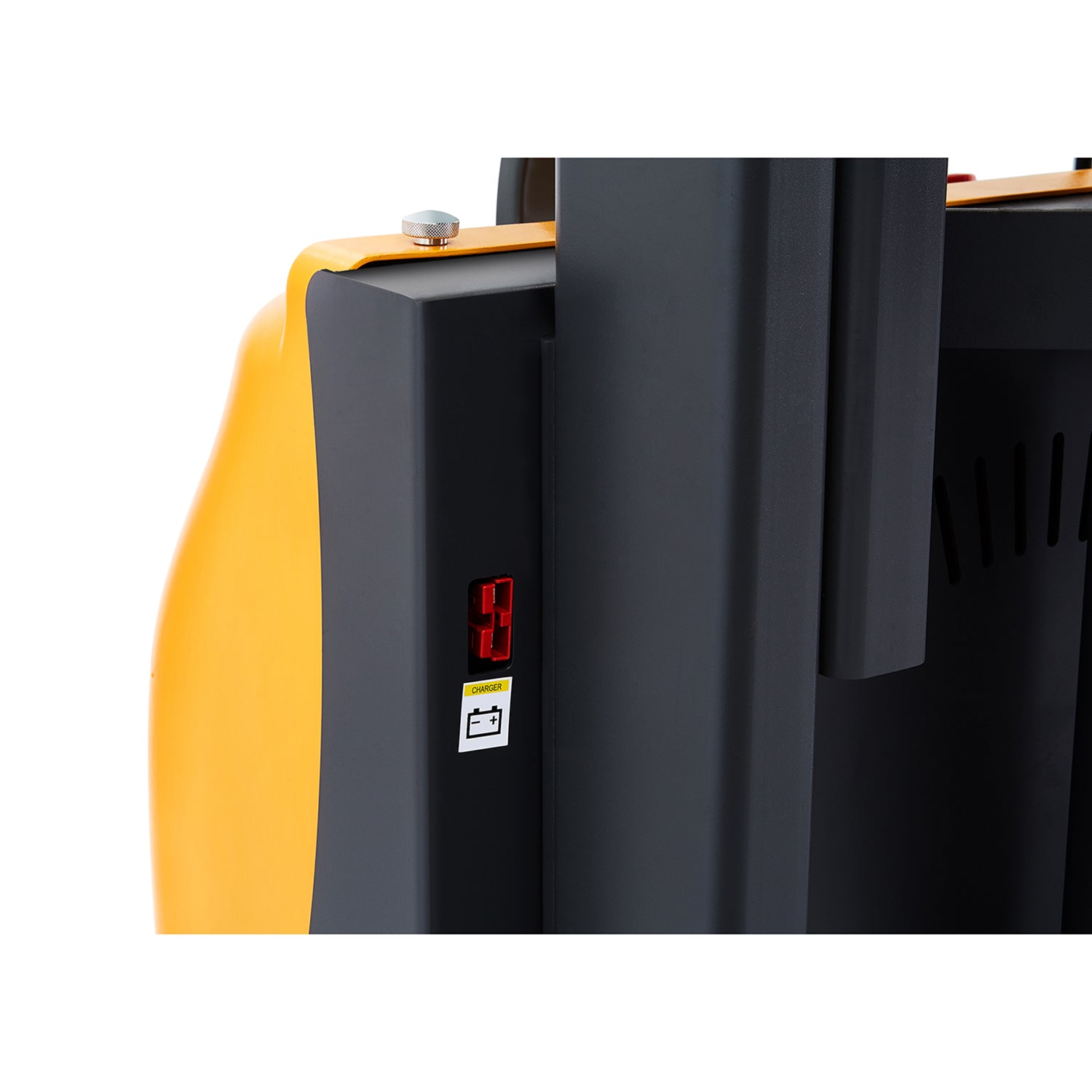

Simple semi-electric routine: Powered lifting with straightforward battery setup for small crews. battery spec 12V/120Ah

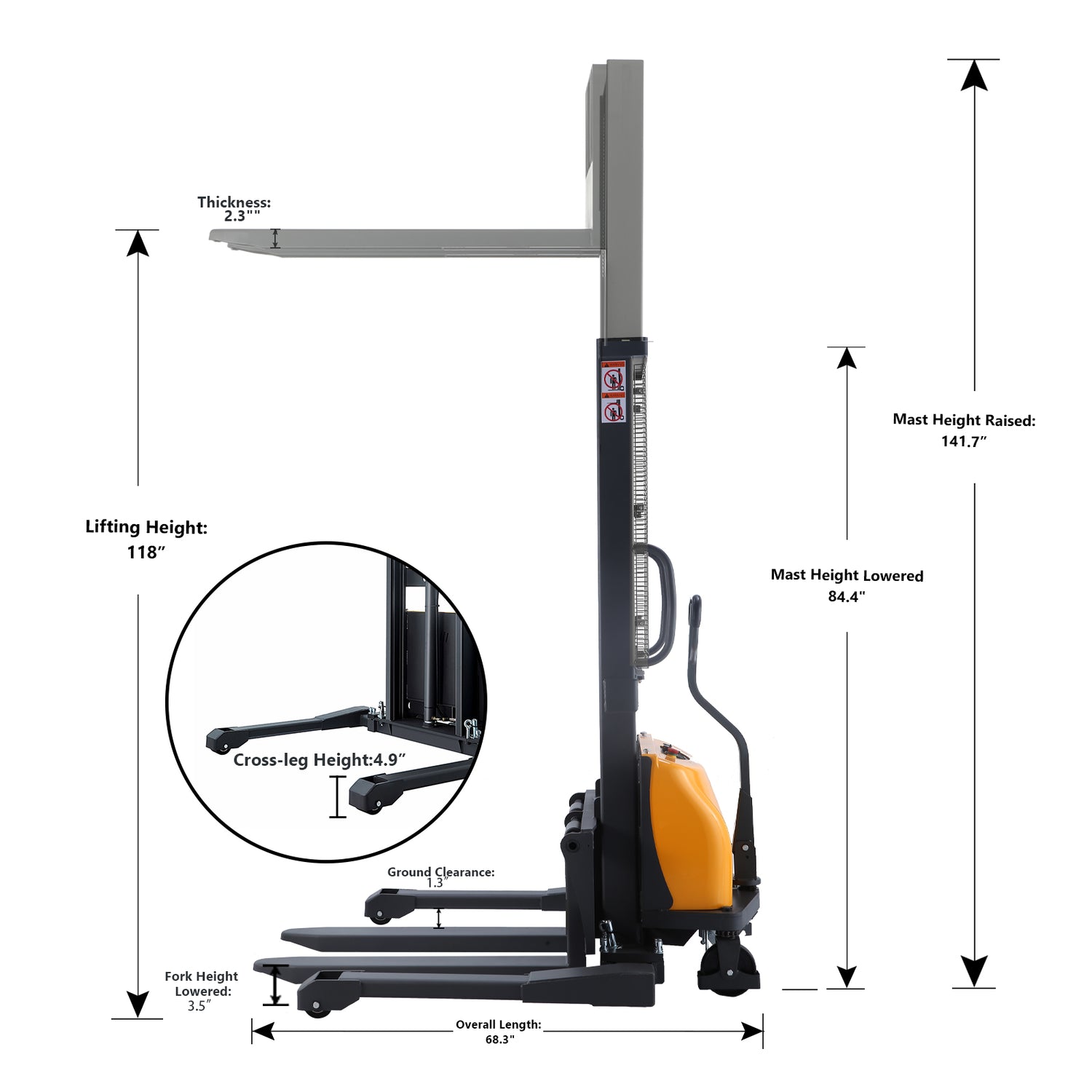

Specifications

  • Capacity
    2200 lbs.
  • Aisle Width
    94.1"
  • Max.Lifting Height
    118"

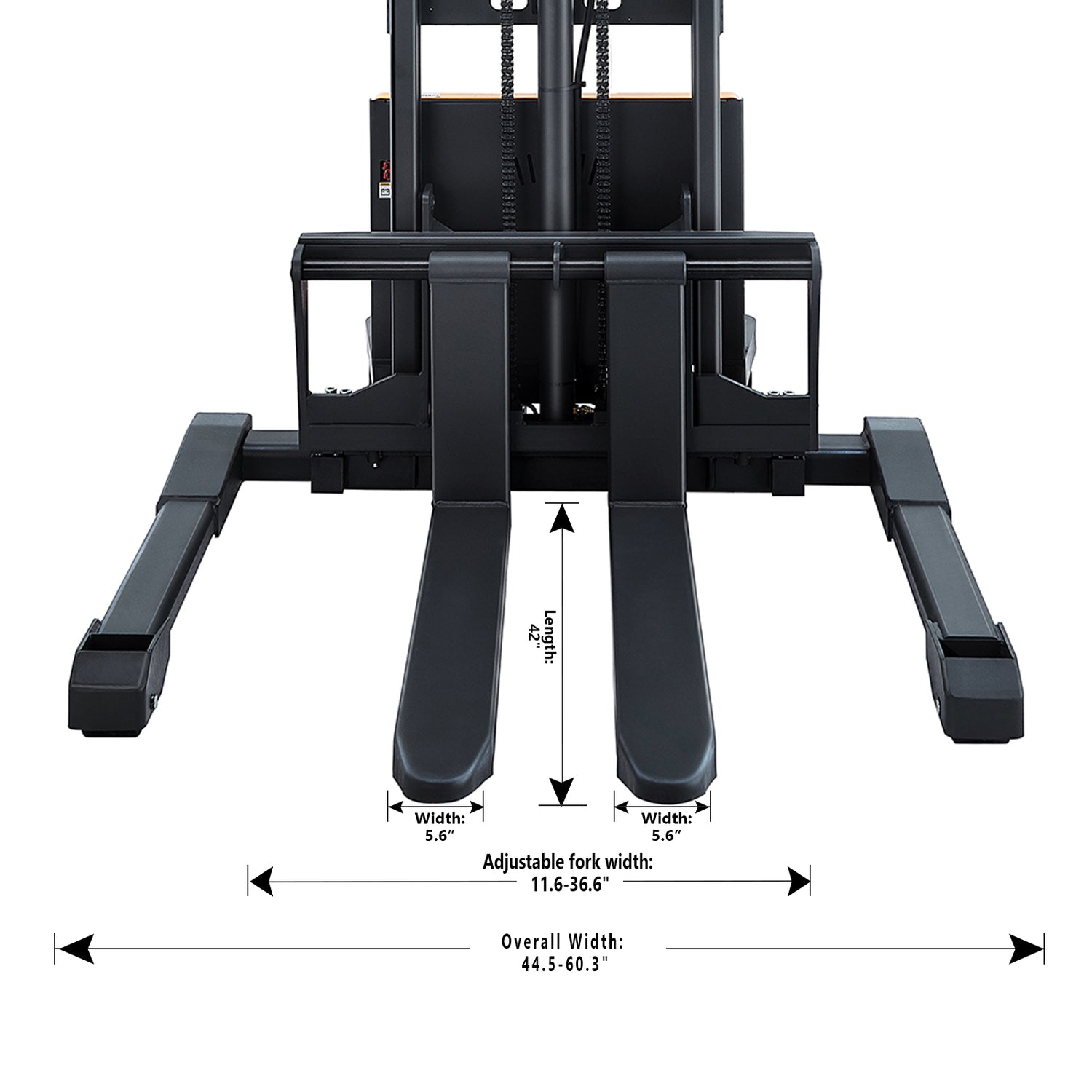

  • Inside Distance Between Forks
    0.4-25.4"
  • Fork Length
    42"
  • Fork Overall Width
    11.6-36.6"
  • Single Fork Width
    5.6"
  • Compatible Pallet Types
    All
  • Overall Height
    84.4-141.7"
  • Overall Length
    68.3"
  • Overall Width
    45.4-60"
  • Lifting Speed/Empty
    3.9 inch/s
  • Lifting Speed/Loaded
    2.7 inch/s
  • Support Leg Type
    Straddle
  • Total Wheel Count
    4
  • Turning Radius
    56.1"
  • Mast Lowered Height
    84.4"
  • Mast Extended Height
    141.7"
  • Load Centre Distance
    19.7"
  • Battery Capacity
    120AH
  • Battery Spec
    12V/120AH
  • Battery Voltage
    12V
  • Fork Thickness
    2.4"
  • Fork Lowered Height
    3.2"
  • Lowering Speed/Empty
    5.9 inch/s
  • Lowering Speed/Loaded
    4.7 inch/s
  • Service Weight
    1092 lbs.
  • Charger
    12V/15A built-out

⚠️ Notice:

  • Support legs require installation before use. Installation Video: https://youtu.be/KGJedUKFqWI
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Warranty

1-Year Limited Warranty from the delivery date:

  • 0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
  • 30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
  • After 1 Year: Free tech support; parts/labor/shipping billed.
  • Special:
    Accessories: 6 months
    Batteries: 12 months
  • Exclusions: Wear, misuse, consumables
  • Battery: Charge monthly when idle
  • View the full warranty policy here: https://apolloliftus.com/pages/warranty

Product Comparison

Semi-Electric Straddle Stacker| 2200 lbs. | 98" or 118" Lifting Height| 12V/120AH| Straddle-Leg
Semi-Electric Straddle Stacker| 3300 lbs.| 98" or 118" Lifting Height| Straddle- Leg| 12V/100AH
Semi-Electric Stacker| 3300 lbs.| 118" Lifting Height| Fixed-Leg| A-3016
Max.Lifting Height
Max.Lifting Height
118"
98"
118"
Support Leg Type
Support Leg Type
Straddle
Straddle
Fixed
Single Fork Width
Single Fork Width
5.6"
5.6"
5.6"
Charger
Charger
12V/15A built-out
12V/10A built-in
12V/10A built-in
Compatible Pallet Types
Compatible Pallet Types
All
All
Open Bottom

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
