1 8
12V/100AH
12V/100AH
Battery
3300 lbs.
3300 lbs.
Capacity
All
All
Compatible Pallet Types
118"
118"
Max Lift Ht.

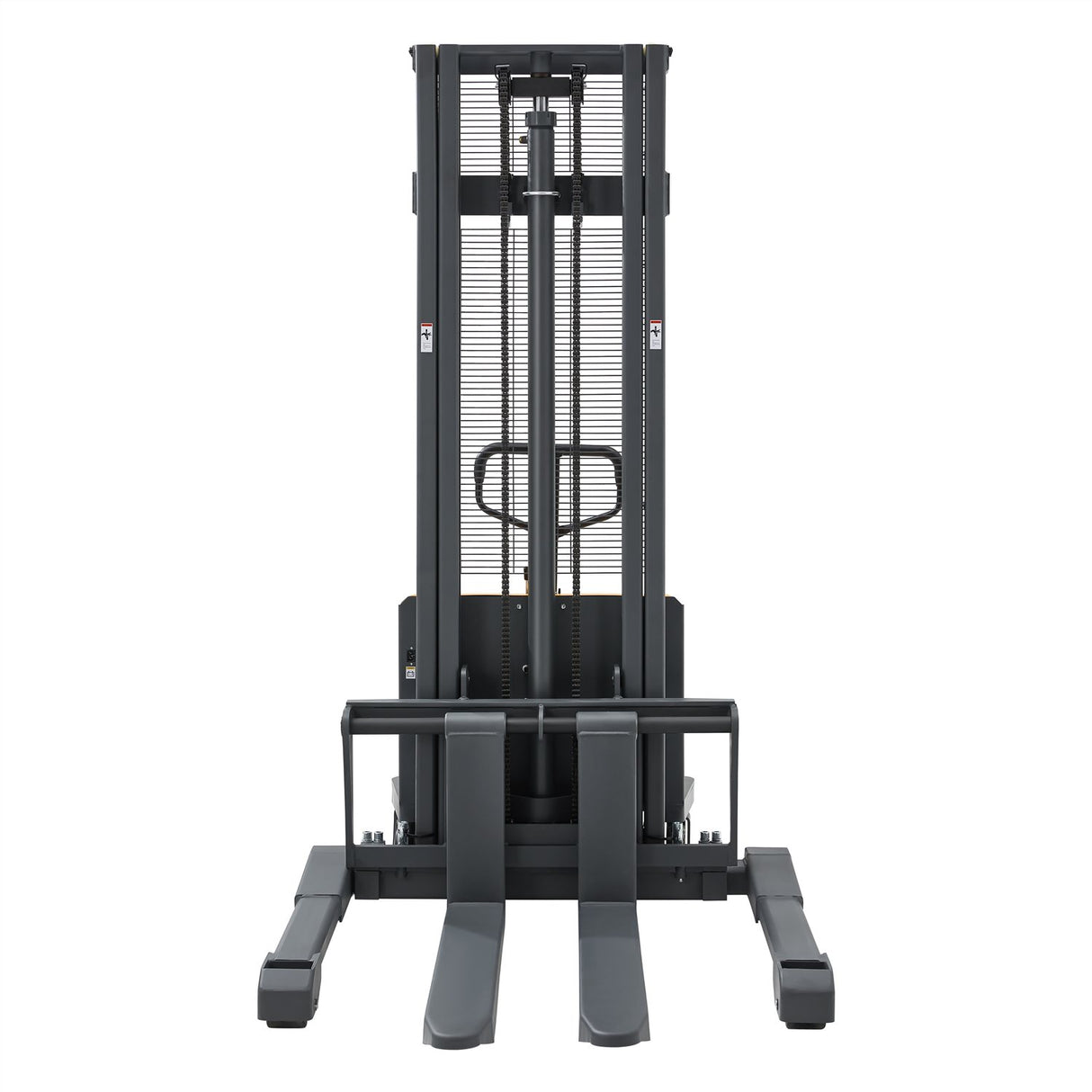

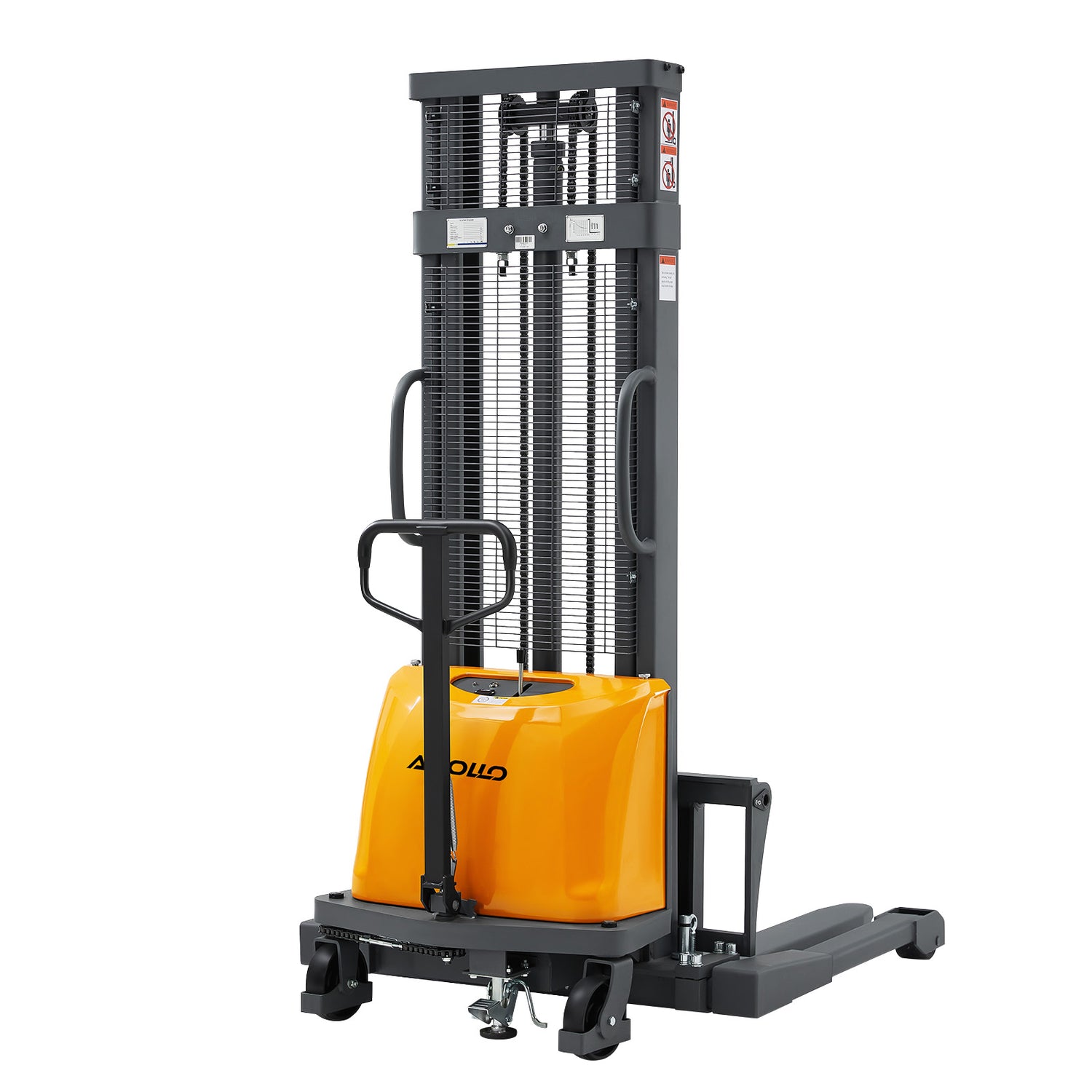

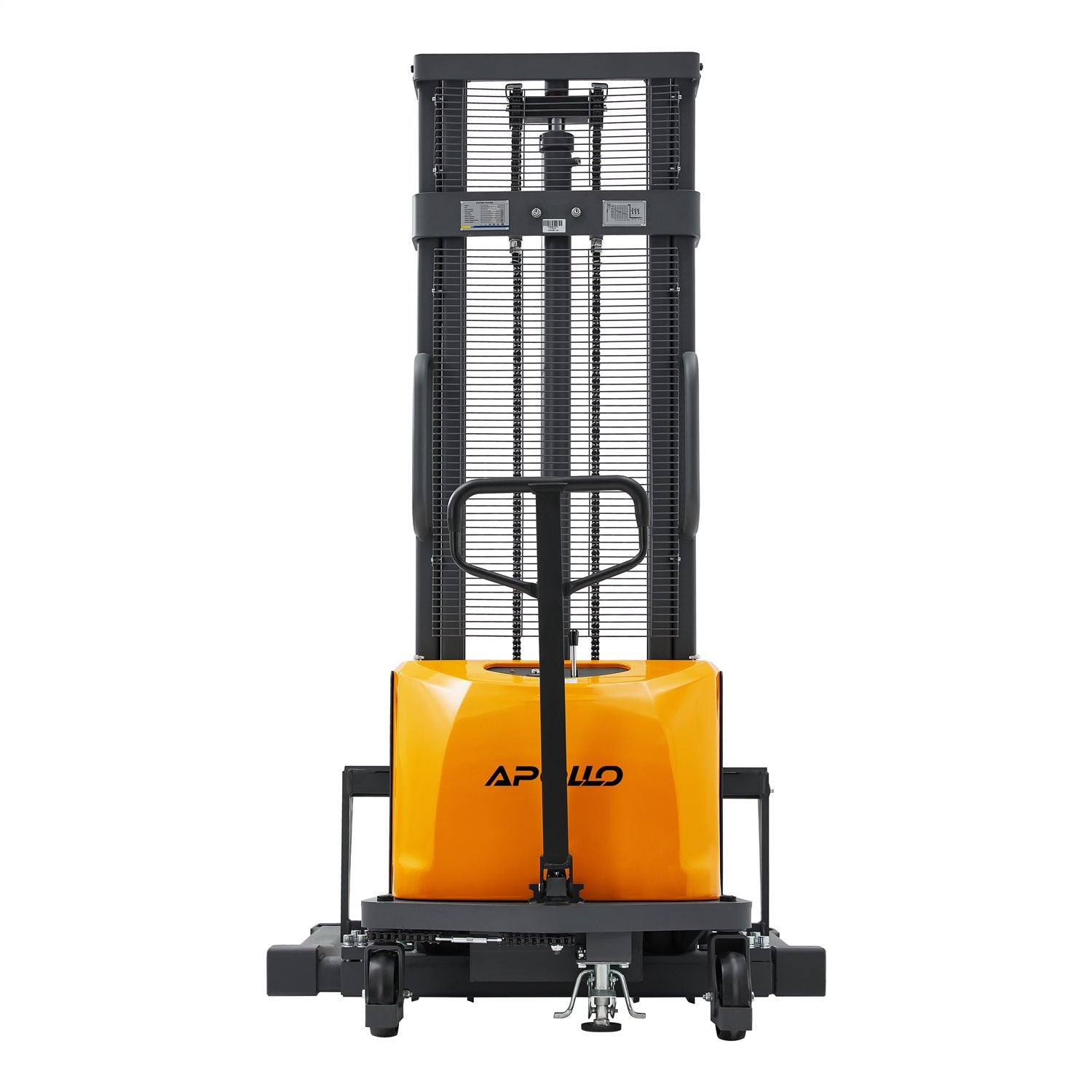

APOLLOLIFT  |  SKU: A-3012

Semi-Electric Straddle Stacker| 3300 lbs.| 98" or 118" Lifting Height| Straddle- Leg| 12V/100AH

$3,790.00
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

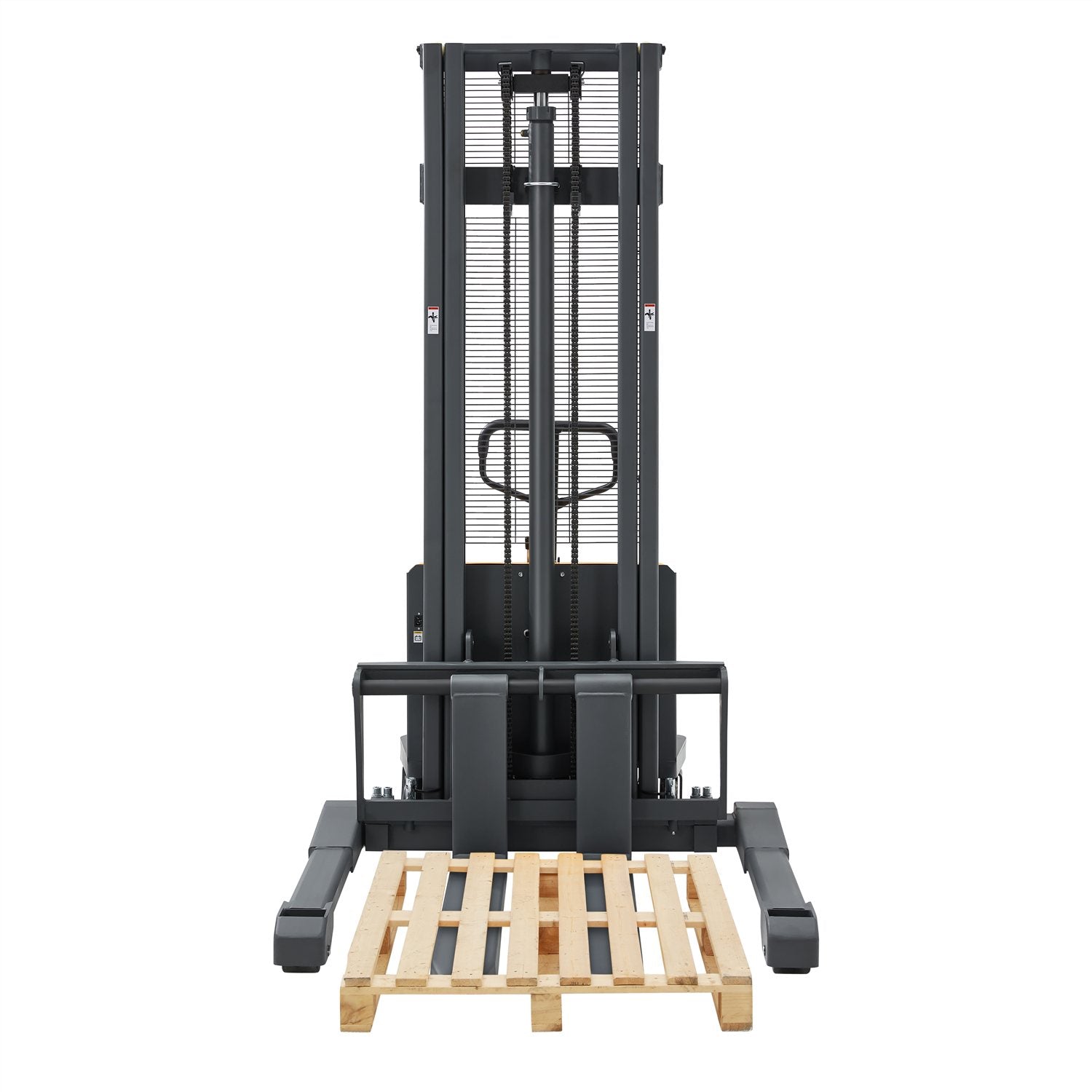

High-Power Electric Stacker with Straddle Leg Design

Powered by a 1.5 kW motor and 12V/100Ah battery, this straddle-leg stacker offers adjustable forks, speed-controlled lifting, and comprehensive safety protection for hard, flat floors.

Heavy-capacity, standard-height workhorse: The “main unit” choice for warehouses that handle heavier pallets daily. capacity 3300 lbs, max lift height 118", mast lowered height 84.6"

Closed-deck safe default for real-world pallet variety: Straddle design reduces the chance of buying the wrong leg style. support leg type Straddle, compatible pallet types All

Lead-acid battery for familiar ownership: Fits common charging routines and is easy for most teams to manage. battery type Lead-acid Battery, battery spec 12V/100Ah, charging time 8–10 hours

Better for frequent, heavier stacking cycles: A strong choice when this machine will run every day. capacity 3300 lbs

Comfortable fit for standard warehouse lanes: Designed to work in common aisle widths without needing oversized space. aisle width 90.1"

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    90.1"
  • Max.Lifting Height
    118"

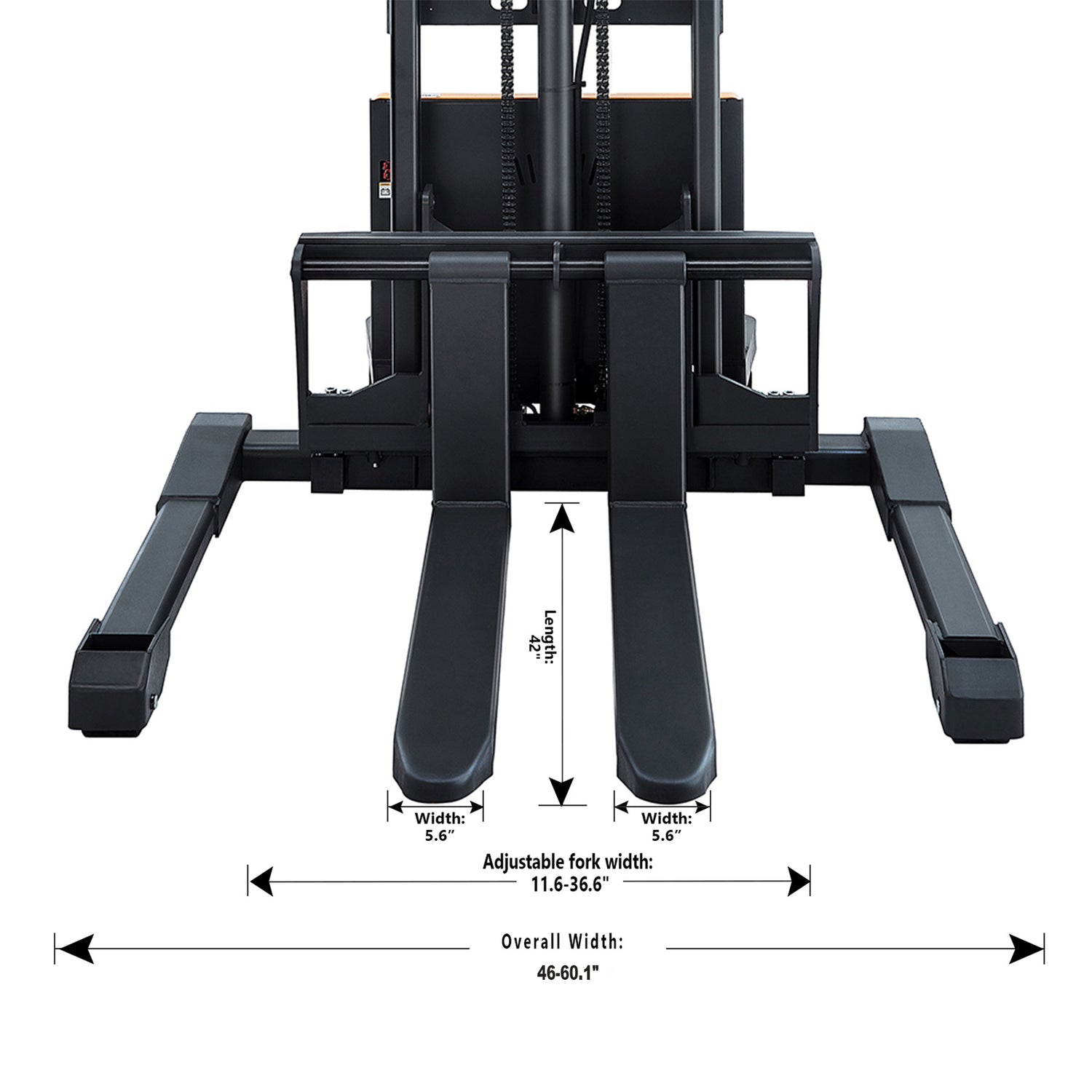

  • Inside Distance Between Forks
    0.4-25.4"
  • Fork Length
    42"
  • Fork Overall Width
    11.6-36.6"
  • Single Fork Width
    5.6"
  • Compatible Pallet Types
    All

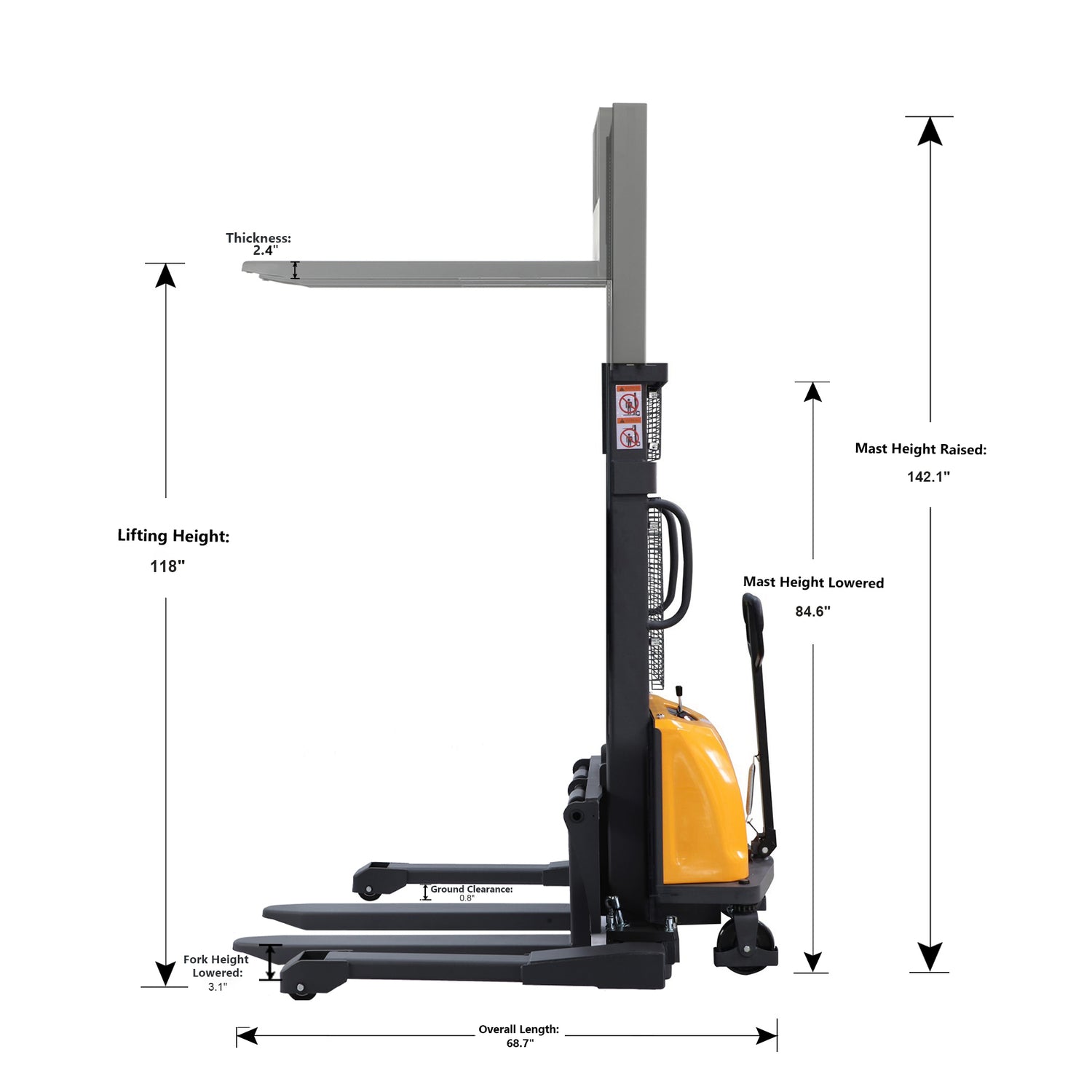

  • Overall Height
    84.6-142.1"
  • Overall Length
    68.7"
  • Overall Width
    46.0-60.1"
  • Lifting Speed/Empty
    3.1 inch/s
  • Lifting Speed/Loaded
    2 inch/s
  • Support Leg Type
    Straddle
  • Total Wheel Count
    4
  • Turning Radius
    56.1"
  • Mast Lowered Height
    84.6"
  • Mast Extended Height
    142.1"
  • Load Centre Distance
    19.7"
  • Battery Capacity
    100AH
  • Battery Spec
    12V/100AH
  • Battery Voltage
    12V
  • Battery Type
    Lead-acid Battery
  • Fork Thickness
    2.4"
  • Fork Lowered Height
    3.1"
  • Lowering Speed/Empty
    3.9 inch/s
  • Lowering Speed/Loaded
    3.5 inch/s
  • Service Weight
    1172 lbs.
  • Gross Weight
    1190 lbs.
  • Charger
    12V/10A built-in
  • Charging Time
    8-10 Hours
  • Continuous Working Time
    8-10 Hours
  • Package Size
    47"x34"x90"

⚠️ Notice:

  • Support legs require installation before use. Installation Video: https://youtu.be/KGJedUKFqWI
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Warranty

1-Year Limited Warranty from the delivery date:

  • 0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
  • 30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
  • After 1 Year: Free tech support; parts/labor/shipping billed.
  • Special:
    Accessories: 6 months
    Batteries: 12 months
  • Exclusions: Wear, misuse, consumables
  • Battery: Charge monthly when idle
  • View the full warranty policy here: https://apolloliftus.com/pages/warranty

Product comparison

Semi-Electric Straddle Stacker| 3300 lbs.| 98" or 118" Lifting Height| Straddle- Leg| 12V/100AH
Semi-Electric Straddle Stacker| 3300 lbs.| 98" or 118" Lifting Height| Straddle- Leg| 12V/100AH
Semi-Electric Stacker| 3300 lbs.| 118" Lifting Height| Fixed-Leg| A-3016
Max.Lifting Height
Max.Lifting Height
118"
98"
118"
Support Leg Type
Support Leg Type
Straddle
Straddle
Fixed
Charger
Charger
12V/10A built-in
12V/10A built-in
12V/10A built-in
Compatible Pallet Types
Compatible Pallet Types
All
All
Open Bottom

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
