1 10
3300 lbs.
3300 lbs.
Capacity
48" x 27"
48" x 27"
Fork Size
487 lbs.
487 lbs.
Service Weight
2.67 mph/2.98 mph
2.67 mph/2.98 mph
Speed (Laden/UL)
APOLLOLIFT  |  SKU: A-102901

Electric Walkie Pallet Truck| 3300 lb| 48"x27" Forks| A-1029

$1,939.00
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Built for Tight Spaces, Engineered for Long-Term Reliability

Designed for flat, hard floors, this compact truck features turtle-mode control, overload protection, high-mounted drive wheels, and a durable hydraulic system for safe, stable daily transport.

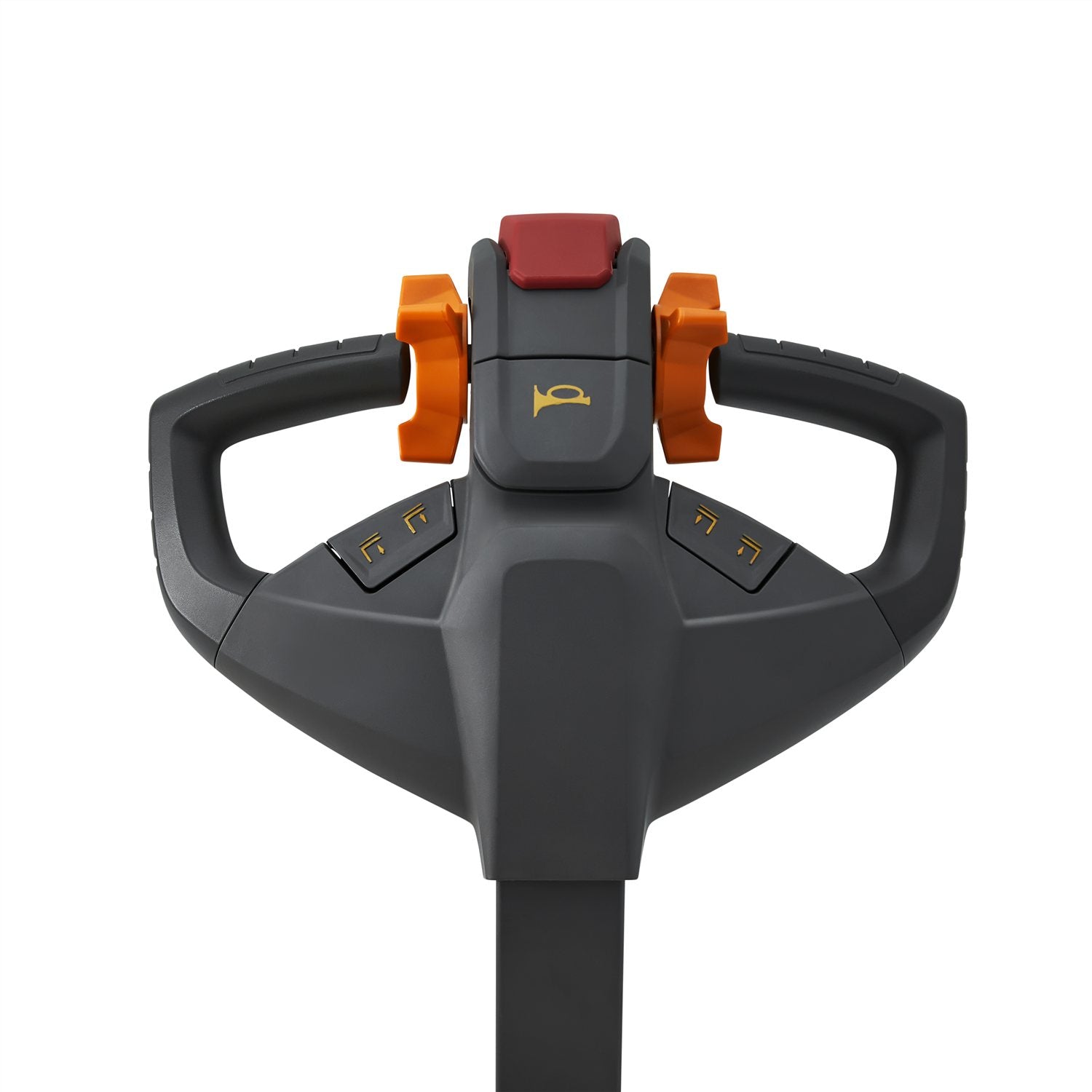

  • Compact Maneuverability: Small turning radius combined with a turtle-mode upright movement ensures flexible operation in confined spaces, improving efficiency and safety.
  • Comprehensive Safety Features: Integrated protections such as lifting overload protection, emergency power-off, emergency reverse via the belly switch, and height limits work together to ensure operator safety.

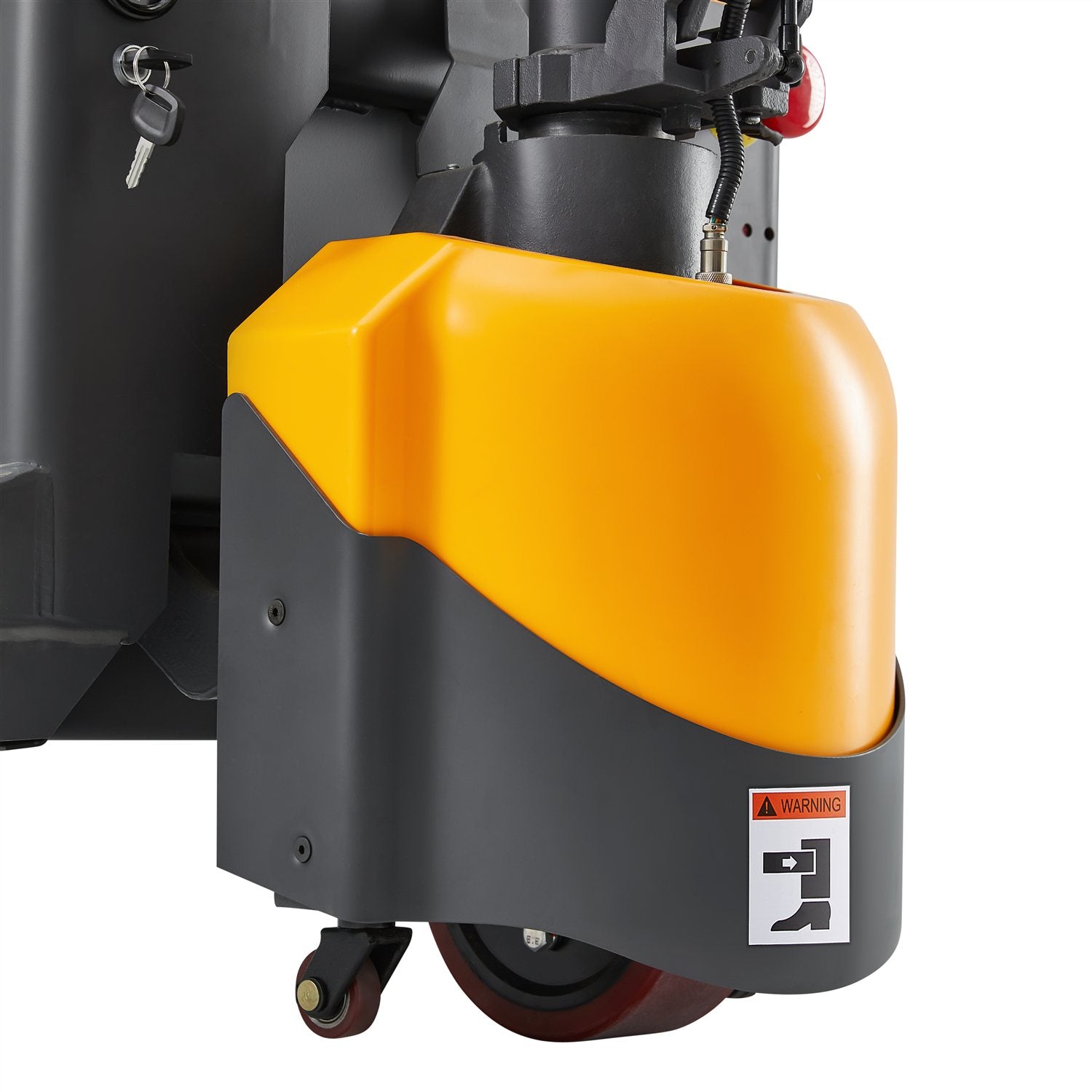

  • High-Mounted Drive Wheels: The elevated position of the drive wheels keeps the motor away from ground contaminants like water, dust, and oil, thereby extending its service life.
  • Enhanced Stability: A floating balance wheel minimizes lateral sway during operation, ensuring smooth and stable movement.
  • Durable Hydraulic System: A large-diameter plunger cylinder operates at low pressure, resulting in reduced failure rates and a longer lifespan for the system.
  • To prolong battery life and ensure proper function, charge once a month when not in use.
  • The kind of truck is applicable for goods transportation on hard and flat floor.

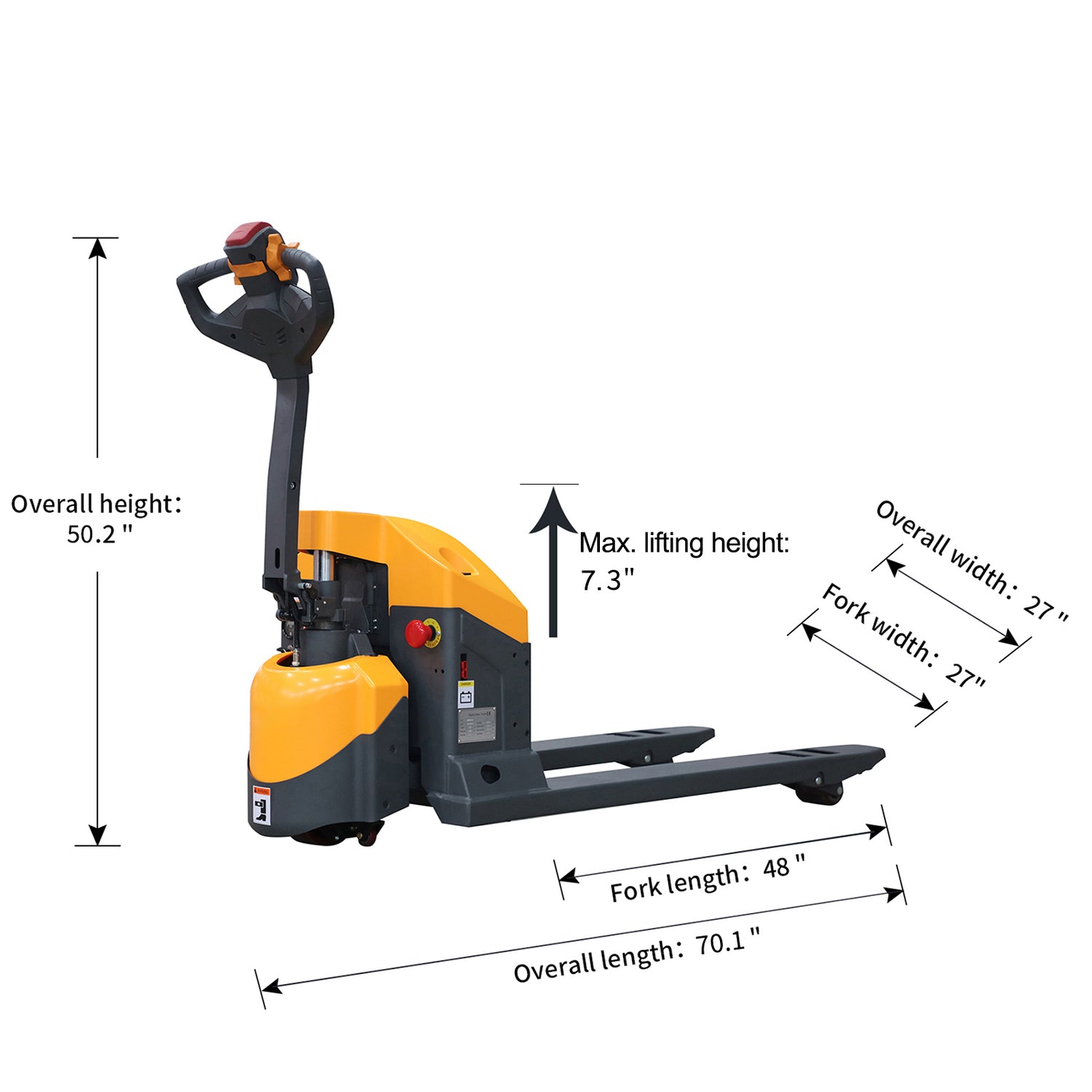

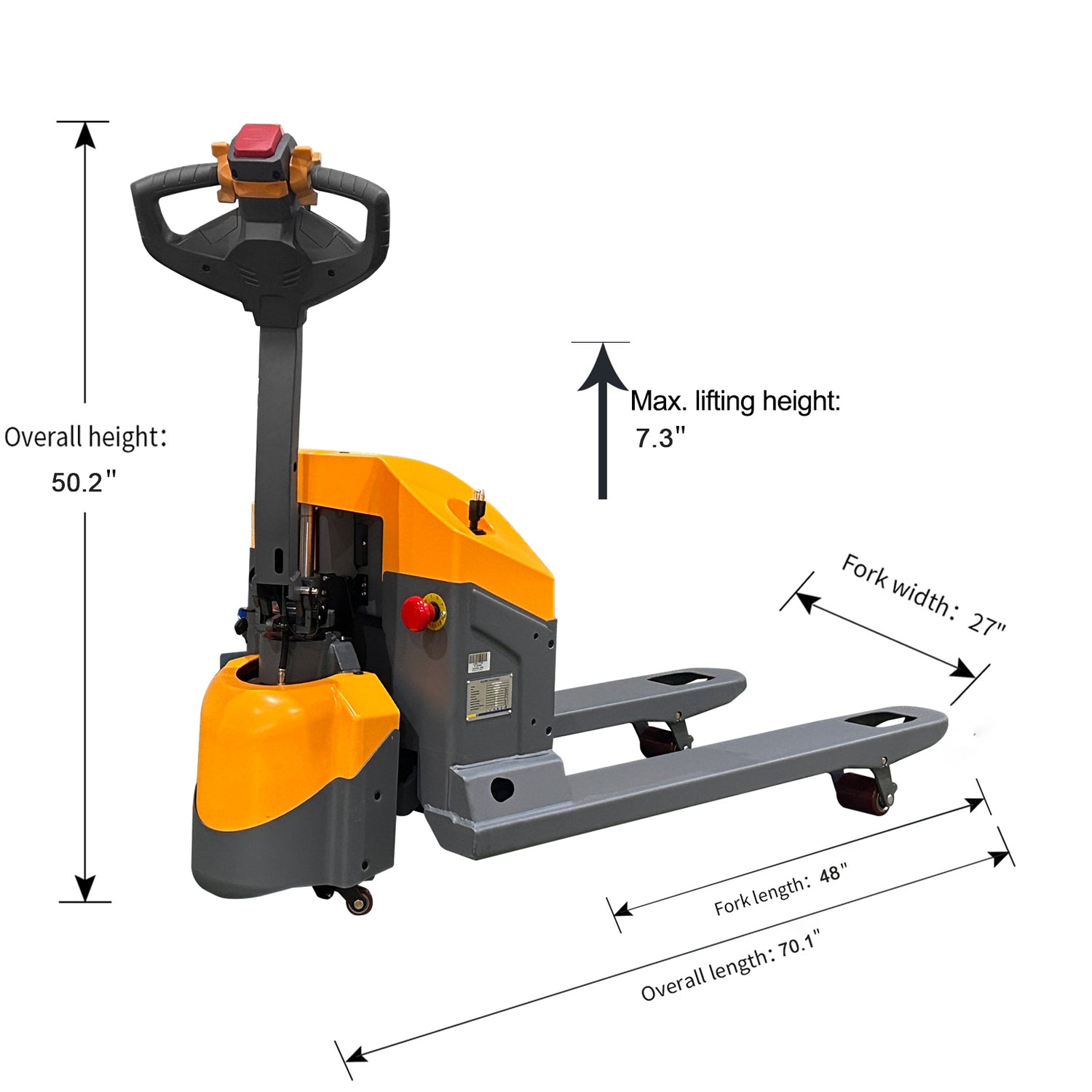

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    93.1"
  • Max.Lifting Height
    7.3"
  • Inside Distance Between Forks
    14.4"
  • Fork Length
    48"
  • Fork Overall Width
    27"
  • Single Fork Width
    6.3"
  • Overall Height
    50.2"
  • Overall Length
    70.1"
  • Overall Width
    27"
  • Driving Speed-Unladen
    2.98 mph
  • Driving Speed-Laden
    2.67 mph
  • Lifting Speed/Empty
    1.2 inch/s
  • Lifting Speed/Loaded
    1 inch/s
  • Gradeability/Empty
    5 %
  • Gradeability/Loaded
    20 %
  • Total Wheel Count
    5
  • Turning Radius
    60"
  • Lifting Distance
    4.3"
  • Battery Capacity
    65AH
  • Battery Spec
    24V/65AH
  • Battery Voltage
    24V
  • Battery Type
    GEL battery
  • Fork Thickness
    2.1"
  • Stabilizer Wheel
    YES
  • Fork Lowered Height
    3"
  • Lowering Speed/Empty
    1.4 inch/s
  • Lowering Speed/Loaded
    1 inch/s
  • Service Weight
    487 lbs.
  • Gross Weight
    500 lbs.
  • Brake Type
    Electromagnetic

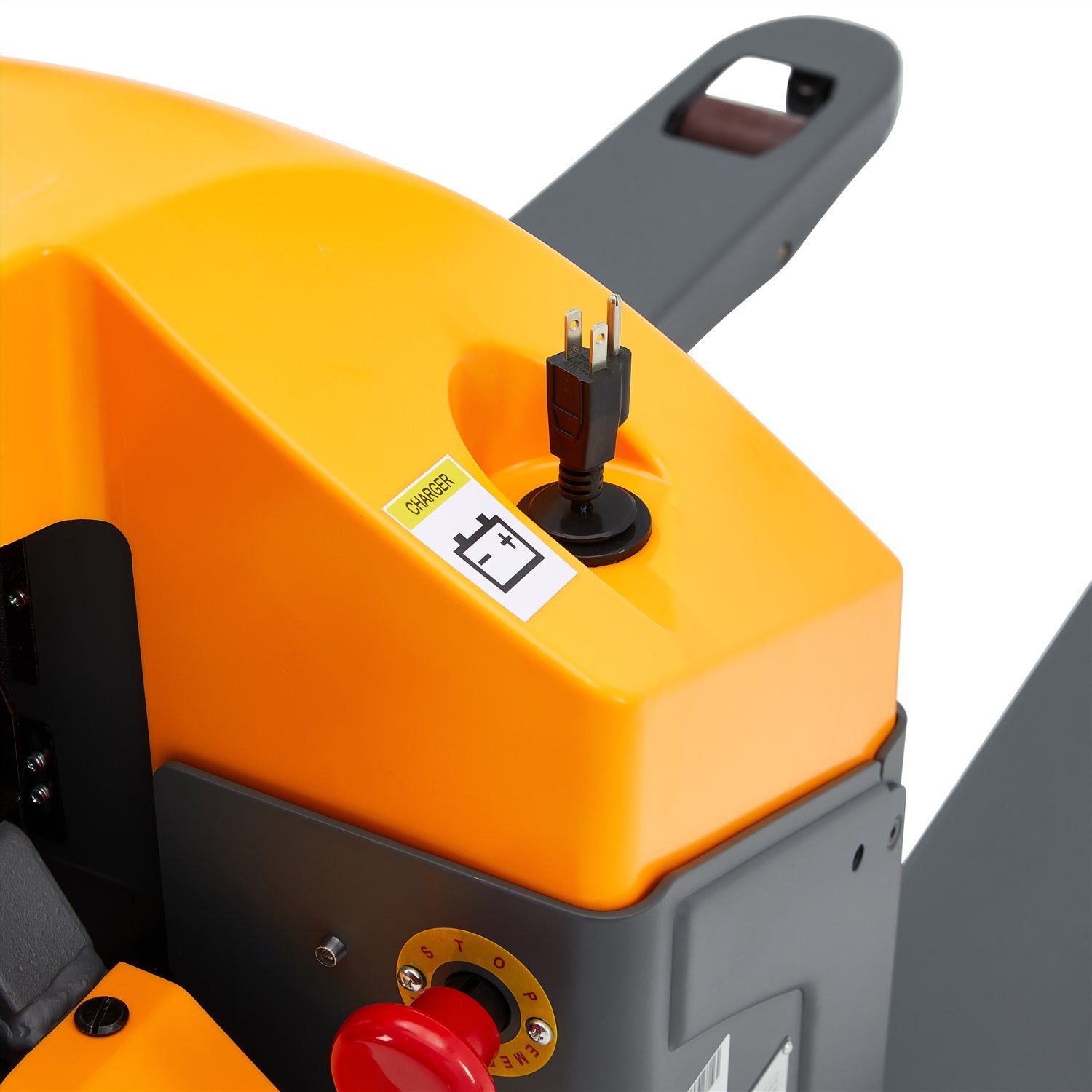

  • Charger
    24/8A built-in
  • Charging Time
    6-8 Hours
  • Continuous Working Time
    3-5 Hours
  • Package Size
    68"x27"x32"
  • With Lcd Panel
    No

⚠️ Notice:

  • Handle Self-Installation Required
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Warranty

1-Year Limited Warranty from the delivery date:

  • 0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
  • 30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
  • After 1 Year: Free tech support; parts/labor/shipping billed.
  • Special:
    Accessories: 6 months
    Batteries: 12 months
  • Exclusions: Wear, misuse, consumables
  • Battery: Charge monthly when idle
  • View the full warranty policy here: https://apolloliftus.com/pages/warranty

Product comparison

Electric Walkie Pallet Truck| 3300 lb| 48"x27" Forks| A-1029
Li-ion Powered Pallet Truck| 3300 lb| 48"x27" Forks| Apollolift A-1034
Li-ion Powered Pallet Truck| 3300 lb or 4400 lb| 48"x27" Forks
Electric Walkie Pallet Truck| 3300 lb or 4400 lb| 48"x27" Forks
Capacity
Capacity
3300 lbs.
3300 lbs.
3300 lbs.
4400 lbs.
Turning Radius
Turning Radius
60"
57.1"
55.7"
59.5"
Battery Spec
Battery Spec
24V/65AH
24V/20AH
24V/20AH
24V/105AH
Charger
Charger
24/8A built-in
24V/10A built-in
With LCD Panel
With LCD Panel
No
No
Yes
No
Brake Type
Brake Type
Electromagnetic
Electromagnetic
Electric brake
Stabilizer Wheel
Stabilizer Wheel
YES
NO
YES

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.
