Memorial Day Sale: Save 2% on Electric Pallet Jacks!

1 7
440 lbs.
440 lbs.
Capacity
Open Bottom Pallet
Open Bottom Pallet
Compatible Pallet Types
35.4"
35.4"
Max Lift Ht.
2.9"
2.9"
Single Fork Size
APOLLOLIFT  |  SKU: A-7003

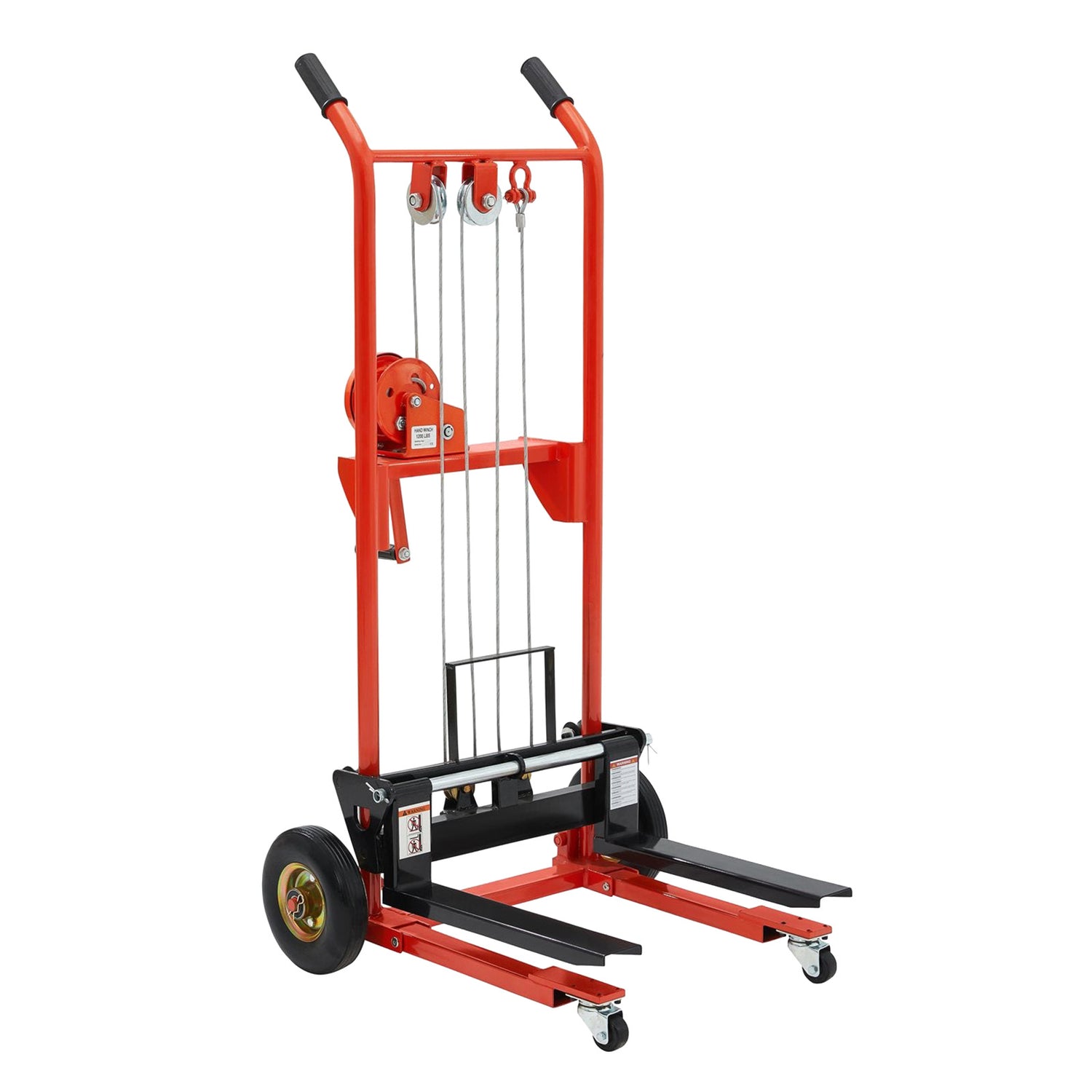

Manual Stacker A-7003

$270.00
  • Capacity: 440 lbs.
  • Max.Lifting Height: 35.4"
  • Support Leg Type: Fixed
  • Mast Lowered Height: 49"
Powered by Affirm
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Forklift-like precision for tight backrooms with controlled maneuvering, Steering Type: Manual Crank.

No charging, no battery upkeep for simple daily use, Power preference: Manual.

Light-duty lifting for quick staging and bench-height tasks, Capacity: 440 lbs, Max. Lifting Height: 35.4".

Clearance-friendly storage and doorway planning, Mast Lowered Height: 49.0".

Adjusts to different small pallet/tote widths for a better fit, Fork Overall Width: 5.8–20.3", Fork Length: 18.1".

Specifications

  • Capacity
    440 lbs.
  • Max.Lifting Height
    35.4"
  • Inside Distance Between Forks
    0.5-14.6"
  • Fork Length
    18.1"
  • Fork Overall Width
    5.8-20.3"
  • Single Fork Width
    2.9"
  • Compatible Pallet Types
    Open Bottom
  • Overall Height
    49"
  • Overall Length
    33.5"
  • Overall Width
    28.3"
  • Support Leg Type
    Fixed
  • Load Wheel Type
    Single Wheel
  • Total Wheel Count
    4
  • Mast Lowered Height
    49"
  • Mast Extended Height
    49"
  • Fork Thickness
    1.2"
  • Steering Type
    Manual Crank
  • Fork Lowered Height
    2.8"
  • Service Weight
    90 lbs.
  • Gross Weight
    99 lbs.
  • Package Size
    49"x29"x9"

Manual Stacker

Cost-Effective Option for Occasional Lifting

Manual stackers provide a low-cost solution for light, infrequent lifting applications.

  • Manual lift operation
  • Designed for limited daily stacking
  • Budget-friendly alternative to powered units
Best Fit
Small workshops, maintenance areas, and light rack loading.
When to Upgrade:
If lifting becomes part of daily operations, a powered stacker will greatly improve efficiency.

⚠️Notice:

  • Fix leg is incompatible with US standard pallets and is designed exclusively for open bottom pallet

Product Comparison
Manual Stacker A-7003
$270.00
Mini Hydraulic Stacker Truck A-7004
$280.00
Capacity (lb)
Capacity (lb)
440 lbs.
440 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
35.4"
35.8"
Max Fork Height (in)
Max Fork Height (in)
2.8"
1.6"
Service Weight (lb)
Service Weight (lb)
90 lbs.
90 lbs.
Fork Size (in)
Fork Size (in)
18.1" x 5.8-20.3"
18.5" x 5.6-19.9"
Lowered Mast Height (in)
Lowered Mast Height (in)
49"
47.6"
Leg Type
Leg Type
Fixed
Fixed
Compatible Pallets
Compatible Pallets
Open Bottom
Open Bottom
Adjustable Forks
Adjustable Forks
Yes
Mast Stages
Mast Stages
1 Stage
Fork Length (in)
Fork Length (in)
18.1"
18.5"
Fork Overall Width (in)
Fork Overall Width (in)
5.8-20.3"
5.6-19.9"
Single Fork Width (in)
Single Fork Width (in)
2.9"
2.9"
Fork Thickness (in)
Fork Thickness (in)
1.2"
1.2"
Fork Lowered Height (in)
Fork Lowered Height (in)
2.8"
1.6"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.5-14.6"
0.5-14.6"
Wheel Type
Wheel Type
Single Wheel
Single Wheel
Overall Length (in)
Overall Length (in)
33.5"
33.5"
Overall Width (in)
Overall Width (in)
28.3"
28.3"
Overall Height (in)
Overall Height (in)
49"
47.6"
Turtle Speed Mode
Turtle Speed Mode
No

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
