78.6"
78.6"
Aisle Width
1100 lbs.
1100 lbs.
Capacity
Open Bottom Pallet
Open Bottom Pallet
Compatible Pallet Types
63"
63"
Max Lift Ht.
APOLLOLIFT  |  SKU: A-3002

Manual Stacker| 1100 lb or 2200 lb| 63" Lifting Height| Fixed Legs

Sale price $1,269.00 Regular price $1,800.00
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

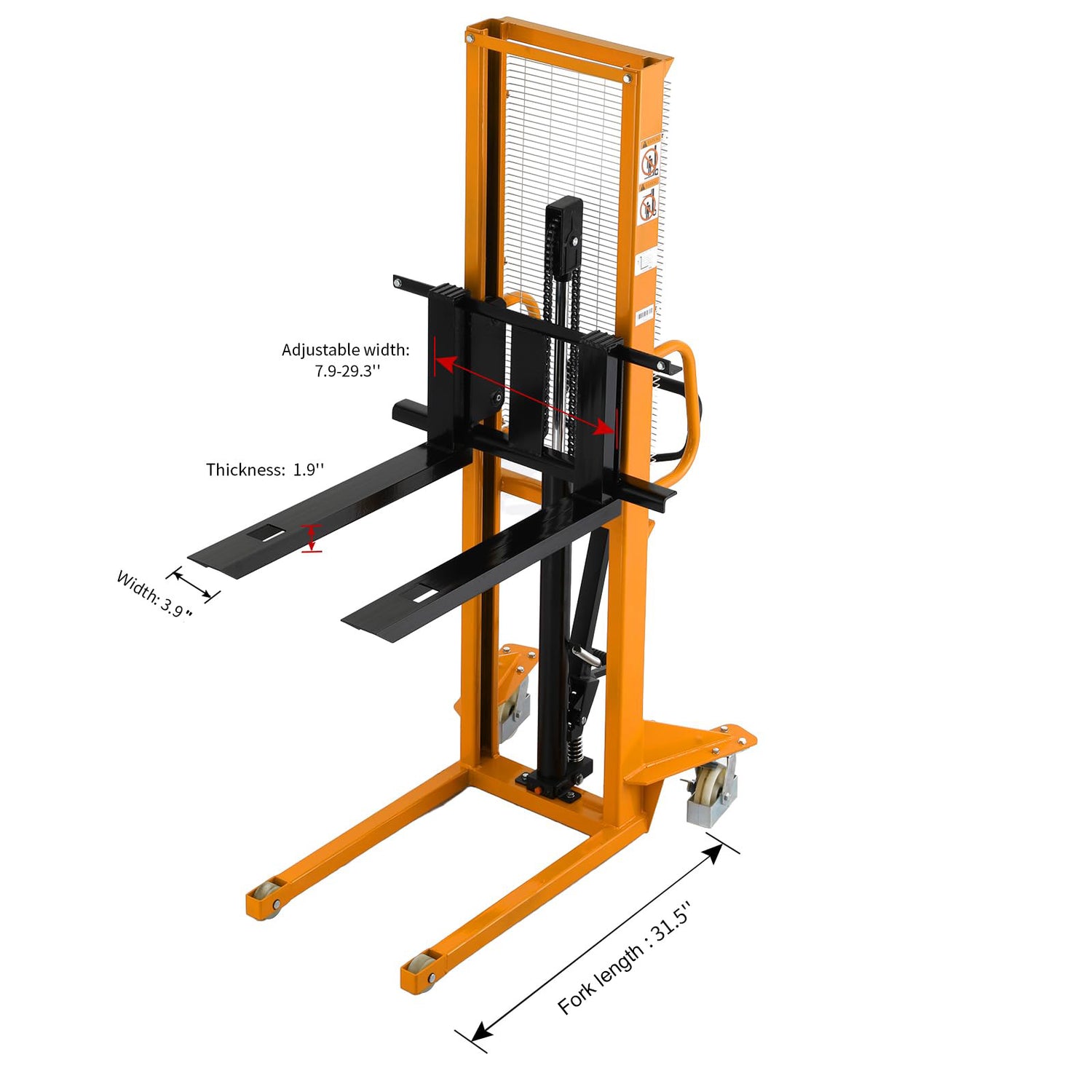

Adjustable Forks with Built-In Safety and Reliable Lifting

Featuring adjustable forks from 200–950 mm, protective safety guards, a durable steel mast, and dual lifting modes for efficient, reliable transport on hard, flat floors.

Compact everyday manual stacker for simple ownership with no charging routine, Power preference: Manual.

Adjustable fork width to fit different pallet footprints without extra equipment, Fork Overall Width: 7.9–29.3", Fork Length: 31.5".

Practical stacking height for standard warehouse work, Capacity: 1100 lbs, Max. Lifting Height: 63".

Doorway/clearance planning made easy for backroom workflows, Mast Lowered Height: 78.3", Aisle Width: 78.6".

Pallet-type note for safer buying—best fit is open-bottom pallets, Compatible Pallet Types: Open Bottom.

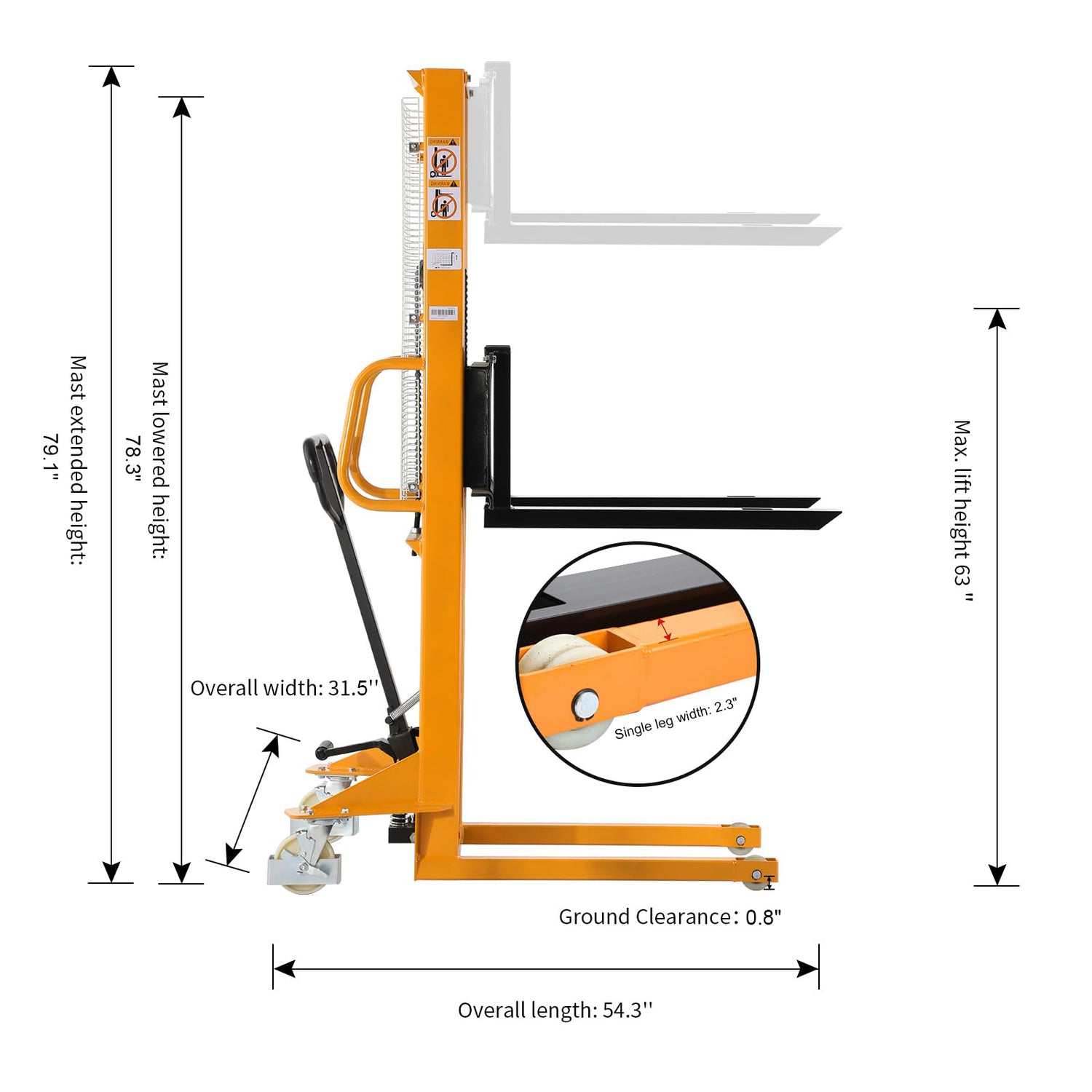

Specifications

  • Capacity
    1100 lbs.
  • Aisle Width
    78.6"
  • Max.Lifting Height
    63"
  • Inside Distance Between Forks
    0.4-21.5"
  • Fork Length
    31.5"
  • Fork Overall Width
    7.9-29.3"
  • Single Fork Width
    3.9"
  • Compatible Pallet Types
    Open Bottom
  • Overall Height
    78.3"
  • Overall Length
    54.3"
  • Overall Width
    31.5"
  • Support Leg Type
    Fixed

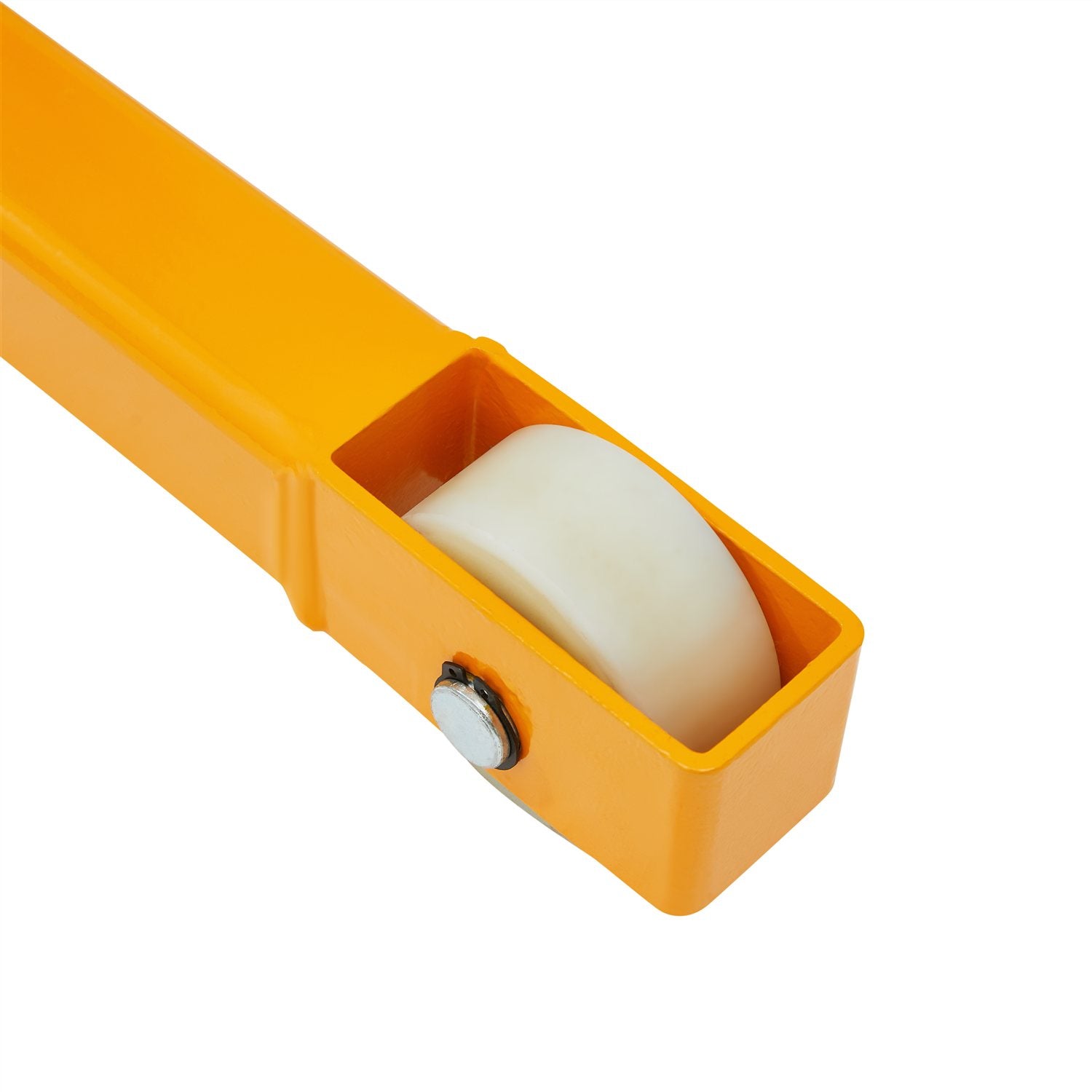

  • Load Wheel Type
    Single Wheel
  • Total Wheel Count
    4
  • Turning Radius
    46.4"
  • Mast Lowered Height
    78.3"
  • Mast Extended Height
    79.1"
  • Load Centre Distance
    19.7"
  • Fork Thickness
    1.9"
  • Fork Type
    Channel Steel Forks
  • Fork Lowered Height
    3.2"
  • Service Weight
    363 lbs.
  • Gross Weight
    373 lbs.
  • Package Size
    53"x32"x82"

⚠️Notice:

  • Fix leg is incompatible with US standard pallets and is designed exclusively for open bottom pallet

Warranty

1-Year Limited Warranty from the delivery date:

  • 0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
  • 30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
  • After 1 Year: Free tech support; parts/labor/shipping billed.
  • Special: Accessories: 6 months
  • Exclusions: Wear, misuse, consumables
  • View the full warranty policy here: https://apolloliftus.com/pages/warranty

Product comparison

A table comparing the facets of 4 products
Facet
Manual Stacker| 1100 lb or 2200 lb| 63" Lifting Height| Fixed Legs
Manual Straddle Stacker| 1100 lb or 2200 lb| 63" Lifting Height| Adjustable Forks
Manual Stacker| 1100 lb or 2200 lb| 63" Lifting Height| Fixed Legs
Manual Straddle Stackers| 1100 lb or 2200 lb| 63" Lifting Height| Adjustable Forks
Max.Lifting Height
Max.Lifting Height
63"
63"
63"
63"
Support Leg Type
Support Leg Type
Fixed
Straddle
Fixed
Straddle
Capacity
Capacity
1100 lbs.
1100 lbs.
2200 lbs.
2200 lbs.
Compatible Pallet Types
Compatible Pallet Types
Open Bottom
All
Open Bottom
All

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
