APOLLOLIFT  |  SKU: A-3002

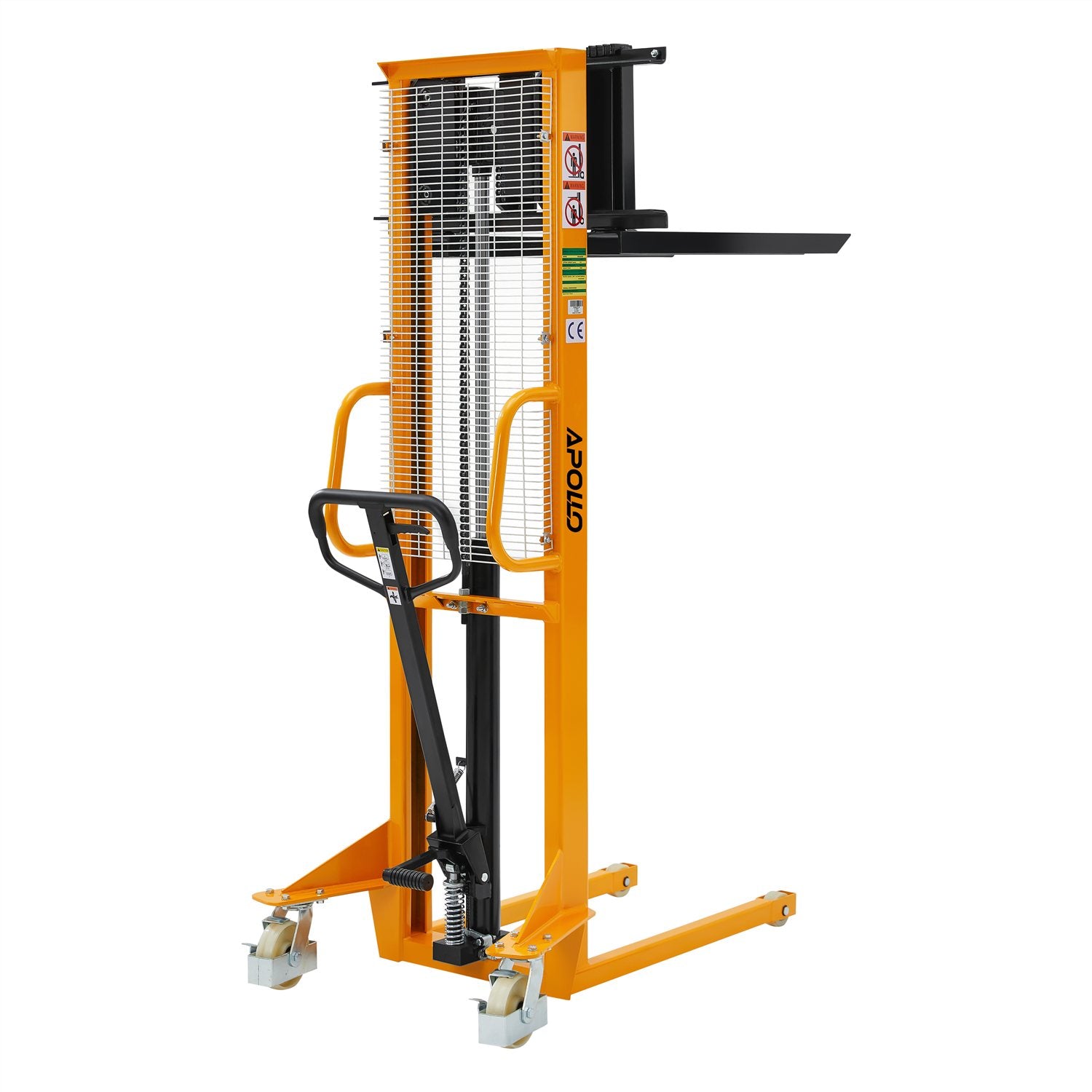

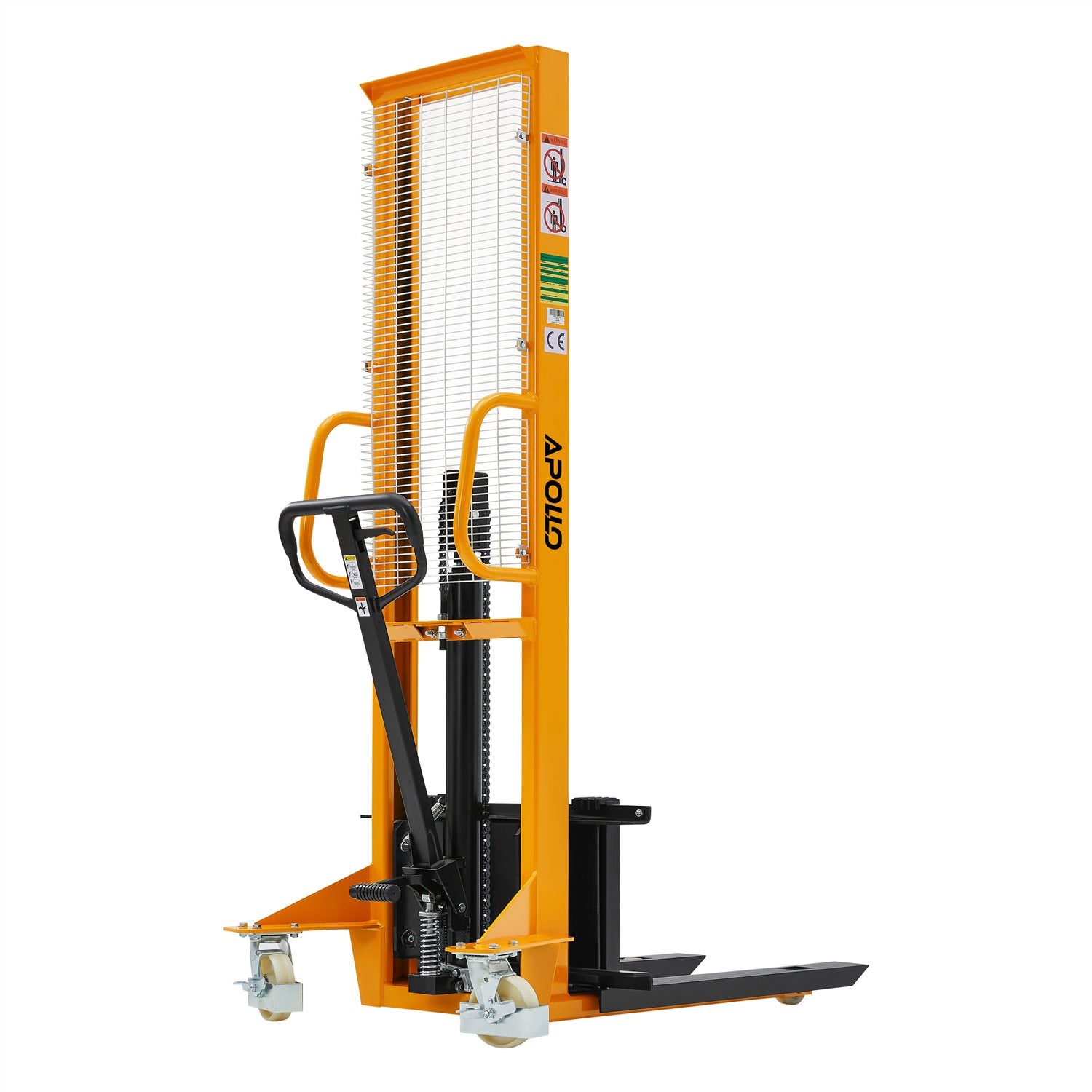

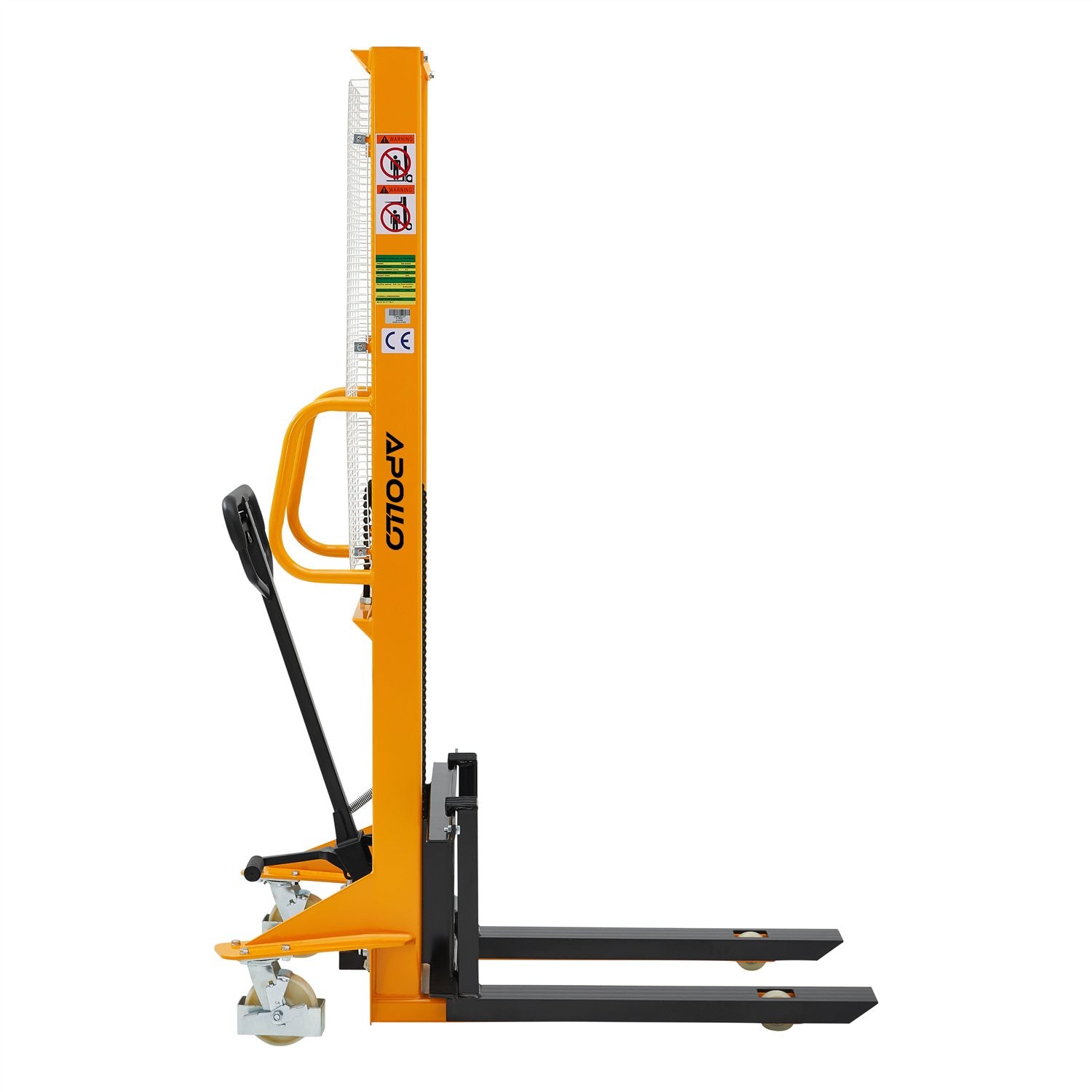

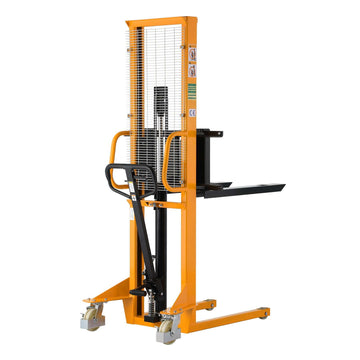

Manual Fixed-Leg Stacker A-3002 | 1,100 lb Capacity

$1,000.00 $1,800.00
  • Capacity: 1100 lbs.
  • Max.Lifting Height: 63"
  • Support Leg Type: Fixed
Processing Time: Requires 2 business days before shipping.
Powered by Affirm

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Compact everyday manual stacker for simple ownership with no charging routine, Power preference: Manual.

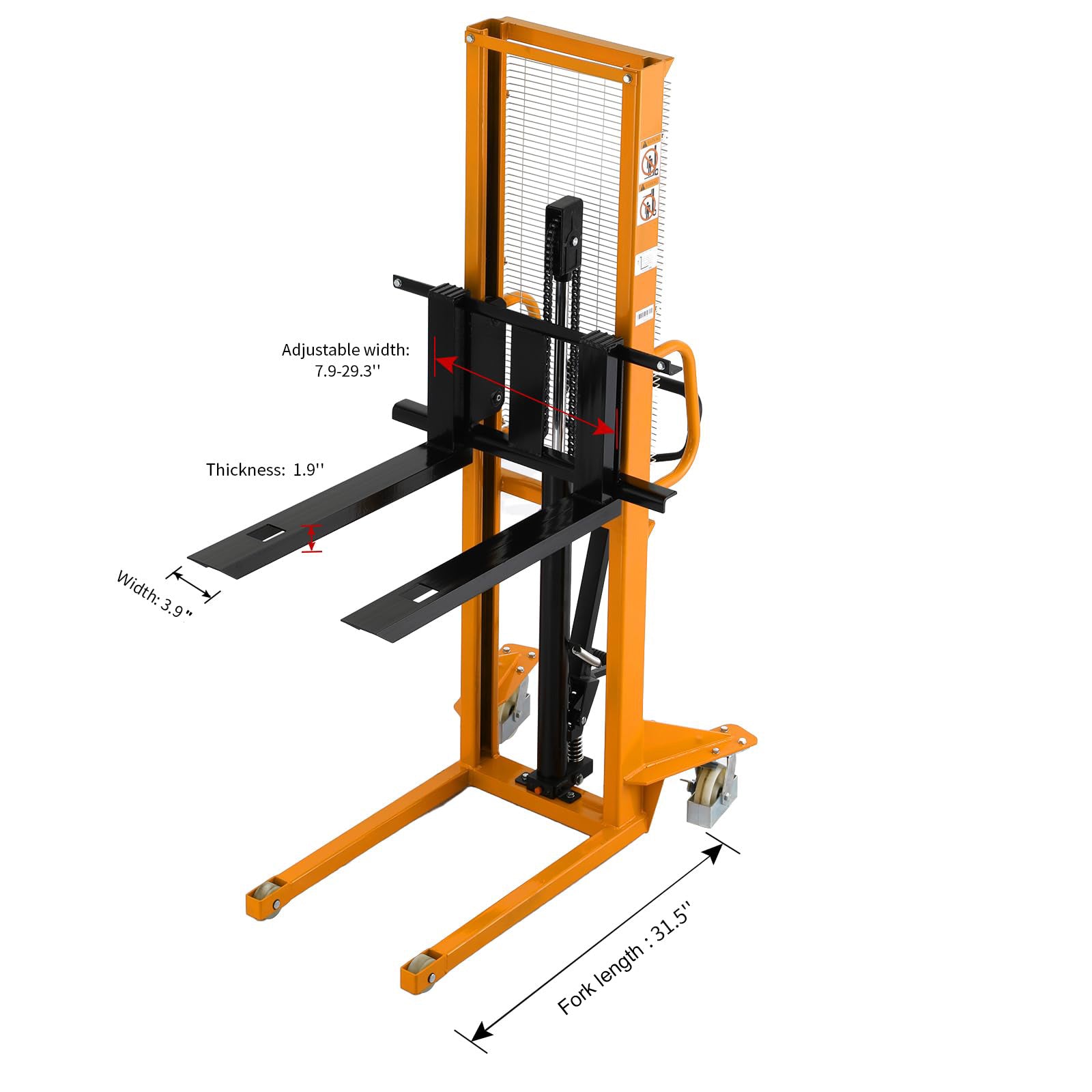

Adjustable fork width to fit different pallet footprints without extra equipment, Fork Overall Width: 7.9–29.3", Fork Length: 31.5".

Practical stacking height for standard warehouse work, Capacity: 1100 lbs, Max. Lifting Height: 63".

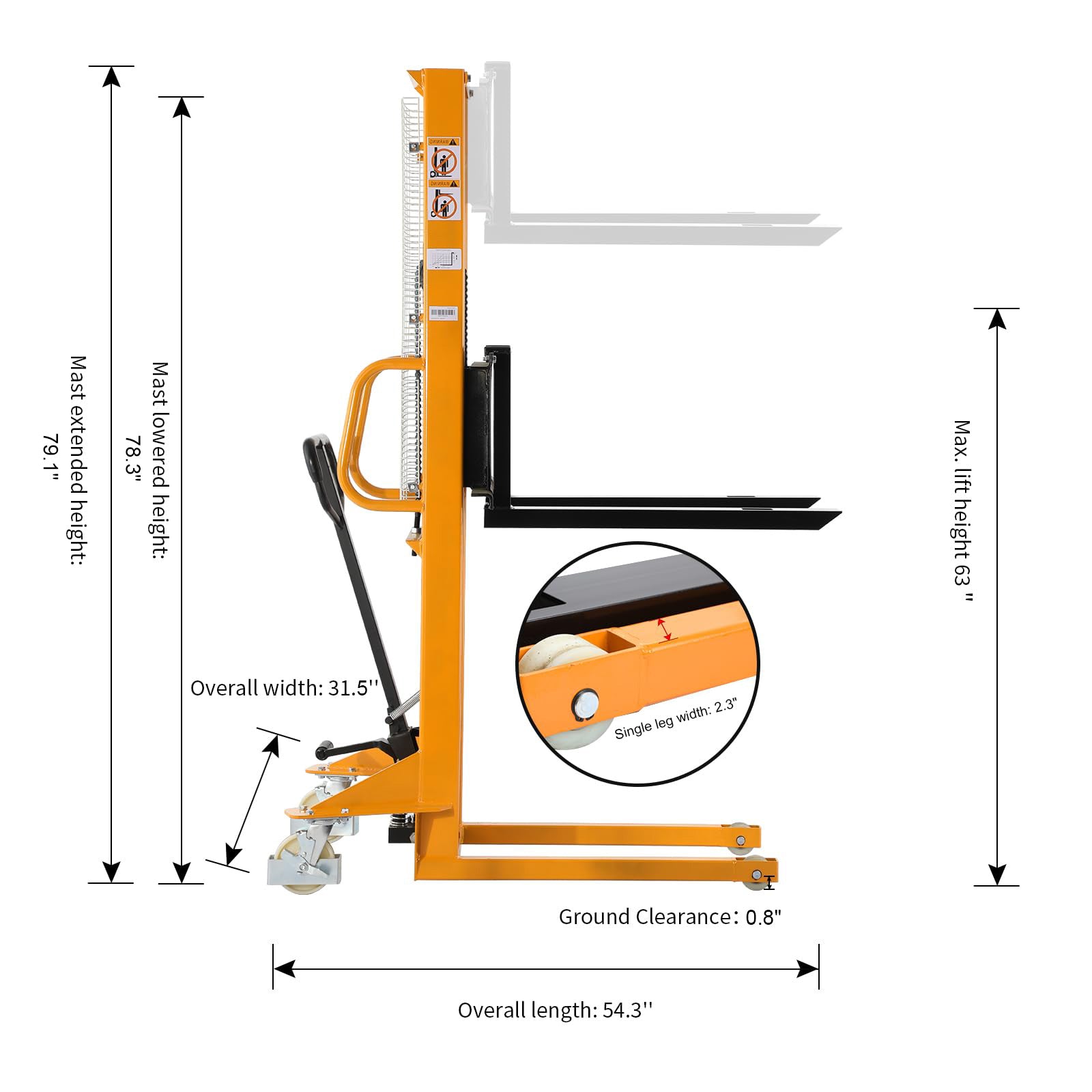

Doorway/clearance planning made easy for backroom workflows, Mast Lowered Height: 78.3", Aisle Width: 78.6".

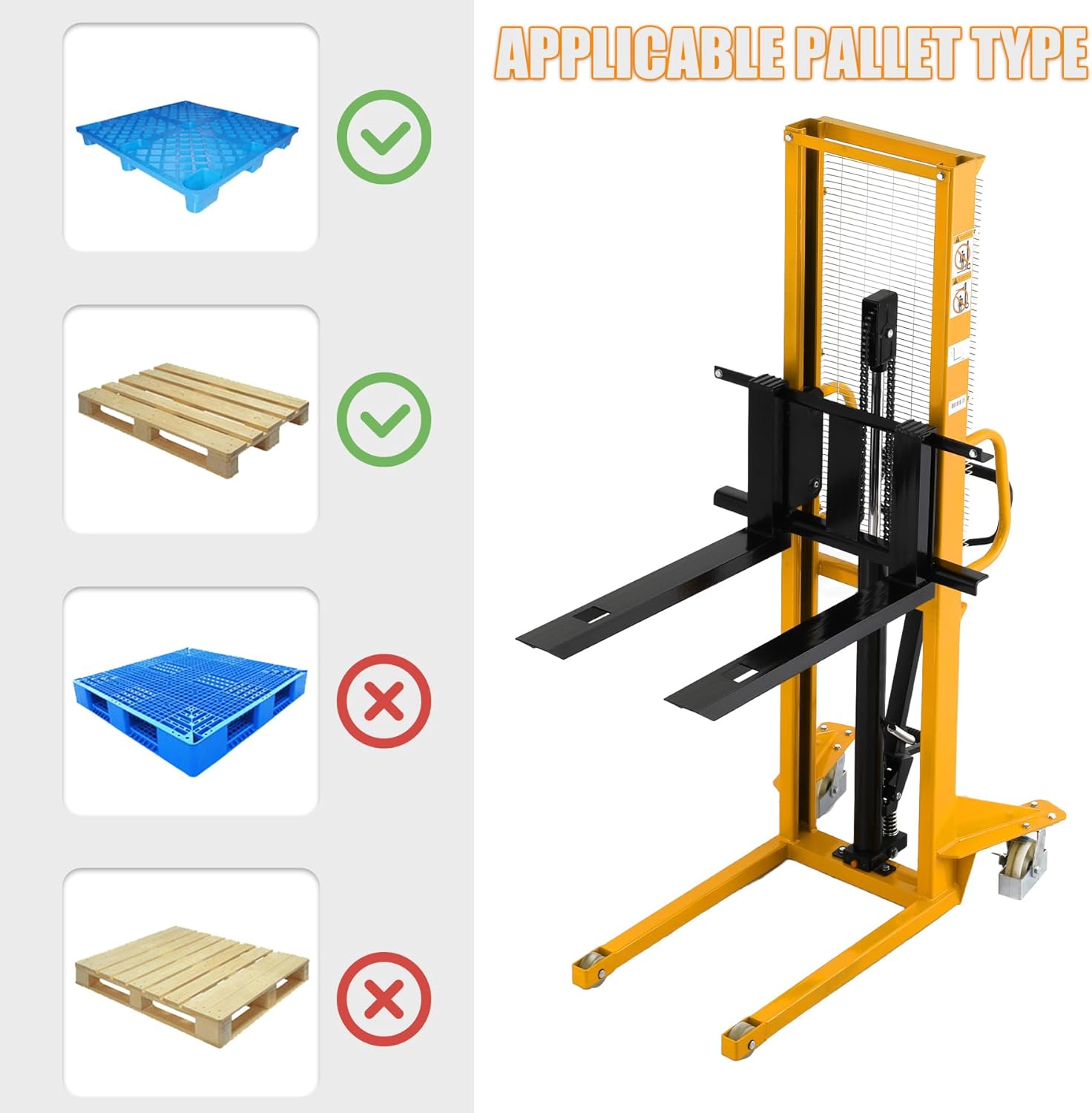

Pallet-type note for safer buying—best fit is open-bottom pallets, Compatible Pallet Types: Open Bottom.

Specifications

  • Capacity
    1100 lbs.
  • Aisle Width
    78.6"
  • Max.Lifting Height
    63"
  • Inside Distance Between Forks
    0.4-21.5"
  • Fork Length
    31.5"
  • Fork Overall Width
    7.9-29.3"
  • Single Fork Width
    3.9"
  • Compatible Pallet Types
    Open Bottom
  • Overall Height
    78.3"
  • Overall Length
    54.3"
  • Overall Width
    31.5"
  • Support Leg Type
    Fixed

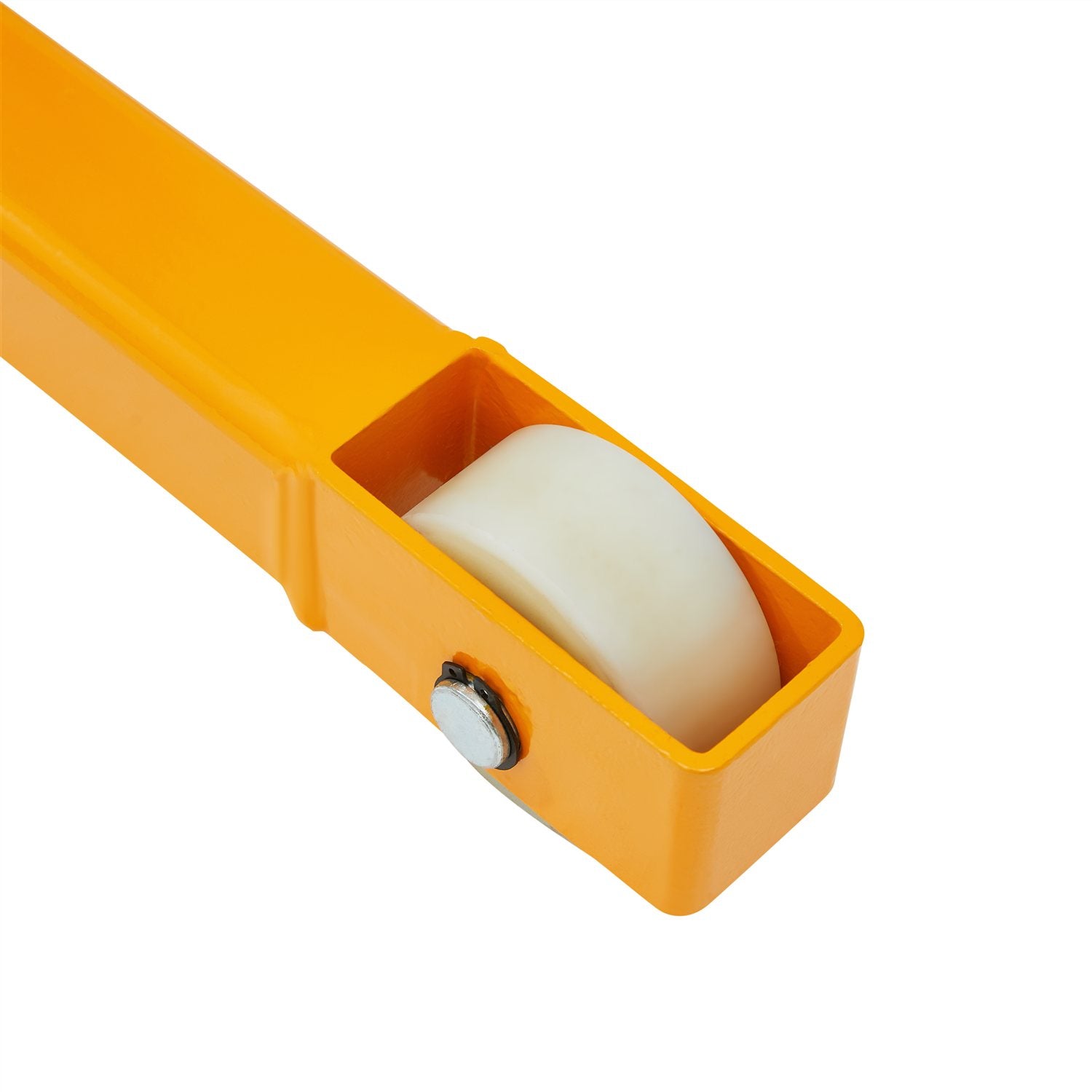

  • Load Wheel Type
    Single Wheel
  • Total Wheel Count
    4
  • Turning Radius
    46.4"
  • Mast Lowered Height
    78.3"
  • Mast Extended Height
    79.1"
  • Load Centre Distance
    19.7"
  • Fork Thickness
    1.9"
  • Fork Type
    Channel Steel Forks
  • Fork Lowered Height
    3.2"
  • Service Weight
    363 lbs.
  • Gross Weight
    373 lbs.
  • Package Size
    53"x32"x82"

Manual Stacker

Cost-Effective Option for Occasional Lifting

Manual stackers provide a low-cost solution for light, infrequent lifting applications.

  • Manual lift operation
  • Designed for limited daily stacking
  • Budget-friendly alternative to powered units
Best Fit
Small workshops, maintenance areas, and light rack loading.
When to Upgrade:
If lifting becomes part of daily operations, a powered stacker will greatly improve efficiency.

⚠️Notice:

  • Fix leg is incompatible with US standard pallets and is designed exclusively for open bottom pallet

Links

Product brochure

Product comparison
Manual Fixed-Leg Stacker A-3002 | 1,100 lb Capacity
$1,000.00 $1,800.00
Manual Straddle-Leg Stacker A-3004 | 1,100 lb Capacity
$1,400.00 $2,200.00
Manual Fixed-Leg Stacker A-3003 | 2,200 lb Capacity
$1,250.00 $2,100.00
Manual Straddle-Leg Stacker A-3005 | 2,200 lb Capacity
$1,650.00 $2,400.00
Capacity (lb)
Capacity (lb)
1100 lbs.
1100 lbs.
2200 lbs.
2200 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
63"
63"
63"
63"
Max Fork Height (in)
Max Fork Height (in)
3.2"
2.8"
3.5"
2.8"
Service Weight (lb)
Service Weight (lb)
363 lbs.
495 lbs.
566 lbs.
660 lbs.
Fork Size (in)
Fork Size (in)
31.5" x 7.9-29.3"
31.5" x 7.9-29.3"
42" x 11.6-36.6"
31.5" x 7.9-37.4"
Lowered Mast Height (in)
Lowered Mast Height (in)
78.3"
78.3"
81.9"
81.5"
Turning Radius (in)
Turning Radius (in)
46.4"
48"
49.6"
48.6"
Aisle Width (in)
Aisle Width (in)
78.6"
81.3"
80.6"
81.6"
Leg Type
Leg Type
Fixed
Straddle
Fixed
Straddle
Compatible Pallets
Compatible Pallets
Open Bottom
All
Open Bottom
All
Adjustable Forks
Adjustable Forks
Yes
Yes
Yes
Yes
Mast Stages
Mast Stages
1 Stage
1 Stage
1 Stage
1 Stage
Fork Length (in)
Fork Length (in)
31.5"
31.5"
42"
31.5"
Fork Overall Width (in)
Fork Overall Width (in)
7.9-29.3"
7.9-29.3"
11.6-36.6"
7.9-37.4"
Single Fork Width (in)
Single Fork Width (in)
3.9"
3.9"
5.6"
3.9"
Fork Thickness (in)
Fork Thickness (in)
1.9"
1.9"
2.4"
1.2"
Fork Type
Fork Type
Channel Steel Forks
Channel Steel Forks
Pressed Steel Forks
Forged Steel Forks
Fork Lowered Height (in)
Fork Lowered Height (in)
3.2"
2.8"
3.5"
2.8"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.4-21.5"
0.4-21.5"
0.4-25.4"
0.4-29.5"
Wheel Type
Wheel Type
Single Wheel
Single Wheel
Dual Wheel
Dual Wheel
Overall Length (in)
Overall Length (in)
54.3"
53.1"
66.1"
53.1"
Overall Width (in)
Overall Width (in)
31.5"
60.2"
38.2"
58.3"
Overall Height (in)
Overall Height (in)
78.3"
78.3"
81.9"
81.5"
Turtle Speed Mode
Turtle Speed Mode
No
No
No
No
