APOLLOLIFT  |  SKU: A-305001

Li-ion Powered Electric Straddle Stacker A-305001 | 98" Lift Height

$4,505.00 $6,000.00
  • Capacity: 3300 lbs.
  • Max.Lifting Height: 98"
  • Battery Spec: 24V/60AH
  • Support Legs: Straddle
Processing Time: Requires 2 business days before shipping.
Powered by Affirm

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Heavy capacity with Li-ion battery efficiency: Strong lifting with a low-maintenance battery solution for daily warehouse use (capacity 3300 lbs, battery type Li-ion).

Low-mast for clearance-restricted facilities: Built for doorways, low ceilings, and tight indoor constraints (max lift height 98", mast lowered height 74.6").

Straightforward for standard pallet work: Standard fork length covers most daily scenarios (fork length 42").

Safer default for pallet uncertainty: Straddle design plays well with mixed pallet environments (support leg type Straddle).

Li-ion battery preference covered: A practical choice for customers who want efficient charging, low maintenance, and reliable daily power (battery spec 24V/60Ah).

Aisle-friendly footprint: Works well in typical warehouse lanes (aisle width 87.8").

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    87.8"
  • Max.Lifting Height
    98"
  • Inside Distance Between Forks
    0.1-23.6"
  • Fork Length
    42"
  • Fork Overall Width
    7.9-31.5"
  • Single Fork Width
    3.9"
  • Compatible Pallet Types
    All
  • Overall Height
    74.6-123.8"
  • Overall Length
    68.9"
  • Overall Width
    45.9-61.6"
  • Driving Speed-Unladen
    3.1 mph
  • Driving Speed-Laden
    2.8 mph
  • Lifting Speed/Empty
    5.9 inch/s
  • Lifting Speed/Loaded
    3.5 inch/s
  • Gradeability/Empty
    15%
  • Gradeability/Loaded
    6%
  • Support Leg Type
    Straddle
  • Total Wheel Count
    3
  • Turning Radius
    53"
  • Mast Lowered Height
    74.6"
  • Mast Extended Height
    123.8"
  • Load Centre Distance
    23.6"
  • Battery Capacity
    60AH
  • Battery Spec
    24V/60AH
  • Battery Voltage
    24V
  • Battery Type
    Li-ion battery
  • Fork Thickness
    1.4"
  • Fork Lowered Height
    2.8"
  • Lowering Speed/Empty
    4.3 inch/s
  • Lowering Speed/Loaded
    5.9 inch/s
  • Service Weight
    1350 lbs.
  • Gross Weight
    1410 lbs.
  • Charger
    24V/25A built-in
  • Package Size
    44"x34"x80"

Full Electric Stacker

High-Efficiency Solution for Daily Stacking Operations

Full electric stackers feature powered lift and powered travel, designed for consistent stacking and material handling.

  • Increased productivity
  • Reduced operator fatigue
  • Lower cost and maintenance compared to forklifts
  • Ideal for narrow aisle environments
Best Fit
Medium to large warehouses with regular stacking requirements.
Positioning:
A cost-effective alternative to traditional forklifts for many indoor warehouse applications.

⚠️ Notice:

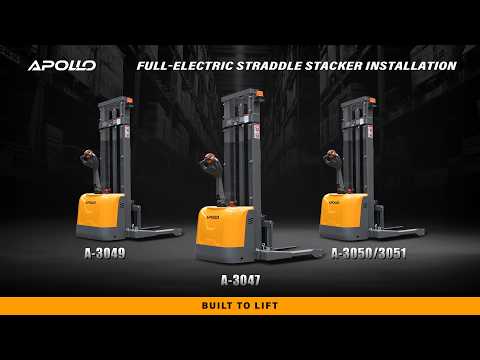

  • Support legs require installation before use. Installation Video: https://www.youtube.com/watch?v=-qGQwzVQdYAWI
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Links

Product brochure

Product comparison
Li-ion Powered Electric Straddle Stacker A-305001 | 98" Lift Height
$4,505.00 $6,000.00
Full Electric Straddle Stacker A-3050 | 98" Lift Height
$4,000.00 $5,900.00
Full Electric Straddle Stacker A-3047 | 118" Lift Height
$4,100.00 $6,100.00
Full Electric Straddle Stacker A-3049 | 130" Lift Height
$4,500.00 $6,300.00
Capacity (lb)
Capacity (lb)
3300 lbs.
3300 lbs.
3300 lbs.
3300 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
98"
98"
118"
130"
Max Fork Height (in)
Max Fork Height (in)
2.8"
2.8"
2.8"
2.8"
Service Weight (lb)
Service Weight (lb)
1350 lbs.
1350 lbs.
1408 lbs.
1450 lbs.
Fork Size (in)
Fork Size (in)
42" x 7.9-31.5"
42" x 7.9-31.5"
42" x 7.9-31.5"
42" x 7.9-31.5"
Lowered Mast Height (in)
Lowered Mast Height (in)
74.6"
74.6"
84.4"
90.4"
Turning Radius (in)
Turning Radius (in)
53"
53"
53"
53"
Aisle Width (in)
Aisle Width (in)
87.8"
87.8"
87.8"
87.8"
Leg Type
Leg Type
Straddle
Straddle
Straddle
Straddle
Compatible Pallets
Compatible Pallets
All
All
All
All
Adjustable Forks
Adjustable Forks
Yes
Yes
Yes
Yes
Charger
Charger
24V/25A built-in
24V/10A built-in
24V/10A built-in
24V/10A built-in
Mast Stages
Mast Stages
2 Stage
2 Stage
2 Stage
2 Stage
Fork Length (in)
Fork Length (in)
42"
42"
42"
42"
Fork Overall Width (in)
Fork Overall Width (in)
7.9-31.5"
7.9-31.5"
7.9-31.5"
7.9-31.5"
Single Fork Width (in)
Single Fork Width (in)
3.9"
3.9"
3.9"
3.9"
Fork Thickness (in)
Fork Thickness (in)
1.4"
1.4"
1.4"
1.4"
Fork Lowered Height (in)
Fork Lowered Height (in)
2.8"
2.8"
2.8"
2.8"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.1-23.6"
0.1-23.6"
0.1-23.6"
0.1-23.6"
Overall Length (in)
Overall Length (in)
68.9"
68.9"
68.9"
68.9"
Overall Width (in)
Overall Width (in)
45.9-61.6"
45.9-61.6"
45.9-61.6"
45.9-61.6"
Overall Height (in)
Overall Height (in)
74.6-123.8"
74.6-123.8"
84.4-143.5"
90.4-157.3"
Driving Speed - Unladen (mph)
Driving Speed - Unladen (mph)
3.1 mph
3.1 mph
3.1 mph
3.1 mph
Driving Speed - Laden (mph)
Driving Speed - Laden (mph)
2.8 mph
2.8 mph
2.8 mph
2.8 mph
Lift Speed - Unladen
Lift Speed - Unladen
5.9 inch/s
5.9 inch/s
5.9 inch/s
5.9 inch/s
Lift Speed - Laden
Lift Speed - Laden
3.5 inch/s
3.5 inch/s
3.5 inch/s
3.5 inch/s
Turtle Speed Mode
Turtle Speed Mode
Yes
Yes
Yes
Yes
Gradeability (Empty)
Gradeability (Empty)
15%
15%
15%
15%
Gradeability (Loaded)
Gradeability (Loaded)
6%
6%
6%
6%

Frequently Asked Questions

How is the shipping fee calculated?

Shipping fees are automatically calculated at checkout based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional charges may apply for special delivery services or remote locations. If you are ordering multiple items, please contact info@apolloliftus.com as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically ship from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery times may vary depending on the carrier's schedule. Our logistics team will monitor the shipment throughout the process. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get an invoice?

Please email us your PO number at info@apolloliftus.com. Our team will process your request and send you the invoice.

Can I pick up my order?

Yes. Please select “Pick Up” as your delivery method when available. After your order is confirmed, our team will email you the pickup slip. Please bring a copy of the pickup slip and arrive at the designated time and address shown on the document. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. Spare parts are available for purchase on our website. If you are unsure which part you need or cannot find the correct part, please contact our service team at service@apolloliftus.com with product photos, the part name or photos, and the SKU so we can assist you.

Do electric products come with accessories?

Yes. Our electric products include the original charger and battery set. We recommend charging the battery promptly after receiving the equipment and before initial use.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries use mature technology and provide reliable performance in both high and low temperatures, but they generally require longer charging times and more routine maintenance. Lithium batteries are lighter and more compact, charge faster, require less maintenance, and are better suited for frequent-use applications.
