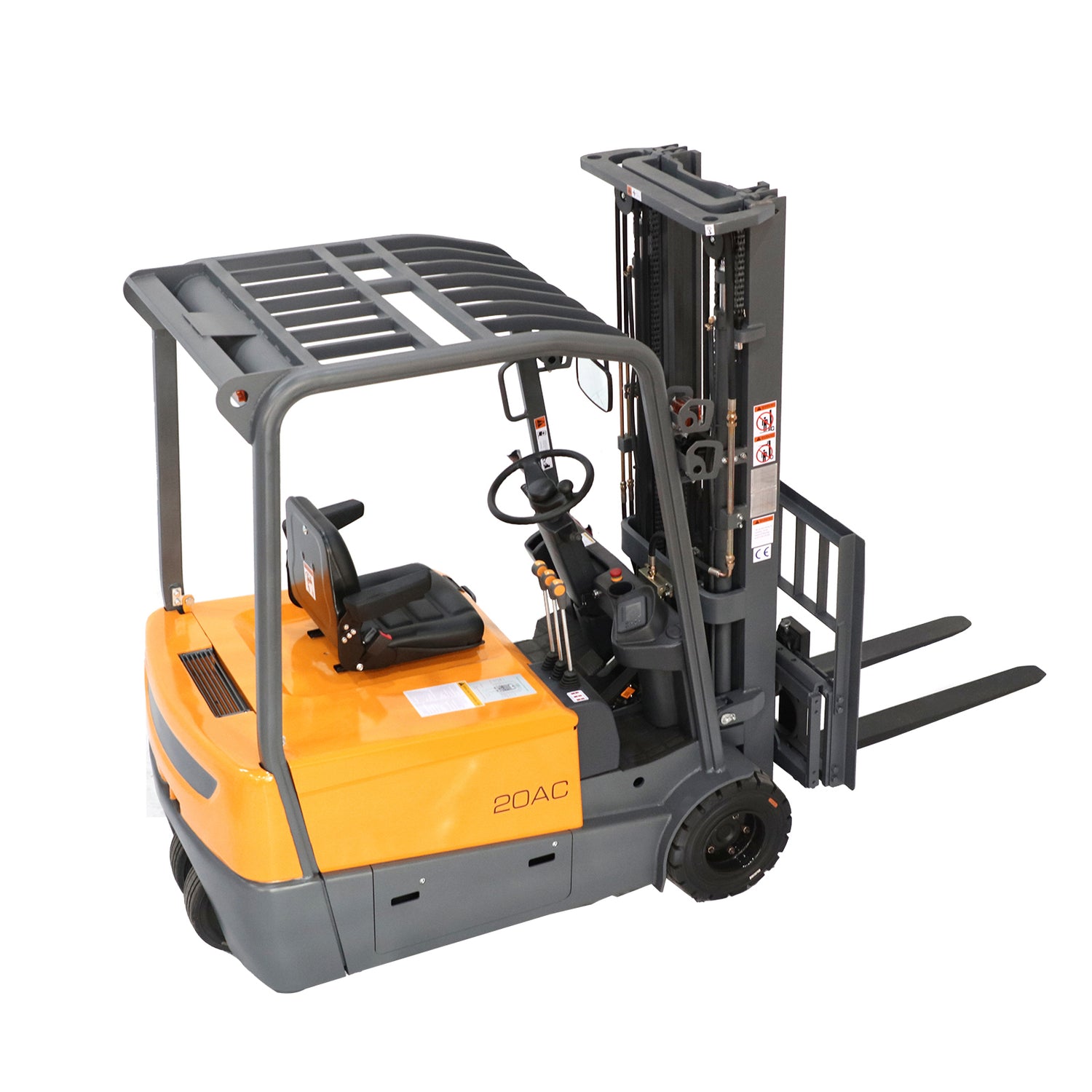

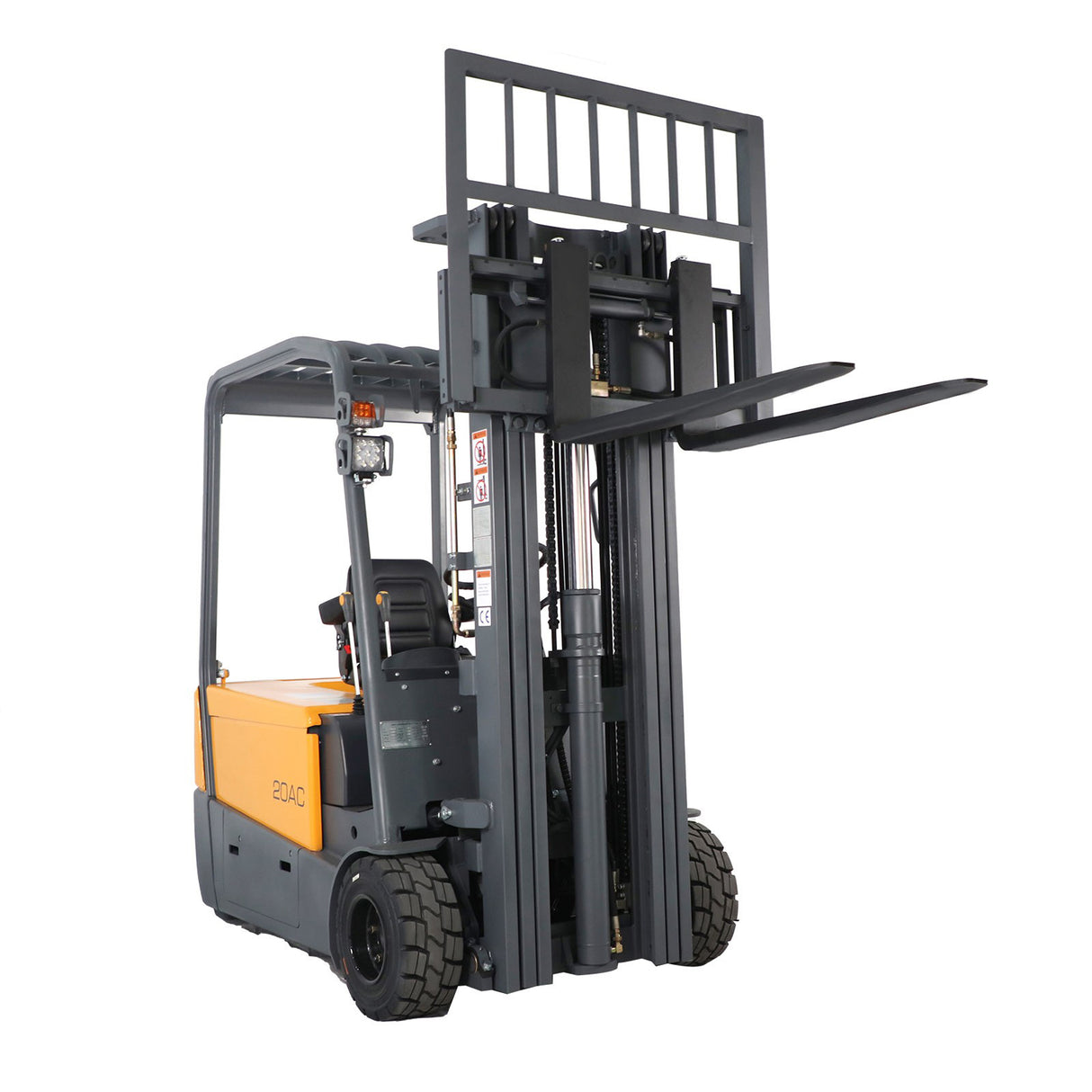

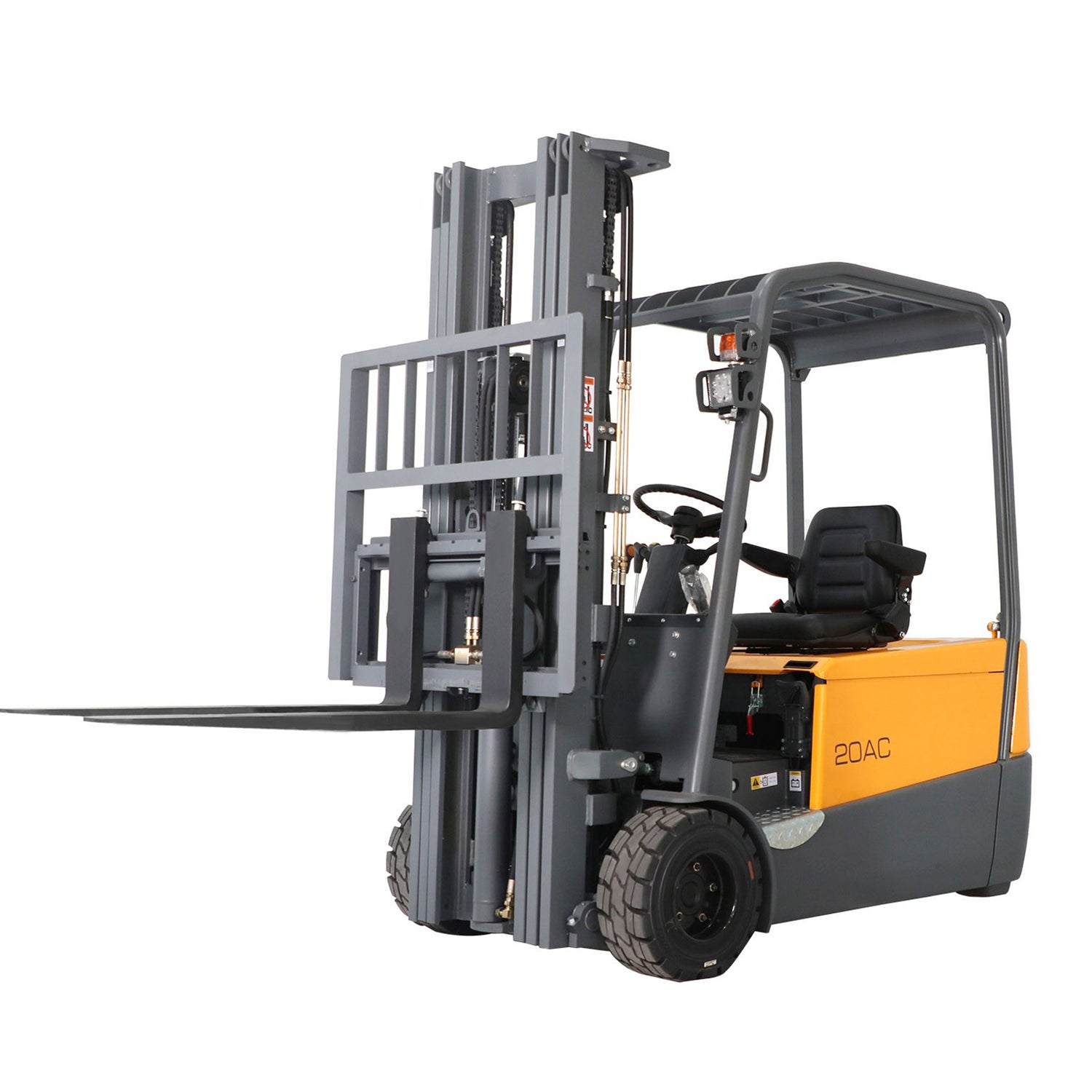

3 wheels electric battery powered forklift 4400 lbs cap. A-4023
3 wheels electric battery powered forklift 4400 lbs cap. A-4023
- Standard Capacity 4400lbs with fork lift height 189”
- New stepless speed regulation electrical control
- Improves the side stability when raising goods
- Has a long service life and is easy to adjust
- The function of slope startup, automatic brake with feet off, overload protection and short circuit protection can be provided
- Side-way moving lead acid battery 48V/450Ah
- Charger 48V/150A

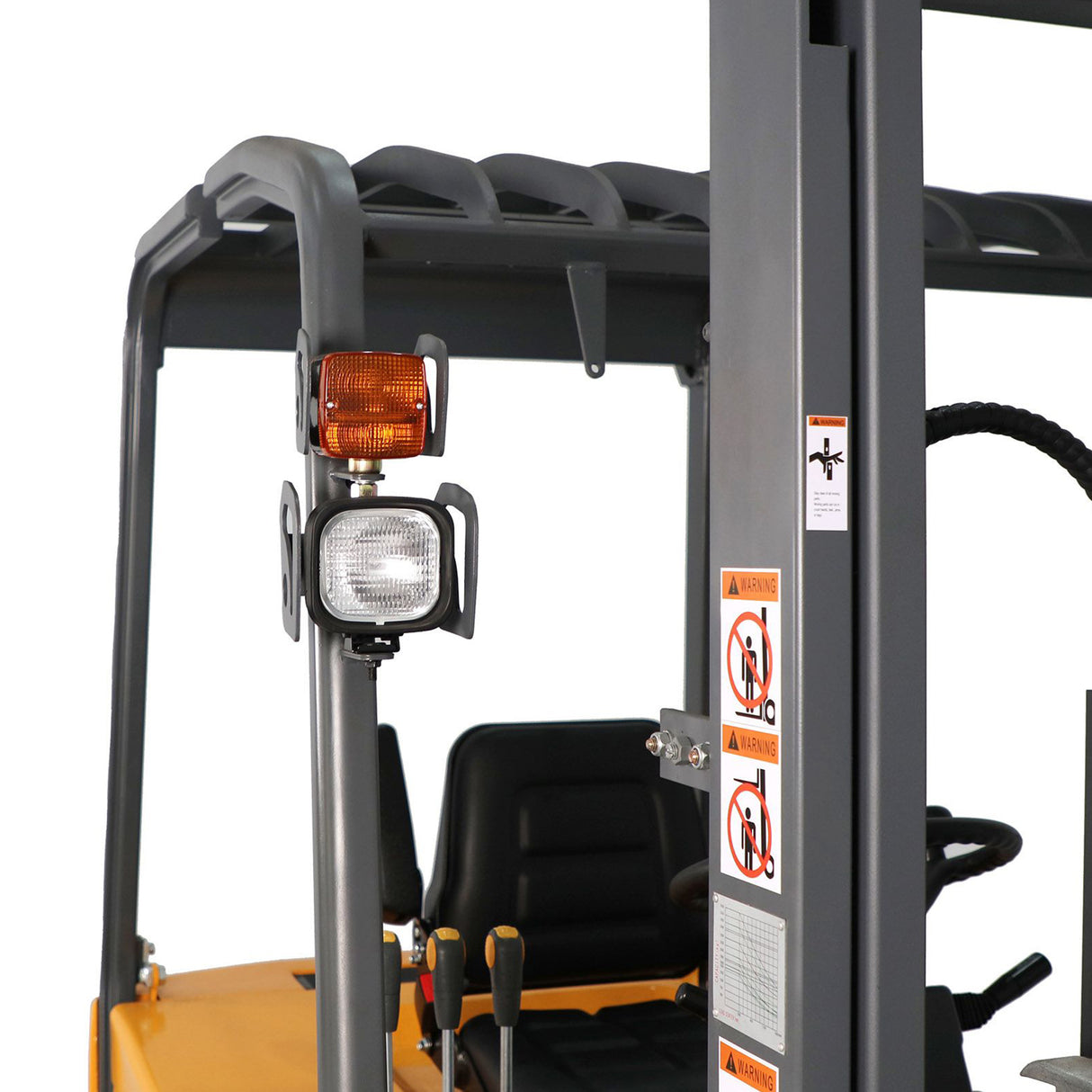

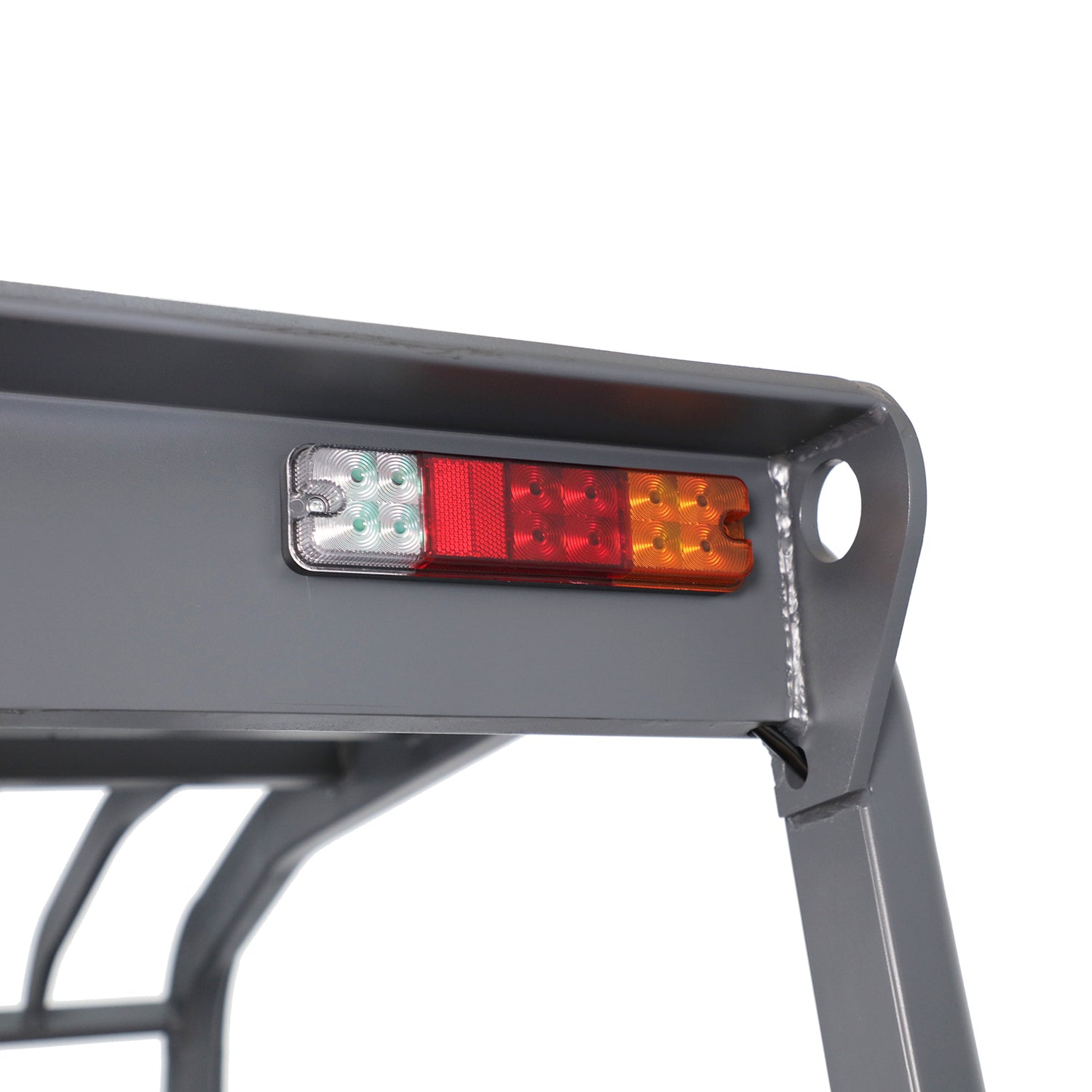

- LED working lights
- Comfortable seat with safety belt and handrail
- Be assembled by high quality motor, storage battery and multifunctional integrated electrical control

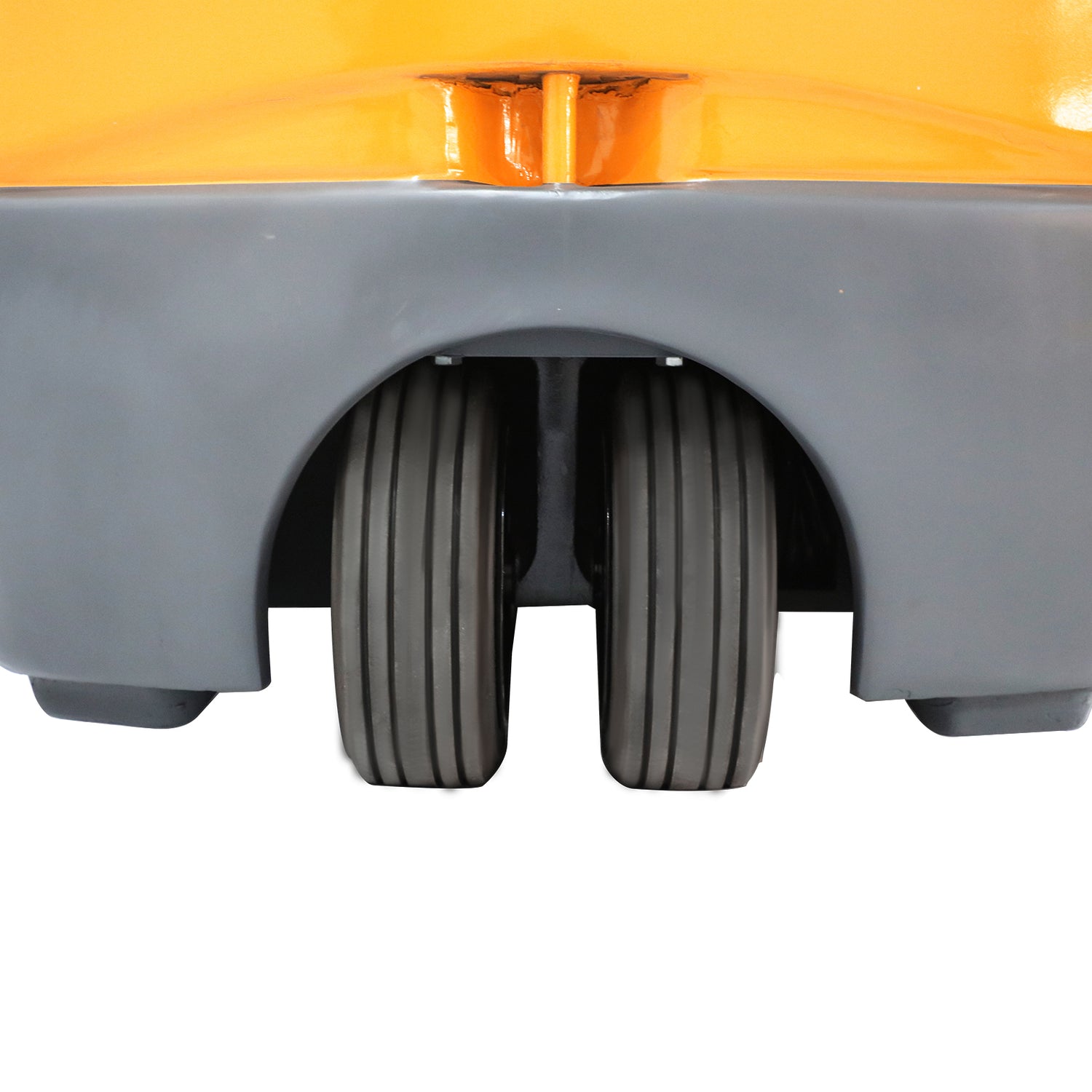

- Elastic rubber wheels with good shock proof and low noise
- Ideal design for operate in the warehouse with narrow aisle.
| Model NO: | A-4023 |
| Operator Type: | Seated |
| Load Capacity | 4,400 lbs |
| Max. Lifting Height (Fork) | 189" |
| Load center | 19.7" |
| Battery Type | Lithium Battery |
| Battery Capacity | 48V/450AH |
| Charger ( Input single phase) | 48V/150A built-out |
| Tires Type | Rubber |

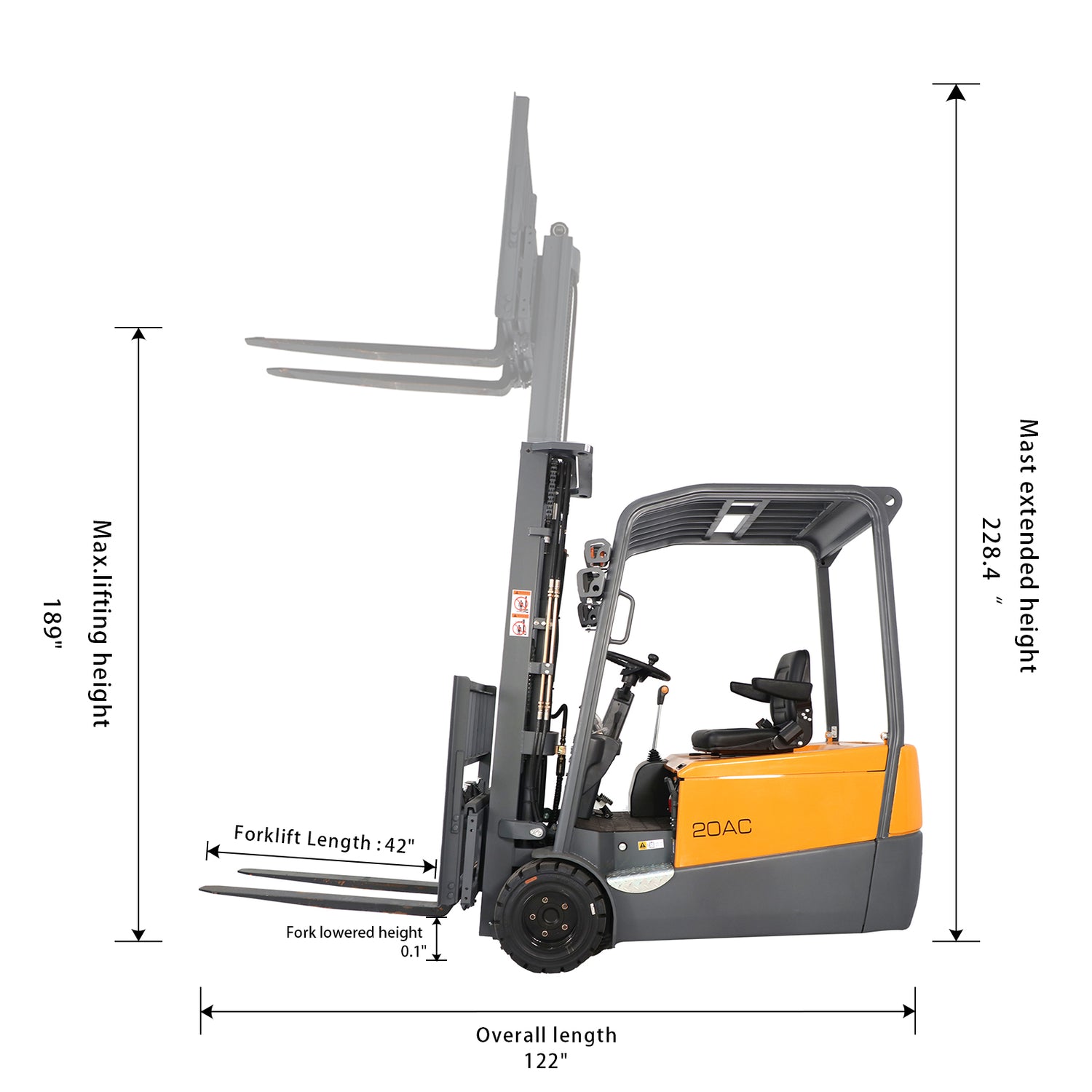

| Overall Length | 122" |
| Overall width | 45" |
| Recommended Aisle Width | 130" |
| Turning Radius | 65" |
| Mast Height Lowered | 86.6" |
| Max. Lifting Raised | 189" |
| Mast Height Raised | 228.4" |
| Mast Tilt Degree (forward/backward) | 3° /6 ° |

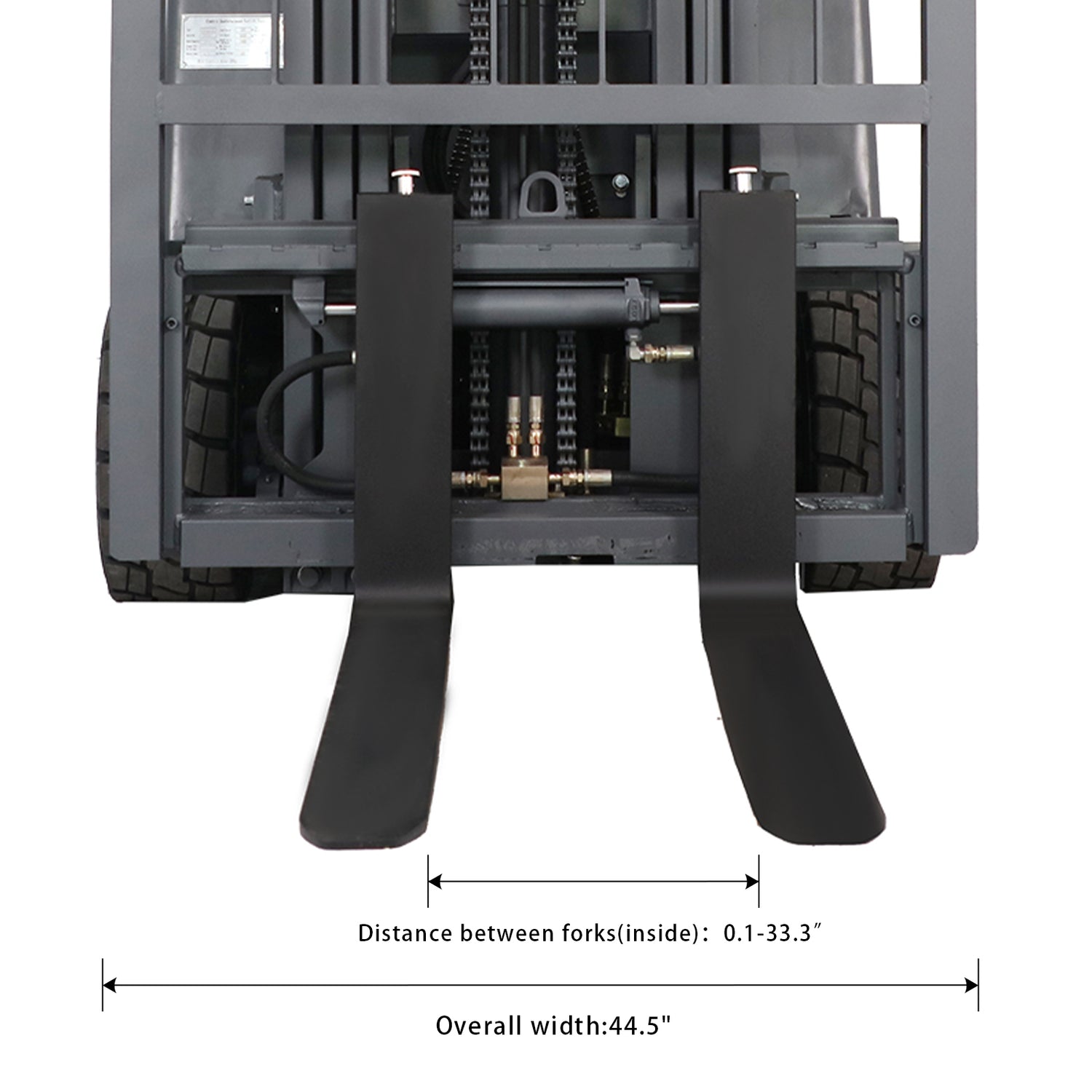

| Fork Dimension (Thickness/Width/Length) | 1.3" /3.9"/ 37.4" |
| Travel Speed(laden/unladen) | 4.3 / 4.3mph |
| Lifting Speed(laden/unladen) | 3.9 / 5.9 inch/s |
| Lowering Speed(laden/unladen) | 15 /15 inch/s |
| Temperature range of working environment | 50˚F ˜ 104˚F |
MULTI-FUNCTION DISPLAY
Speed Mode
-
H: High speed
-
S: Standard speed
-
E: Economic speed
Driving Direction
-
N: Neutral status
-
↑: Forward
-
↓: Backward
BDI
-
1: Full battery
-
1/2: Half battery
-
0: Empty battery
-
Working hour display
-
Current speed display
FAULTY CODE:
-
If there is a problem, it will display an error code to help find the cause quickly.
CHARGING
-
6-8 hours of operation per charge with a high-capacity 48V/450Ah lithium battery.
-
Only 3 hours of charging time.
-
The charger connects to 3-phase industrial 220V power outlets.
-
Charge the truck once a month, even if it's not in use.
FEATURES
-
Gradeability (laden/unladen): 15%/20%
-
Comfortable seat with safety belt and handrail.
-

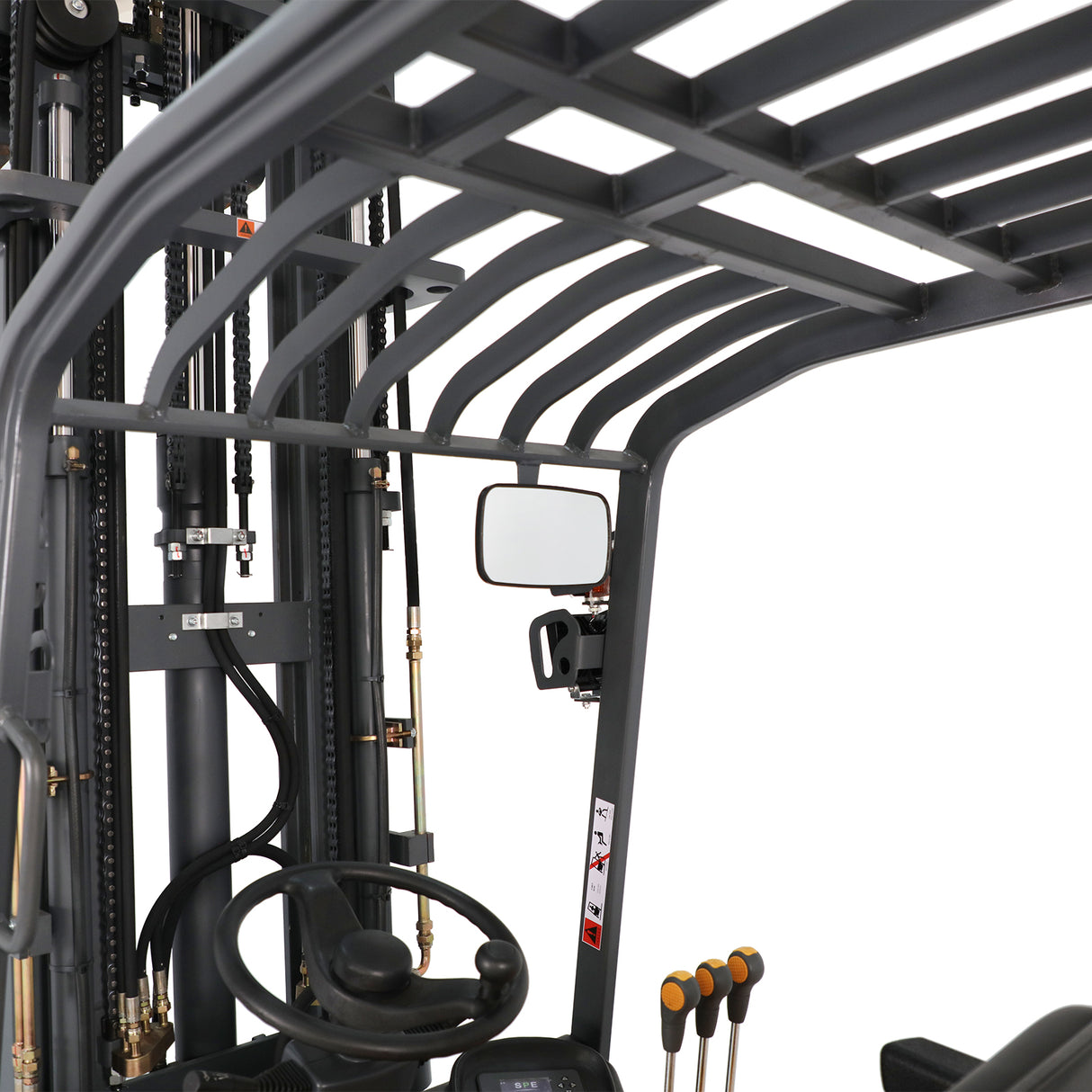

Excellent operator visibility.
-
A small turning radius makes for better loading, unloading and stacking in the confined warehouses.
Suitable Operating Environment
-
The operating area should be clear and unobstructed, with a solid, level surface and good lighting conditions.
-
The ambient temperature should range from -25°C to +40°C.
-
The operating area must be free of explosive gases or dust.
