APOLLOLIFT  |  SKU: A-3041

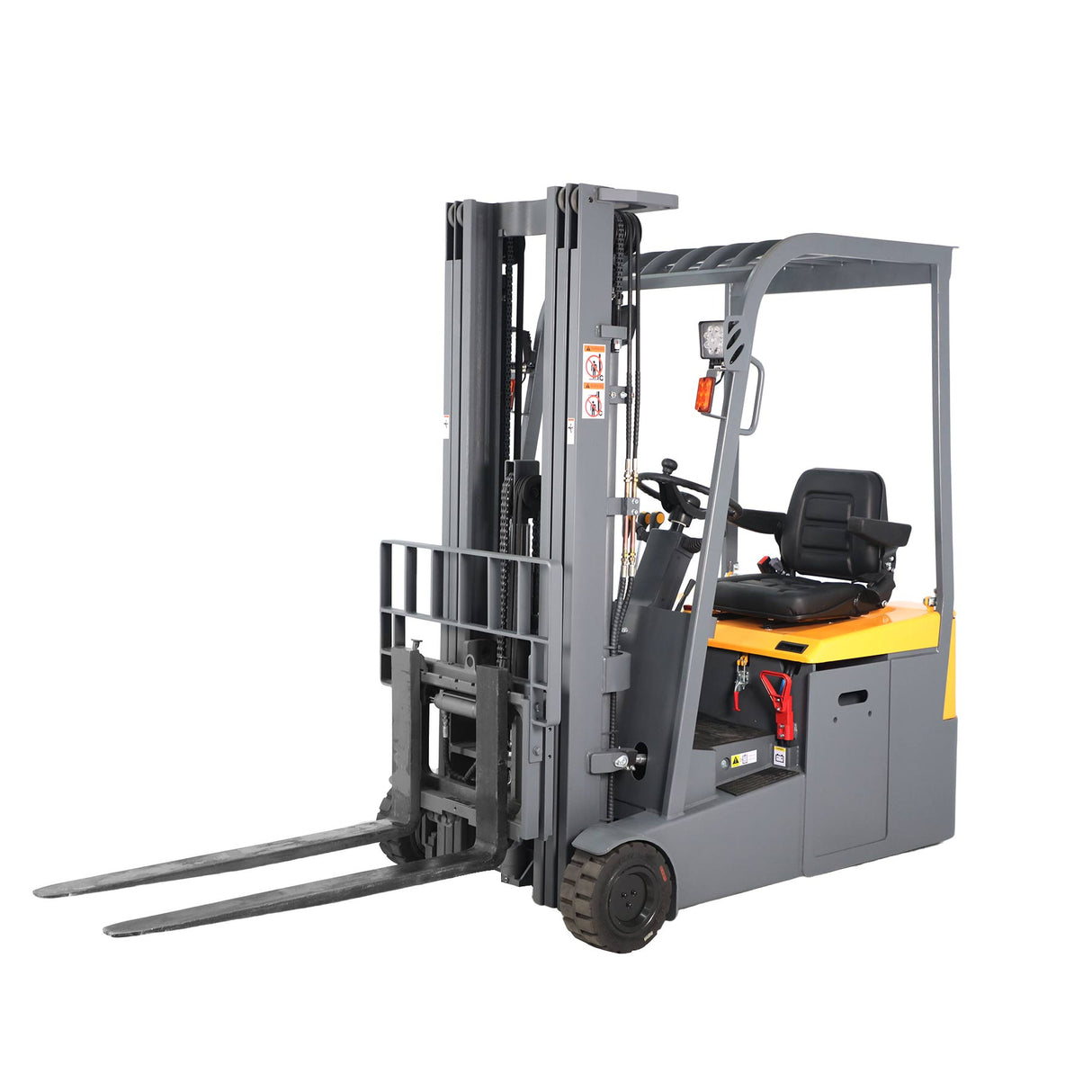

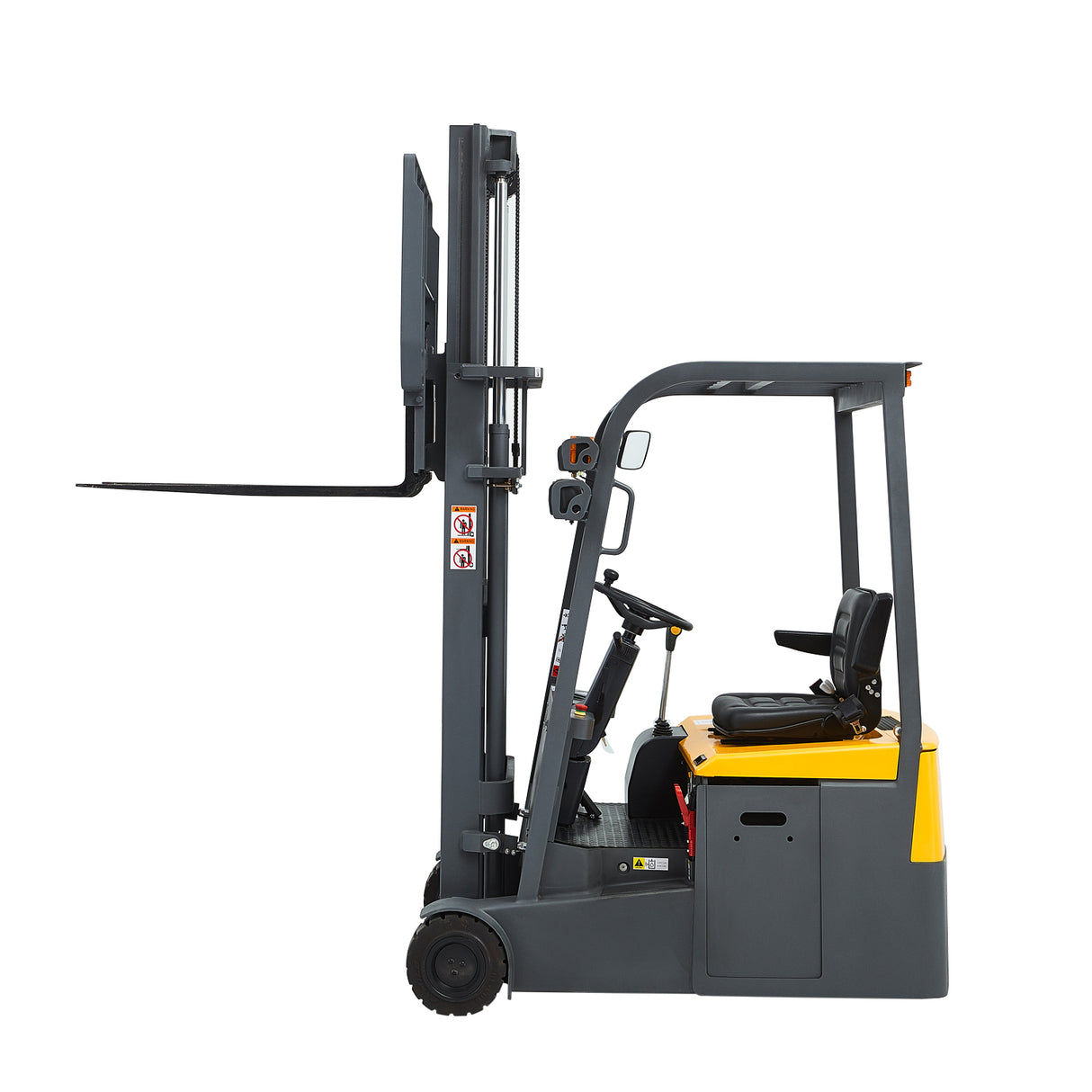

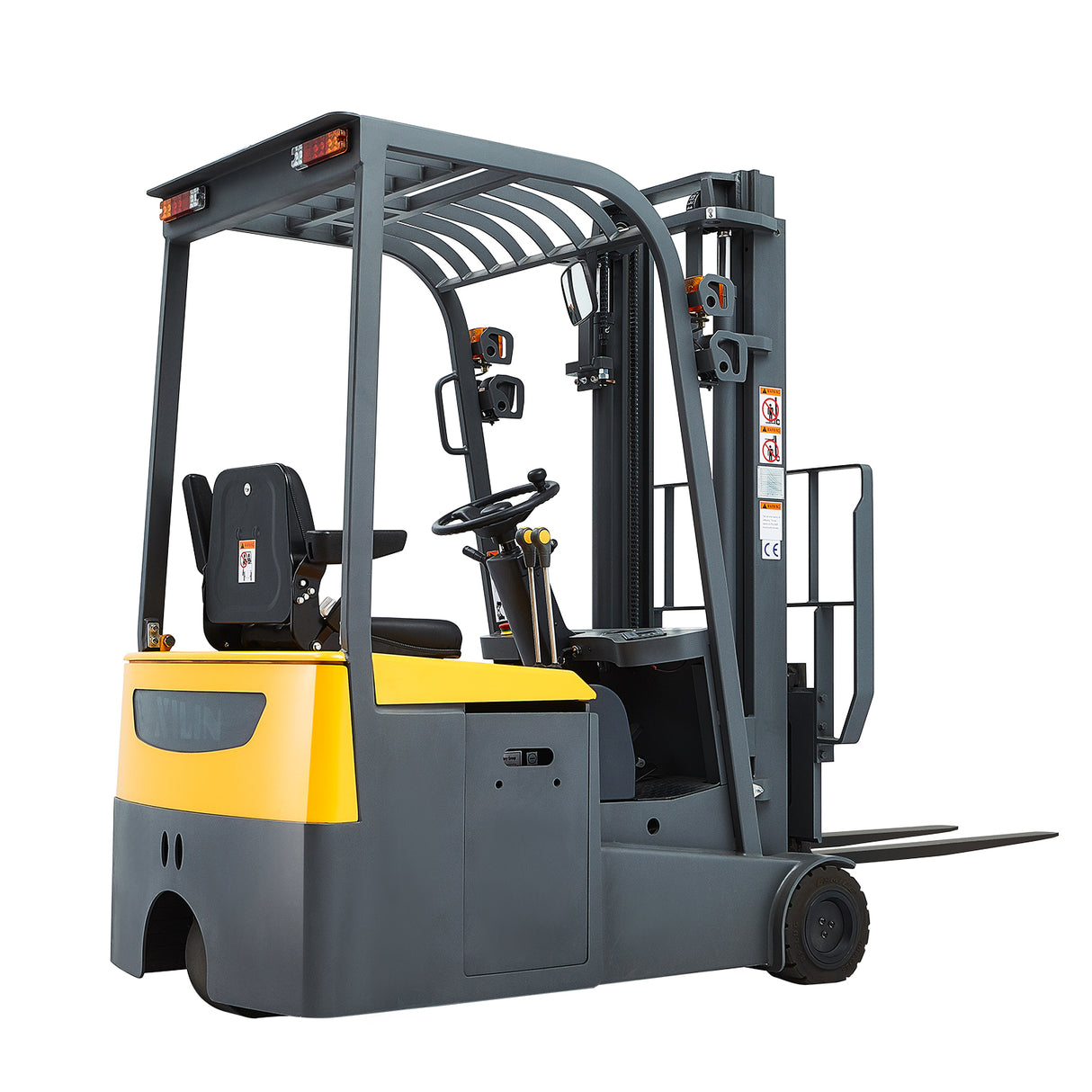

3 Wheels Electric Forklift A-3041

$20,999.00
  • Capacity: 3300 lbs
  • Max. Lifting Height: 197"
  • Aisle Width: 124"
  • Inside Distance: 0.9–18.9"
  • Fork Overall Width: 8.7–26.7"
  • Load Centre Distance: 19.7"
Powered by Affirm

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

High-capacity electric forklift built for demanding warehouse operations, delivering stable handling and efficient stacking in narrow aisles

3,300 lb load capacity with a 197" maximum lift height maximizes vertical storage efficiency

Maintenance-free AC motor paired with a Sweden Inmotion controller ensures smooth, precise, and reliable performance

Three-stage mast with free lift and side shifter allows flexible stacking in low-clearance and confined spaces

Rear-wheel drive design with a compact turning radius provides excellent maneuverability in tight warehouse layouts

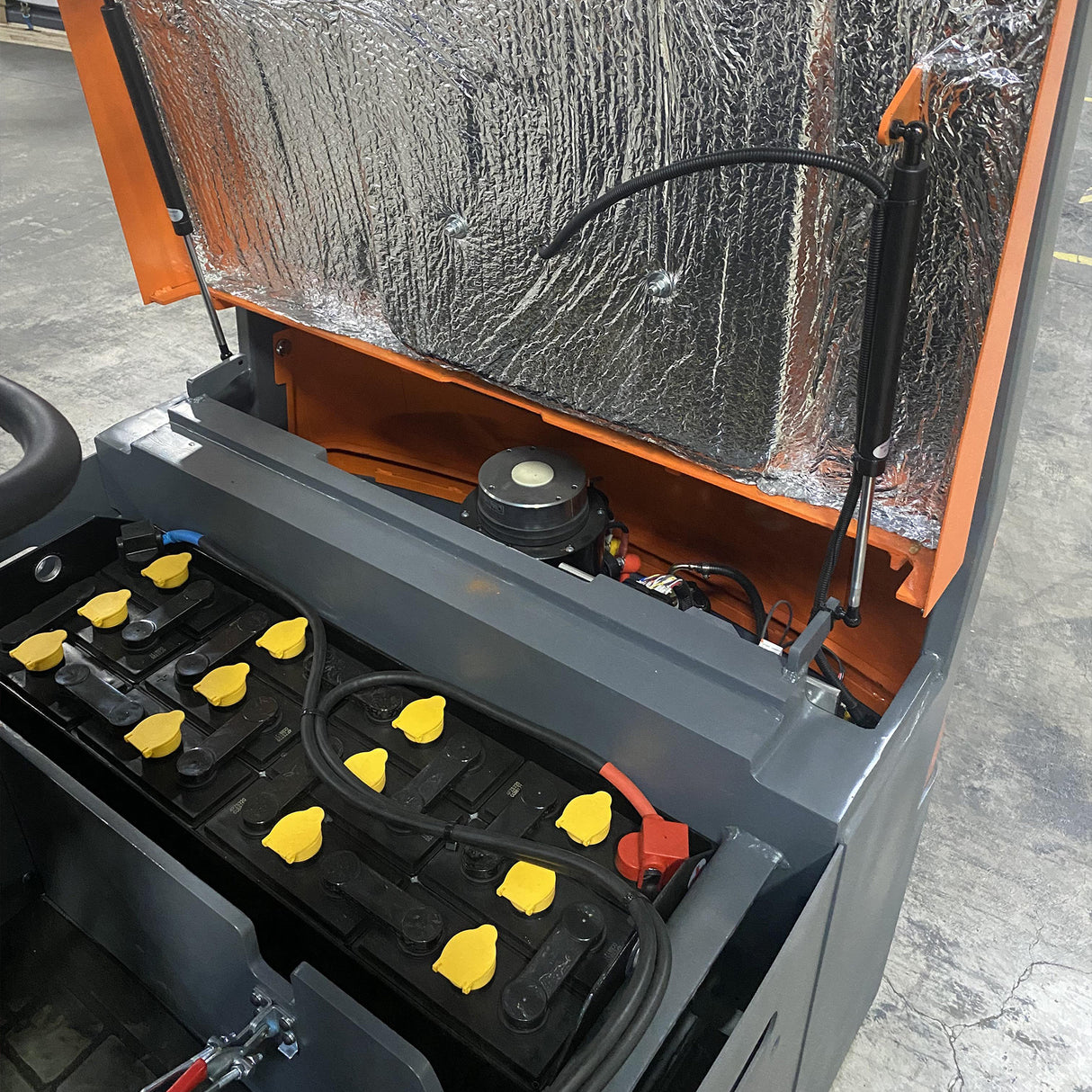

Sideways removable 24V/320Ah lead-acid battery supports extended operation and easy maintenance, charged via standard 110V outlets

Up to 10% gradeability at full load enables confident operation on ramps and uneven indoor surfaces

Comfort-focused seated operator position with safety belt, handrail, and ergonomic layout reduces fatigue during long shifts

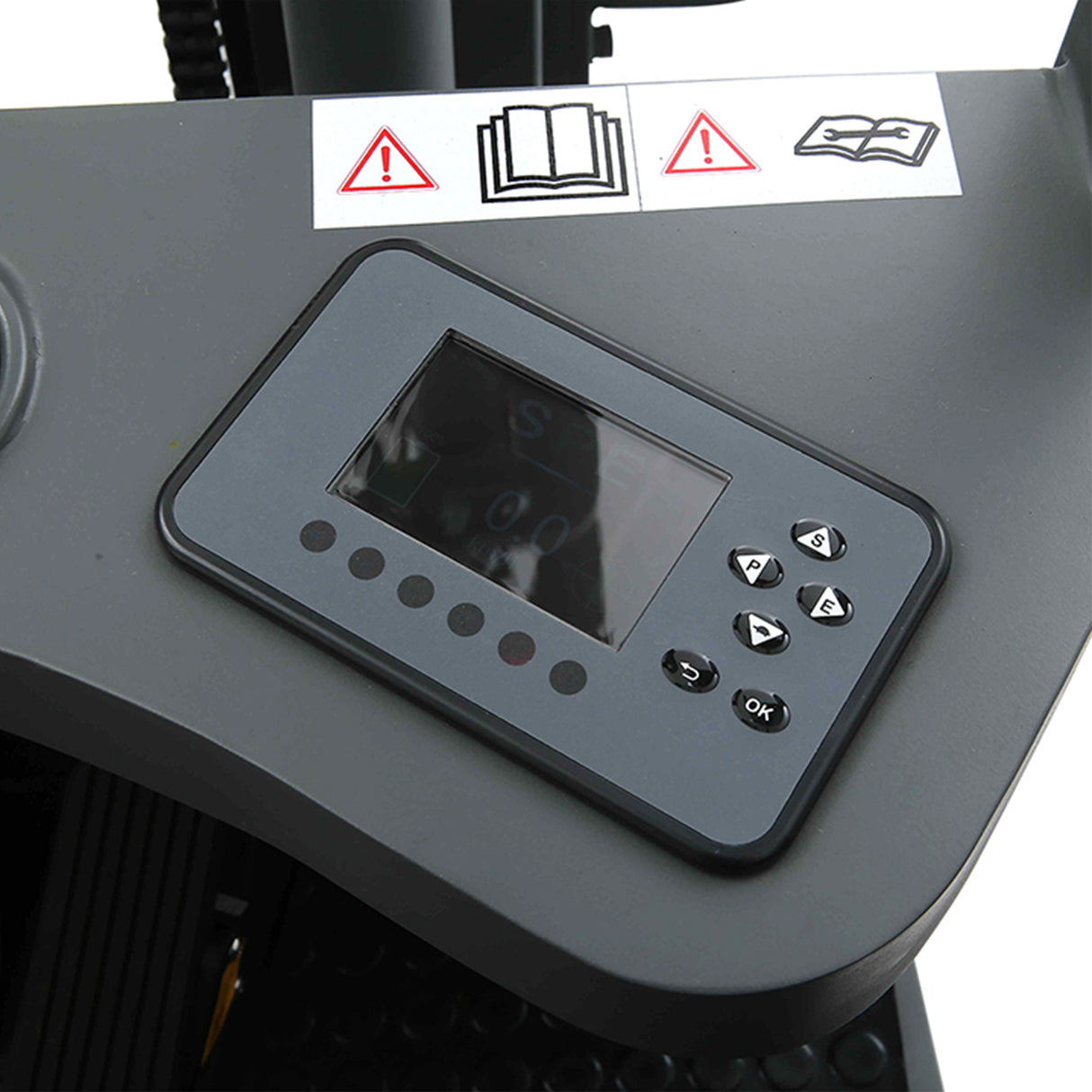

Multi-function display and LED working lights improve visibility, monitoring, and operational safety

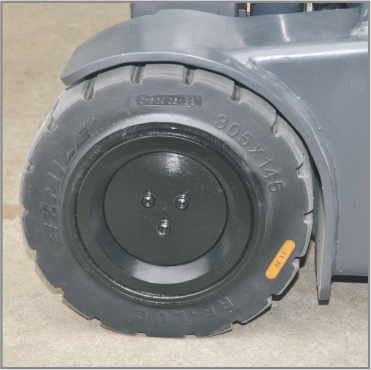

Elastic rubber tires deliver low-noise, shock-absorbing performance for indoor environments

Purpose-built for narrow-aisle warehouse use, balancing lifting power, control, and operator comfort

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    124"
  • Max.Lifting Height
    197"

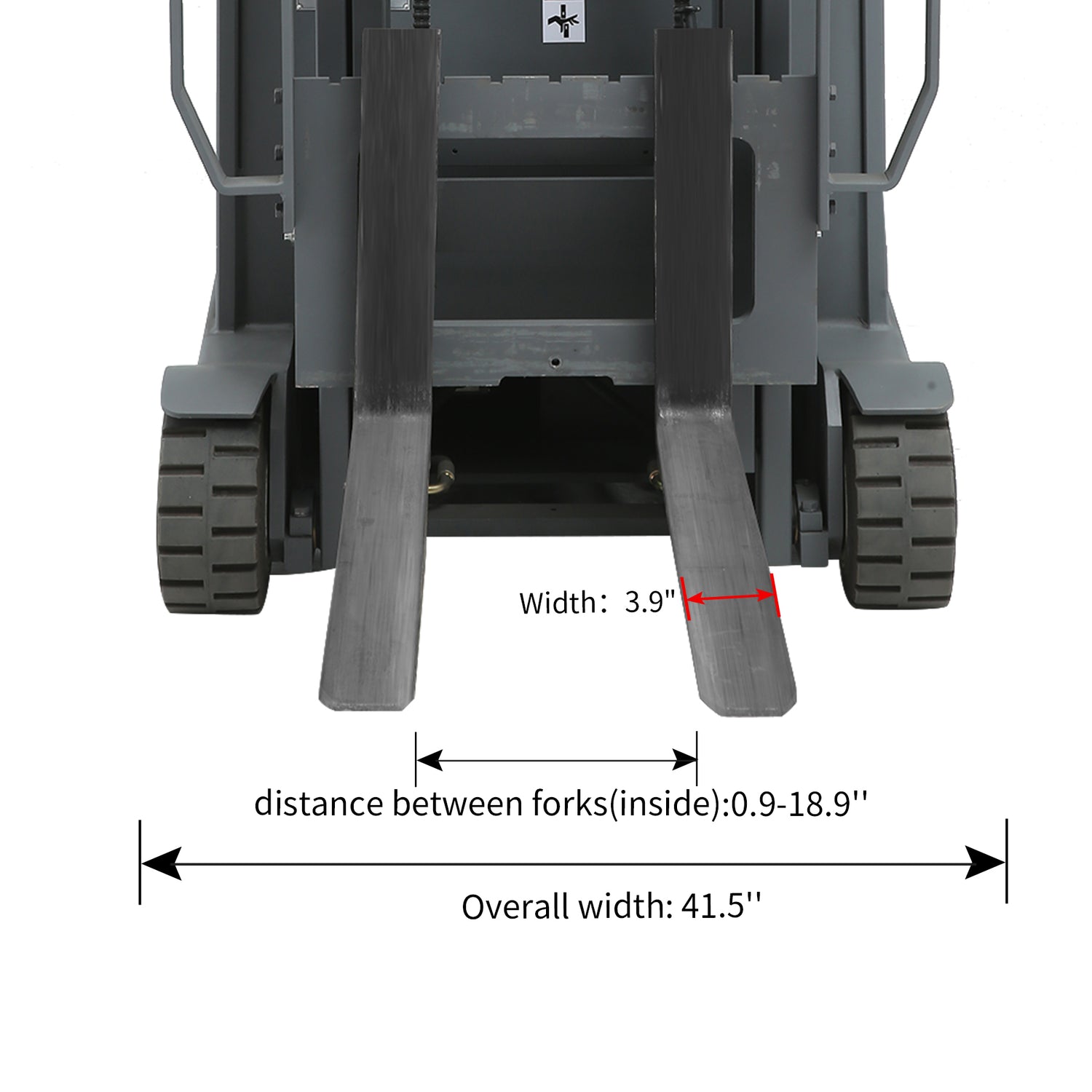

  • Inside Distance Between Forks
    0.9-18.9"
  • Fork Length
    42"
  • Fork Overall Width
    8.7-26.7"
  • Single Fork Width
    3.9"
  • Overall Height
    88.2-230.3"

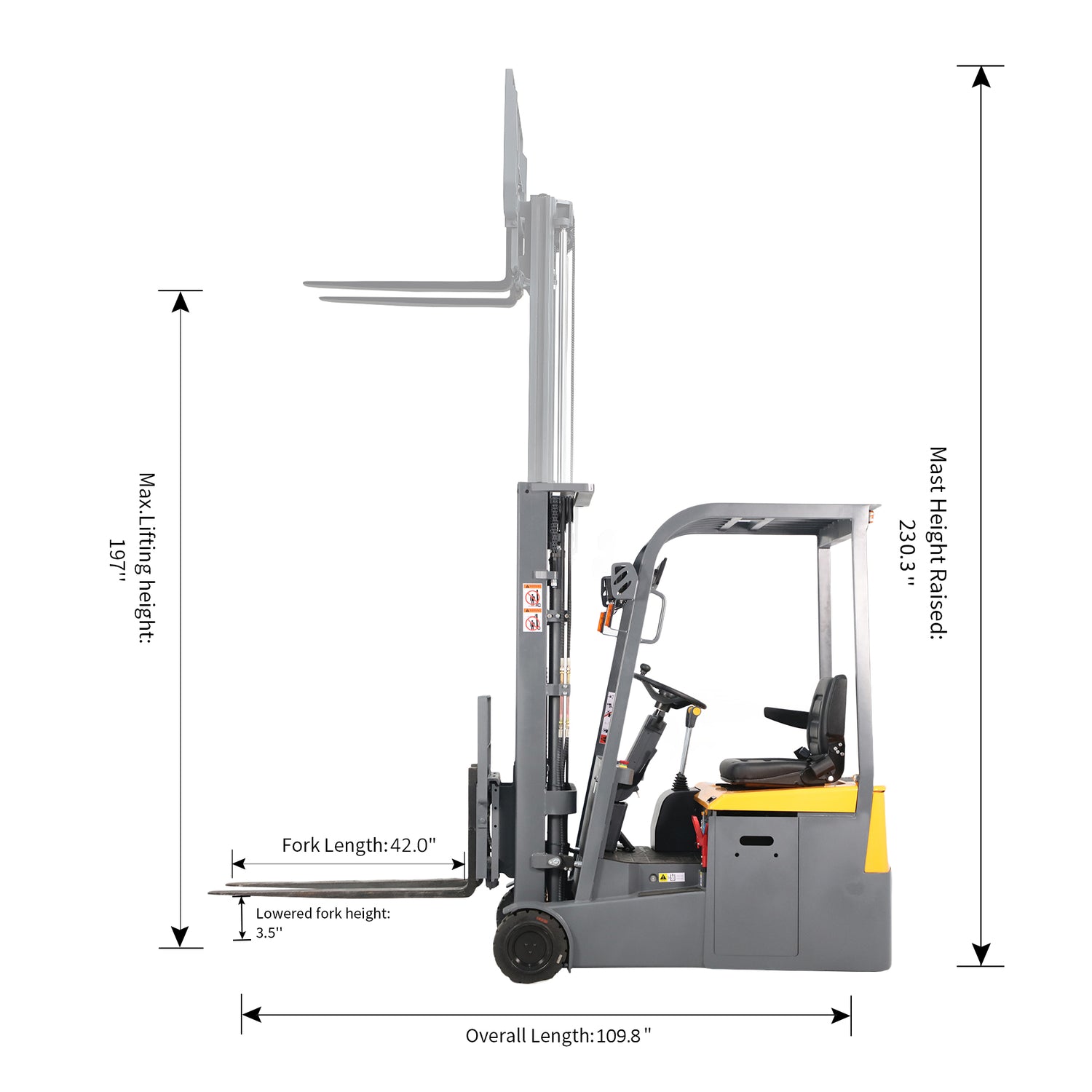

  • Overall Length
    109.8"
  • Overall Width
    41.5"
  • Driving Speed-Unladen
    4.3 mph
  • Driving Speed-Laden
    4.2 mph
  • Lifting Speed/Empty
    5.9 inch/s
  • Lifting Speed/Loaded
    3.9 inch/s
  • Turning Radius
    61"
  • Mast Lowered Height
    88.2"
  • Mast Extended Height
    230.3"
  • Load Centre Distance
    19.7"
  • Battery Capacity
    320AH
  • Battery Spec
    24V/320AH
  • Battery Voltage
    24V
  • Battery Type
    lead-acid battery
  • Fork Thickness
    1.4"
  • Lowering Speed/Empty
    15 inch/s
  • Lowering Speed/Loaded
    16.5 inch/s
  • Service Weight
    6053 lbs.
  • Gross Weight
    6063 lbs.
  • Charger
    24V/40A built-out
  • Package Size
    110"x42"x91"

⚠️ Notice:

  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Product Comparison
3 Wheels Electric Forklift A-3041
$20,999.00
3-Wheel Electric Forklift, Lithium A-3045
$22,499.00
Capacity (lb)
Capacity (lb)
3300 lbs.
3300 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
197"
189"
Service Weight (lb)
Service Weight (lb)
6053 lbs.
6053 lbs.
Fork Size (in)
Fork Size (in)
42" x 8.7-26.7"
42" x 8.7-26.7"
Lowered Mast Height (in)
Lowered Mast Height (in)
88.2"
85.6"
Turning Radius (in)
Turning Radius (in)
61"
59.1"
Battery Spec
Battery Spec
24V/320AH
24V/250AH
Aisle Width (in)
Aisle Width (in)
124"
124"
Charger
Charger
24V/40A built-out
24V/100A built-out
Fork Length (in)
Fork Length (in)
42"
42"
Fork Overall Width (in)
Fork Overall Width (in)
8.7-26.7"
8.7-26.7"
Single Fork Width (in)
Single Fork Width (in)
3.9"
3.9"
Fork Thickness (in)
Fork Thickness (in)
1.4"
1.4"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.9-18.9"
0.9-18.9"
Overall Length (in)
Overall Length (in)
109.8"
109.8"
Overall Width (in)
Overall Width (in)
41.5"
41.5"
Overall Height (in)
Overall Height (in)
88.2-230.3"
85.6-229.7"
Driving Speed - Unladen (mph)
Driving Speed - Unladen (mph)
4.3 mph
4.3 mph
Driving Speed - Laden (mph)
Driving Speed - Laden (mph)
4.2 mph
4.2 mph
Lift Speed - Unladen
Lift Speed - Unladen
5.9 inch/s
5.9 inch/s
Lift Speed - Laden
Lift Speed - Laden
3.9 inch/s
3.9 inch/s

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.
