APOLLOLIFT  |  SKU: A-3045

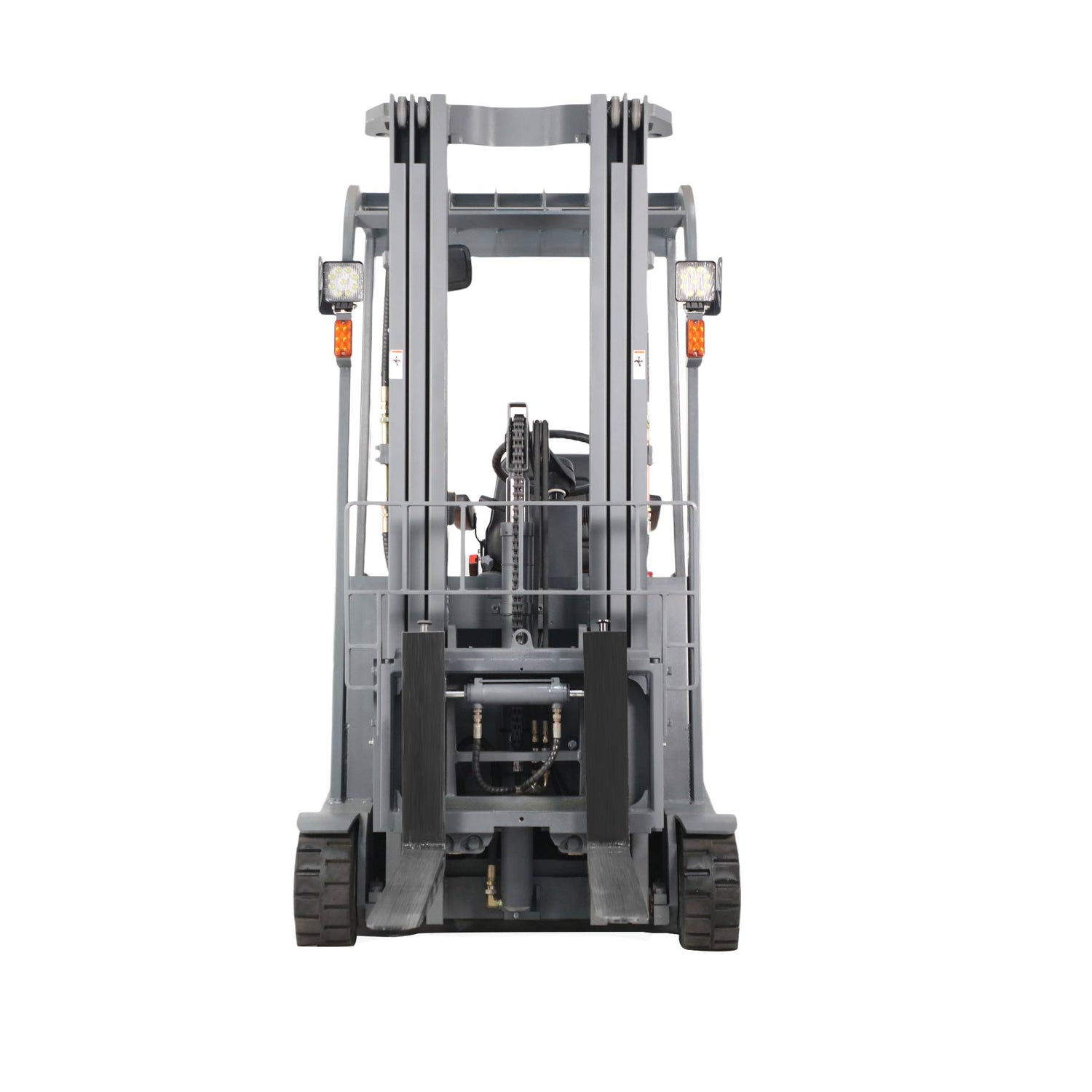

3-Wheel Electric Forklift, Lithium A-3045

$22,499.00
  • Capacity: 3300 lbs.
  • Max. Lifting Height: 189"
  • Aisle Width: 124"
  • Inside Distance: 0.9-18.9"
  • Fork Overall Width: 8.7-26.7"
  • Load Centre Distance: 19.7"
Powered by Affirm

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

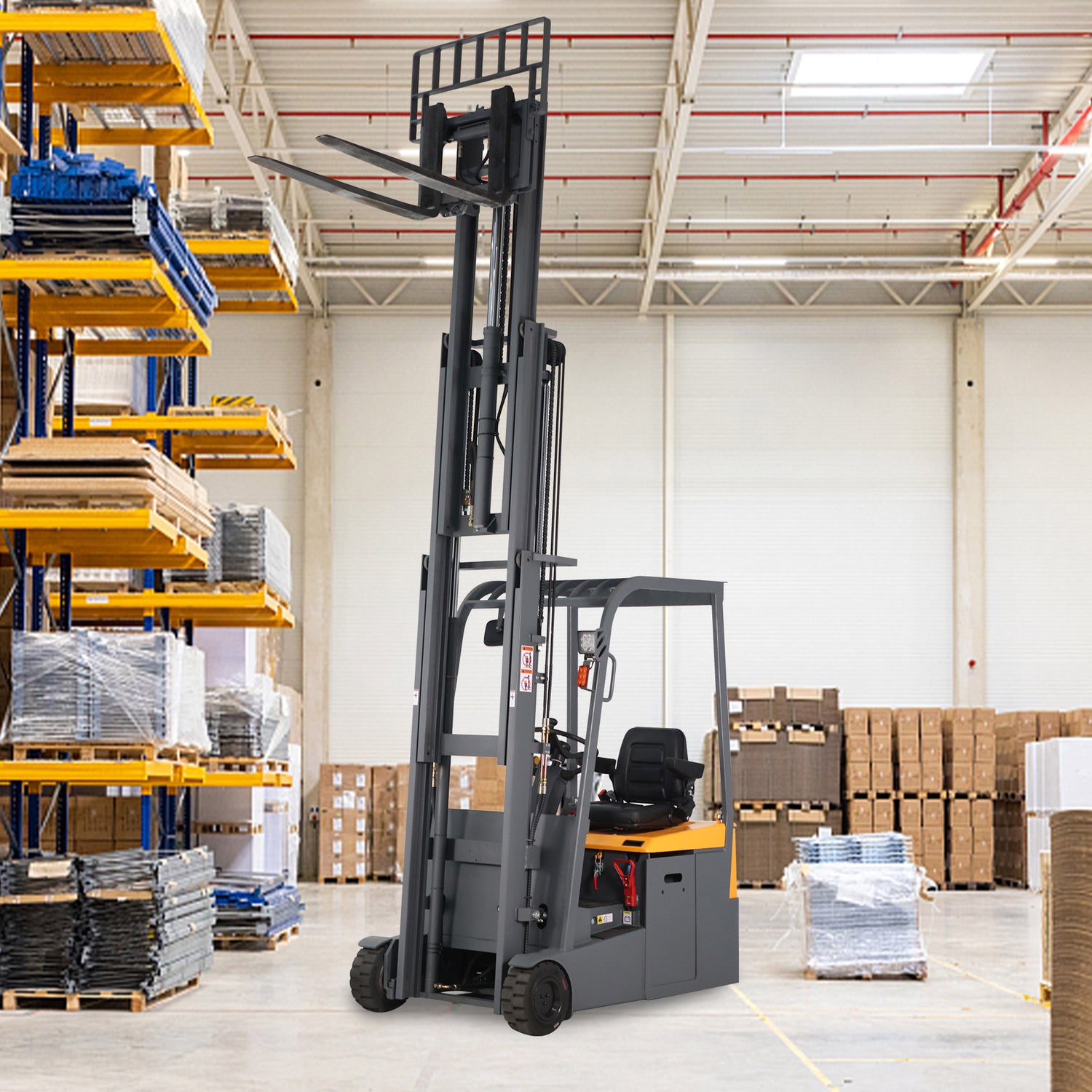

High-capacity lithium-powered electric forklift designed for demanding warehouse operations, delivering stable handling and efficient stacking in narrow aisles

3,300 lb load capacity with a 189" maximum lift height supports high-level storage while maintaining smooth, controlled operation

Maintenance-free brushless AC motor combined with a reliable Sweden Inmotion controller ensures precise control, strong performance, and reduced maintenance costs

Three-stage mast with free lift and side shifter improves stacking flexibility, especially in low-clearance and confined warehouse spaces

Rear-wheel drive design with a compact turning radius enables excellent maneuverability in tight aisles and busy warehouse layouts

High-capacity 24V/250Ah lithium battery delivers long runtime, fast energy recovery, and consistent performance across shifts

Built-in 24V/100A charger compatible with standard 110V outlets allows fast, convenient charging without special electrical infrastructure

Up to 10% gradeability at full load ensures confident operation on ramps and uneven indoor surfaces

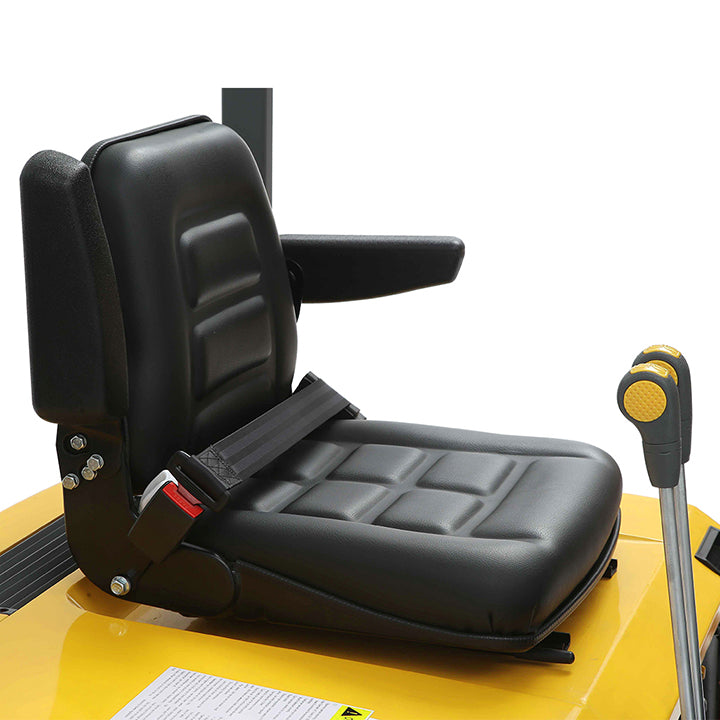

Comfort-focused seated operator position with safety belt, handrail, and ergonomic layout helps reduce fatigue during extended operation

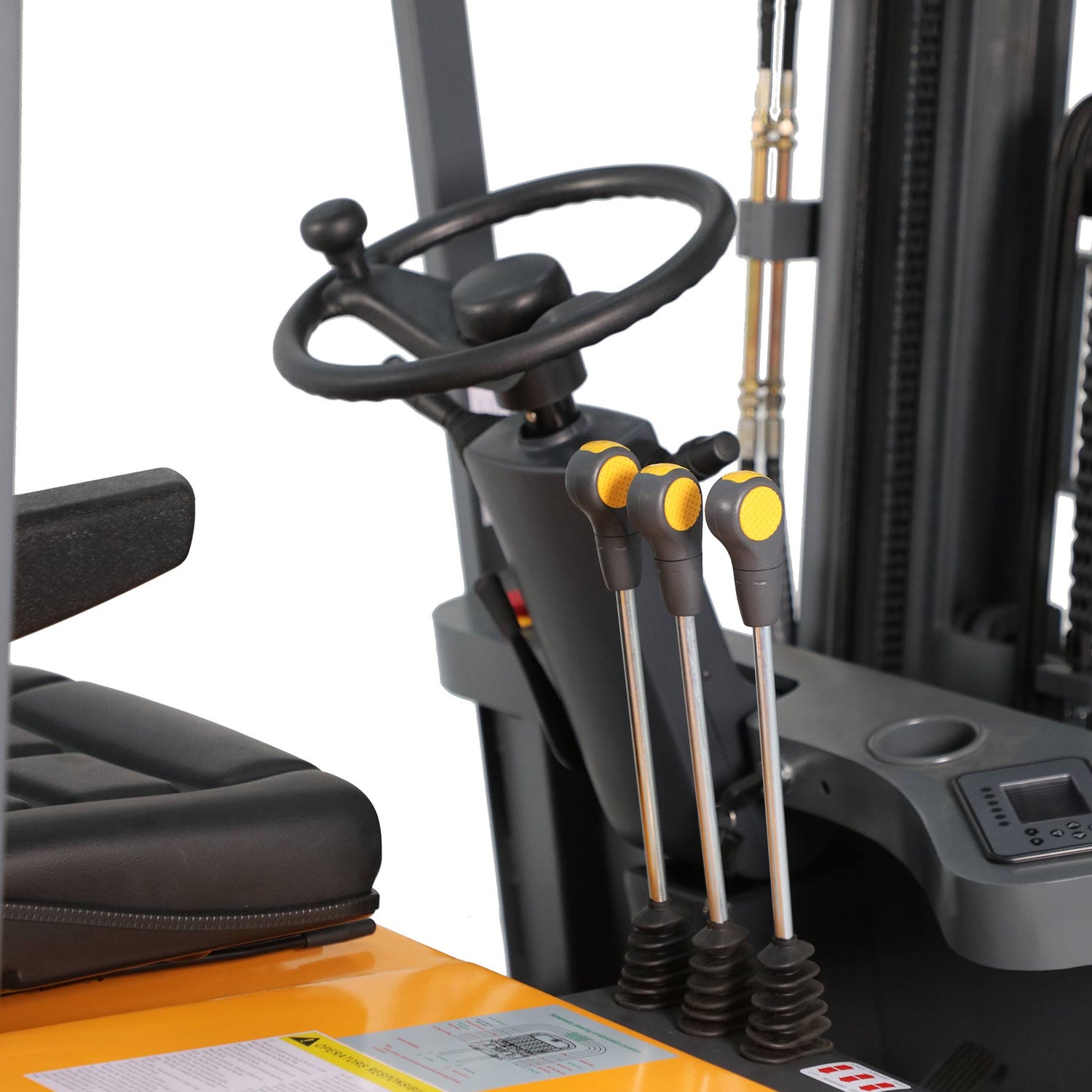

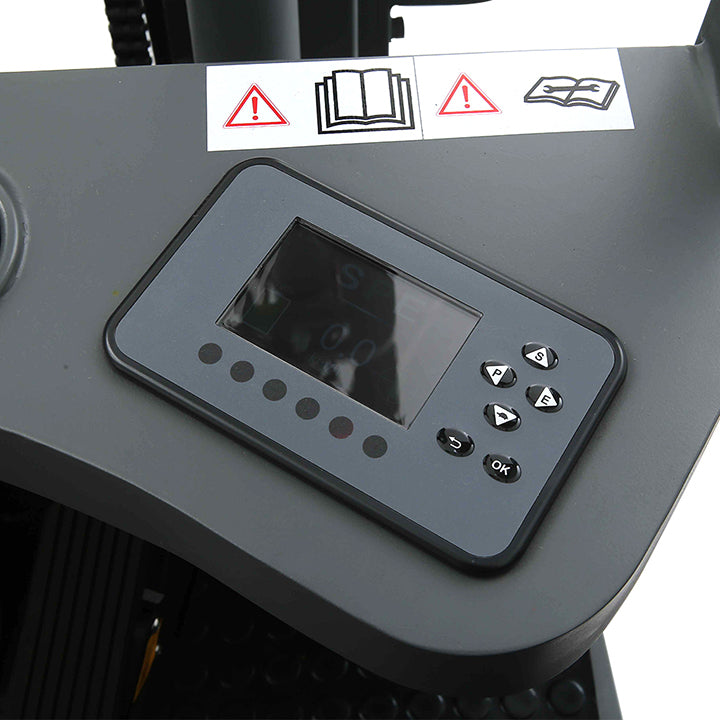

Multi-function display and LED working lights provide clear visibility of battery status, operating data, and forklift conditions

Elastic rubber tires offer shock absorption and low noise, ideal for indoor warehouse environments

Engineered for narrow-aisle warehouse use, balancing lifting power, fast charging efficiency, and operator comfort

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    124"
  • Max.Lifting Height
    189"

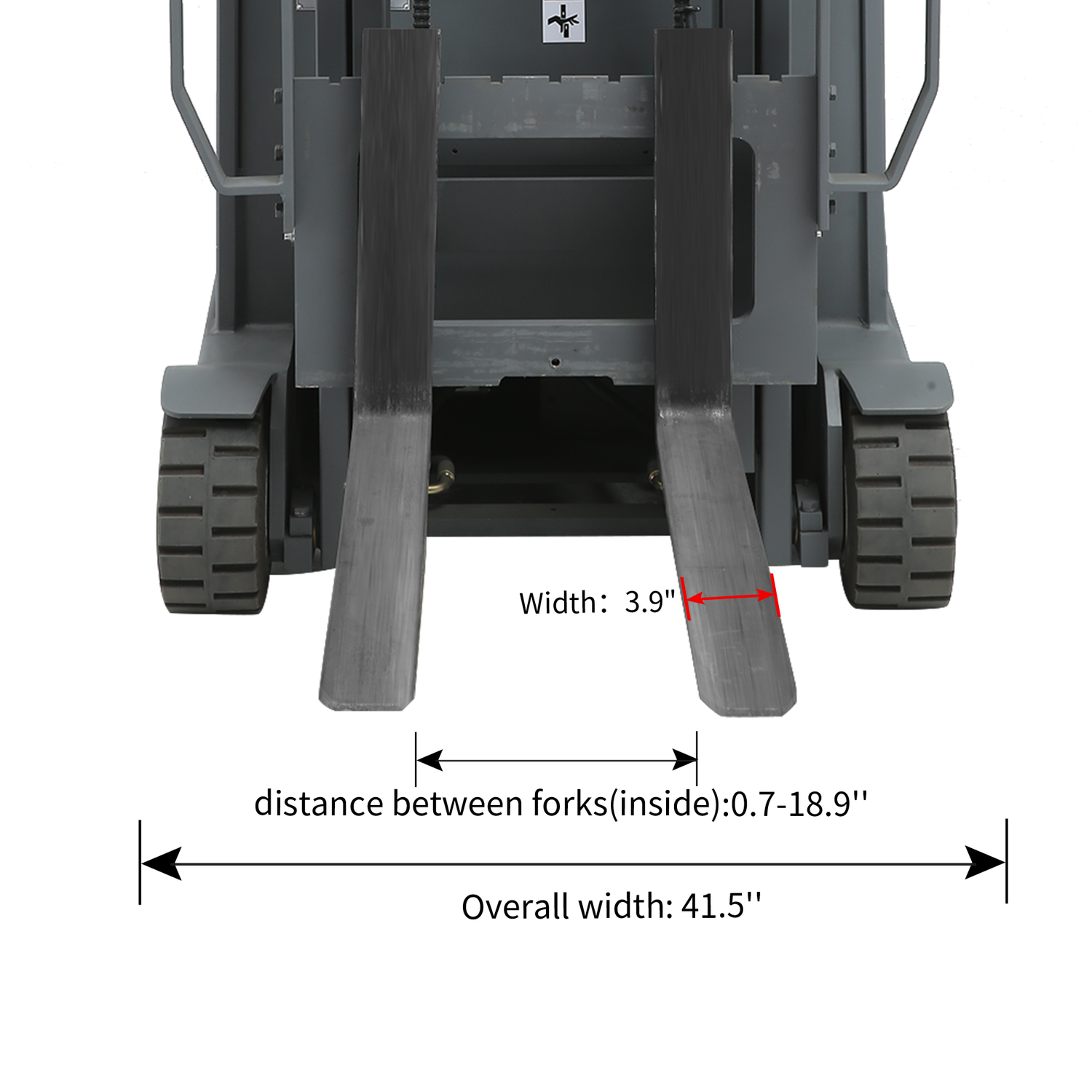

  • Inside Distance Between Forks
    0.9-18.9"
  • Fork Length
    42"
  • Fork Overall Width
    8.7-26.7"
  • Single Fork Width
    3.9"
  • Overall Height
    85.6-229.7"
  • Overall Length
    109.8"
  • Overall Width
    41.5"
  • Driving Speed-Unladen
    4.3 mph
  • Driving Speed-Laden
    4.2 mph
  • Lifting Speed/Empty
    5.9 inch/s
  • Lifting Speed/Loaded
    3.9 inch/s
  • Turning Radius
    59.1"
  • Mast Lowered Height
    85.6"
  • Mast Extended Height
    229.7"
  • Load Centre Distance
    19.7"
  • Battery Capacity
    250AH
  • Battery Spec
    24V/250AH
  • Battery Voltage
    24V
  • Battery Type
    lithium battery
  • Fork Thickness
    1.4"
  • Lowering Speed/Empty
    15 inch/s
  • Lowering Speed/Loaded
    16.5 inch/s
  • Service Weight
    6053 lbs.
  • Gross Weight
    6063 lbs.
  • Charger
    24V/100A built-out
  • Package Size
    110"x42"x91"

⚠️ Notice:

  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Product Comparison
3-Wheel Electric Forklift, Lithium A-3045
$22,499.00
3 Wheels Electric Forklift A-3041
$20,999.00
Capacity (lb)
Capacity (lb)
3300 lbs.
3300 lbs.

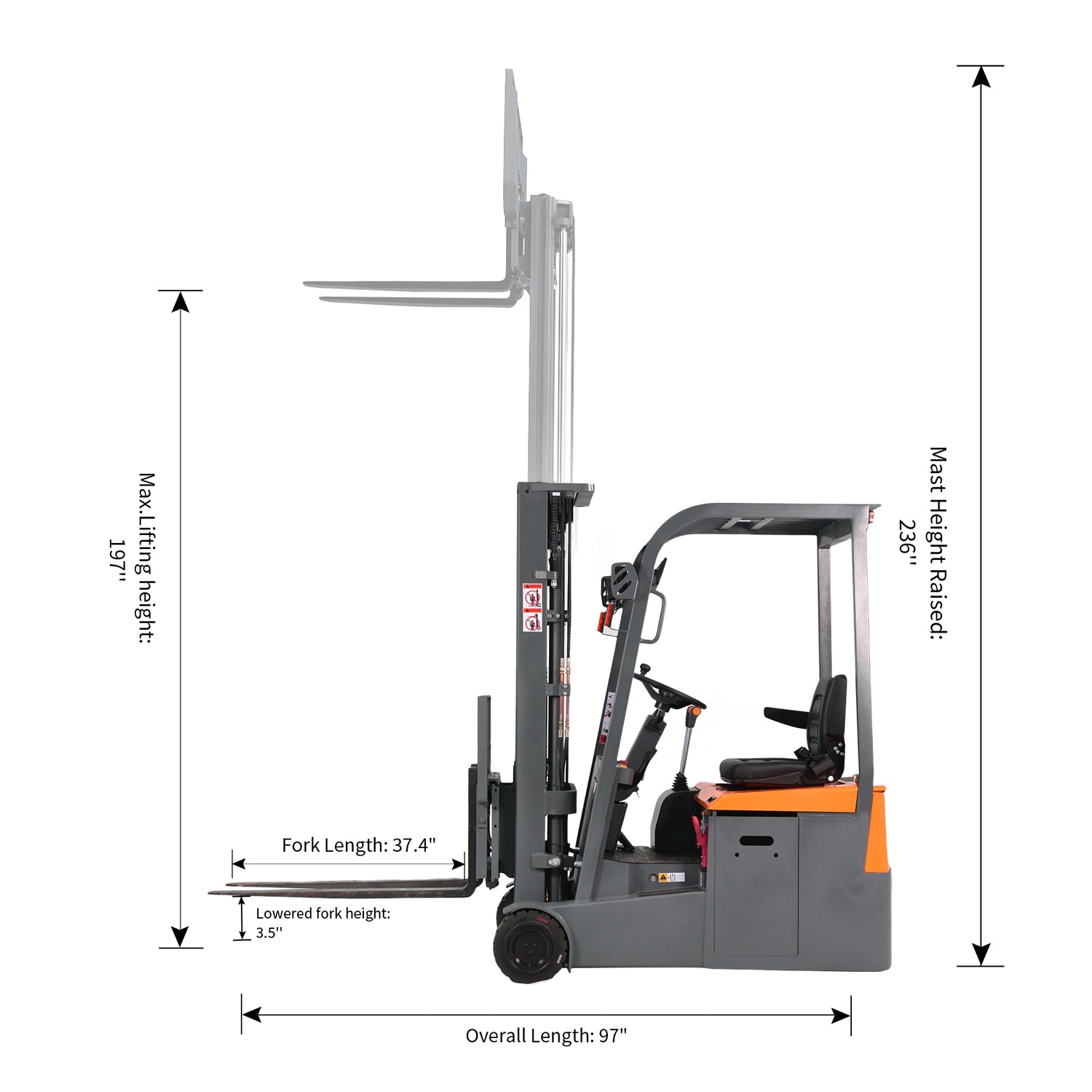

Max Lifting Height (in)
Max Lifting Height (in)
189"
197"
Service Weight (lb)
Service Weight (lb)
6053 lbs.
6053 lbs.
Fork Size (in)
Fork Size (in)
42" x 8.7-26.7"
42" x 8.7-26.7"
Lowered Mast Height (in)
Lowered Mast Height (in)
85.6"
88.2"
Turning Radius (in)
Turning Radius (in)
59.1"
61"
Battery Spec
Battery Spec
24V/250AH
24V/320AH
Aisle Width (in)
Aisle Width (in)
124"
124"
Charger
Charger
24V/100A built-out
24V/40A built-out
Fork Length (in)
Fork Length (in)
42"
42"
Fork Overall Width (in)
Fork Overall Width (in)
8.7-26.7"
8.7-26.7"
Single Fork Width (in)
Single Fork Width (in)
3.9"
3.9"
Fork Thickness (in)
Fork Thickness (in)
1.4"
1.4"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.9-18.9"
0.9-18.9"
Overall Length (in)
Overall Length (in)
109.8"
109.8"
Overall Width (in)
Overall Width (in)
41.5"
41.5"
Overall Height (in)
Overall Height (in)
85.6-229.7"
88.2-230.3"
Driving Speed - Unladen (mph)
Driving Speed - Unladen (mph)
4.3 mph
4.3 mph
Driving Speed - Laden (mph)
Driving Speed - Laden (mph)
4.2 mph
4.2 mph
Lift Speed - Unladen
Lift Speed - Unladen
5.9 inch/s
5.9 inch/s
Lift Speed - Laden
Lift Speed - Laden
3.9 inch/s
3.9 inch/s

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.
