APOLLOLIFT  |  SKU: A-4004

4-Wheel Electric Forklift, Lead-Acid Battery A-4004

$32,999.00
  • Capacity: 5500 lbs
  • Max. Lifting Height: 197"
  • Aisle Width: 153.5"
  • Mast Lowered Height: 91"
  • Fork Length: 42"
  • Fork Spread: 9.5–42.8"
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

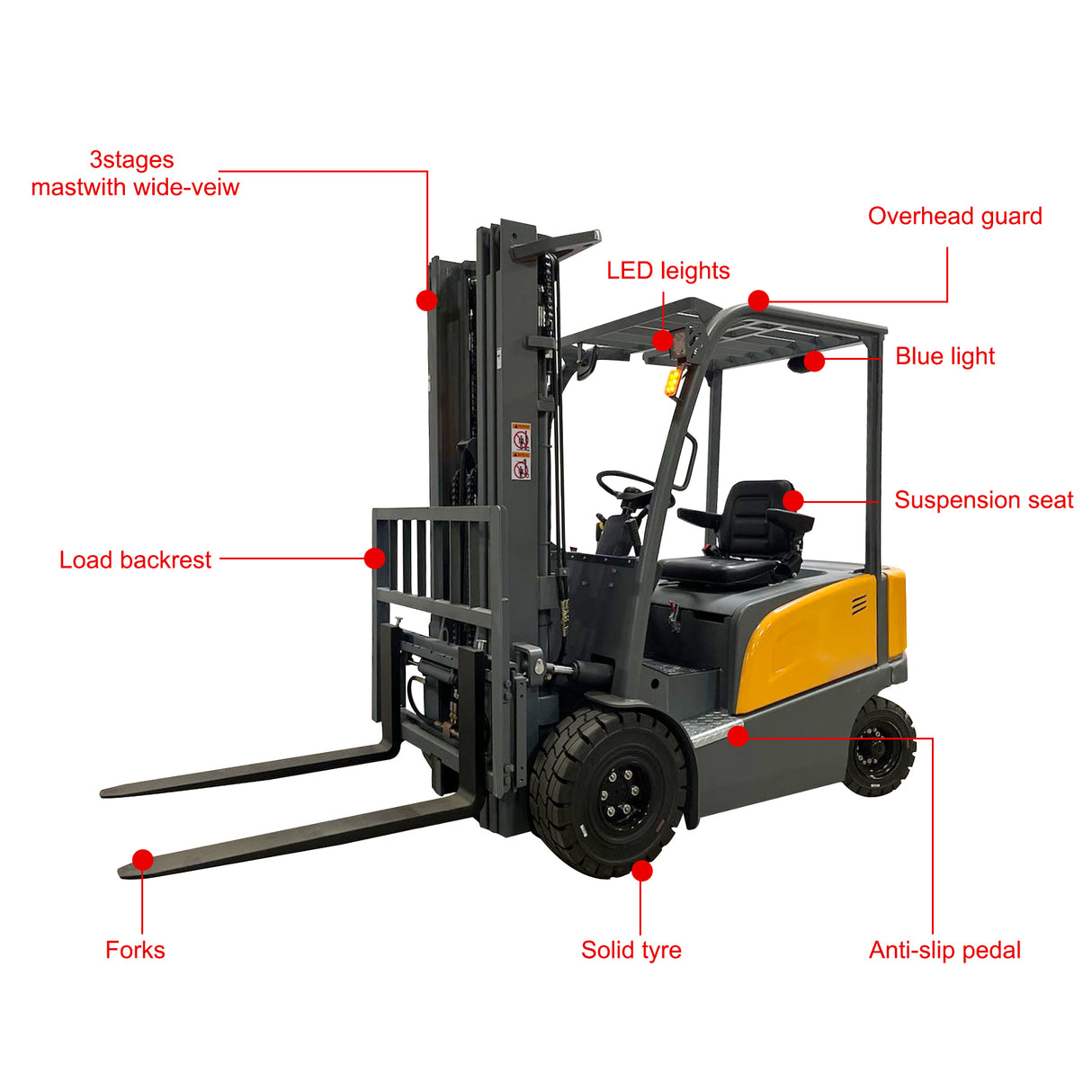

Heavy-duty seated electric forklift built for demanding warehouse and industrial operations, delivering strong lifting power, stable handling, and proven durability

Rated at 5,500 lbs with a maximum lift height of 197", this forklift supports high-level stacking and efficient material handling for heavier loads

Side-shifting forks with 42" fork length allow precise pallet positioning and improved efficiency during loading and stacking

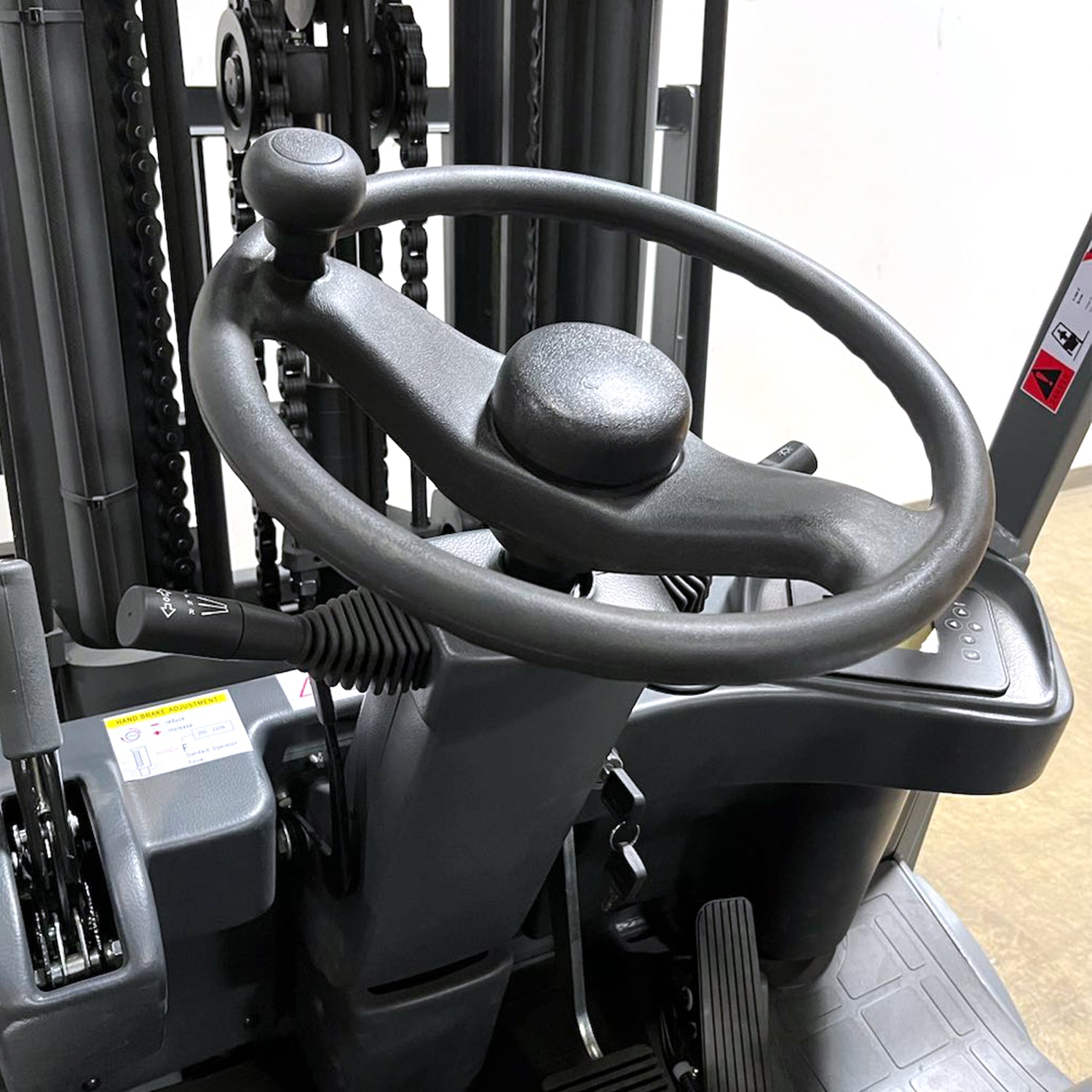

Hydraulic steering system ensures smooth, responsive control and reduced operator effort during daily operation

High-capacity 48V/500Ah lead-acid battery provides reliable runtime for full-shift warehouse use, paired with a built-in 48V/70A charger for convenient charging via 3-phase power

Solid cushion tires deliver excellent stability, durability, and low maintenance for indoor industrial environments

Robust steel construction with robotic welding ensures consistent build quality, structural strength, and long service life

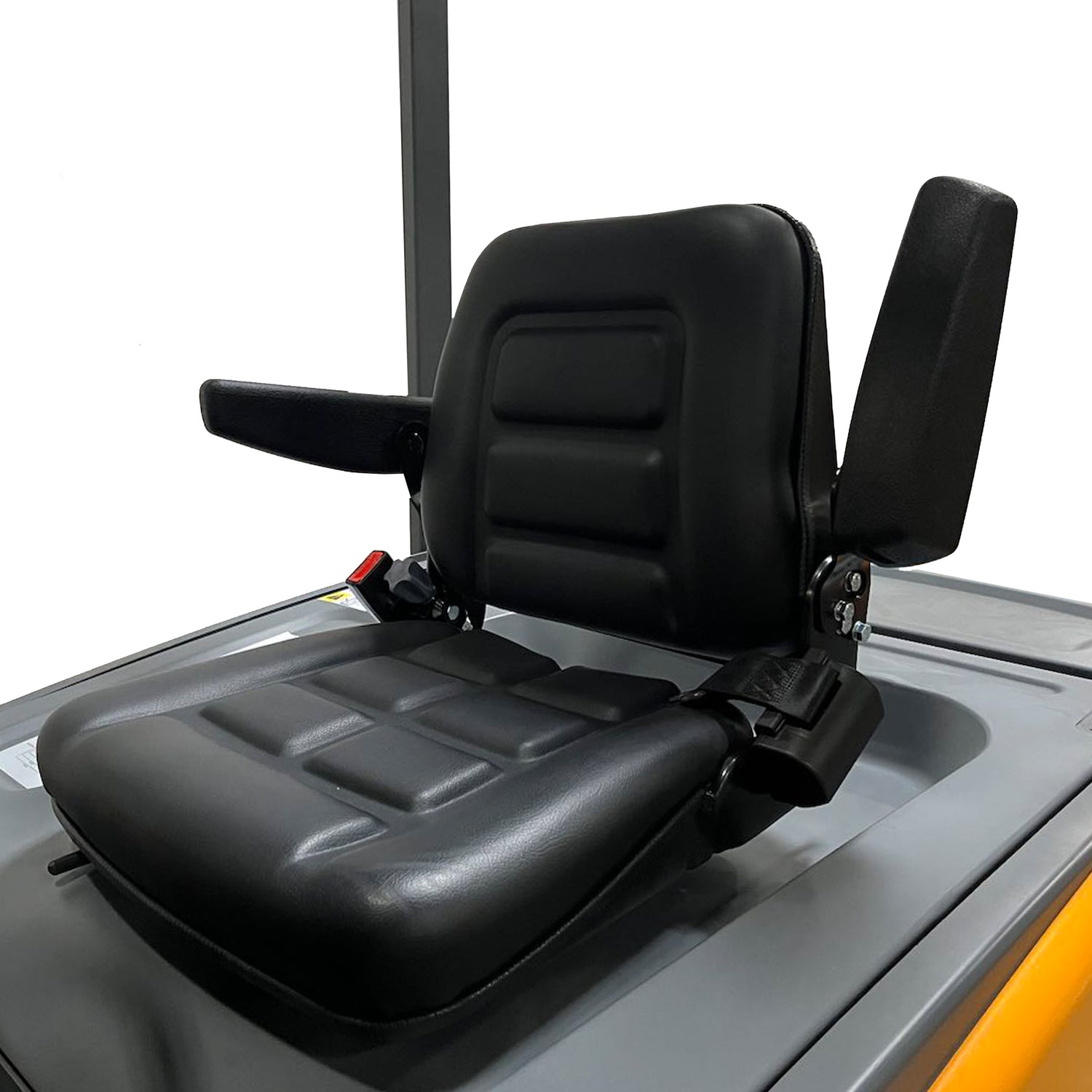

Comfort-focused seated operator position, featuring ergonomic controls and clear layout, helps reduce fatigue during extended shifts

Smooth travel and lifting performance, with travel speeds up to 8.1 mph and efficient hydraulic lifting, supports productive material flow

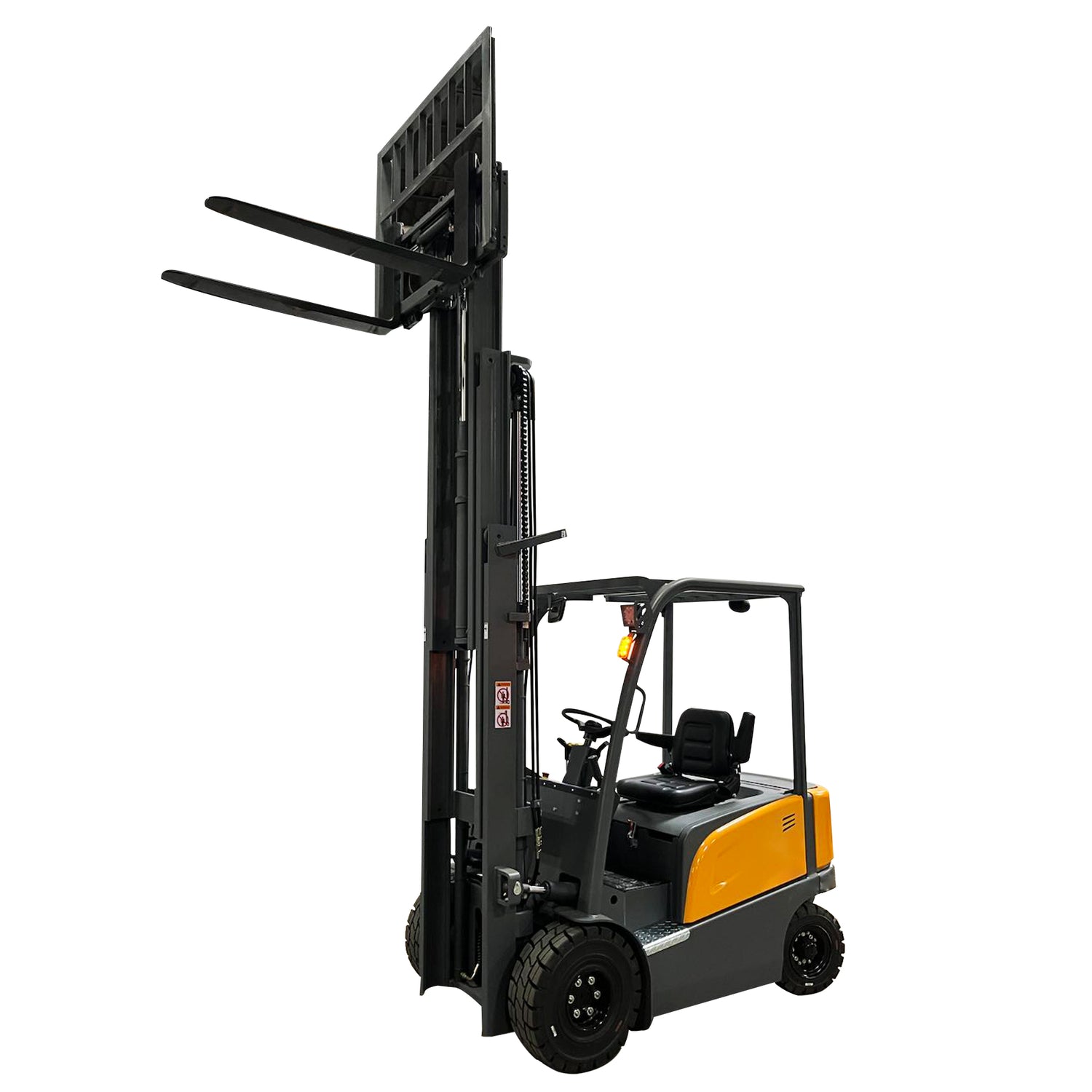

Free lift mast with wide-view design and side shifter improves operation in low-clearance areas and busy warehouse aisles

Designed for narrow-aisle warehouse environments, combining heavy load capacity, precise control, and long-term reliability

Specifications

  • Capacity
    5500 lbs.
  • Aisle Width
    153.5"
  • Max.Lifting Height
    197"
  • Inside Distance Between Forks
    0.1-33.4"
  • Fork Overall Width
    9.5-42.8"
  • Single Fork Width
    4.7"
  • Overall Height
    91.0-236.2"

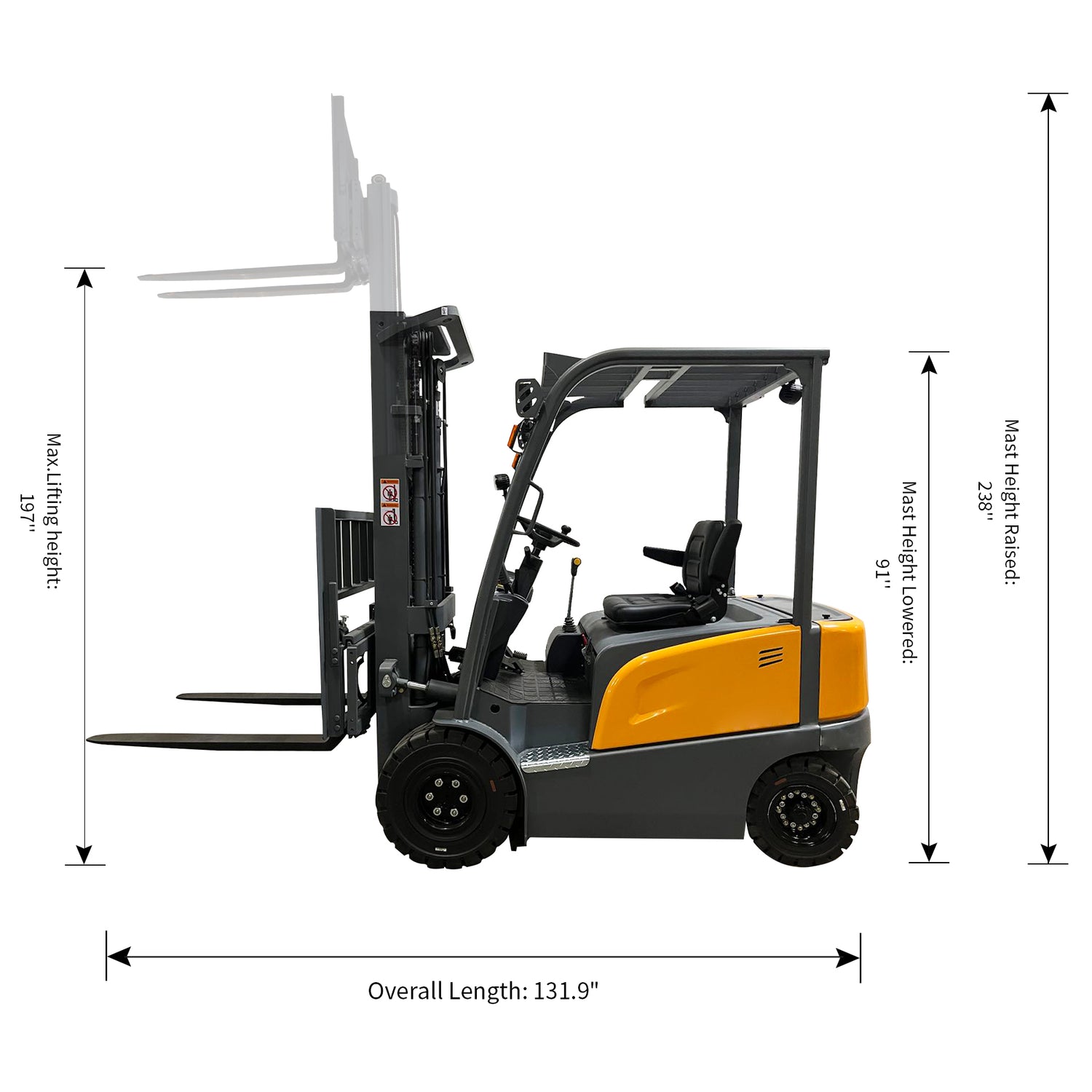

  • Overall Length
    131.9"

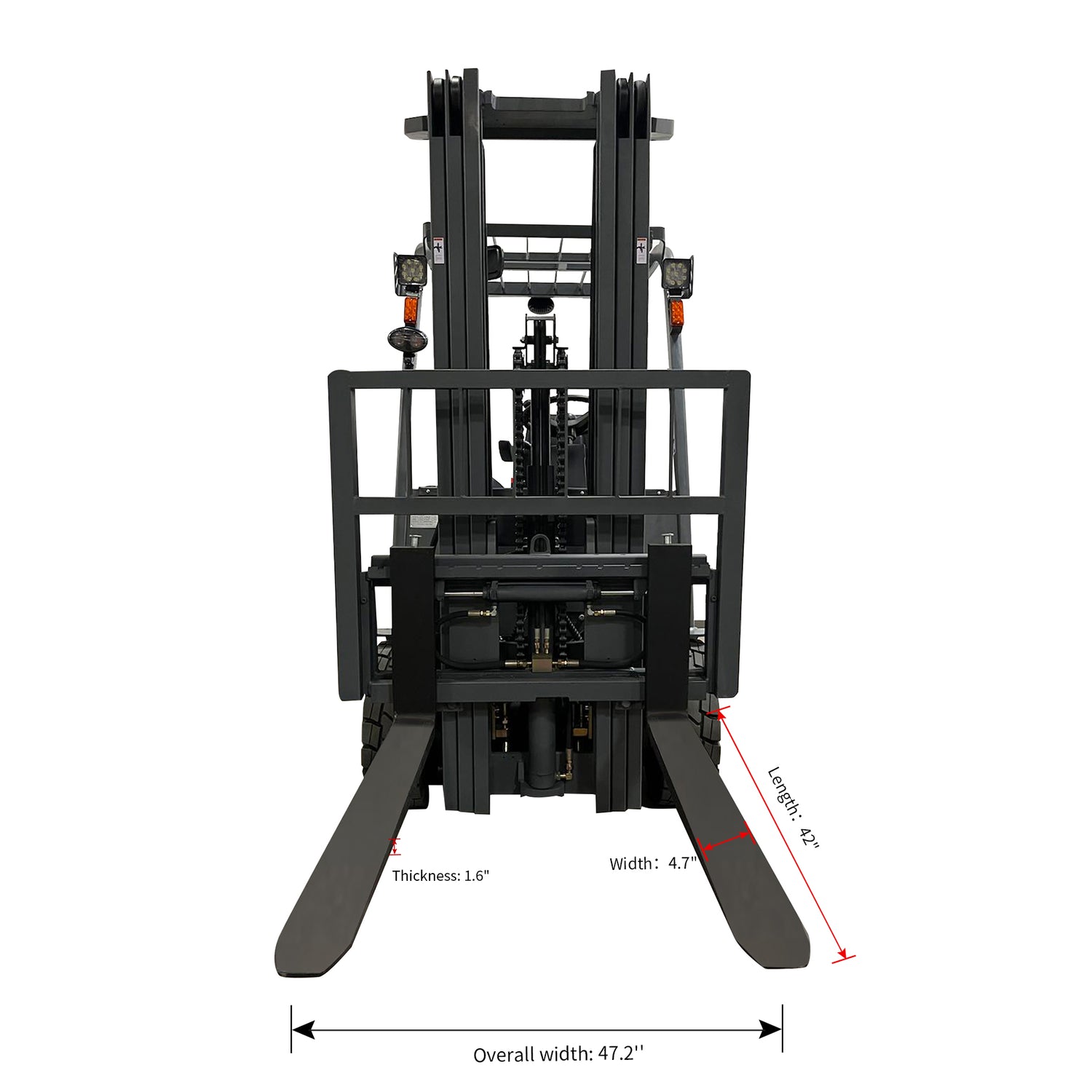

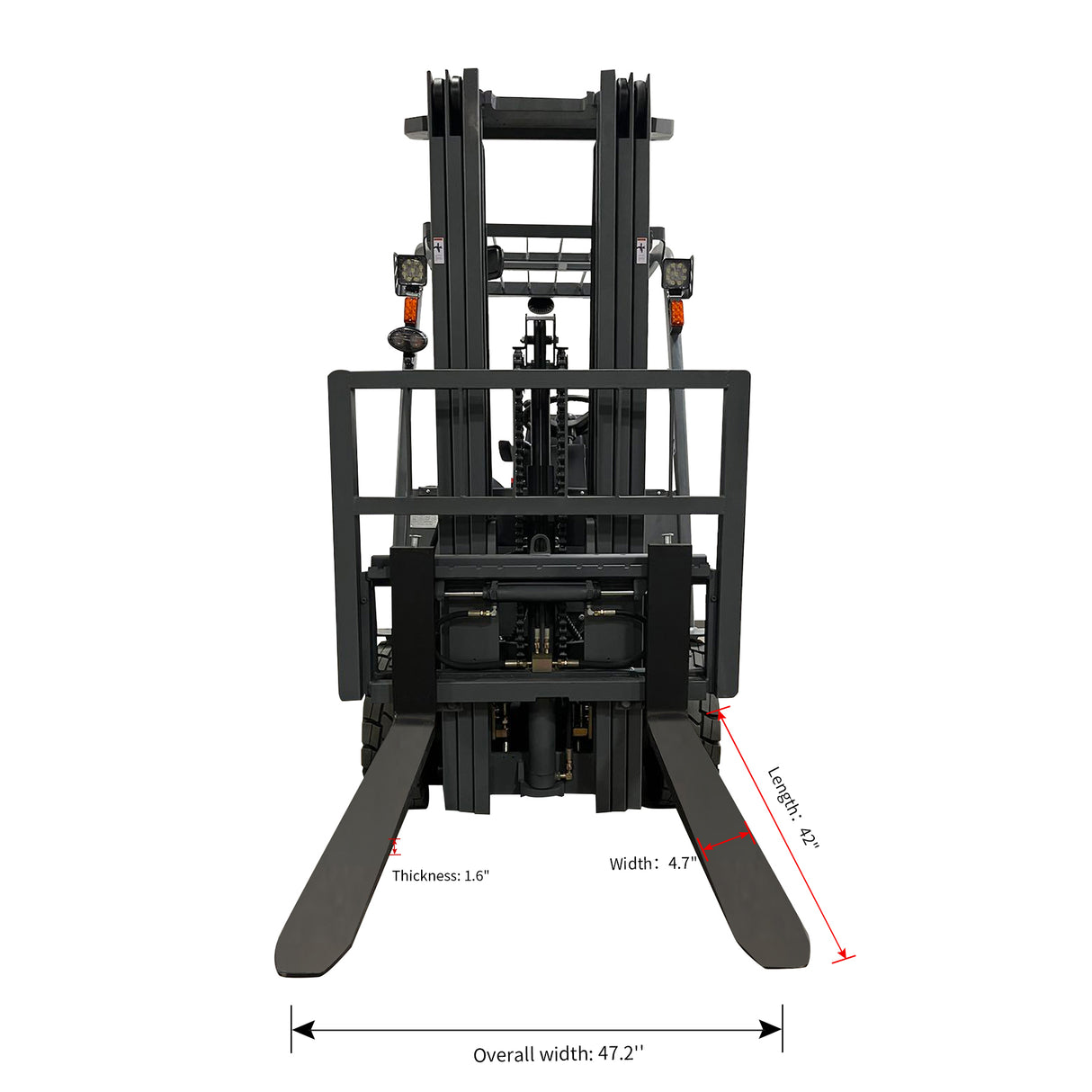

  • Overall Width
    47.2"
  • Driving Speed-Unladen
    8 mph
  • Driving Speed-Laden
    7.5 mph
  • Lifting Speed/Empty
    11.8 inch/s
  • Lifting Speed/Loaded
    10.2 inch/s
  • Turning Radius
    85.8"
  • Mast Lowered Height
    91"
  • Mast Extended Height
    236.2"
  • Load Centre Distance
    19.7"
  • Battery Capacity
    500AH
  • Battery Spec
    48V/500AH
  • Battery Voltage
    48V
  • Fork Thickness
    1.6"
  • Fork Lowered Height
    1.5"
  • Lowering Speed/Empty
    16.5 inch/s
  • Lowering Speed/Loaded
    14.2 inch/s
  • Service Weight
    9120 lbs.
  • Gross Weight
    9130 lbs.
  • Charger
    48V/70A built-out
  • Package Size
    132"x47"x81"

⚠️ Notice:

  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Warranty

1-Year Limited Warranty from the delivery date:

  • 0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
  • 30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
  • After 1 Year: Free tech support; parts/labor/shipping billed.
  • Special:
    Accessories: 6 months
    Batteries: 12 months
  • Exclusions: Wear, misuse, consumables
  • Battery: Charge monthly when idle
  • View the full warranty policy here: https://apolloliftus.com/pages/warranty

Product Comparison

4-Wheel Electric Forklift, Lead-Acid Battery A-4004
4-Wheel Electric Forklift, Lithium A-4001
4-Wheel Electric Forklift, Lead-Acid Battery A-4014
Max.Lifting Height
Max.Lifting Height
197"
197"
197"
Capacity
Capacity
5500 lbs.
5500 lbs.
6600 lbs.
Single Fork Width
Single Fork Width
4.7"
4.7"
4.9"
Battery Spec
Battery Spec
48V/500AH
48V/450AH
80V/400AH
Battery Type
Battery Type
Lithium battery
Charger
Charger
48V/70A built-out
48V/150A built-out
80V/60A built-out

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.
