1 5
2200 lbs.
2200 lbs.
Capacity
49" x 27"
49" x 27"
Fork Size
12V/100AH
12V/100AH
Battery
31.5"
31.5"
Max Lift Ht.
APOLLOLIFT  |  SKU: A-1016

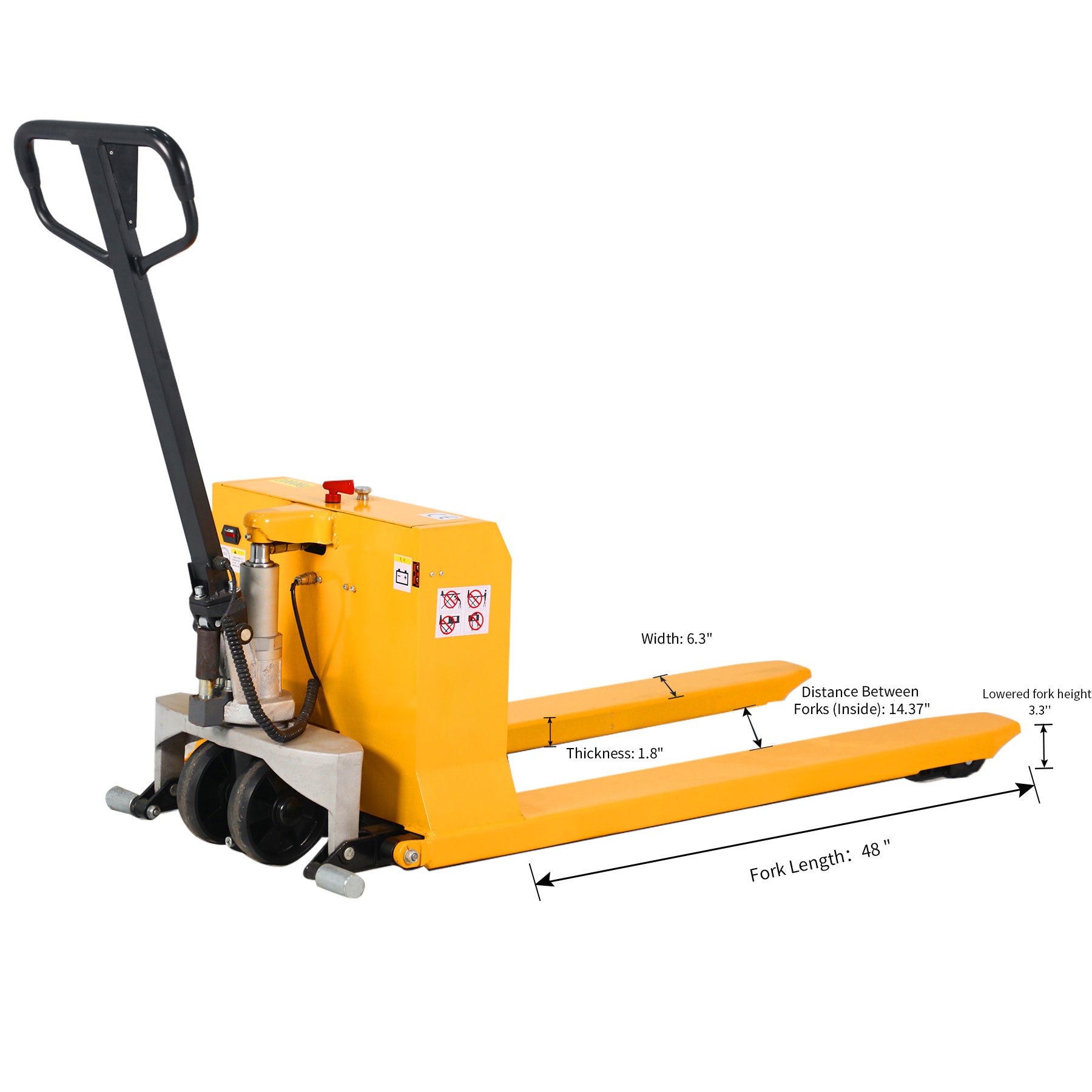

Electric High Lift Truck A-1016

$2,690.00
  • Capacity: 2200 lbs.
  • Fork Size: 49" x 27"
  • Battery: GEL 12V/100AH
  • Max Lifting Height: 31.5"
Powered by Affirm
Summer Sale: 3% OFF!
Apply code at checkout
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts
  • Ergonomic Handle with 3-Position Control: Ergonomically designed handle with three control positions—Raise, Lower, and Neutral—for precise and comfortable operation.
  • Electric Lifting with Stable Height Range: Provides a lifting range from 3.3" lowered height to 31.5" raised height, suitable for efficient pallet handling and stacking tasks.
  • Excellent Maneuverability in Warehouse Aisles: Features an impressive 210° turning angle and a compact 58.3" turning radius, allowing smooth operation in aisles as narrow as 72.9".
  • Reliable Hydraulic & Electric Power System: Complete pump design with a leak-proof hydraulic system, powered by a 12V / 100Ah GEL battery, ensuring dependable lifting performance and long service life.

Specifications

  • Capacity
    2200 lbs.
  • Aisle Width
    72.9"
  • Max.Lifting Height
    31.5"
  • Inside Distance Between Forks
    14.4"
  • Fork Length
    49"
  • Fork Overall Width
    27"
  • Single Fork Width
    6.3"
  • Compatible Pallet Types
    Open Bottom
  • Overall Height
    48.2"
  • Overall Length
    65"
  • Overall Width
    27"
  • Support Leg Type
    Fixed
  • Total Wheel Count
    4
  • Turning Radius
    58.3"
  • Lifting Distance
    28.2"
  • Battery Capacity
    100AH
  • Battery Spec
    12V/100AH
  • Battery Voltage
    12V
  • Battery Type
    GEL battery
  • Fork Thickness
    1.8"
  • Fork Lowered Height
    3.3"
  • Service Weight
    398 lbs.
  • Gross Weight
    408 lbs.
  • Charger
    12V/10A built-out
  • Package Size
    73"x29"x28"

Electric Pallet Jack

Primary Equipment for High-Frequency Horizontal Transport

Electric pallet jacks are built for consistent, day-to-day pallet movement. They significantly reduce physical strain and improve operational efficiency.

  • Powered travel and lift
  • Ideal for medium to high-volume operations
  • Increases productivity while lowering labor fatigue
  • Standard equipment in most warehouses
Best Fit
Warehouses, distribution centers, busy loading docks, and 3PL facilities.
Positioning:
This is the go-to solution for horizontal transport.
If stacking at rack height is required, consider an Electric Stacker.

⚠️ Notice:

  • Handle Self-Installation Required
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.
