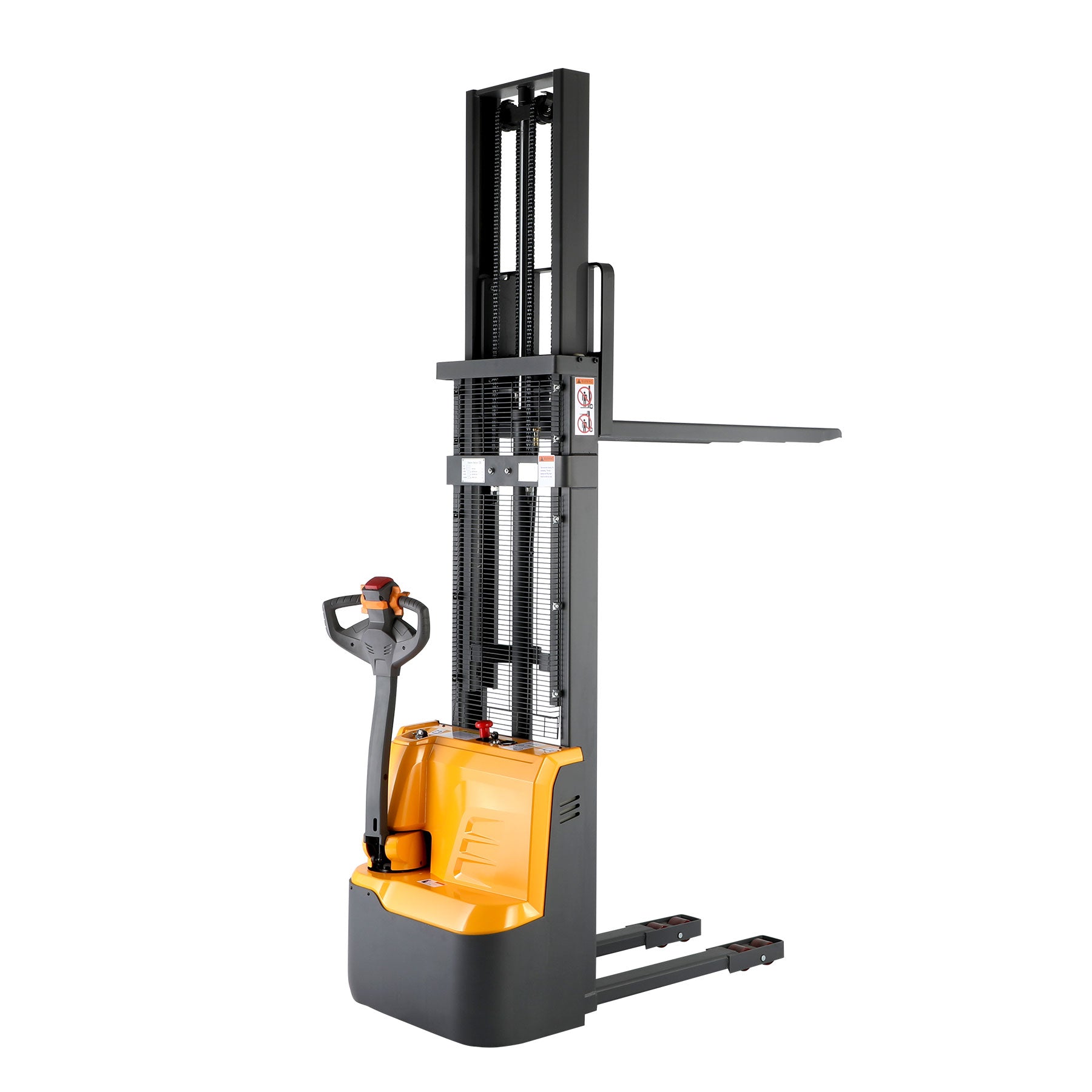

Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Fixed Legs.118" Lifting A-3034

  • SKU:
    A-3034
$4,490.00
$4,490.00 $6,297.00
Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Fixed Legs.118" Lifting A-3034

Powered Forklift Full Electric Walkie Stacker 3300lbs Cap. Fixed Legs.118" Lifting A-3034

$4,490.00
$4,490.00 $6,297.00
Product description

THE BEST CHOICE FOR NARROW SITE

  • 650-watt drive motor, 2,200-watt lift motor.
  • Curtis (US Brand) Controller.
  • Use GEL battery free to maintain.
  • Fixed forks suits for EU type pallet.
  • Both sides of button for lifting and lowering operation.
  • Red dot and IF design award winner

*FULLY POWERED STACKER

MODEL NO. LOAD         CAPACITY  BATTERY CAPACITY HEIGHT           RAISED  WHEEL           DIAMETER  WT(LBS)  PRICE EACH
A-3038
 2,640 lbs 24V/105AH 98'' 7.7"  1,250 $4997
A-3042
 2,640 lbs 24V/105AH 118'' 7.7"  1,270 $5497
A-3022 3,300 lbs 24V/125AH 98'' 7.7"  1,420 $6497
A-3023 3,300 lbs 24V/125AH 118'' 7.7"  1,466 $6797
A-3035 2,640lbs 24V/60AH 118" 7.7" 1,270 $6237


*SHIPS ASSEMBLED VIA MOTOR FREIGHT

*REPLACEMENT PARTS

MODEL NO. BATTERY TYPE BATTERY CAPACITY WT. (LBS) DIMENSIONS PRICE EACH 2 PCS PRICE
S-1005 Gel Battery 24V/105AH 115 10.2x6.6x8.5" $600 $1,150

DIMENSIONS:

  • Overall Length：68.8"
  • Overall Width: 31.5''
  • Recommended Aisle Width：87.3"
  • Turning Radius: 53.7"
  • Mast Height Lowered:82.2''
  • Mast Height Raised: 140.1''
  • Load Center: 23.6"

FORKS:

  • Fork height, Lowered: 3.5''
  • Thickness: 2.3''
  • Single fork width: 6.7''
  • Overall forks width: 27.3"
  • Length: 45''

FEATURES:

  • Smooth rolling polyurethane wheels.180° steering arc.
  • 110V Built-in Charger.
  • 6 hours service per charge: two 12-volt, 125 Ah rechargeable GEL batteries.

SPEED:

  • Travel speed(laden/unladen) : 2.8/3.1mph
  • Lifting speed(laden/unladen) : 4.3/5.5inch/s
  • Lowering speed(laden/unladen) : 4.7/3.9inch/s

SPECIFICATIONS:

  • Not explosion proof.
  • This forklift is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
  • Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
  • Fully charge battery before use to avoid damaging cells.
  • Charger plugs into standard 110V-120V outlets.
  • Charge the forklift once a month even it's not in use.
