1 10

101.1"

Aisle Width

24V/200AH

Battery

3300 lbs.

Capacity

220"

Max Lift Ht.

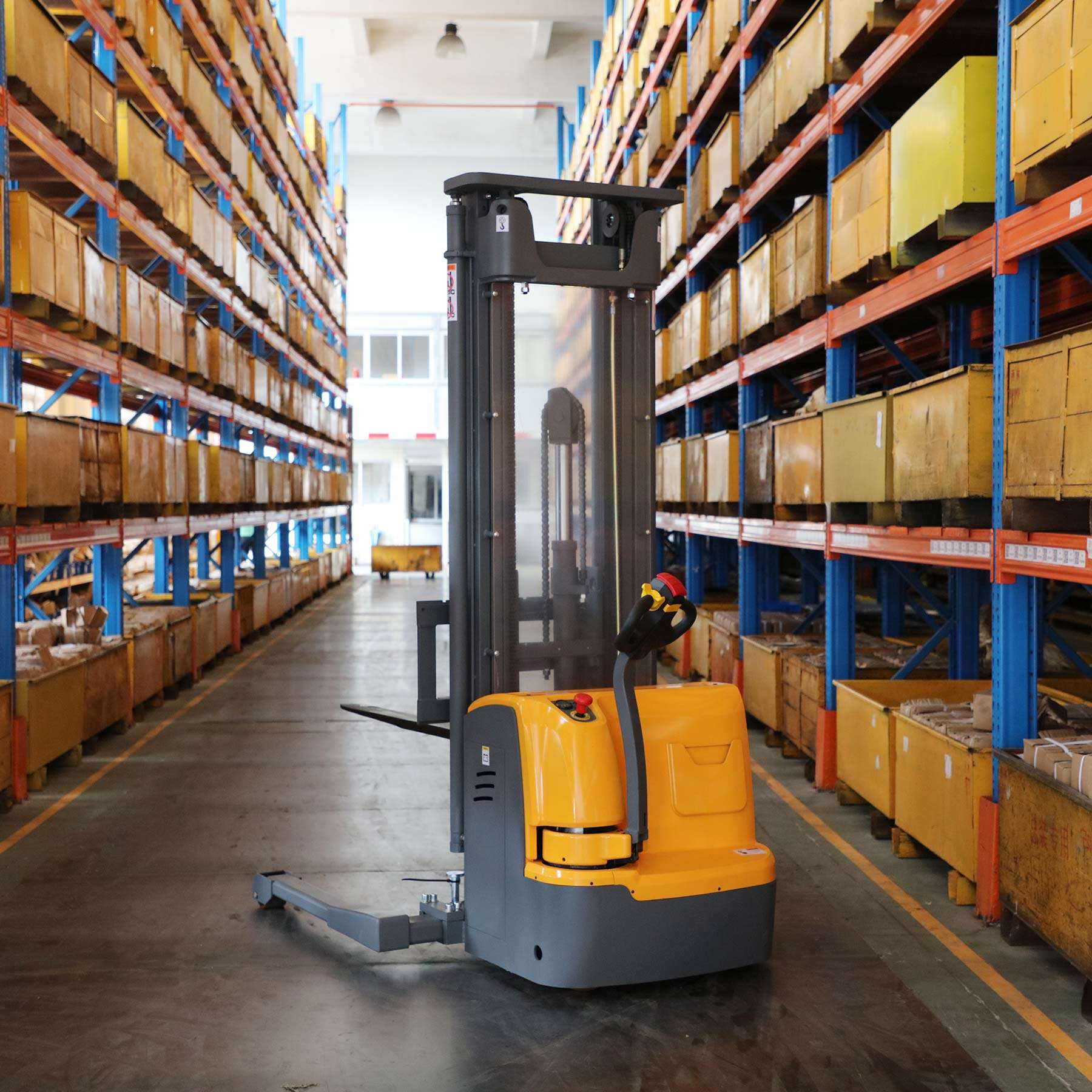

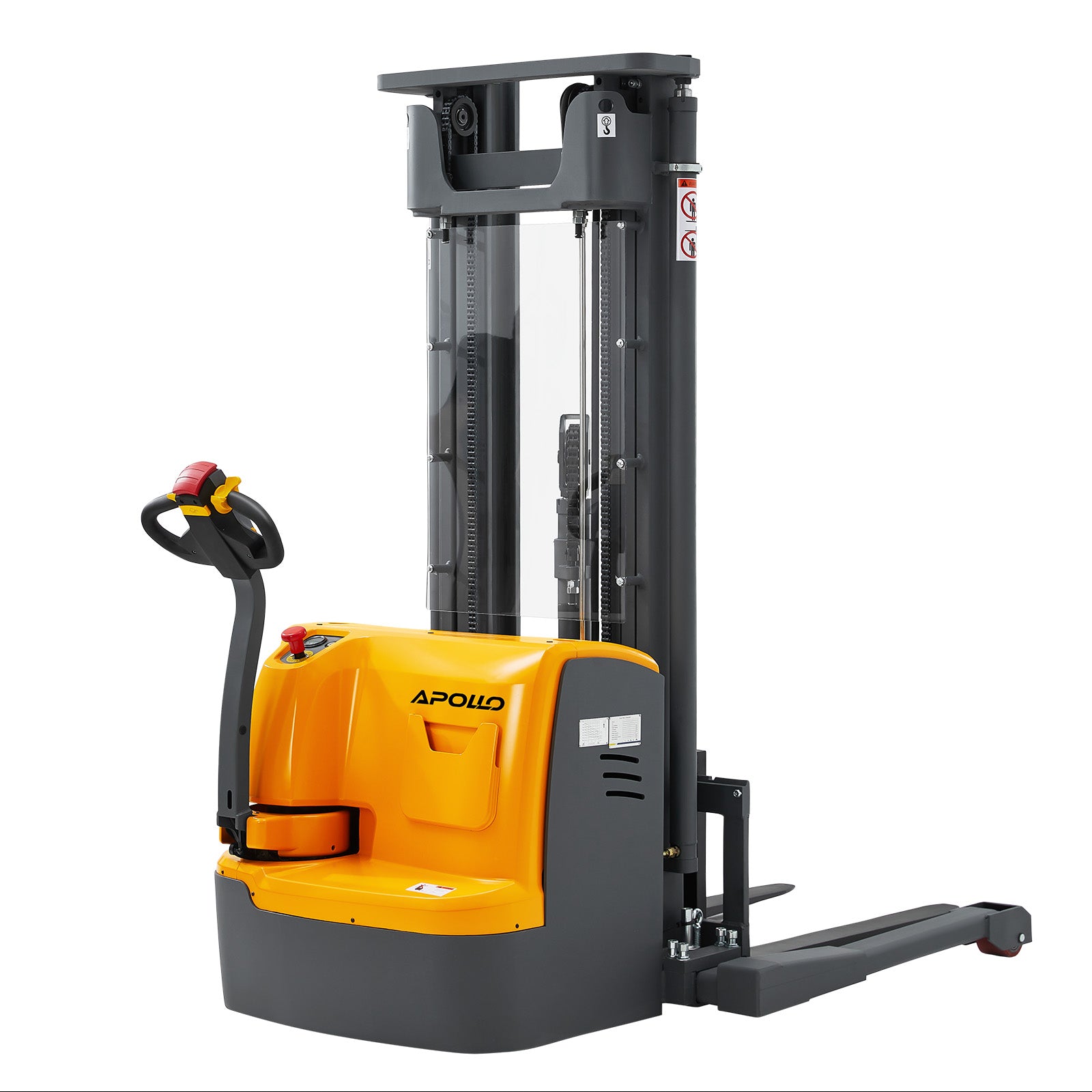

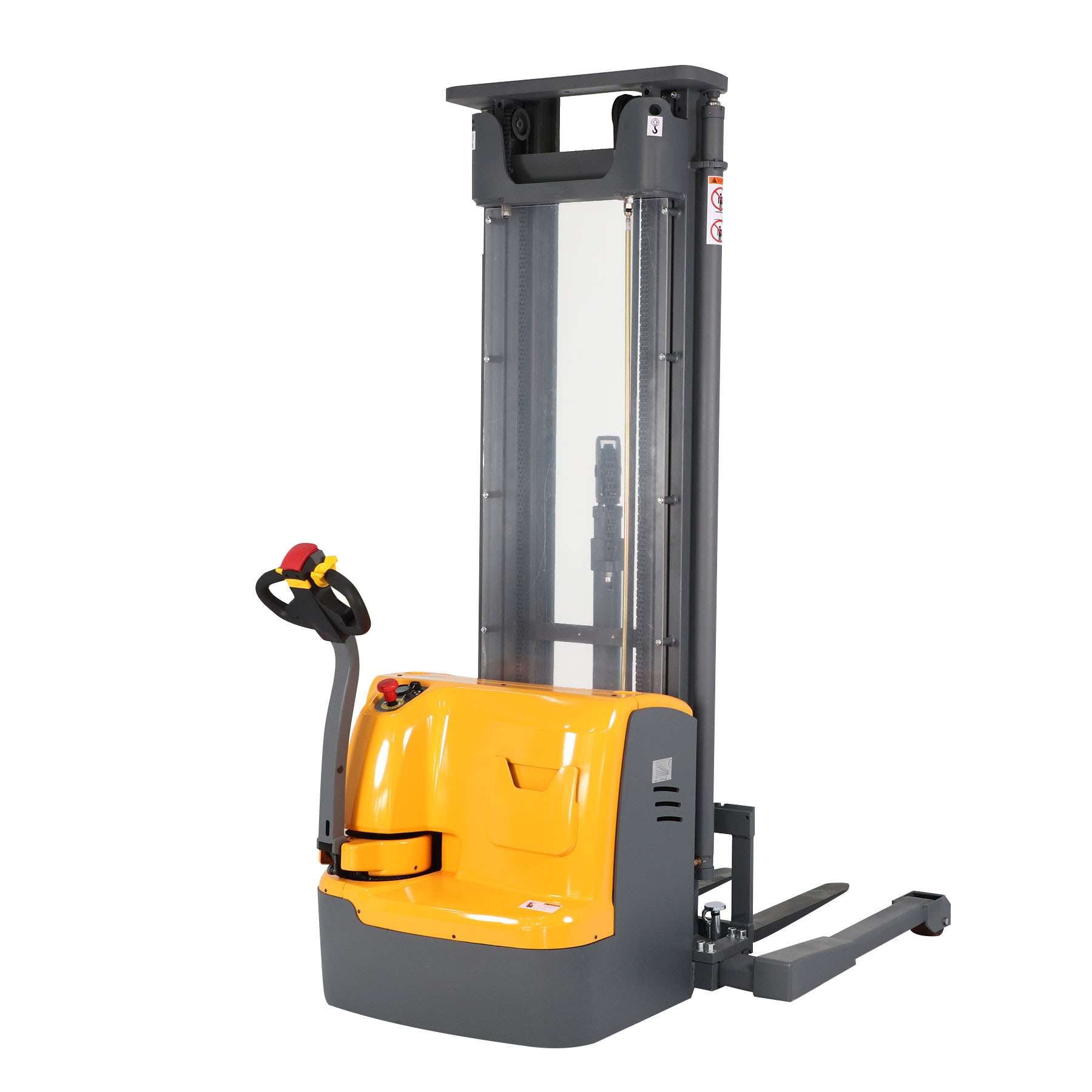

APOLLOLIFT | SKU: A-3030

Electric Walkie Straddle Stacker

$11,850.00

Capacity: 3300 lbs.
Battery Spec: 24V/200AH
Max.Lifting Height: 220"
Support Legs: Straddle

Lifting Height: 220"

Replacement Parts

Gas Spring for Powered Stacker and Pallet Jack

$33.00

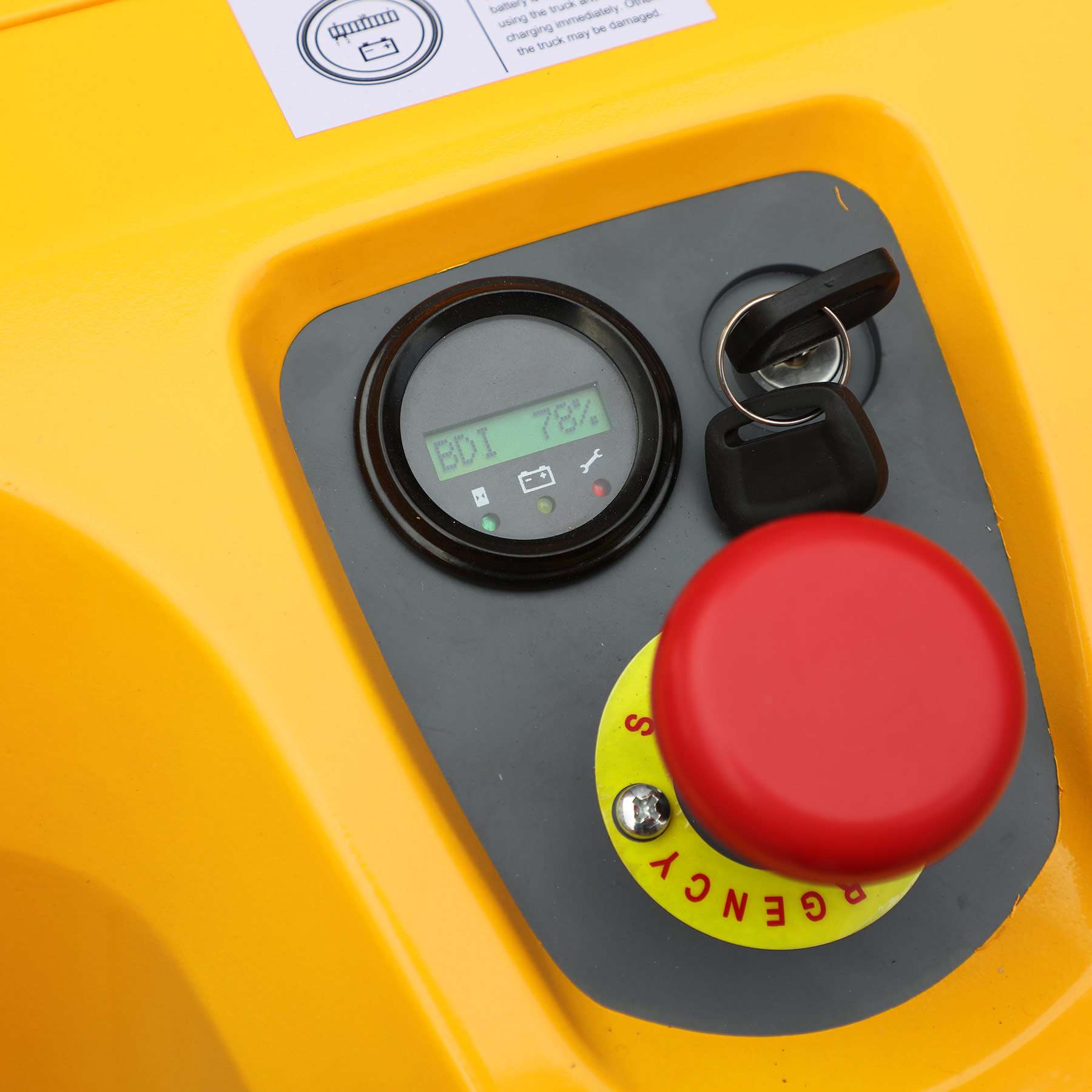

Emergency Stop Button Switch for Powered Stacker

$53.00

Maximum lift height for top-shelf storage: Built for very tall racking and maximum vertical utilization (max lift height 220").

Heavy capacity to keep loads serious: Designed for real pallets at full height (capacity 3300 lbs).

High-lift energy reserve: Bigger battery spec for demanding high-lift cycles (battery type Lead-acid, battery spec 24V/200Ah).

Faster travel for high-throughput sites: Helps when you’re moving loads across larger zones (driving speed 3.6–3.7 mph).

Know your doorway clearance before ordering: Helps prevent fit issues at entrances and low beams (mast lowered height 97.6").

Built for larger aisles and higher work: Requires more operating space than compact standard-lift units (aisle width 101.1").

Specifications

Capacity

3300 lbs.
Aisle Width

101.1"
Max.Lifting Height

220"

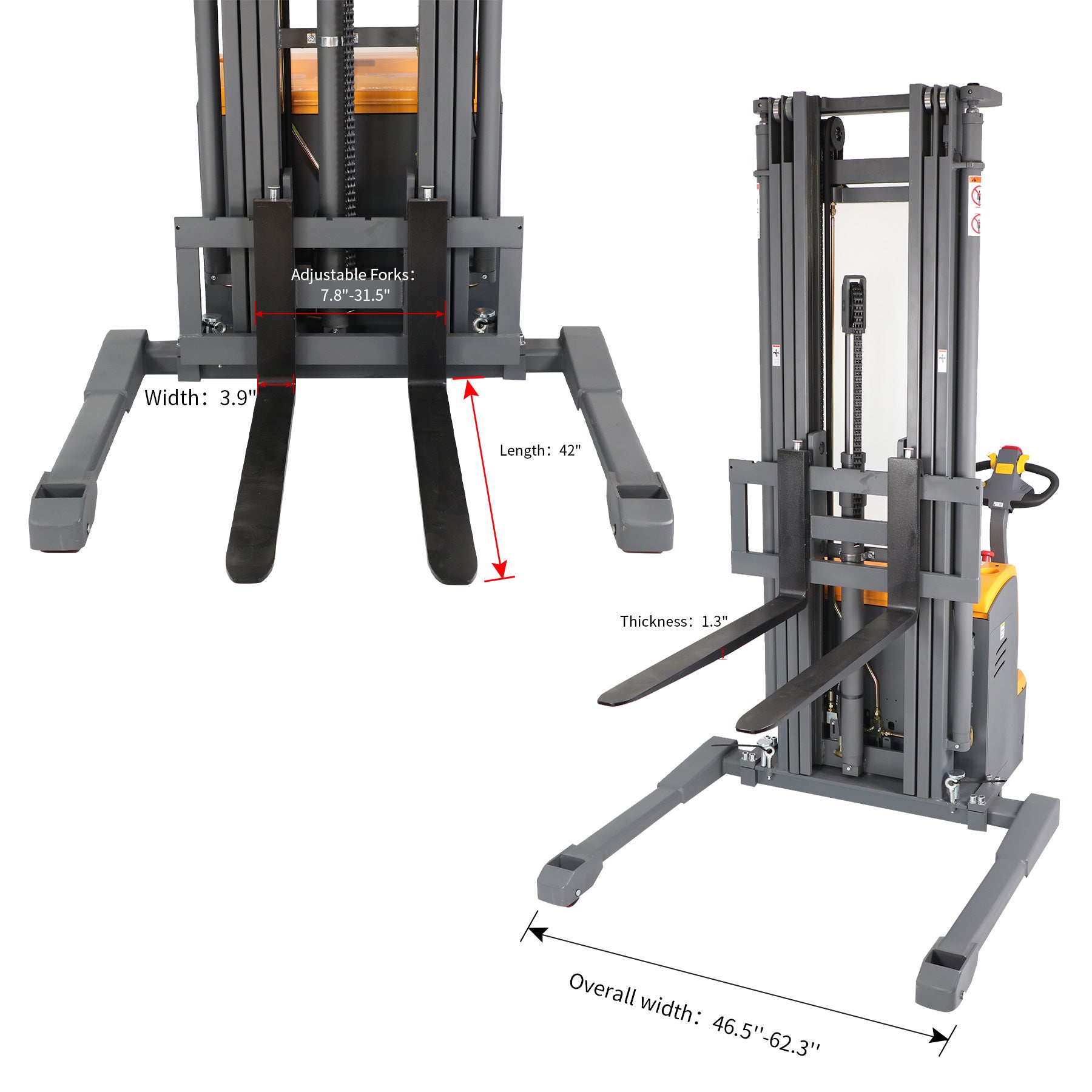

Inside Distance Between Forks

0.1-23.6"

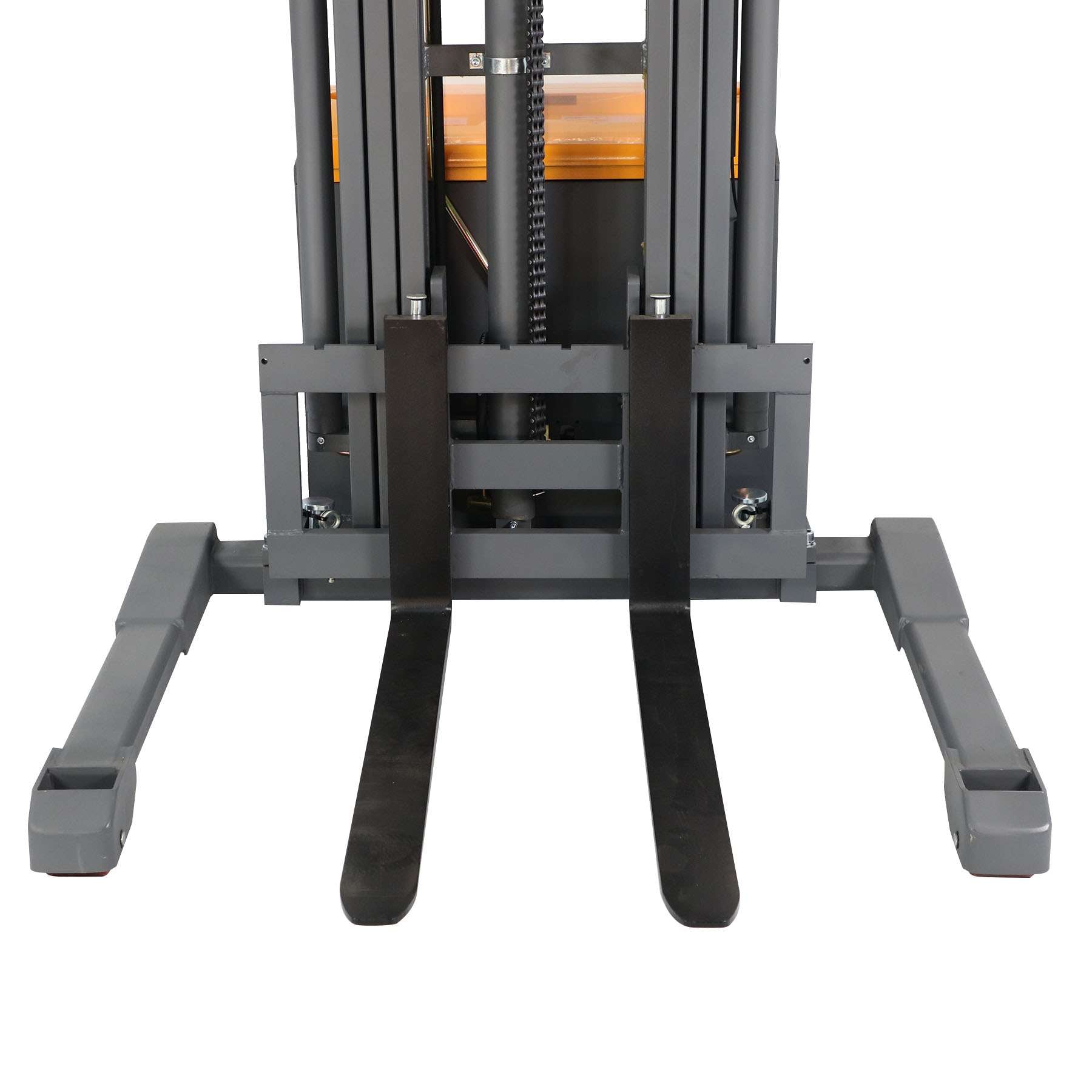

Fork Length

42"

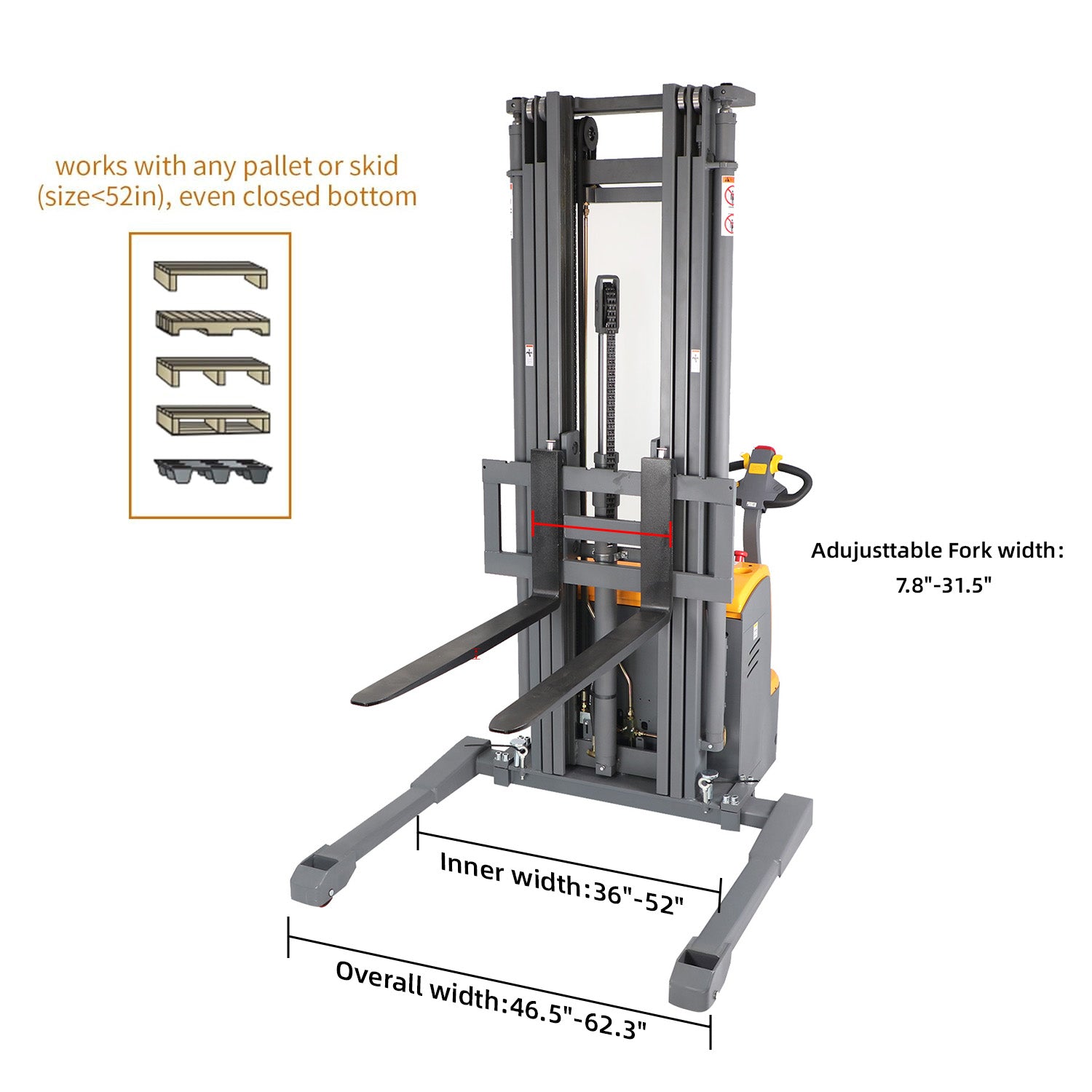

Fork Overall Width

7.9-31.5"
Single Fork Width

3.9"
Overall Height

97.6-242.5"
Overall Length

79.5"
Overall Width

46.9-62.3"
Driving Speed-Unladen

3.7 mph
Driving Speed-Laden

3.6 mph
Lifting Speed/Empty

6.3 inch/s
Lifting Speed/Loaded

3.5 inch/s
Gradeability/Empty

15%
Gradeability/Loaded

6%
Support Leg Type

Straddle
Total Wheel Count

4
Turning Radius

68.1"

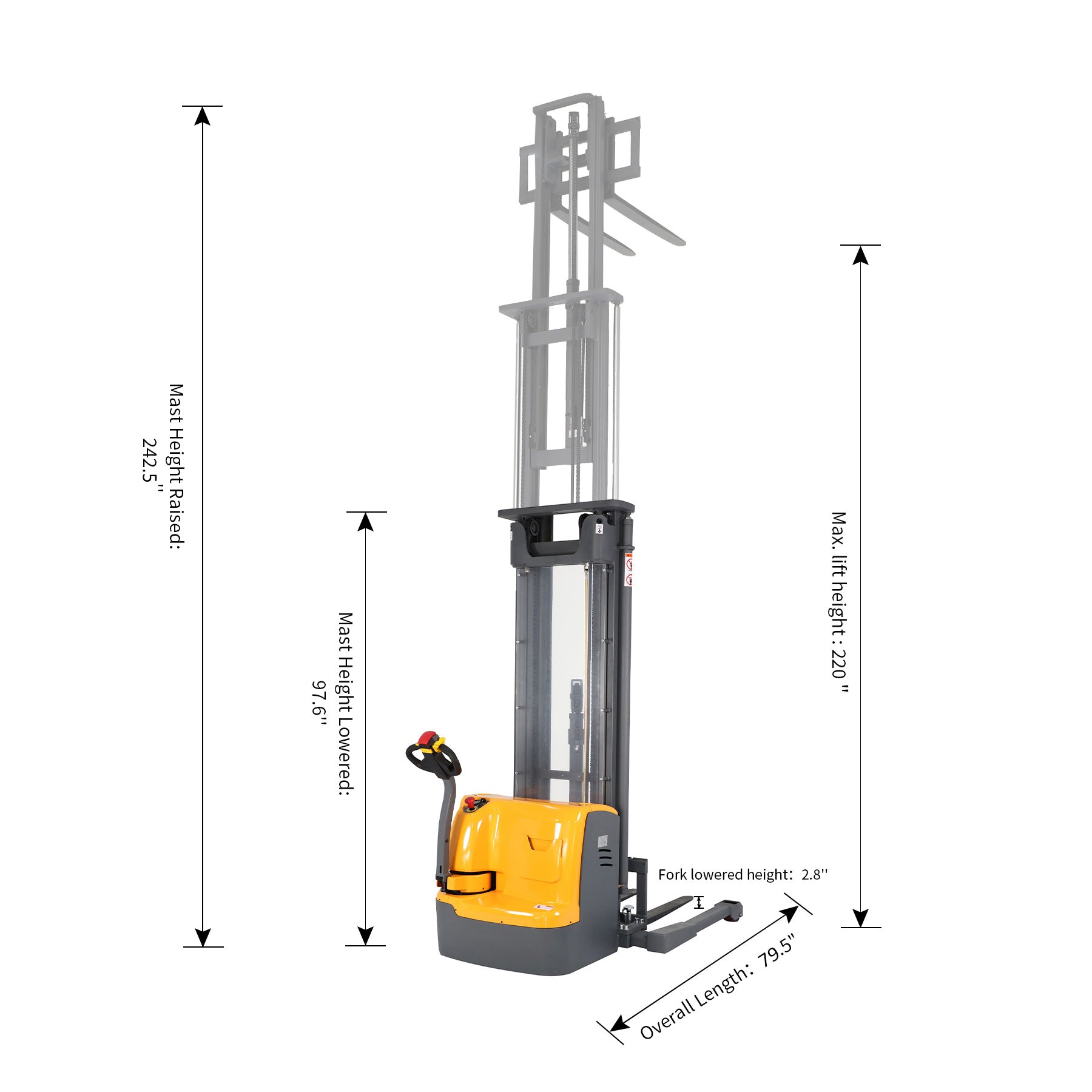

Mast Lowered Height

97.6"

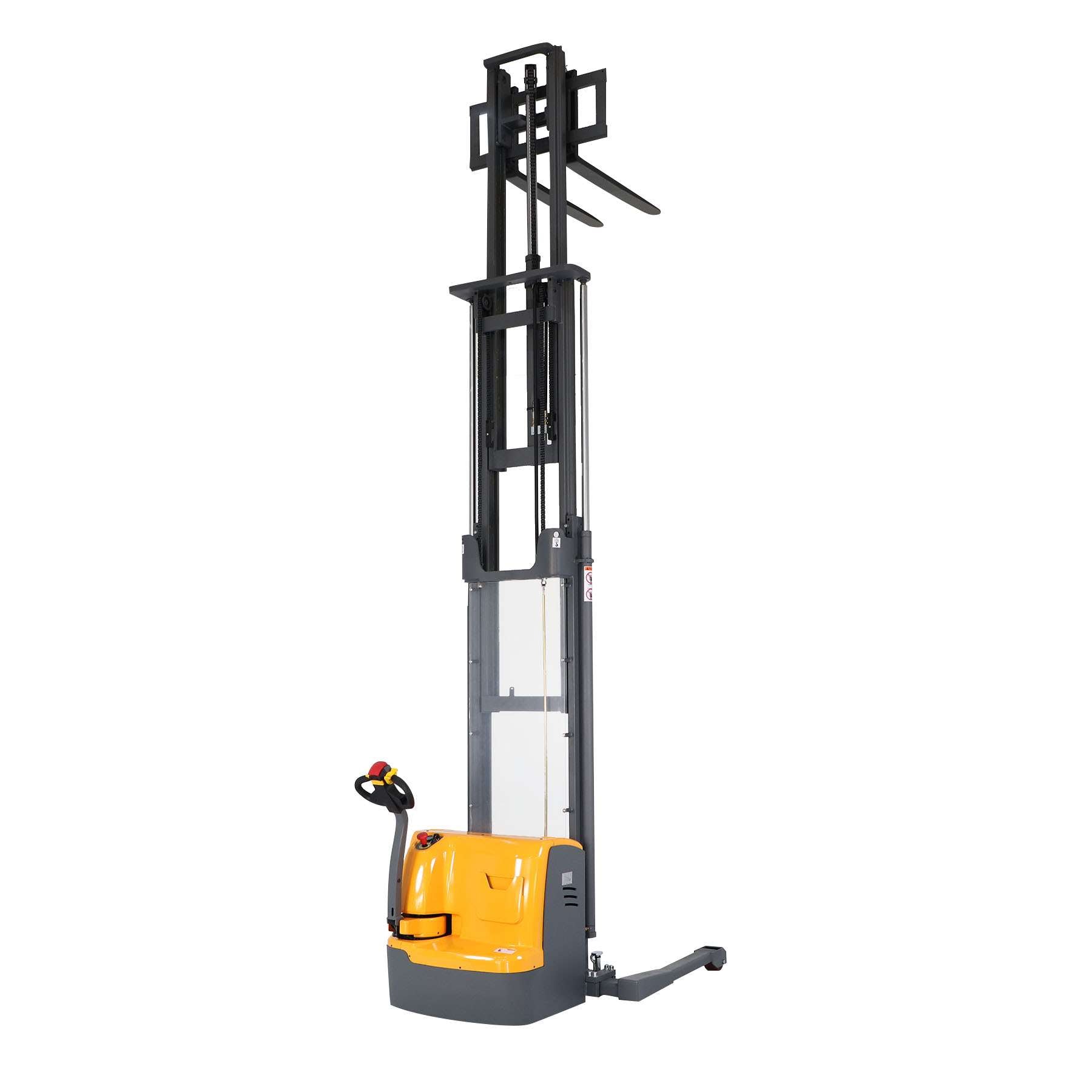

Mast Extended Height

242.5"
Load Centre Distance

23.6"
Battery Capacity

200AH
Battery Spec

24V/200AH
Battery Voltage

24V
Battery Type

Lead-acid Battery
Fork Thickness

1.4"
Fork Lowered Height

2.8"
Lowering Speed/Empty

5.9 inch/s
Lowering Speed/Loaded

6.3 inch/s
Service Weight

2980 lbs.
Gross Weight

2990 lbs.
Charger

24V/30A built-out
Charging Time

6-8 Hours
Continuous Working Time

6-8 Hours
Package Size

80"x46"x100"

⚠️ Notice:

Support legs require installation before use. Installation Video: https://youtu.be/zBQyIxQ0JSM
For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Processing Time Update

Processing Time: This product requires at least 5 business days to process before shipping.

A table comparing the facets of 3 products
Facet	Electric Walkie Straddle Stacker Regular price $11,850.00	Electric Walkie Straddle Stacker Regular price $11,400.00	Electric Walkie Straddle Stacker Regular price $7,997.00
Capacity (lb)
Capacity (lb)	3300 lbs.	3300 lbs.	3300 lbs.
Max Lifting Height (in)
Max Lifting Height (in)	220"	177"	118"
Max Fork Height (in)
Max Fork Height (in)	2.8"	2.8"	2.8"
Service Weight (lb)
Service Weight (lb)	2980 lbs.	2790 lbs.	2161 lbs.
Fork Size (in)
Fork Size (in)	42" x 7.9-31.5"	42" x 7.9-31.5"	42" x 7.9-31.5"
Lowered Mast Height (in)
Lowered Mast Height (in)	97.6"	83.5"	84.4"
Turning Radius (in)
Turning Radius (in)	68.1"	68.1"	65.2"
Aisle Width (in)
Aisle Width (in)	101.1"	101.1"	99.6"
Leg Type
Leg Type	Straddle	Straddle	Straddle
Adjustable Forks
Adjustable Forks	Yes	Yes	Yes
Charger
Charger	24V/30A built-out	24V/30A built-out	24V/30A built-out
Mast Stages
Mast Stages	3 Stage	3 Stage	2 Stage
Fork Length (in)
Fork Length (in)	42"	42"	42"
Fork Overall Width (in)
Fork Overall Width (in)	7.9-31.5"	7.9-31.5"	7.9-31.5"
Single Fork Width (in)
Single Fork Width (in)	3.9"	3.9"	3.9"
Fork Thickness (in)
Fork Thickness (in)	1.4"	1.4"	1.4"
Fork Lowered Height (in)
Fork Lowered Height (in)	2.8"	2.8"	2.8"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)	0.1-23.6"	0.1-23.6"	0.1-23.6"
Overall Length (in)
Overall Length (in)	79.5"	79.5"	79.5"
Overall Width (in)
Overall Width (in)	46.9-62.3"	46.9-62.3"	46.9-62.3"
Overall Height (in)
Overall Height (in)	97.6-242.5"	83.5-199.2"	84.4-143.5"
Driving Speed - Unladen (mph)
Driving Speed - Unladen (mph)	3.7 mph	3.7 mph	3.7 mph
Driving Speed - Laden (mph)
Driving Speed - Laden (mph)	3.6 mph	3.6 mph	3.6 mph
Lift Speed - Unladen
Lift Speed - Unladen	6.3 inch/s	6.3 inch/s	6.3 inch/s
Lift Speed - Laden
Lift Speed - Laden	3.5 inch/s	3.5 inch/s	3.5 inch/s
Turtle Speed Mode
Turtle Speed Mode	Yes	Yes	Yes
Gradeability (Empty)
Gradeability (Empty)	15%	15%	15%
Gradeability (Loaded)
Gradeability (Loaded)	6%	6%	6%

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
