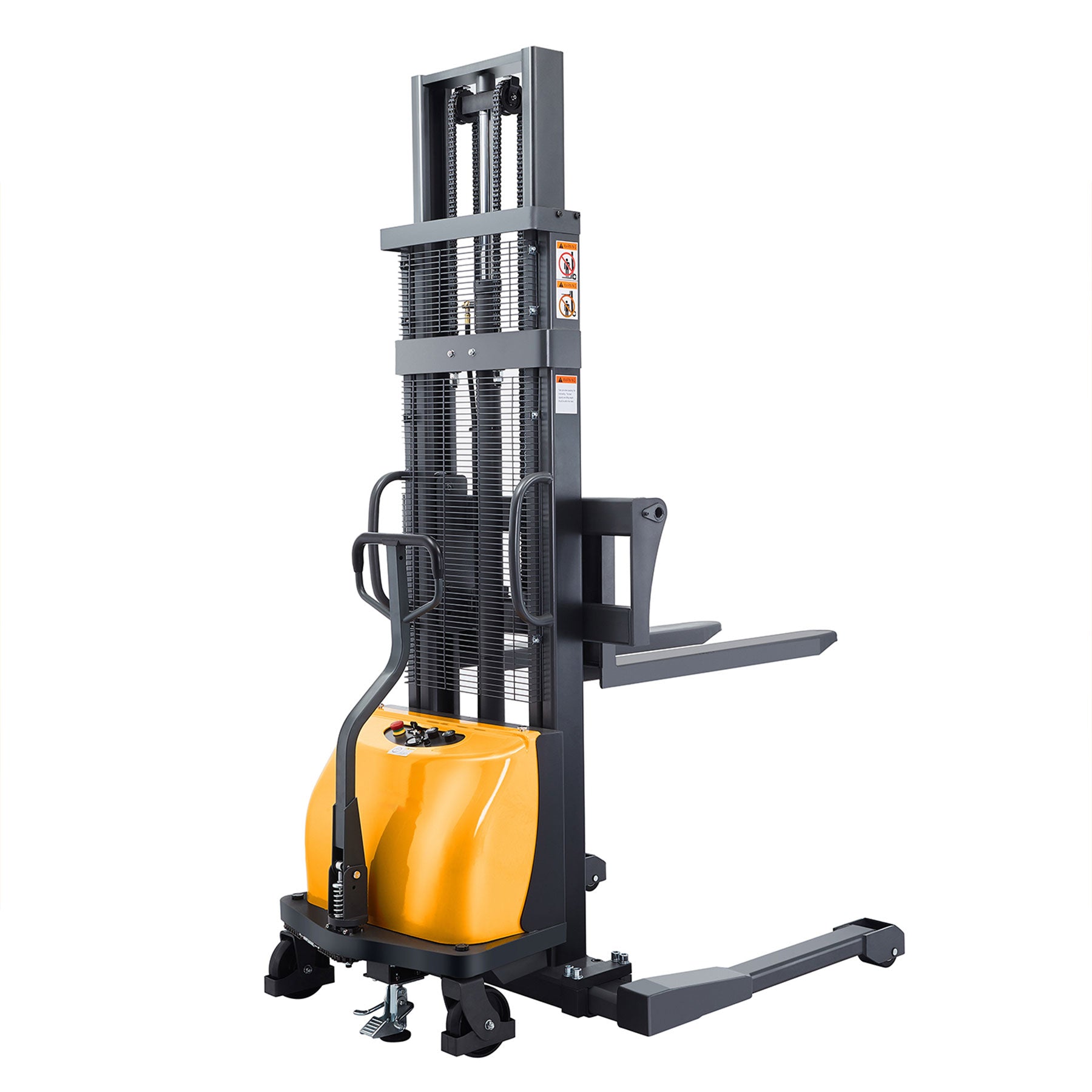

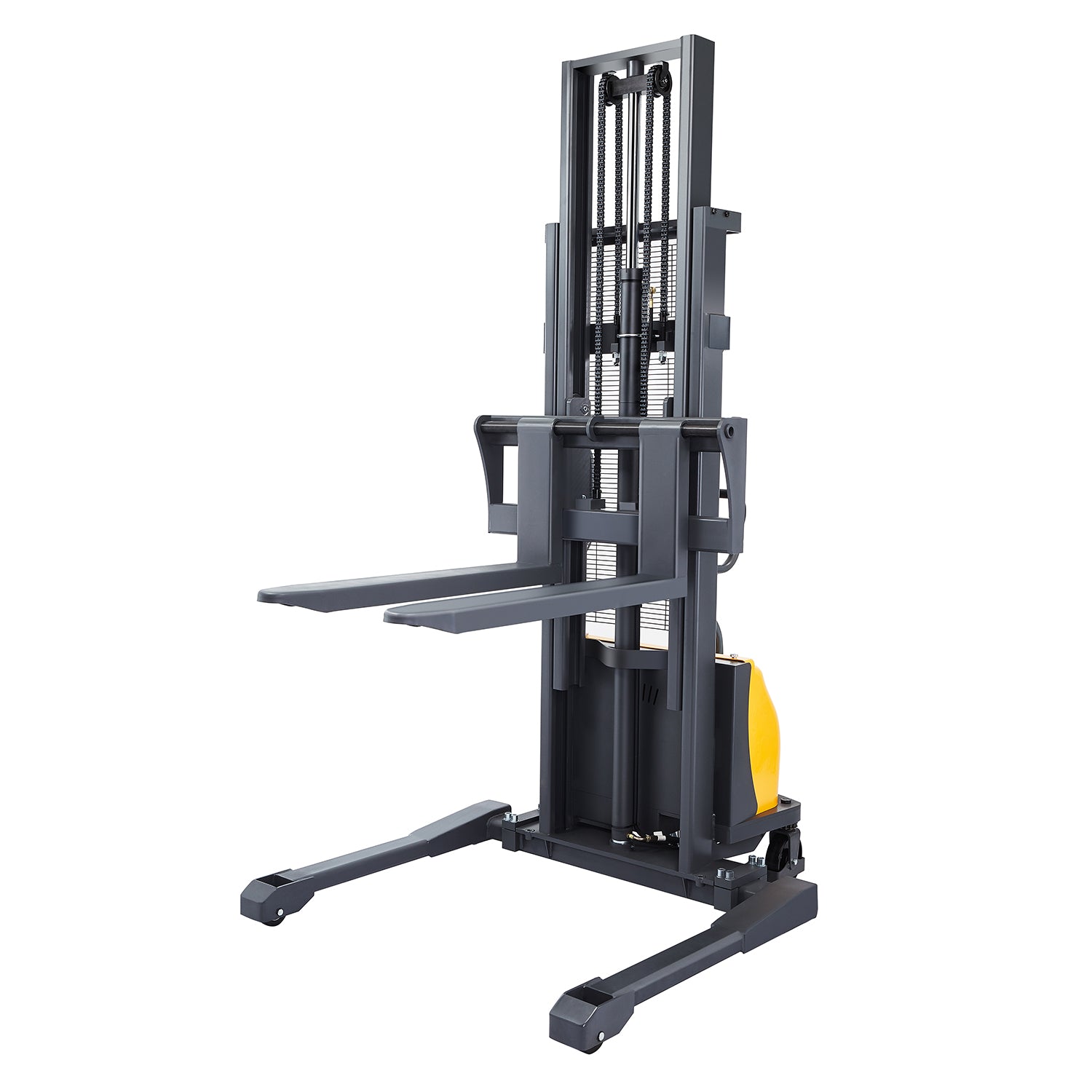

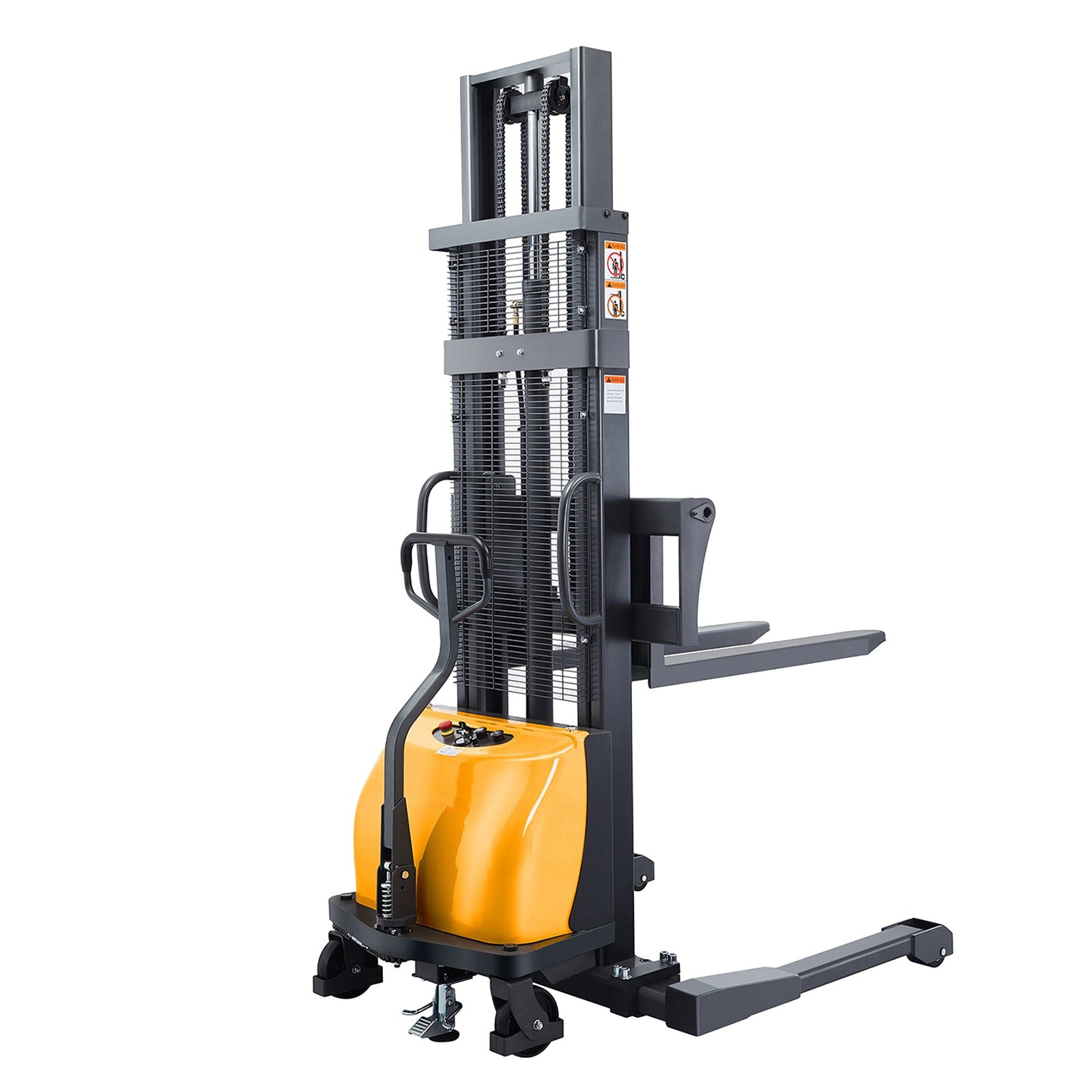

Semi-Electric Straddle Stacker 3300Lbs Cap.118" Lifting A-3010
Semi-Electric Straddle Stacker 3300Lbs Cap.118" Lifting A-3010
MANUAL PUSH AND PULL, POWERED LIFTING AND LOWERING
- Special chain steering system.

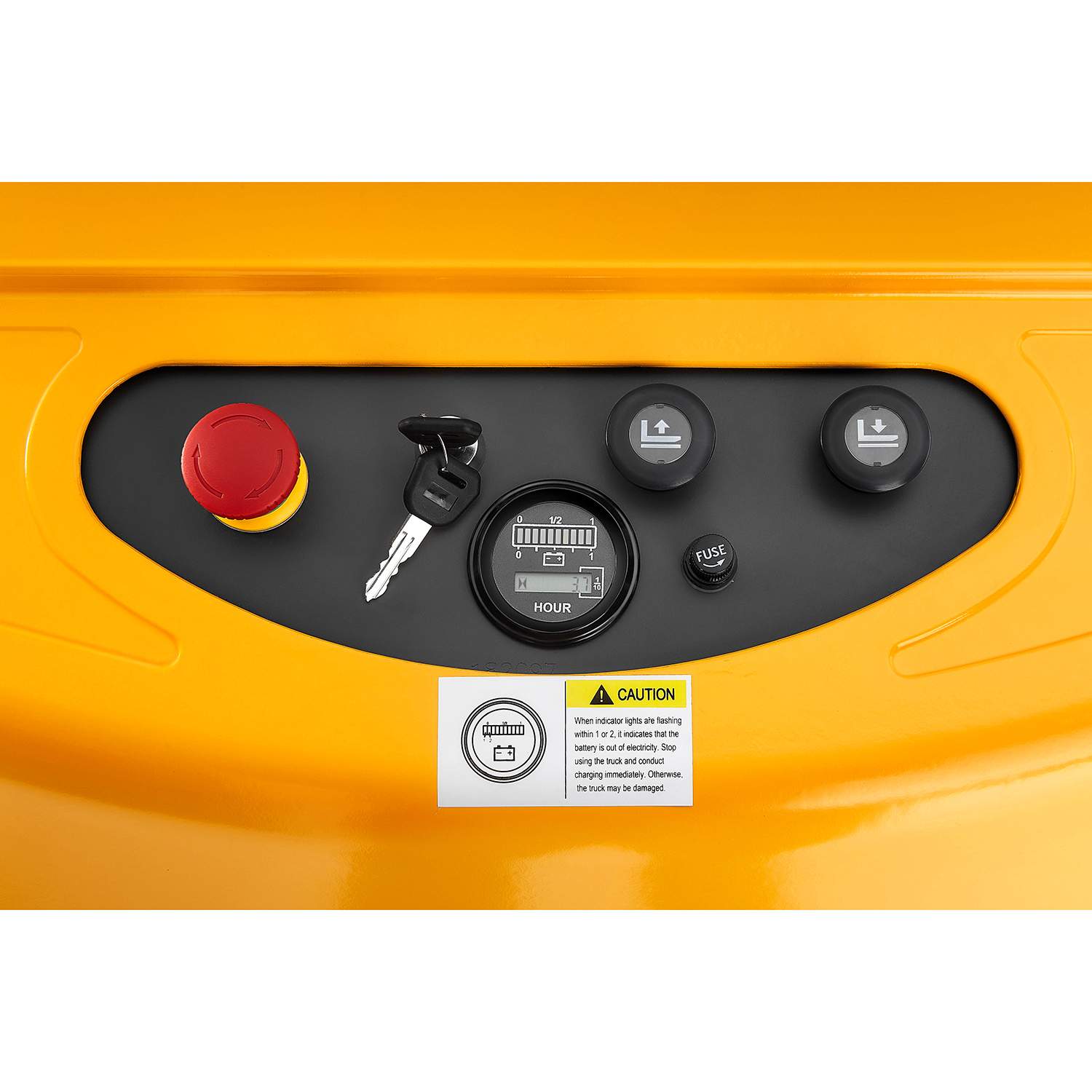

- Integrate panel design.
- Foot pedal brake for safety and ramp usage.

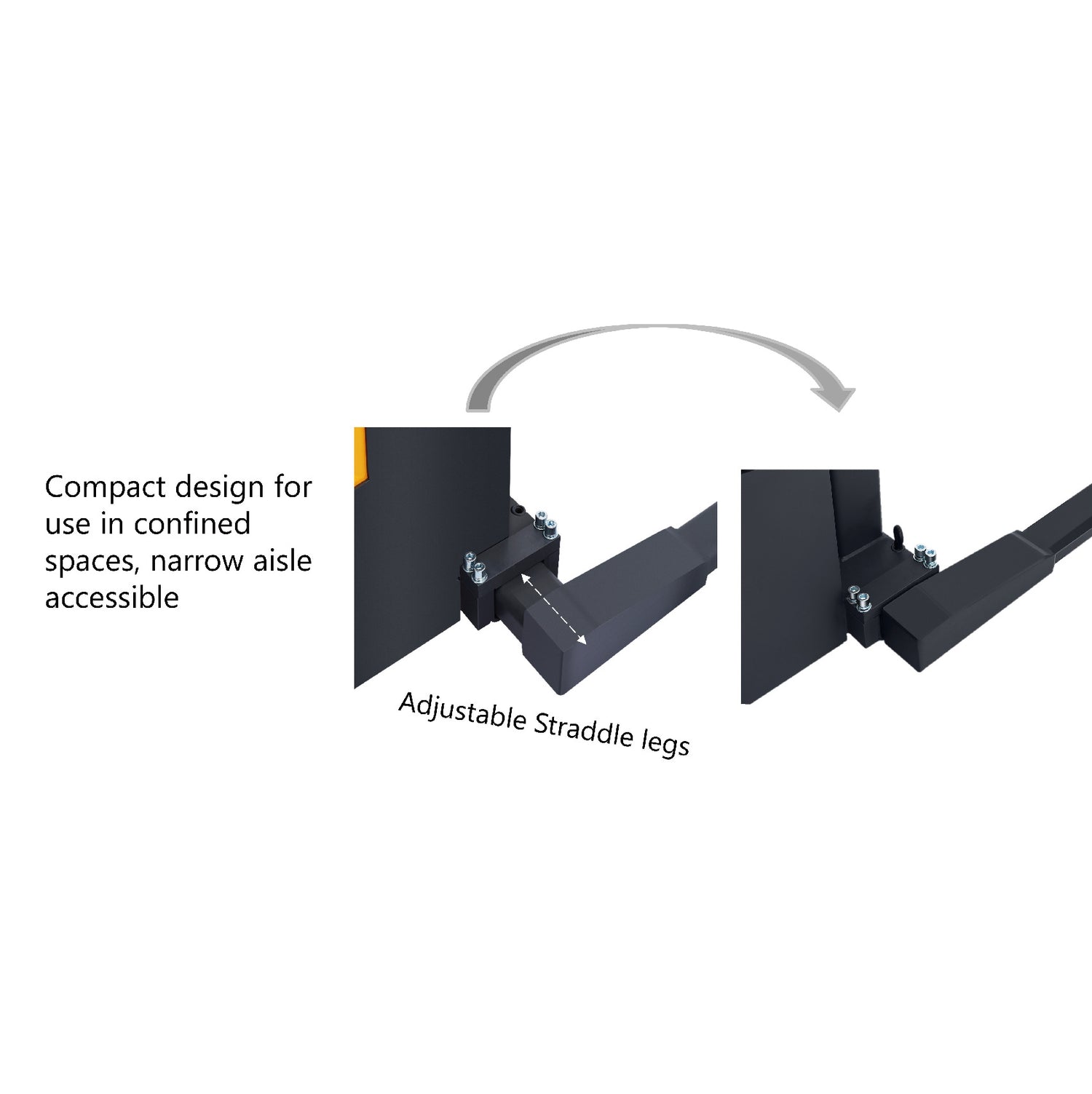

- Adjustable forks and straddle legs.
*SEMI-ELECTRIC STACKER
| MODEL NO. | LOAD CAPACITY | BATTERY CAPACITY | LIFTING HEIGHT | FORK HEIGHT LOWERED | WHEEL DIAMETER | WT (LBS) | PRICE EACH |
| A-3007 | 2,200 lbs | 12V/120AH | 98'' | 3.5'' | 7''/3.15'' | 1045 | $3837 |
| A-3008 | 2,200 lbs | 12V/120AH | 118'' | 3.5'' | 7''/3.15'' | 1078 | $4037 |
| A-3009 | 3,300 lbs | 24V/120AH | 63'' | 3.5'' | 7''/3.15'' | 1005 | $3587 |
| A-3010 | 3,300 lbs | 24V/120AH | 118'' | 3.5'' | 7''/3.15'' | 1168 | $4237 |
*REPLACEMENT PARTS
| MODEL NO. | BATTERY TYPE | BATTERY CAPACITY | WT. (LBS) | PRICE EACH | 2 PCS Price |
| S-1004 | lead-acid | 12V/120AH | 99 | $580 | $1,120 |

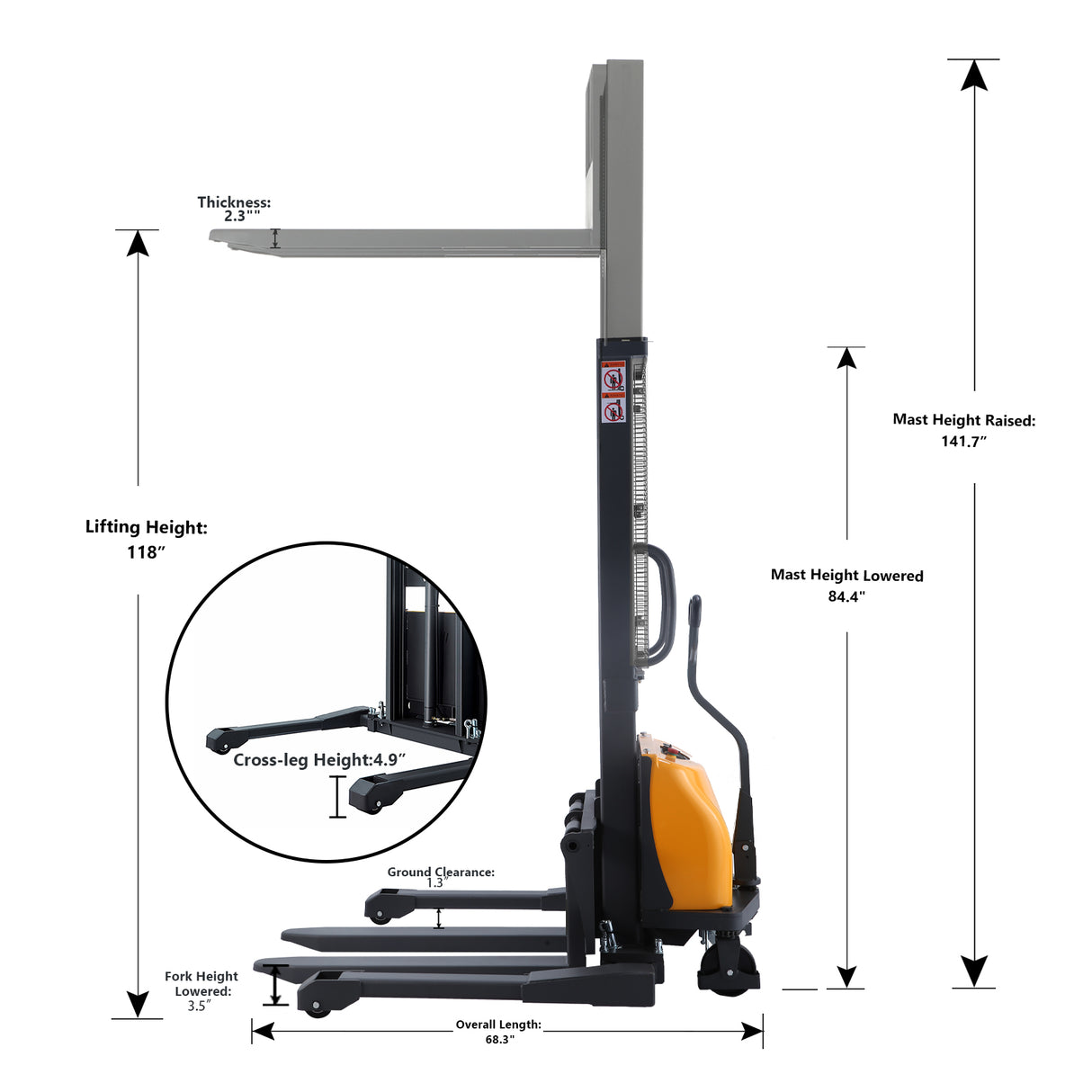

DIMENSIONS:
- Overall Length: 72.2"
- Overall Width: 44½"-60.3"
- Recommended Aisle Width: 92.4"
- Turning Radius:59.3"
- Mast Height Lowered: 84.4"
- Mast Height Raised: 141.7''
- Load Center: 19.7"

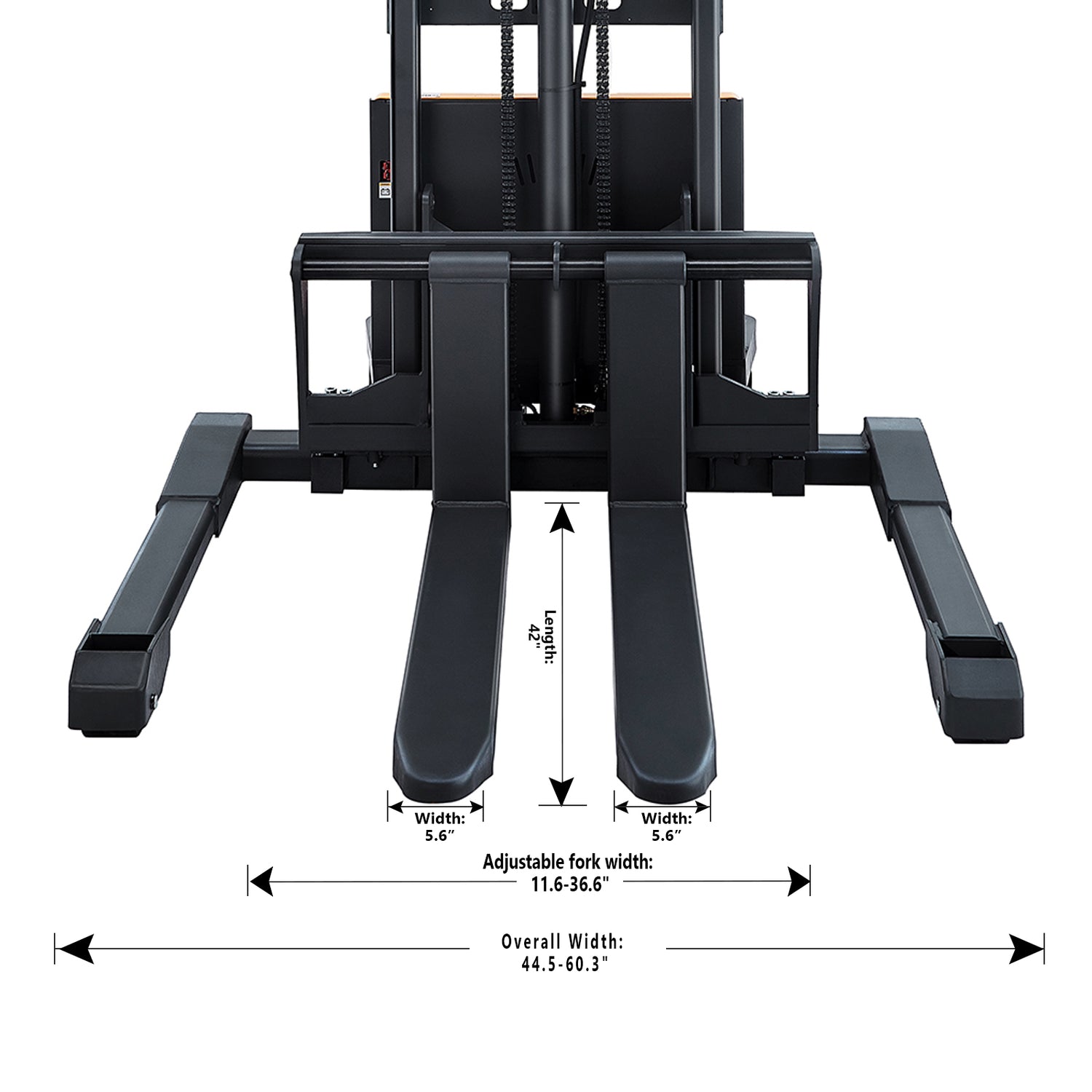

FORKS:
- Thickness: 2.3''
- Width: 5.6''
- Length: 42''
- Adjustable fork width: 11.6-36.6''
- Leg inner width: 14.5''
- Leg outer width: 22.4''
SPEED:
- Lifting speed(laden/unladen): 2.7/3.9mph
- Lowering speed(laden/unladen): 5.9/4.7mph

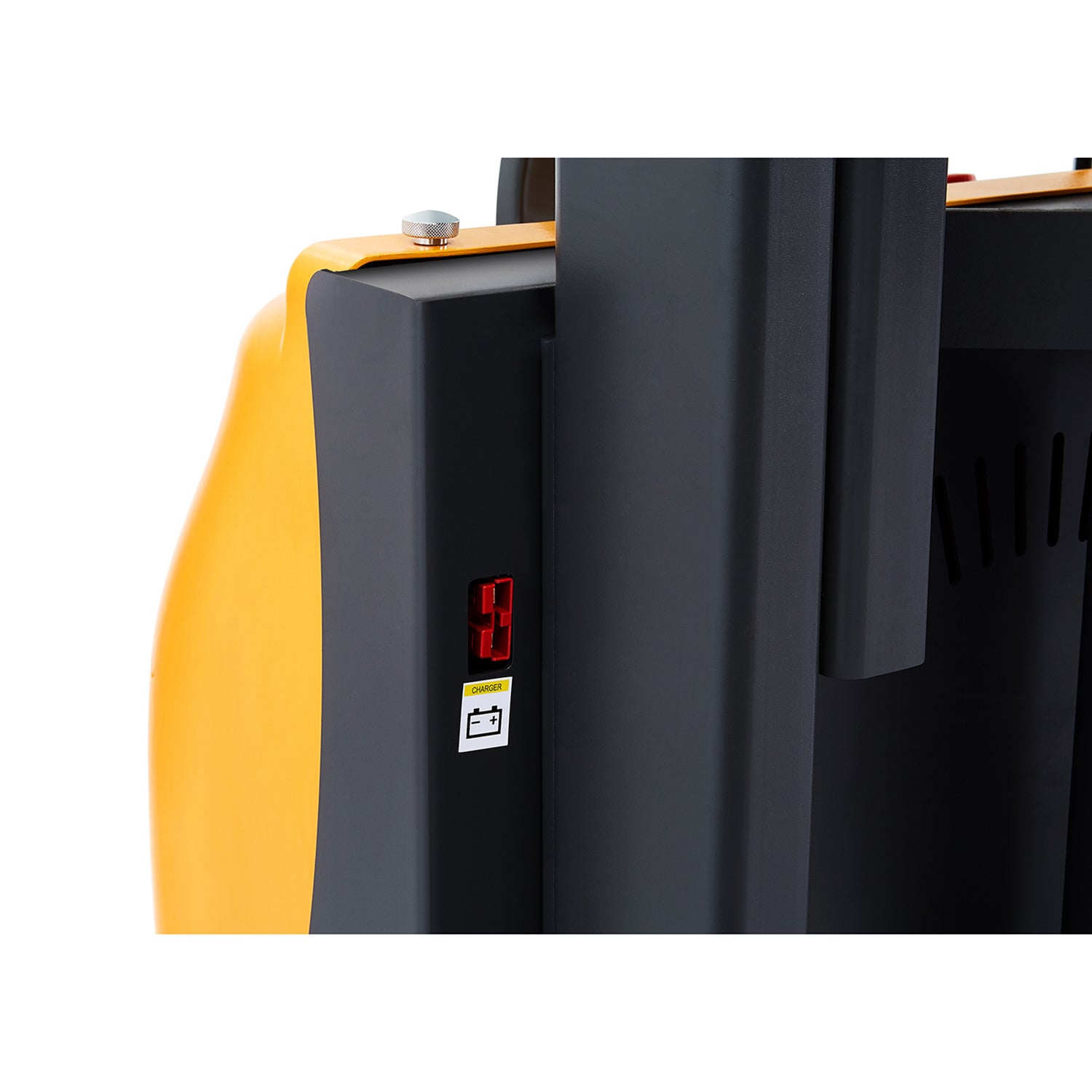

BDI:
- Multi-function battery display indicator.
- Red: the battery is less than 20% and need to be charged, the truck can walk only, not lift.
- Yellow: the battery is around 50%.
- Green: the battery is full.
SPECIFICATIONS:
- Not explosion proof.
- This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Fully charge battery before use to avoid damaging cells.
-
Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it's not in use.
- Time to fully charge battery: 8 - 10 hrs.
