APOLLOLIFT  |  SKU: A-4020

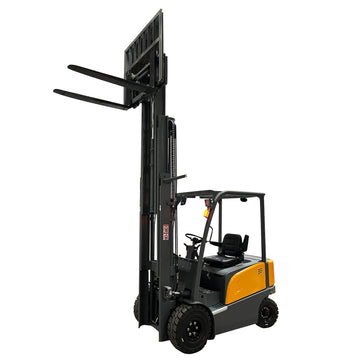

4-wheel Electric Forklift, Lithium A-4020

$34,999.00
  • Capacity: 5500 lbs
  • Max. Lifting Height: 189"
  • Aisle Width: 153.5"
  • Mast Lowered Height: 88.2"
  • Fork Length: 42"
  • Fork Spread: 9.5–42.8"
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts
  • High-capacity lithium-powered seated electric forklift designed for efficient warehouse operations, combining strong lifting performance, smooth handling, and fast energy recovery
  • Rated at 5,500 lbs with a 189" maximum lift height, this forklift supports high-level stacking while maintaining stable and controlled load handling
  • Side-shifting forks with 42" fork length allow precise pallet positioning and improved productivity during loading and stacking tasks
  • Hydraulic steering system delivers smooth, responsive control and reduces operator effort in busy warehouse environments
  • High-capacity 48V/400Ah lithium battery system provides long runtime and consistent power output, ideal for high-frequency daily operation
  • Built-in 48V/150A fast charger enables rapid charging via 3-phase power, minimizing downtime between shifts
  • Solid cushion tires ensure excellent stability, durability, and low maintenance for indoor warehouse use
  • Robust steel construction with robotic welding guarantees structural strength, consistent quality, and long service life
  • Comfort-focused seated operator position with ergonomic controls and clear layout helps reduce fatigue during extended operation
  • Smooth travel and lifting performance, with travel speeds up to 8.1 mph and efficient hydraulic lifting, supports fast-paced material handling
  • Free-lift mast with wide-view design and integrated side shifter improves operation in low-clearance areas and narrow aisles
  • Engineered for narrow-aisle warehouse applications, balancing load capacity, fast charging efficiency, and operator comfort

Specifications

  • Capacity
    5500 lbs.
  • Aisle Width
    153.5"
  • Max.Lifting Height
    189"
  • Inside Distance Between Forks
    0.1-33.4"
  • Fork Overall Width
    9.5-42.8"
  • Single Fork Width
    4.7"
  • Overall Height
    88.2-228.3"
  • Overall Length
    130.3"
  • Overall Width
    47.3"
  • Driving Speed-Unladen
    8 mph
  • Driving Speed-Laden
    7.5 mph
  • Lifting Speed/Empty
    10.2 inch/s
  • Lifting Speed/Loaded
    10.2 inch/s
  • Turning Radius
    85.8"
  • Mast Lowered Height
    88.2"
  • Mast Extended Height
    228.3"
  • Load Centre Distance
    19.7"
  • Battery Capacity
    400AH
  • Battery Spec
    48V/400AH
  • Battery Voltage
    48V
  • Battery Type
    lithium battery
  • Fork Thickness
    1.6"
  • Fork Lowered Height
    1.5"
  • Lowering Speed/Empty
    16.5 inch/s
  • Lowering Speed/Loaded
    14.2 inch/s
  • Service Weight
    9406 lbs.
  • Gross Weight
    9416 lbs.
  • Charger
    48V/150A built-out
  • Package Size
    130"x47"x91"

⚠️ Notice:

  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Warranty

1-Year Limited Warranty from the delivery date:

  • 0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
  • 30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
  • After 1 Year: Free tech support; parts/labor/shipping billed.
  • Special:
    Accessories: 6 months
    Batteries: 12 months
  • Exclusions: Wear, misuse, consumables
  • Battery: Charge monthly when idle
  • View the full warranty policy here: https://apolloliftus.com/pages/warranty

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.
