APOLLOLIFT  |  SKU: A-103801

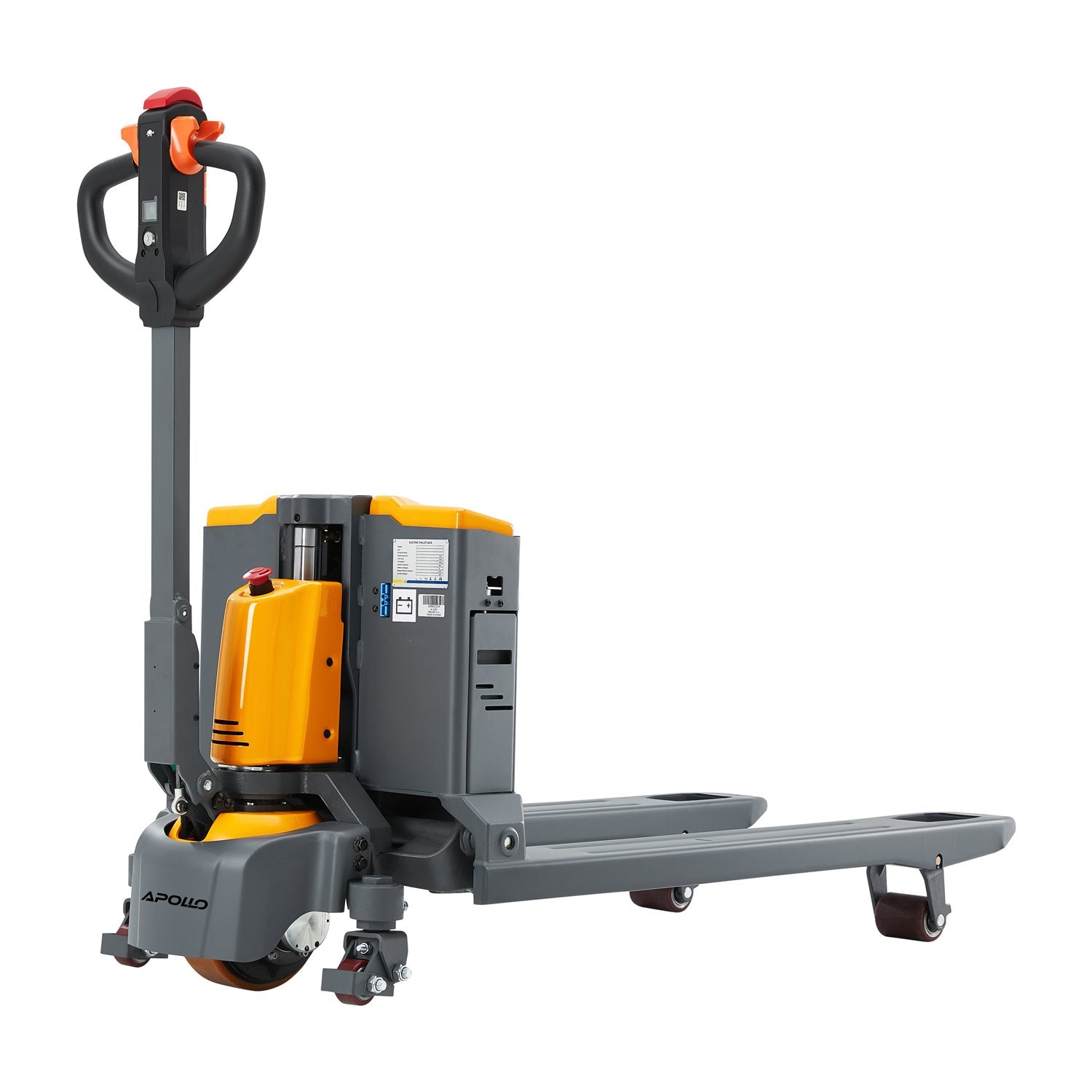

Li-ion Powered Pallet Truck A-103801 | 4,400 lb Capacity

$1,850.00 $2,300.00
  • Capacity: 4400 lbs.
  • Fork Size: 48" x 27"
  • Battery Type: Lithium Battery
  • Battery Spec: 48V/20AH
Processing Time: Requires 2 business days before shipping.
Powered by Affirm

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Compact Power with Pro-Grade Safety Protection

Featuring a 55.7" turning radius, 0.75kW motor with 6% gradeability, quick-swap lithium battery, and reinforced safety protection for stable transport on hard, flat floors.

Small 55.7" turning radius with turtle mode for safe and precise operation in narrow spaces such as truck compartments and containers

Multiple safety features including armored drive wheel covers to prevent foot injury, lift overload protection, lift height electrical limit, emergency power-off, and belly switch for emergency reverse

Powerful 0.75kW motor enables climbing slopes up to 6% at full load without rollback

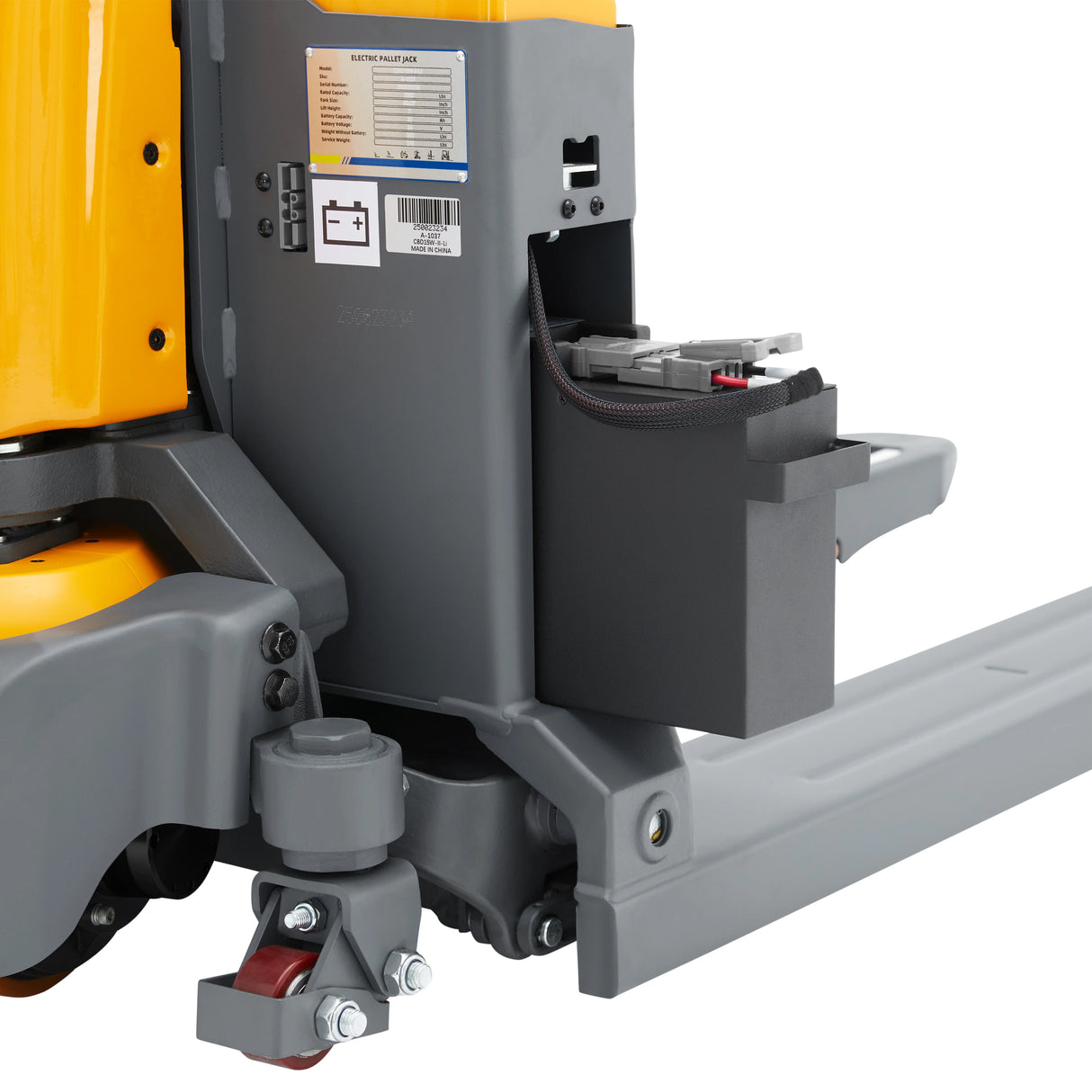

Efficient power system with 48V/20AH lithium battery and 10-second quick battery replacement

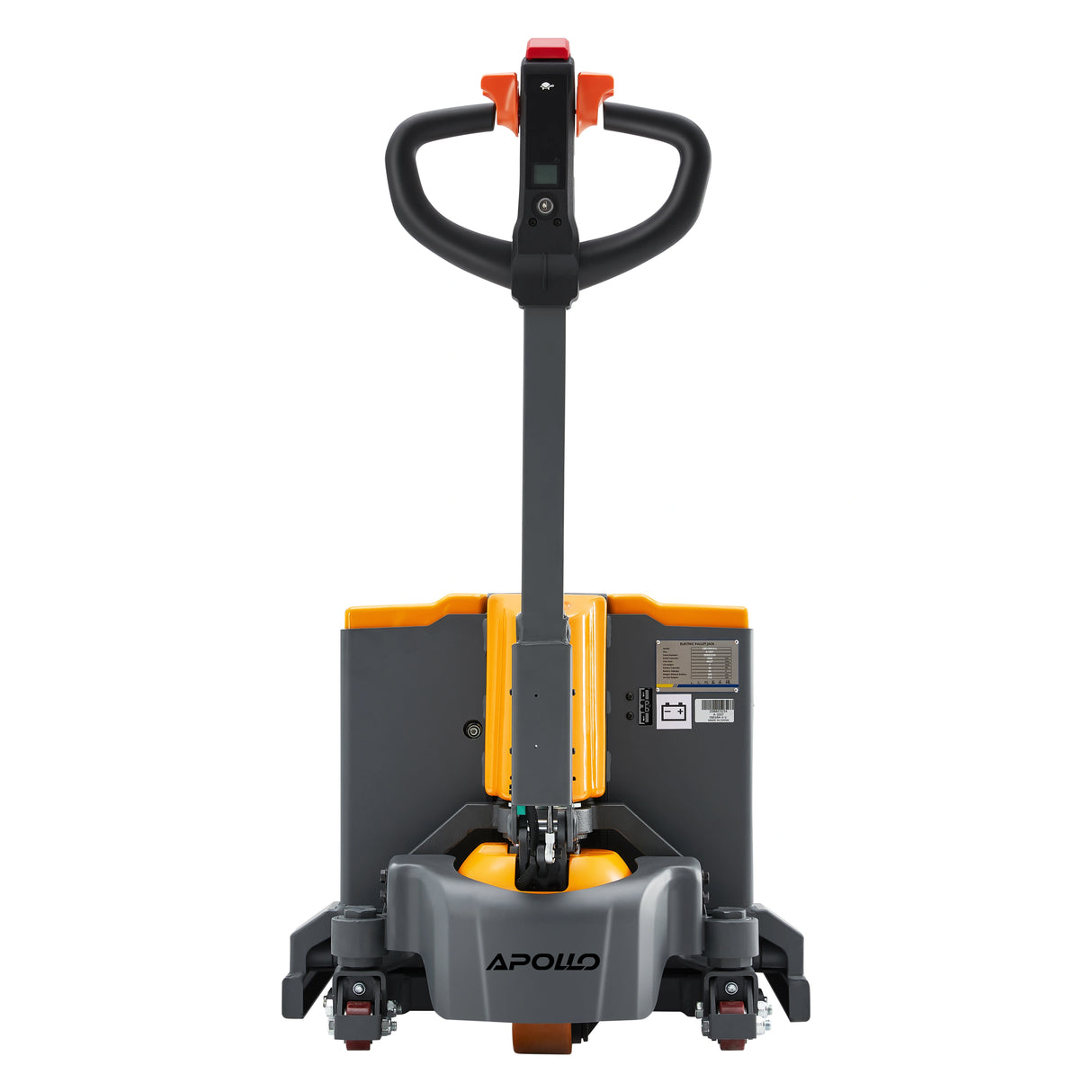

Continuous operation supported by spare battery and external charging port for convenient charging

To prolong battery life and ensure proper function, charge once a month when not in use.

The kind of truck is applicable for goods transportation on hard and flat floor.

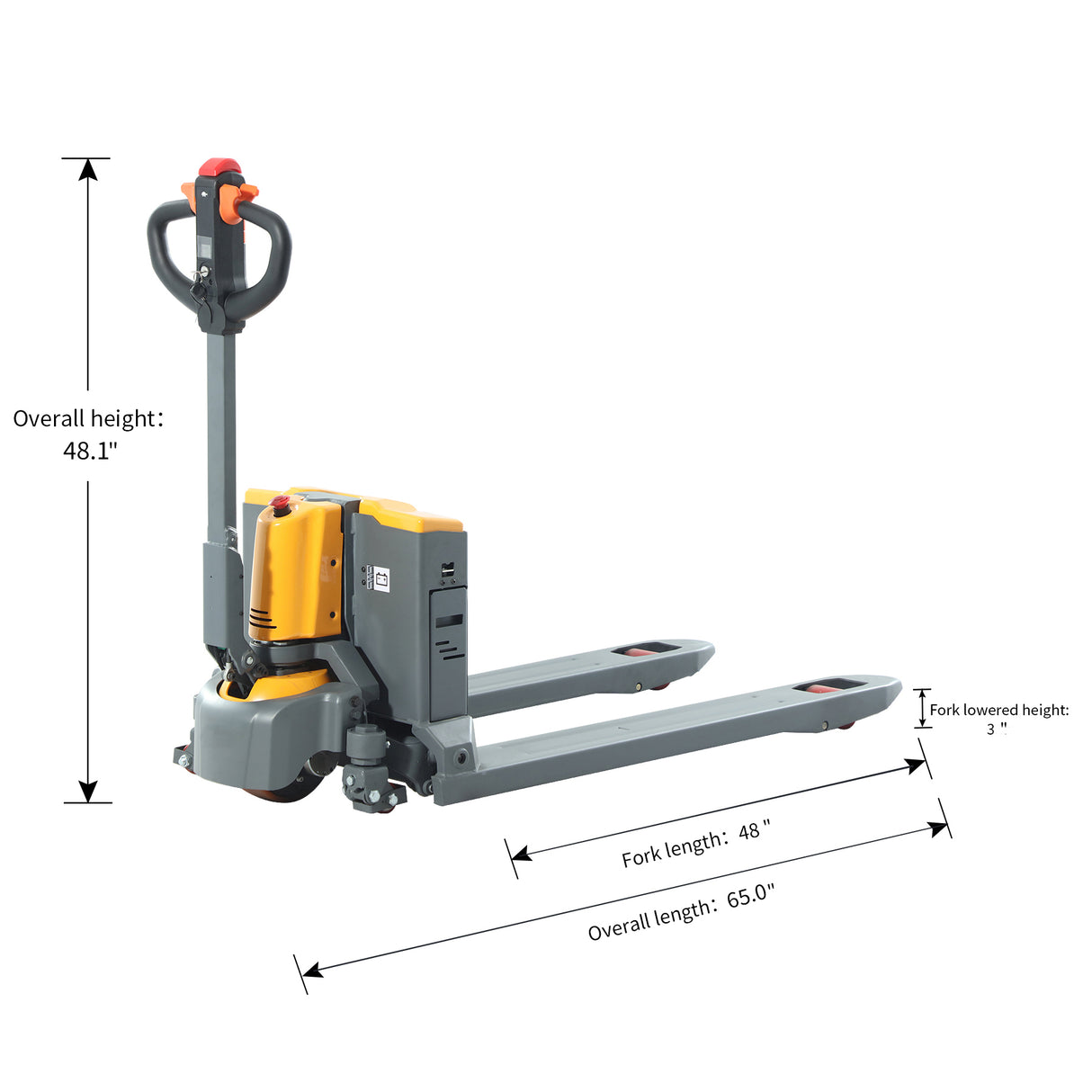

Specifications

  • Capacity
    4400 lbs.
  • Aisle Width
    87.0"
  • Max.Lifting Height
    7.3"
  • Inside Distance Between Forks
    14.4"
  • Fork Length
    48"
  • Fork Overall Width
    27"
  • Single Fork Width
    6.3"
  • Overall Height
    48.1"
  • Overall Length
    65.0"
  • Overall Width
    27"
  • Driving Speed-Unladen
    3.0 mph
  • Driving Speed-Laden
    2.9 mph
  • Lifting Speed/Empty
    1 inch/s
  • Lifting Speed/Loaded
    0.8 inch/s
  • Gradeability/Empty
    20%
  • Gradeability/Loaded
    6%
  • Turning Radius
    55.7"
  • Lifting Distance
    4.3"
  • Battery Capacity
    20AH
  • Battery Spec
    48V/20AH
  • Battery Voltage
    48V
  • Battery Type
    Lithium Battery
  • Fork Thickness
    2.8"
  • Stabilizer Wheel
    Yes
  • Fork Lowered Height
    3"
  • Lowering Speed/Empty
    1.2 inch/s
  • Lowering Speed/Loaded
    1.8 inch/s
  • Service Weight
    310 lbs.
  • Gross Weight
    330 lbs.
  • Brake Type
    Electric brake
  • Charger
    48V/10A built-out
  • Package Size
    64"x28"x29"
  • With Lcd Panel
    Yes

Electric Pallet Jack

Primary Equipment for High-Frequency Horizontal Transport

Electric pallet jacks are built for consistent, day-to-day pallet movement. They significantly reduce physical strain and improve operational efficiency.

  • Powered travel and lift
  • Ideal for medium to high-volume operations
  • Increases productivity while lowering labor fatigue
  • Standard equipment in most warehouses
Best Fit
Warehouses, distribution centers, busy loading docks, and 3PL facilities.
Positioning:
This is the go-to solution for horizontal transport.
If stacking at rack height is required, consider an Electric Stacker.

⚠️ Notice:

  • Handle Self-Installation Required, including for Self Pickup Orders
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Parts

Frequently Purchased:
⌄

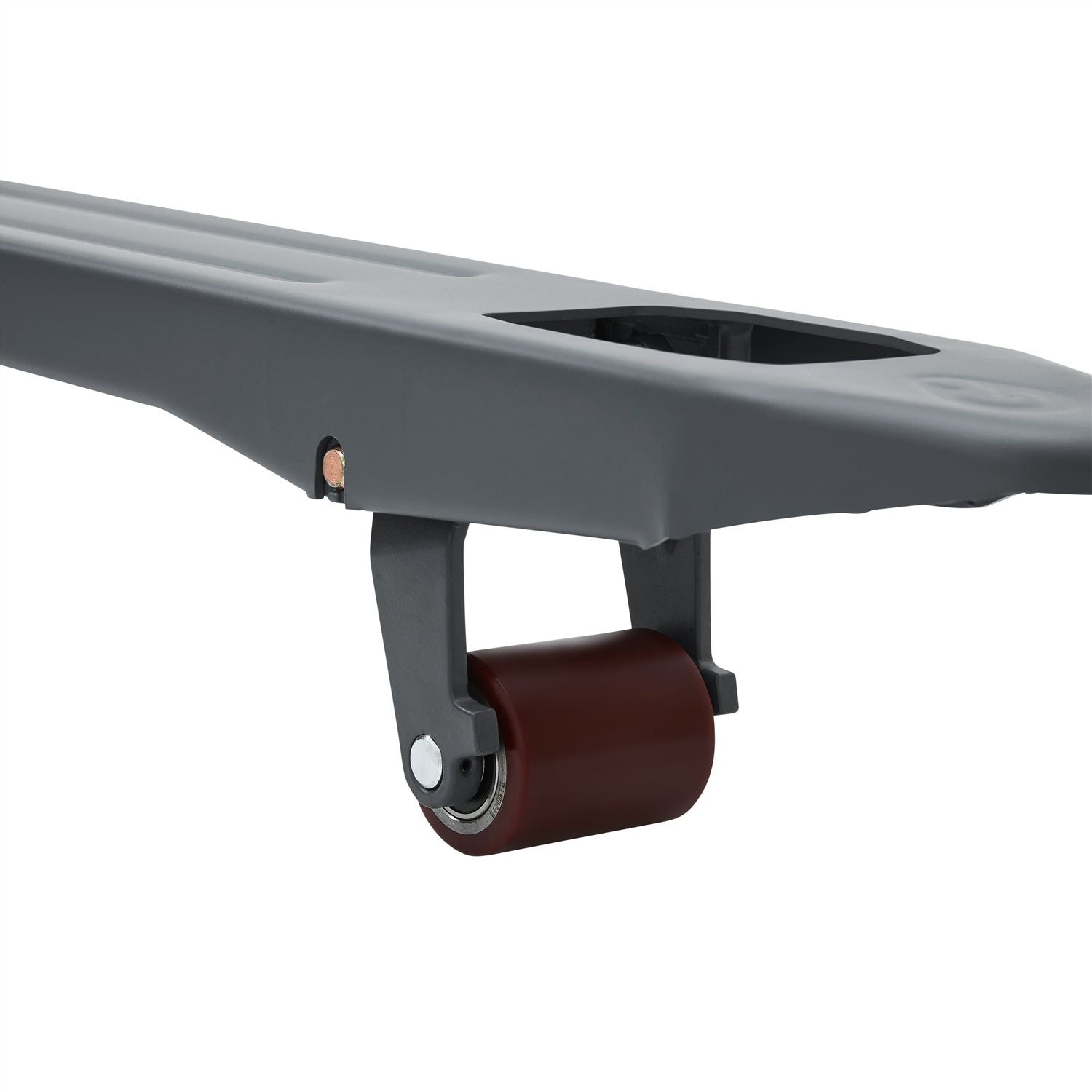

Roller and Bearing Set For A-1038/A-1034/A-1037/A-1029/A-1022/A-103001/A-102901/A-1030/A-103701/A-103801
Brake assy For A-1018/A-1019/A-1020/A-1021
48V/20Ah Battery For A-1038
Charger for Apollo Pallet Jacks 11x6x3 in
Additional Parts:
⌄
Tiller Head for A-1038/A-103801
Lower Horizontal Drive Wheel Assembly for Apollo Pallet Jacks 13x12x11 in
Hydraulic Station Assembly for Apollo Pallet Jacks 14x7x6 in
Control Harness for Apollo Pallet Jacks 8x5x2 in
Control Harness for Apollo Pallet Jacks 8x5x2 in
1000W Brushless Motor for Apollo Pallet Jacks 9x6x5 in
Instructions Parts Diagram

Product comparison
Li-ion Powered Pallet Truck A-103801 | 4,400 lb Capacity
$1,850.00 $2,300.00
Electric Walkie Pallet Truck A-103001 | 4,400 lb Capacity
$2,300.00

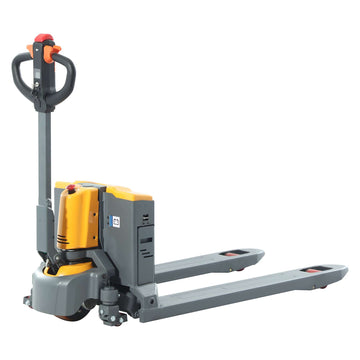

Li-ion Powered Pallet Truck A-103701 | 3,300 lb Capacity
$1,650.00 $2,000.00
Capacity (lb)
Capacity (lb)
4400 lbs.
4400 lbs.
3300 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
7.3"
7.3"
7.3"
Max Fork Height (in)
Max Fork Height (in)
3"
3"
3"
Service Weight (lb)
Service Weight (lb)
310 lbs.
530 lbs.
290 lbs.
Fork Size (in)
Fork Size (in)
48" x 27"
48" x 27"
48" x 27"
Turning Radius (in)
Turning Radius (in)
55.7"
59.5"
55.7"
Aisle Width (in)
Aisle Width (in)
87.0"
90.9"
87.0"
Charger
Charger
48V/10A built-out
24V/10A built-in
24V/10A built-out
Fork Length (in)
Fork Length (in)
48"
48"
48"
Fork Overall Width (in)
Fork Overall Width (in)
27"
27"
27"
Single Fork Width (in)
Single Fork Width (in)
6.3"
6.3"
6.3"
Fork Thickness (in)
Fork Thickness (in)
2.8"
2.1"
2.8"
Fork Lowered Height (in)
Fork Lowered Height (in)
3"
3"
3"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
14.4"
14.4"
14.4"
Overall Length (in)
Overall Length (in)
65.0"
70.1"
65"
Overall Width (in)
Overall Width (in)
27"
27"
27"
Overall Height (in)
Overall Height (in)
48.1"
50.2"
48.1"
Driving Speed - Unladen (mph)
Driving Speed - Unladen (mph)
3.0 mph
3 mph
3.0mph
Driving Speed - Laden (mph)
Driving Speed - Laden (mph)
2.9 mph
2.7 mph
2.8 mph
Lift Speed - Unladen
Lift Speed - Unladen
1 inch/s
1.2 inch/s
1.6 inch/s
Lift Speed - Laden
Lift Speed - Laden
0.8 inch/s
1 inch/s
1.2 inch/s
Braking System
Braking System
Electric brake
Electric brake
Electric brake
With LCD Panel
With LCD Panel
Yes
No
Yes
Stabilizer Wheels
Stabilizer Wheels
Yes
Yes
Yes
Turtle Speed Mode
Turtle Speed Mode
Yes
Yes
Yes
Removable Battery
Removable Battery
Yes
No
Yes
Gradeability (Empty)
Gradeability (Empty)
20%
20%
20%
Gradeability (Loaded)
Gradeability (Loaded)
6%
5%
5%
