APOLLOLIFT  |  SKU: A-3017

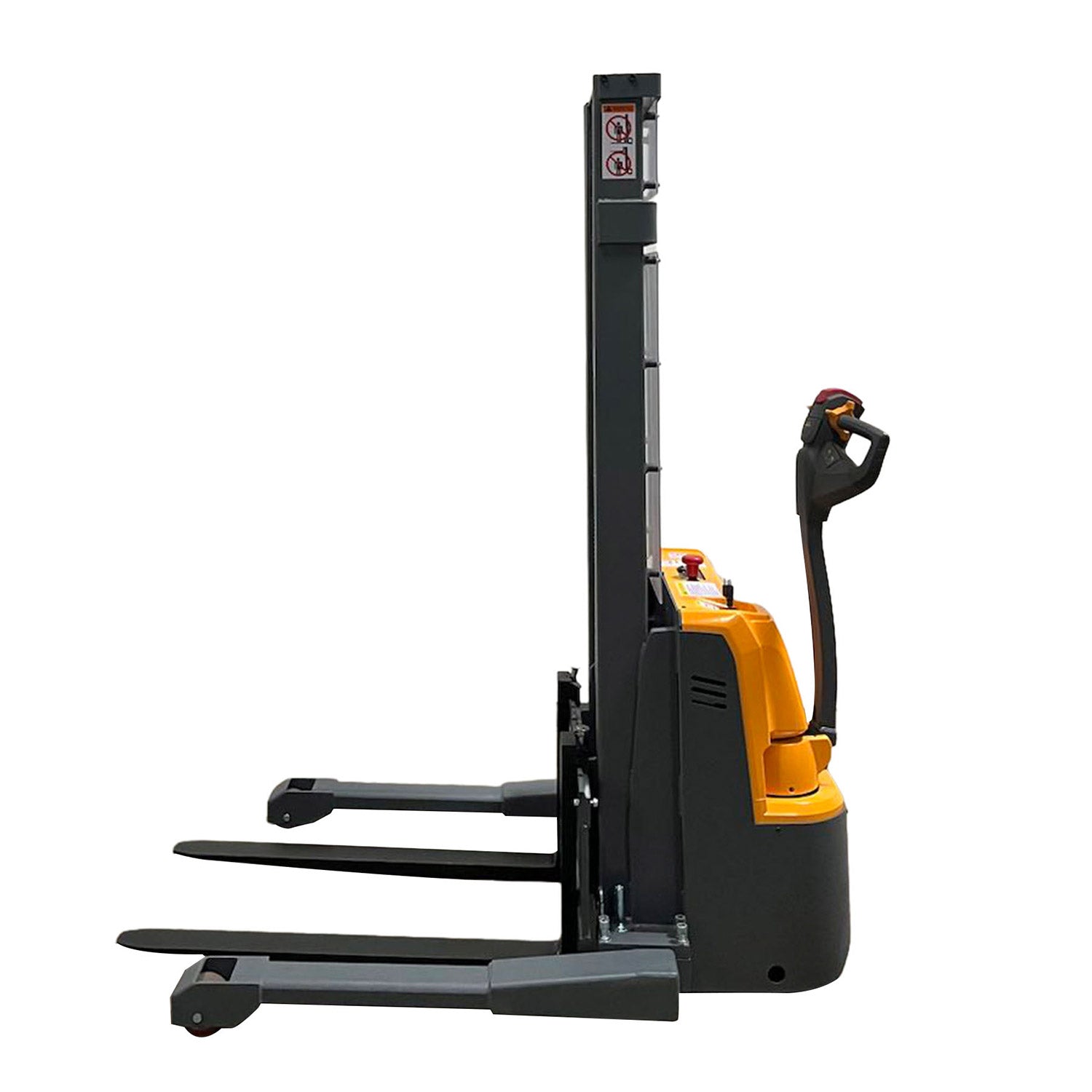

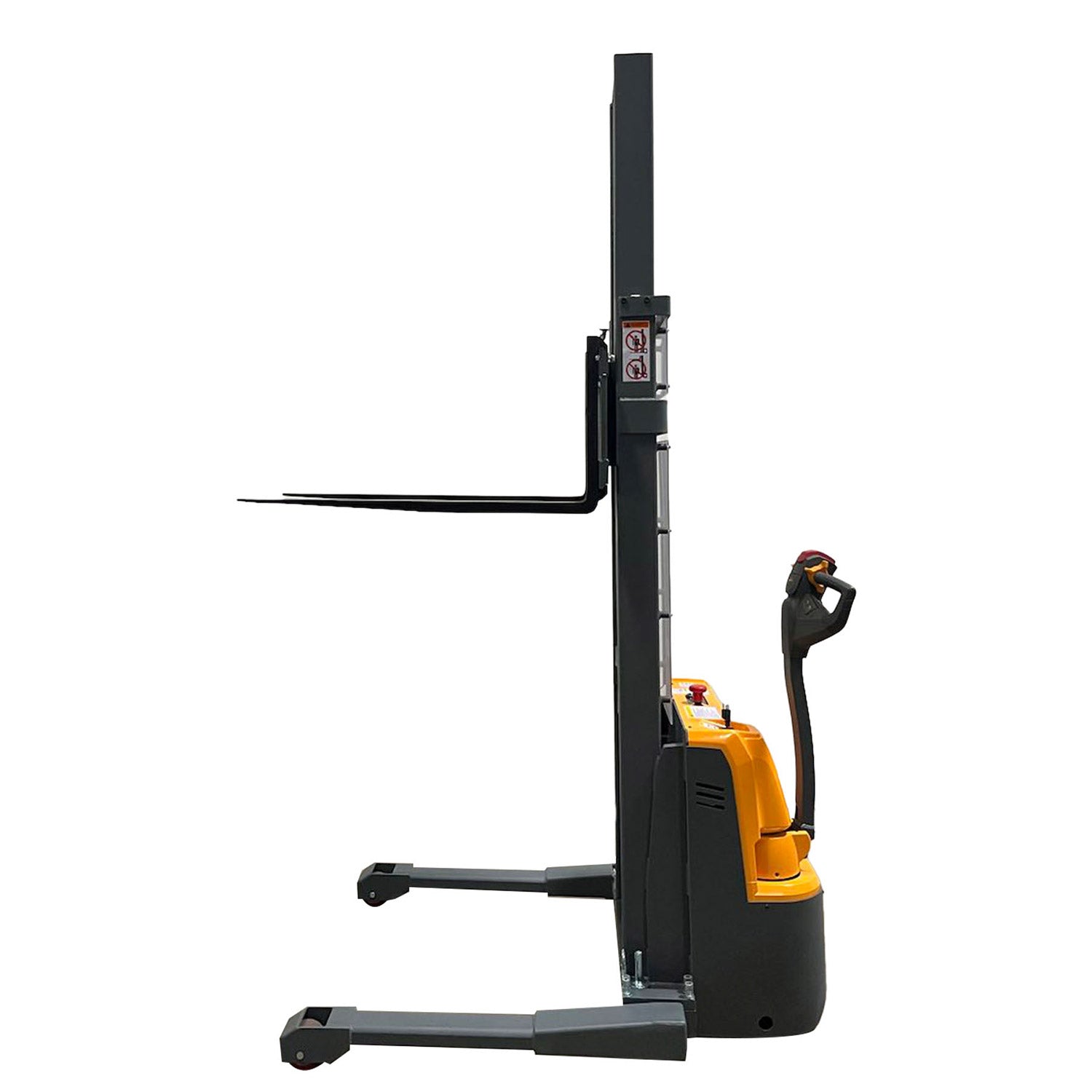

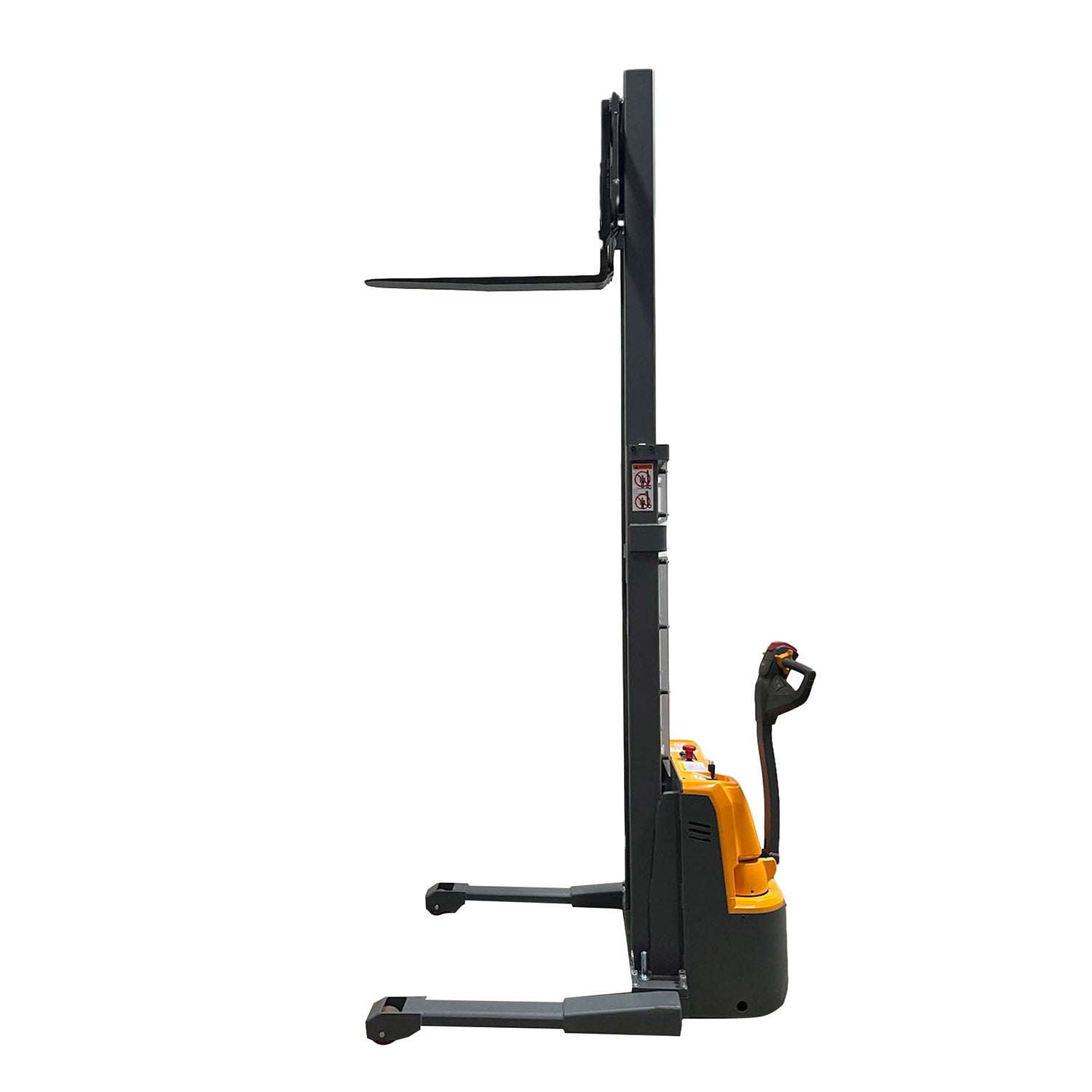

Semi-Electric Stacker A-3017

$3,699.00
  • Capacity: 2200 lbs.
  • Max.Lifting Height: 98"
  • Battery Spec: 24V/105AH
  • Support Legs: Straddle
Powered by Affirm
Summer Sale: 3% OFF!
Apply code at checkout

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

2200 lb capacity for daily warehouse lifting: Built for common pallet stacking and material handling jobs where steady full-electric lifting is needed. Capacity 2200 lbs, load center 23.6".

Straddle-leg design for more pallet flexibility: Suitable when pallets need side leg clearance instead of fixed-leg entry. Forks overall width adjusts from 7.8" to 31.5", inner legs width 36.9"–52.7".

98" max lift height for standard storage tasks: Helps raise pallets to common rack or storage heights while keeping the mast compact when lowered. Max lift height 98", mast lowered height 74.6", mast extended height 122".

GEL battery with built-in charger convenience: Designed for easier daily charging and lower routine maintenance. Battery 24V/105Ah GEL battery, charger 24V/10A built-in.

Compact turning and aisle-friendly operation: Works well for warehouse lanes, stockrooms, and tight handling areas. Turning radius 58.6", aisle width 89.7", overall length 70", overall width 46.5"–62.3".

Specifications

  • Capacity
    2200 lbs.
  • Aisle Width
    89.7"
  • Max.Lifting Height
    98"
  • Inside Distance Between Forks
    0.1"
  • Fork Length
    42"
  • Fork Overall Width
    7.8-31.5"
  • Single Fork Width
    3.9"
  • Compatible Pallet Types
    Open Bottom
  • Overall Height
    74.6"
  • Overall Length
    70"
  • Overall Width
    46.5"-62.3"
  • Lifting Speed/Empty
    5.5 inch/s
  • Lifting Speed/Loaded
    3.5 inch/s
  • Support Leg Type
    Straddle
  • Total Wheel Count
    4
  • Turning Radius
    58.6"
  • Mast Lowered Height
    74.6"
  • Mast Extended Height
    122"
  • Load Centre Distance
    23.6"
  • Battery Capacity
    105AH
  • Battery Spec
    24V/105AH
  • Battery Voltage
    24V
  • Battery Type
    GEL battery
  • Fork Thickness
    1.4"
  • Fork Lowered Height
    3.1"
  • Lowering Speed/Empty
    3.9 inch/s
  • Lowering Speed/Loaded
    4.7 inch/s
  • Service Weight
    1543 lbs.
  • Gross Weight
    1553 lbs.
  • Charger
    24V/10A built-in
  • Package Size
    47"x34"x79"

Semi-Electric Stacker

Powered Lift with Manual Travel – Balanced Cost & Performance

Semi-electric stackers offer powered lifting with manual push movement. They provide an economical entry point into electric stacking.

  • Electric lift reduces physical strain
  • Lower investment than full electric models
  • Suitable for moderate stacking needs
Best Fit
Small to mid-size storage rooms, mezzanine areas, and daily restocking operations.
Positioning:
A practical alternative for businesses not ready to invest in full electric drive.

⚠️ Notice:

  • Fix leg is incompatible with US standard pallets and is designed exclusively for open bottom pallet
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Processing Time Update

  • Processing Time: This product requires at least 5 business days to process before shipping.

Product Comparison
Semi-Electric Stacker A-3017
$3,699.00
Semi-Electric Stacker A-3016
$3,100.00 $3,350.00
Semi-Electric Straddle Stacker A-3011
$3,590.00 $3,887.00
Capacity (lb)
Capacity (lb)
2200 lbs.
3300 lbs.
3300 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
98"
118"
98"
Max Fork Height (in)
Max Fork Height (in)
3.1"
3.5"
3.1"
Service Weight (lb)
Service Weight (lb)
1543 lbs.
960 lbs.
1155 lbs.
Fork Size (in)
Fork Size (in)
42" x 7.8-31.5"
42" x 11.6-36.6"
42" x 11.6-36.6"
Lowered Mast Height (in)
Lowered Mast Height (in)
74.6"
82.7"
74.8"
Turning Radius (in)
Turning Radius (in)
58.6"
56.1"
56.1"
Aisle Width (in)
Aisle Width (in)
89.7"
90.1"
90.1"
Leg Type
Leg Type
Straddle
Fixed
Straddle
Compatible Pallets
Compatible Pallets
Open Bottom
Open Bottom
All
Adjustable Forks
Adjustable Forks
Yes
Yes
Yes
Charger
Charger
24V/10A built-in
12V/12A built-in
12V/12A built-in
Mast Stages
Mast Stages
2 Stage
2 Stage
Fork Length (in)
Fork Length (in)
42"
42"
42"
Fork Overall Width (in)
Fork Overall Width (in)
7.8-31.5"
11.6-36.6"
11.6-36.6"
Single Fork Width (in)
Single Fork Width (in)
3.9"
5.6"
5.6"
Fork Thickness (in)
Fork Thickness (in)
1.4"
2.4"
2.4"
Fork Lowered Height (in)
Fork Lowered Height (in)
3.1"
3.5"
3.1"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.1"
0.4-25.4"
0.4-25.4"
Overall Length (in)
Overall Length (in)
70"
68.7"
68.7"
Overall Width (in)
Overall Width (in)
46.5"-62.3"
38.1"
46.0-60.1"
Overall Height (in)
Overall Height (in)
74.6"
82.7-140.2"
74.8-122.4"
Lift Speed - Unladen
Lift Speed - Unladen
5.5 inch/s
3.1 inch/s
3.1 inch/s
Lift Speed - Laden
Lift Speed - Laden
3.5 inch/s
2 inch/s
2 inch/s
Turtle Speed Mode
Turtle Speed Mode
Yes
Yes

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

Can I purchase spare parts or batteries separately?

Yes. You can purchase the spare parts on our website. If you are not sure what parts you need or cannot find the parts you need, please contact our service team service@apolloliftus.com with products' photos, parts name or phots and SKU for help.

Do Electric Products come with accessories?

Yes, our electric products include an original charger and battery set, and it is recommended to charge them immediately upon receipt.

What is the difference between lead-acid batteries and lithium batteries?

Lead-acid batteries: mature technology, stable performance in high and low temperatures, require longer charging times and longer work time.Lithium batteries: lightweight, compact, charge quickly, require no maintenance, and are environmentally friendly, making them more suitable for high-frequency usage.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
