1 7
2200 lbs.
2200 lbs.
Capacity
63"
63"
Max Lift Ht.
80.6"
80.6"
Aisle Width
Open Bottom Pallet
Open Bottom Pallet
Compatible Pallet Types
APOLLOLIFT  |  SKU: A-3003

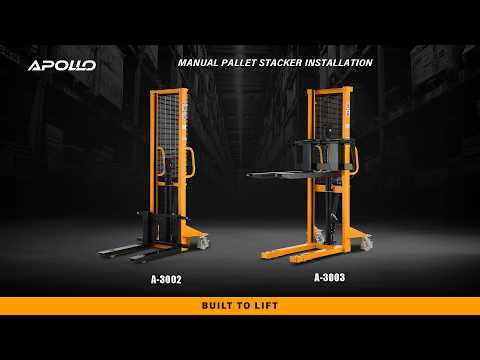

Manual Fixed-Leg Stacker A-3003

$1,520.00 $2,100.00
  • Capacity: 2200 lbs.
  • Max.Lifting Height: 63"
  • Support Leg Type: Fixed
Powered by Affirm
Summer Sale: 3% OFF!
Apply code at checkout

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Heavy-duty manual stacker feel—more forklift-like support under load with extra wheel stability, Capacity: 2200 lbs, Load Wheel Type: Dual Wheel, Total Wheel Count: 6.

Long-fork support for deeper pallets and longer loads for better load contact, Fork Length: 42", Fork Overall Width: 11.6–36.6".

Standard stacking height for daily warehouse racking and staging, Max. Lifting Height: 63".

Know your clearance before you buy for doorways and low ceilings, Mast Lowered Height: 81.9".

Pallet-type note for safer buying—designed around open-bottom pallets, Compatible Pallet Types: Open Bottom.

Specifications

  • Capacity
    2200 lbs.
  • Aisle Width
    80.6"
  • Max.Lifting Height
    63"
  • Inside Distance Between Forks
    0.4-25.4"
  • Fork Length
    42"
  • Fork Overall Width
    11.6-36.6"
  • Single Fork Width
    5.6"
  • Compatible Pallet Types
    Open Bottom
  • Overall Height
    81.9"
  • Overall Length
    66.1"
  • Overall Width
    38.2"
  • Support Leg Type
    Fixed
  • Load Wheel Type
    Dual Wheel
  • Total Wheel Count
    6
  • Turning Radius
    49.6"
  • Mast Lowered Height
    81.9"
  • Mast Extended Height
    81.9"
  • Load Centre Distance
    19.7"
  • Fork Thickness
    2.4"
  • Fork Type
    Pressed Steel Forks
  • Fork Lowered Height
    3.5"
  • Service Weight
    566 lbs.
  • Gross Weight
    576 lbs.
  • Package Size
    66"x28"x85"

Manual Stacker

Cost-Effective Option for Occasional Lifting

Manual stackers provide a low-cost solution for light, infrequent lifting applications.

  • Manual lift operation
  • Designed for limited daily stacking
  • Budget-friendly alternative to powered units
Best Fit
Small workshops, maintenance areas, and light rack loading.
When to Upgrade:
If lifting becomes part of daily operations, a powered stacker will greatly improve efficiency.

⚠️Notice:

  • Fix leg is incompatible with US standard pallets and is designed exclusively for open bottom pallet

Links

Product brochure

Product Comparison
Manual Fixed-Leg Stacker A-3003
$1,520.00 $2,100.00
Manual Straddle-Leg Stacker A-3004
$1,589.00 $2,200.00
Manual Fixed-Leg Stacker A-3002
$1,269.00 $1,800.00
Manual Straddle-Leg Stacker A-3005
$1,719.00 $2,400.00
Capacity (lb)
Capacity (lb)
2200 lbs.
1100 lbs.
1100 lbs.
2200 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
63"
63"
63"
63"
Max Fork Height (in)
Max Fork Height (in)
3.5"
2.8"
3.2"
2.8"
Service Weight (lb)
Service Weight (lb)
566 lbs.
495 lbs.
363 lbs.
660 lbs.
Fork Size (in)
Fork Size (in)
42" x 11.6-36.6"
31.5" x 7.9-29.3"
31.5" x 7.9-29.3"
31.5" x 7.9-37.4"
Lowered Mast Height (in)
Lowered Mast Height (in)
81.9"
78.3"
78.3"
81.5"
Turning Radius (in)
Turning Radius (in)
49.6"
48"
46.4"
48.6"
Aisle Width (in)
Aisle Width (in)
80.6"
81.3"
78.6"
81.6"
Leg Type
Leg Type
Fixed
Straddle
Fixed
Straddle
Compatible Pallets
Compatible Pallets
Open Bottom
All
Open Bottom
All
Adjustable Forks
Adjustable Forks
Yes
Yes
Yes
Yes
Mast Stages
Mast Stages
1 Stage
1 Stage
1 Stage
1 Stage
Fork Length (in)
Fork Length (in)
42"
31.5"
31.5"
31.5"
Fork Overall Width (in)
Fork Overall Width (in)
11.6-36.6"
7.9-29.3"
7.9-29.3"
7.9-37.4"
Single Fork Width (in)
Single Fork Width (in)
5.6"
3.9"
3.9"
3.9"
Fork Thickness (in)
Fork Thickness (in)
2.4"
1.9"
1.9"
1.2"
Fork Type
Fork Type
Pressed Steel Forks
Channel Steel Forks
Channel Steel Forks
Forged Steel Forks
Fork Lowered Height (in)
Fork Lowered Height (in)
3.5"
2.8"
3.2"
2.8"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.4-25.4"
0.4-21.5"
0.4-21.5"
0.4-29.5"
Wheel Type
Wheel Type
Dual Wheel
Single Wheel
Single Wheel
Dual Wheel
Overall Length (in)
Overall Length (in)
66.1"
53.1"
54.3"
53.1"
Overall Width (in)
Overall Width (in)
38.2"
60.2"
31.5"
58.3"
Overall Height (in)
Overall Height (in)
81.9"
78.3"
78.3"
81.5"
Turtle Speed Mode
Turtle Speed Mode
No
No
No
No

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
