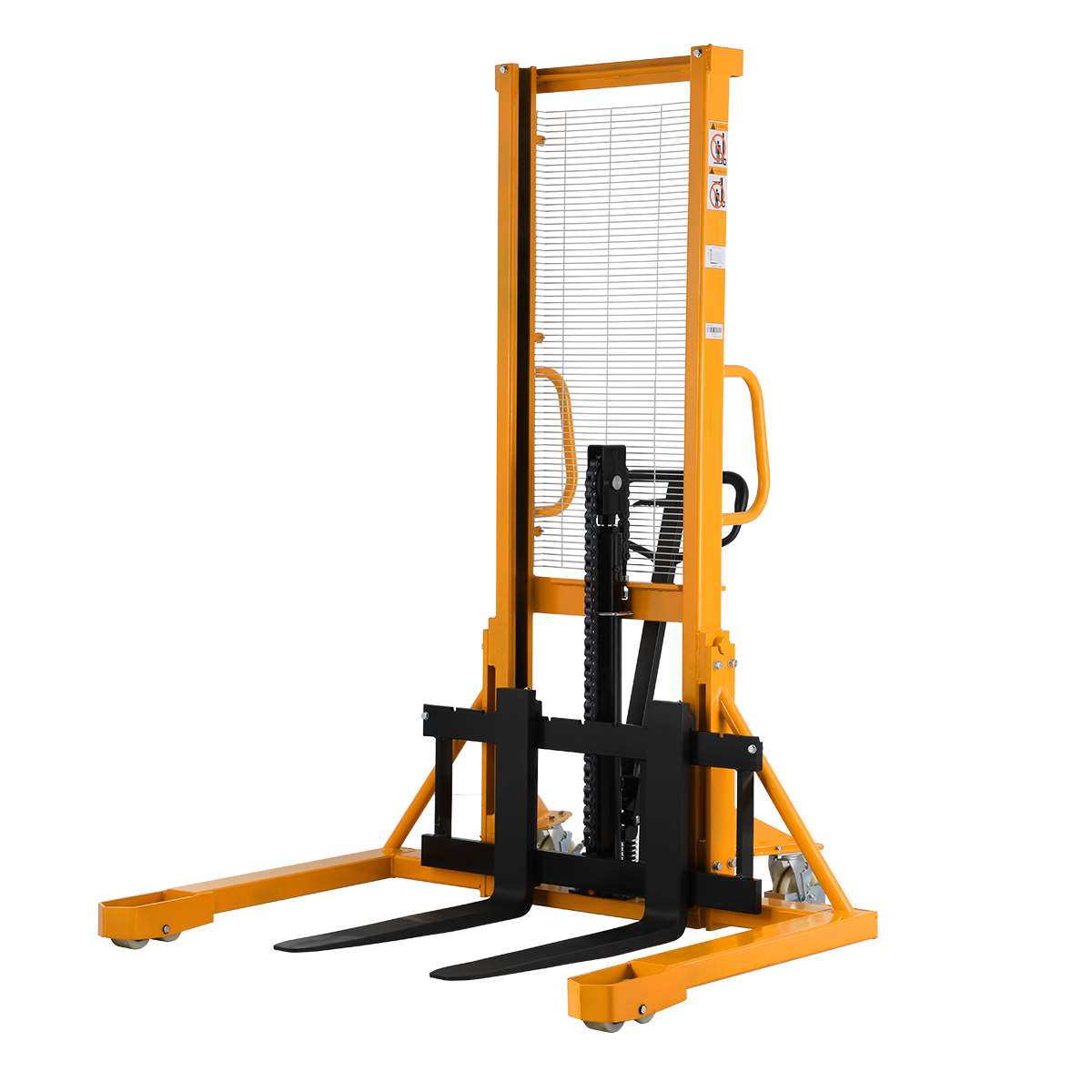

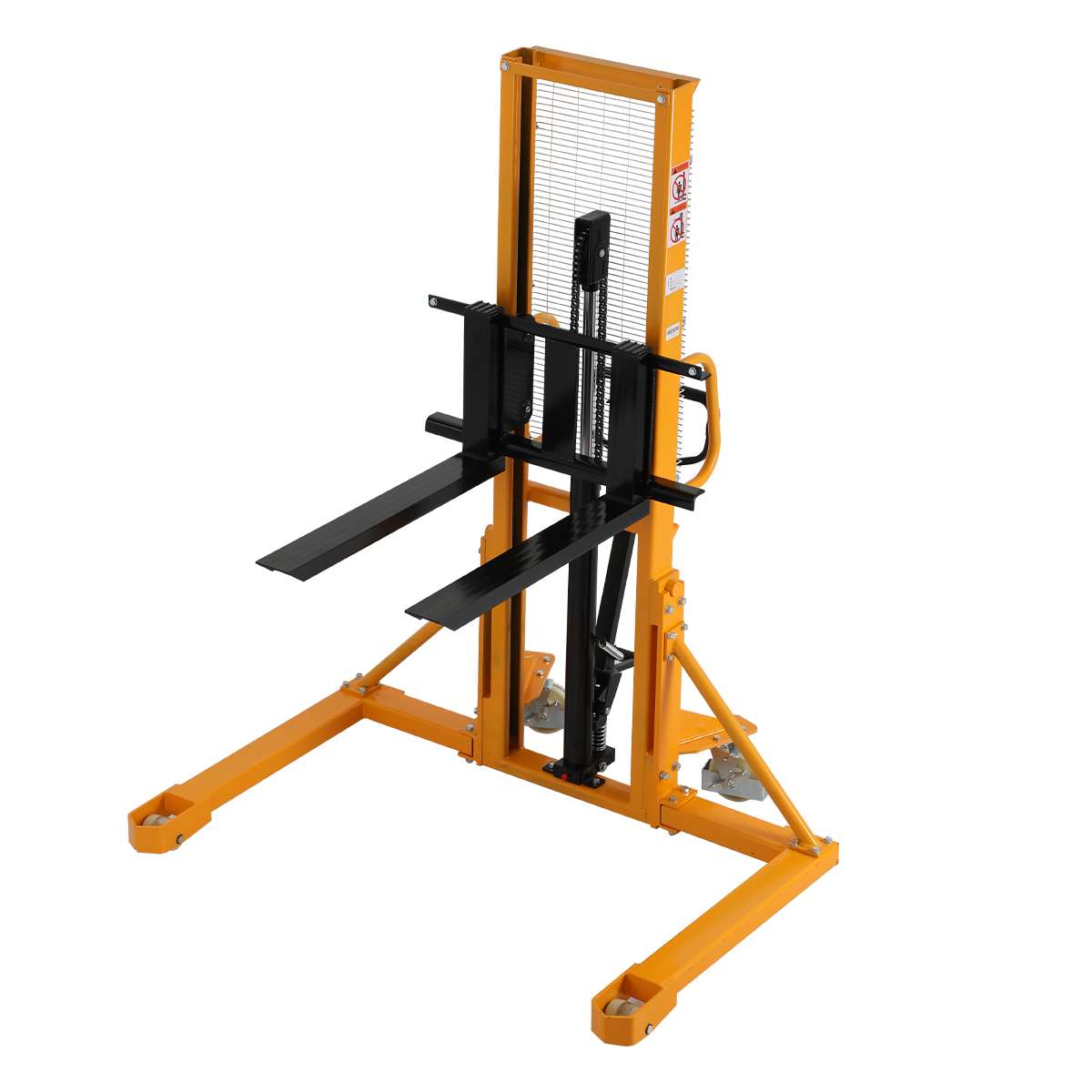

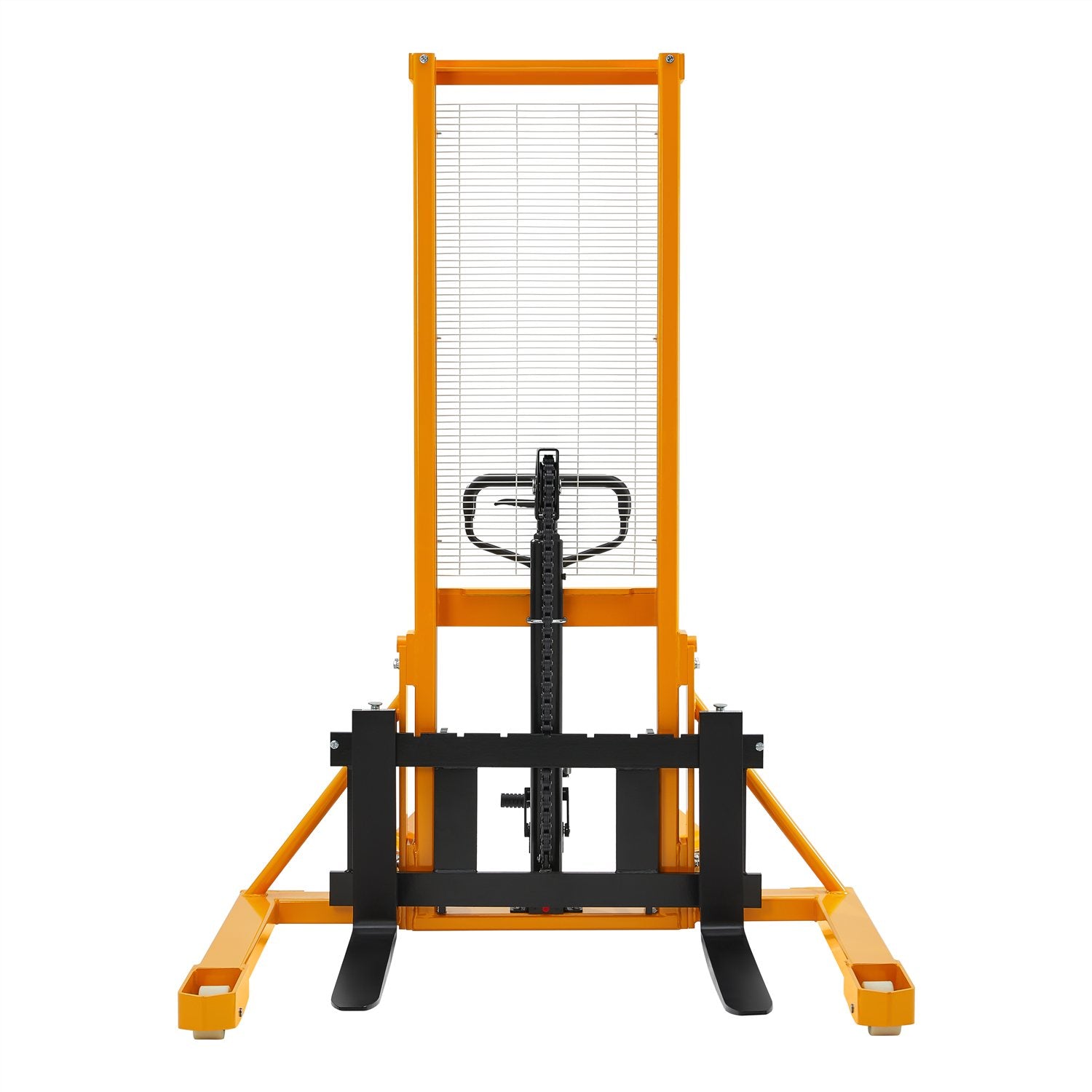

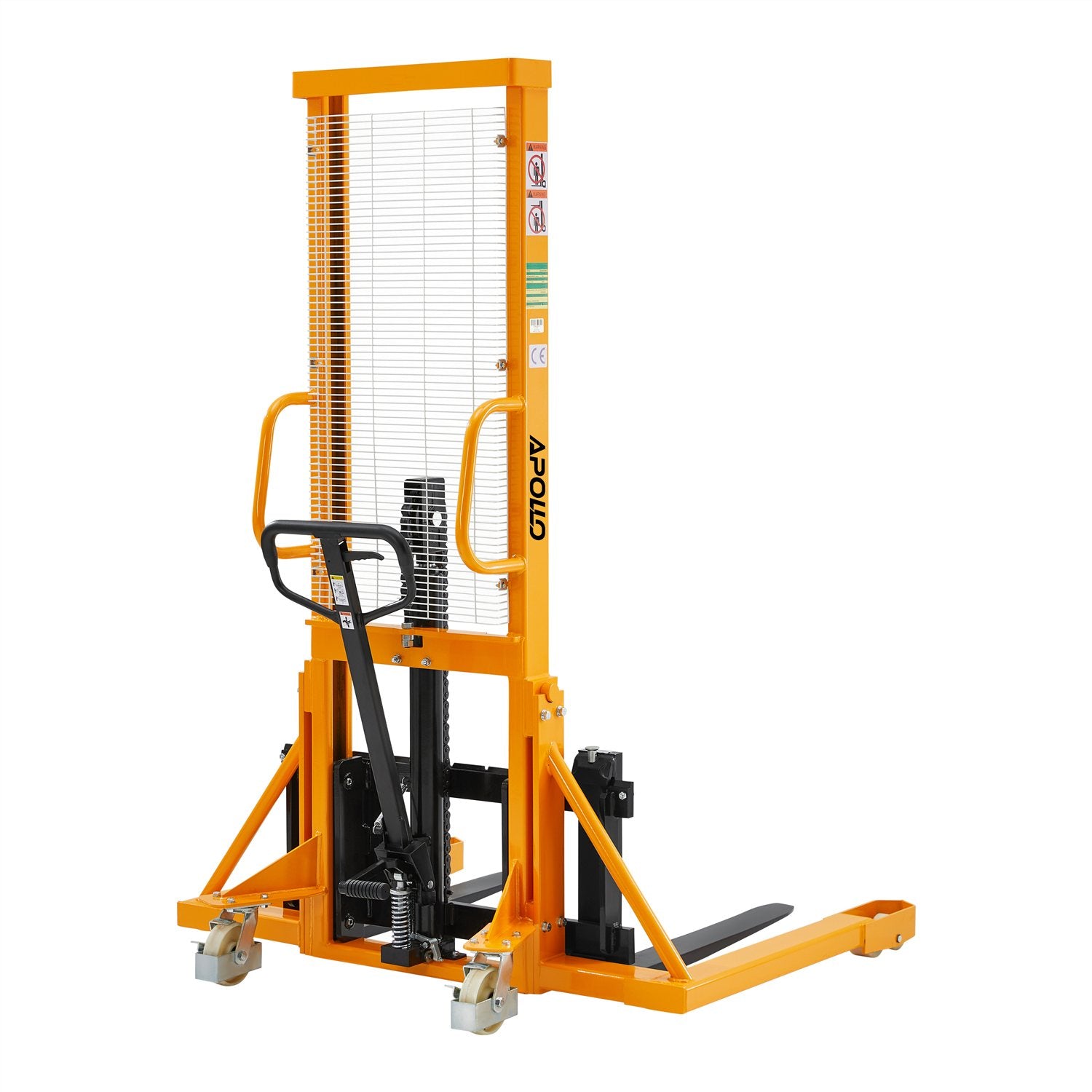

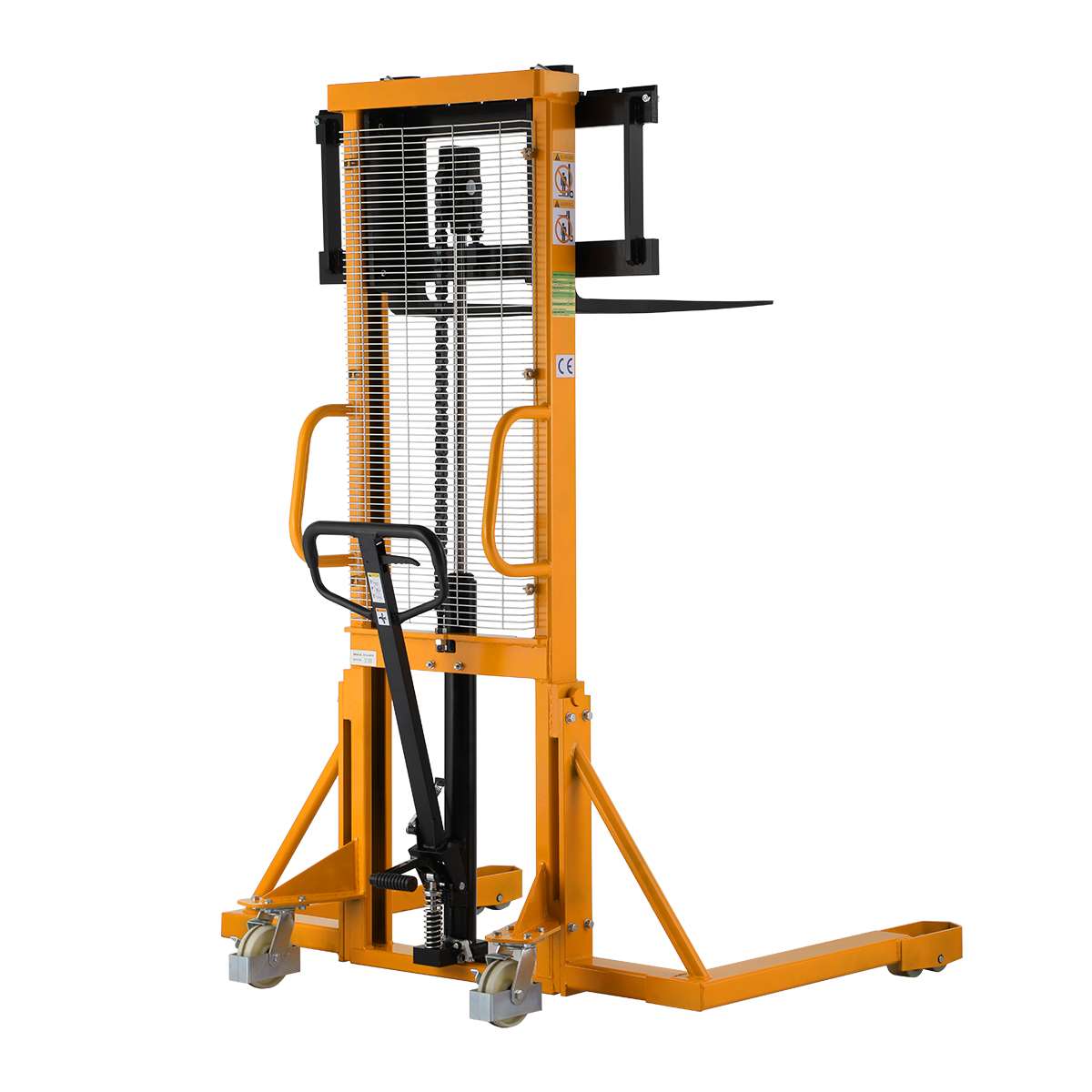

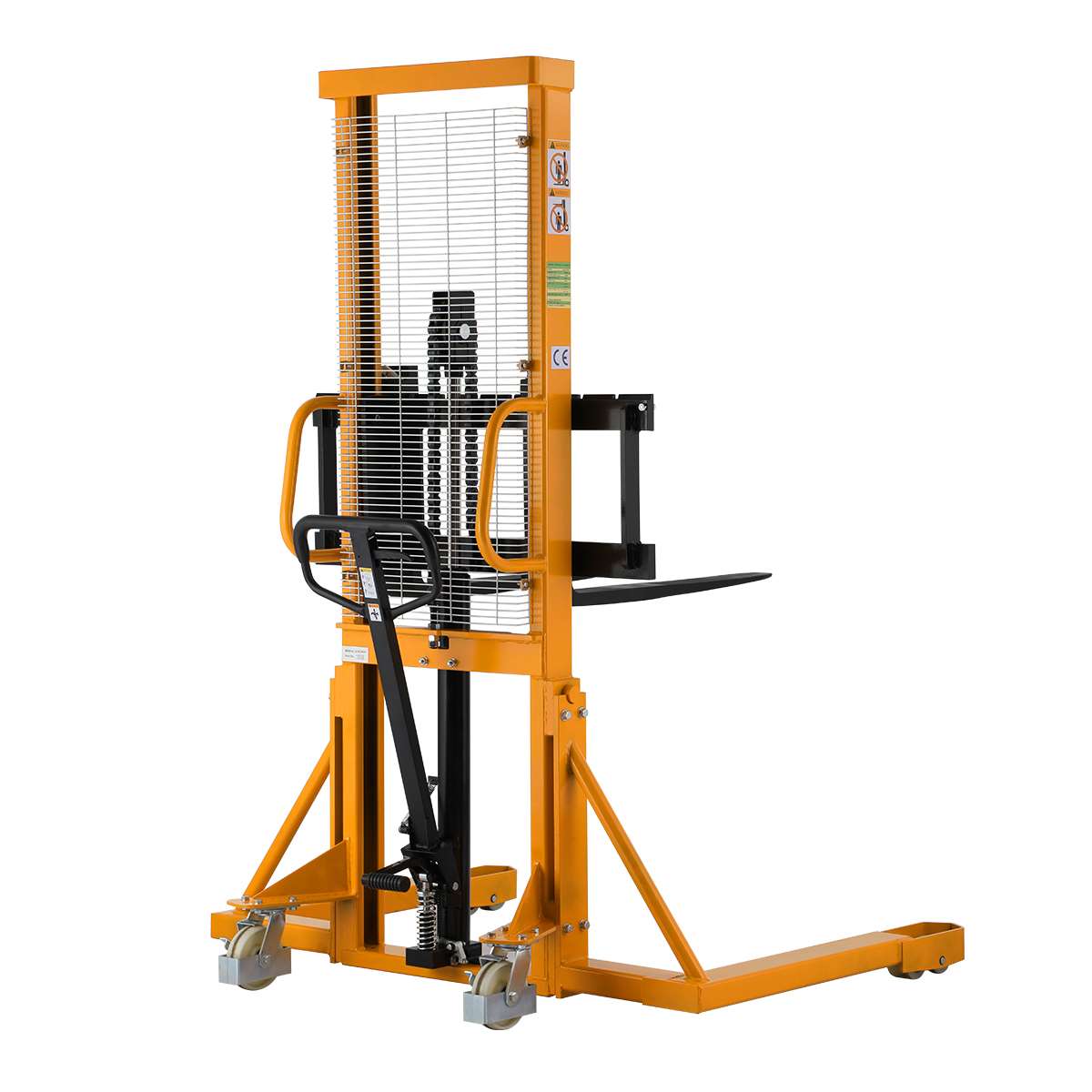

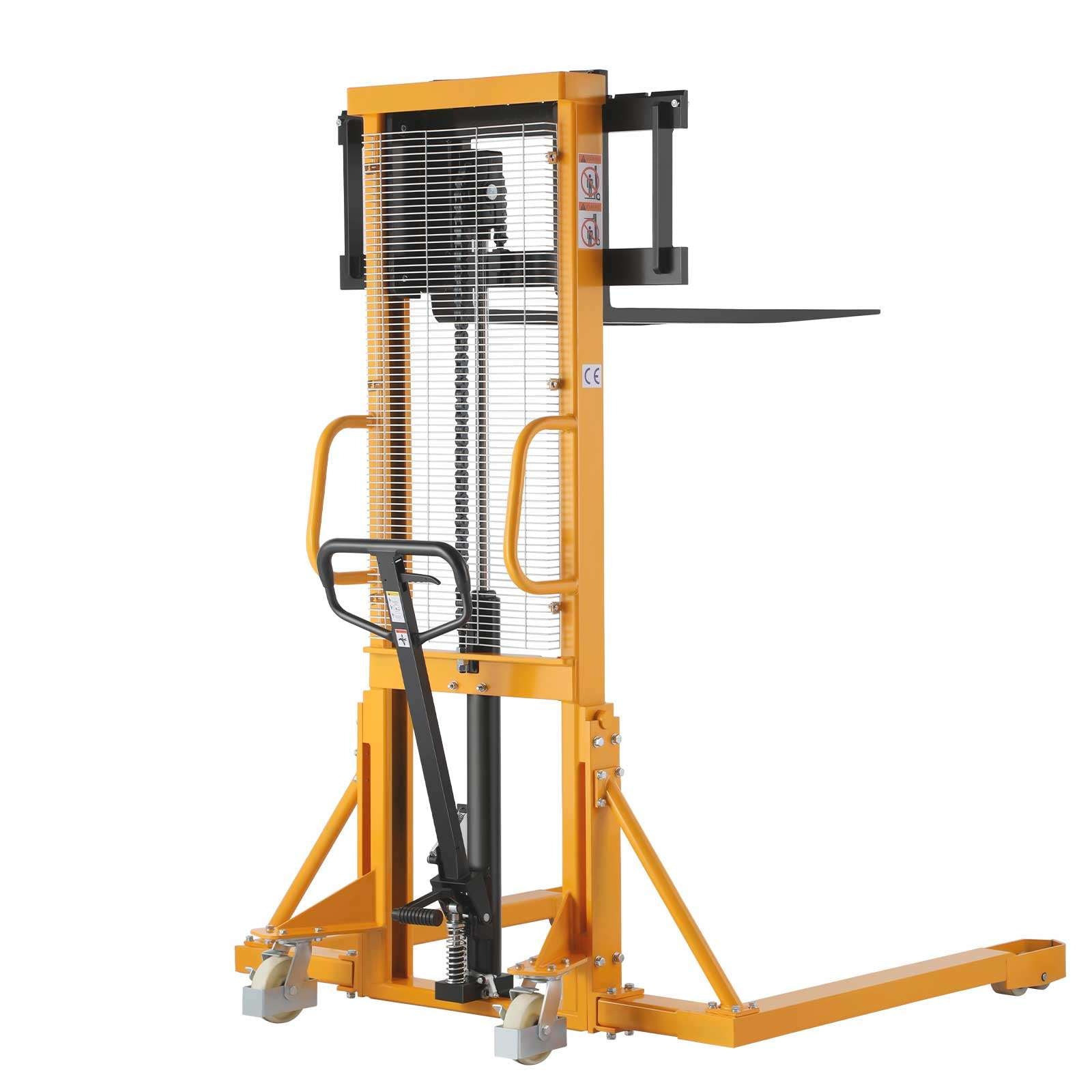

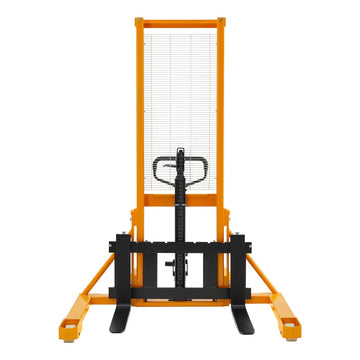

Straddle Legs 2200lbs Cap. 63" Lift Height A-3005
Straddle Legs 2200lbs Cap. 63" Lift Height A-3005

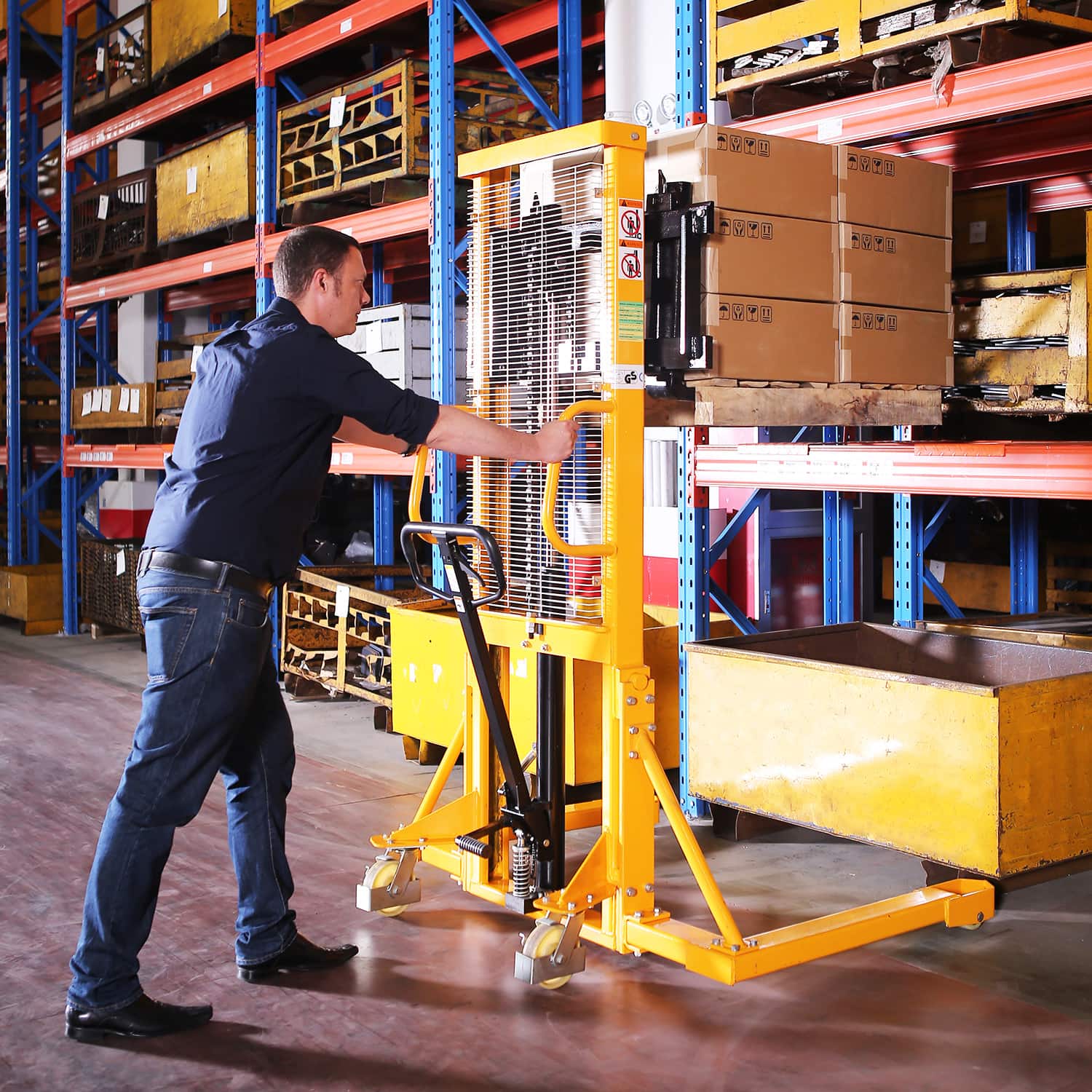

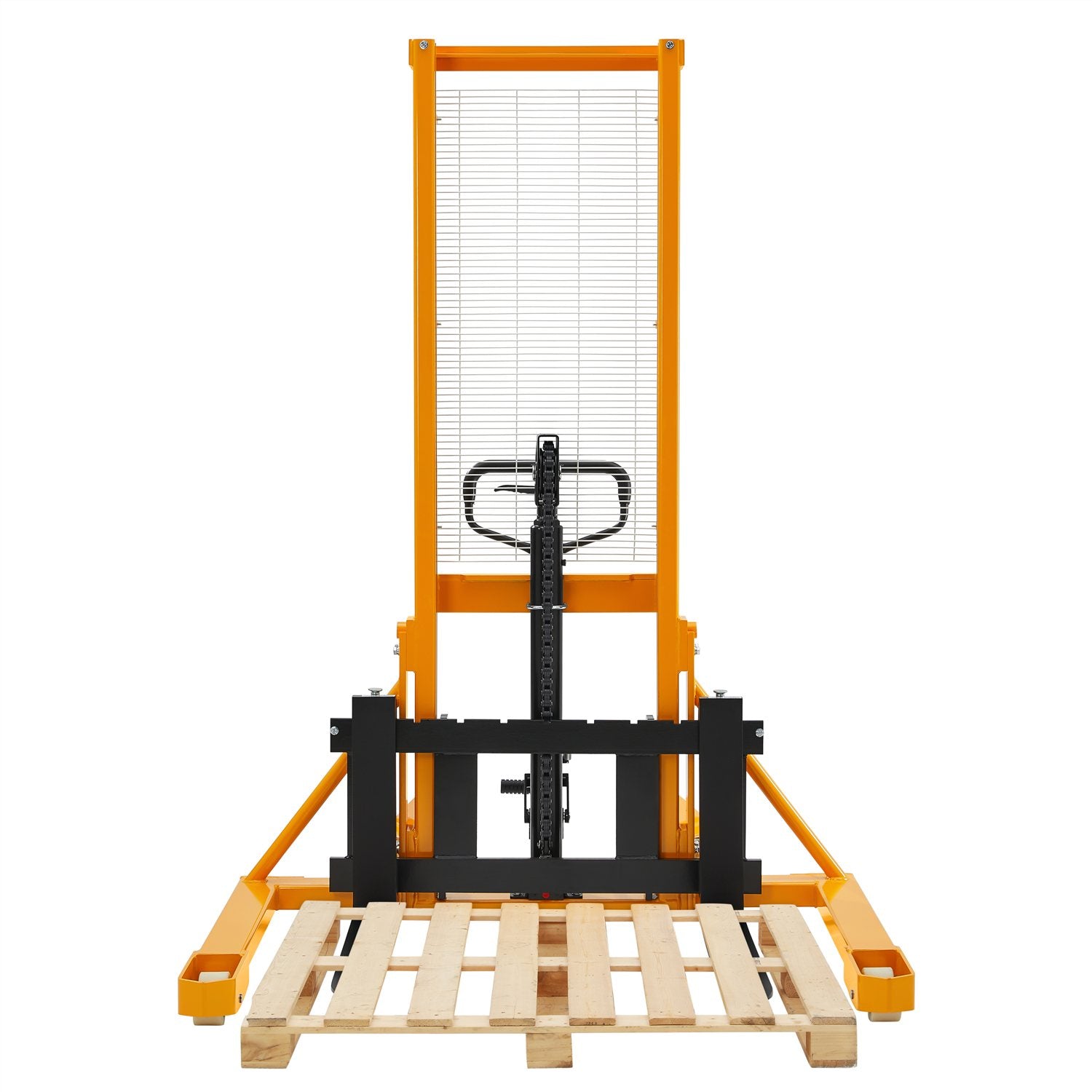

- Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
- High quality steel mast and strong steel construction ensures rigidity and durability
- High efficient pumps makes the control easier to operate

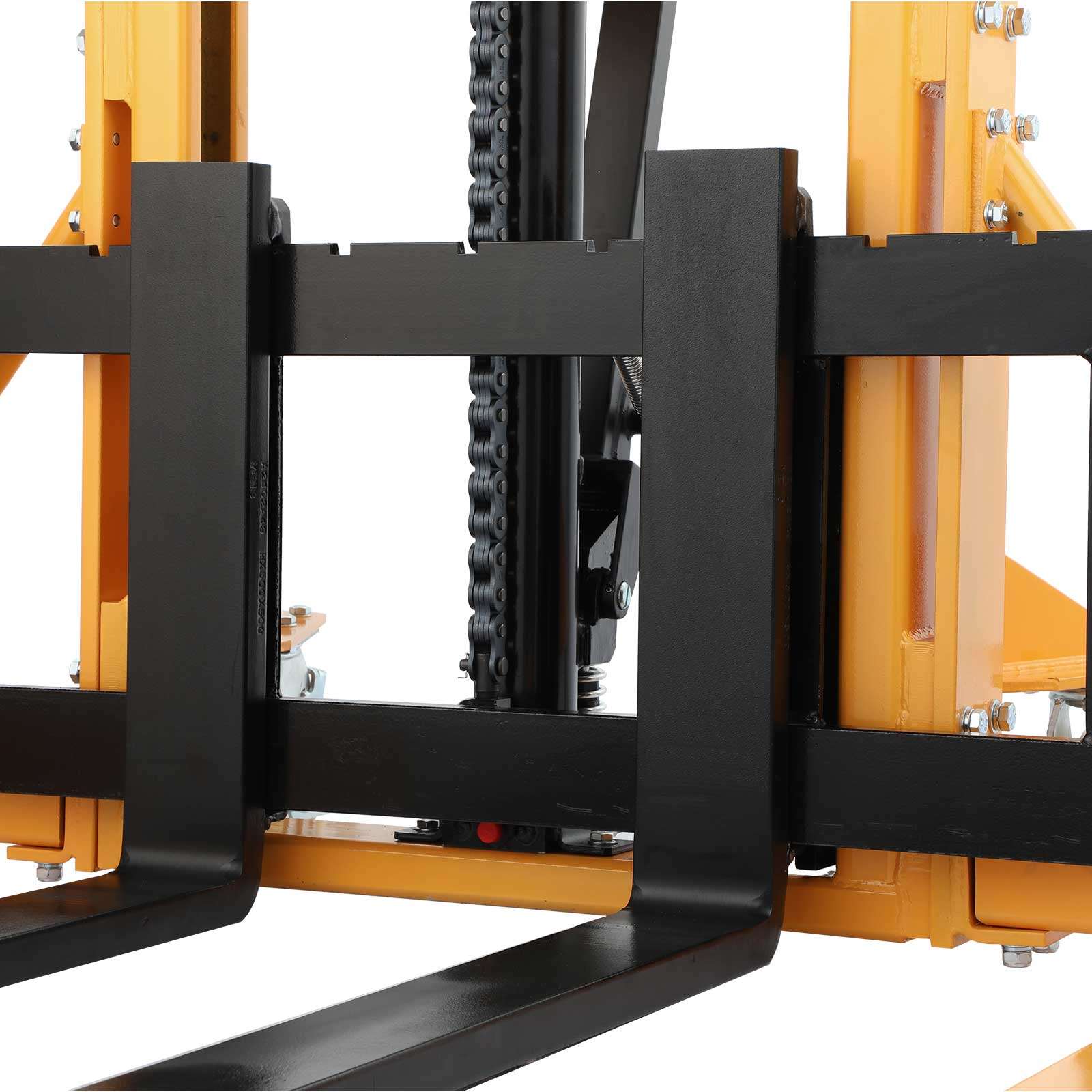

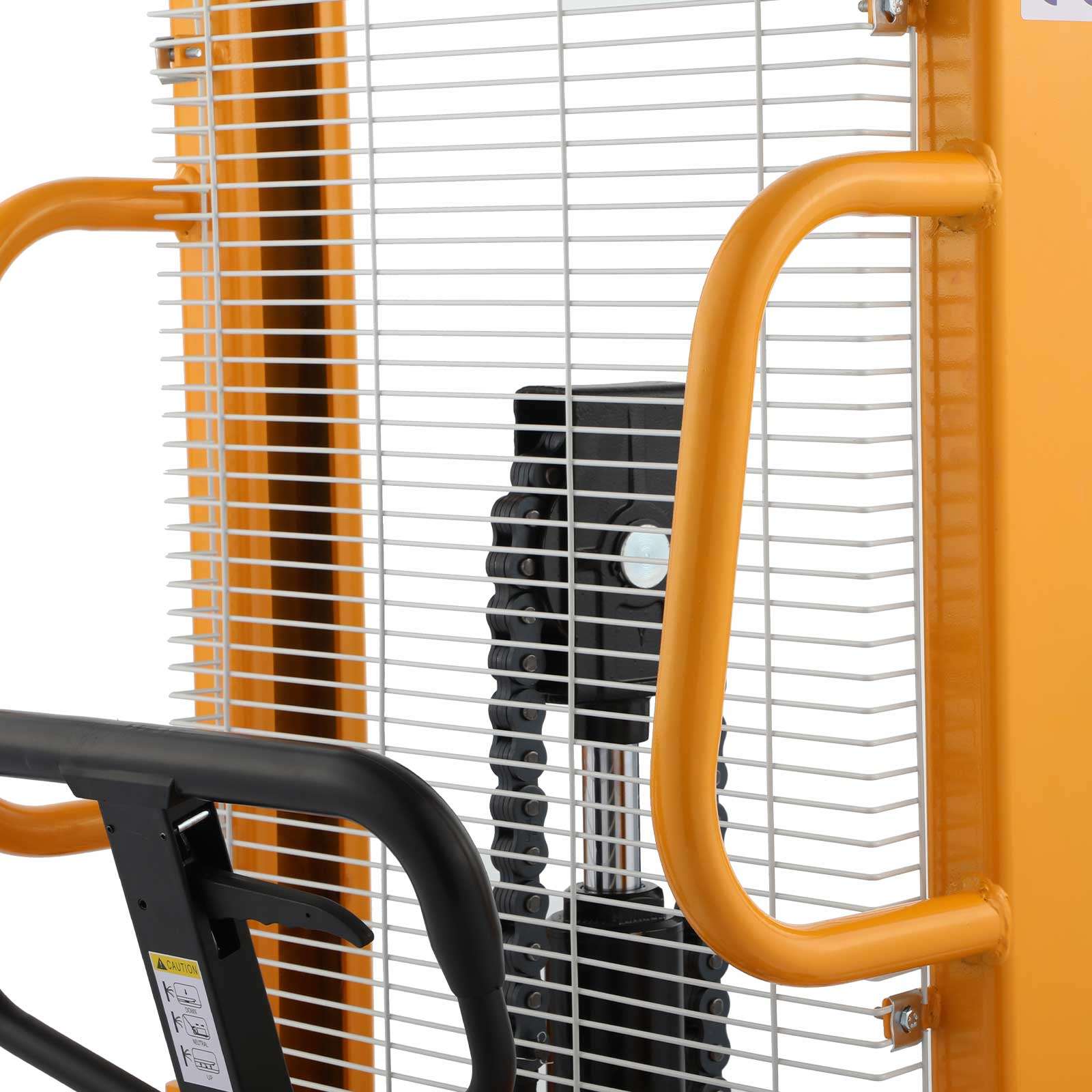

- Metal grid protects user from lift chains

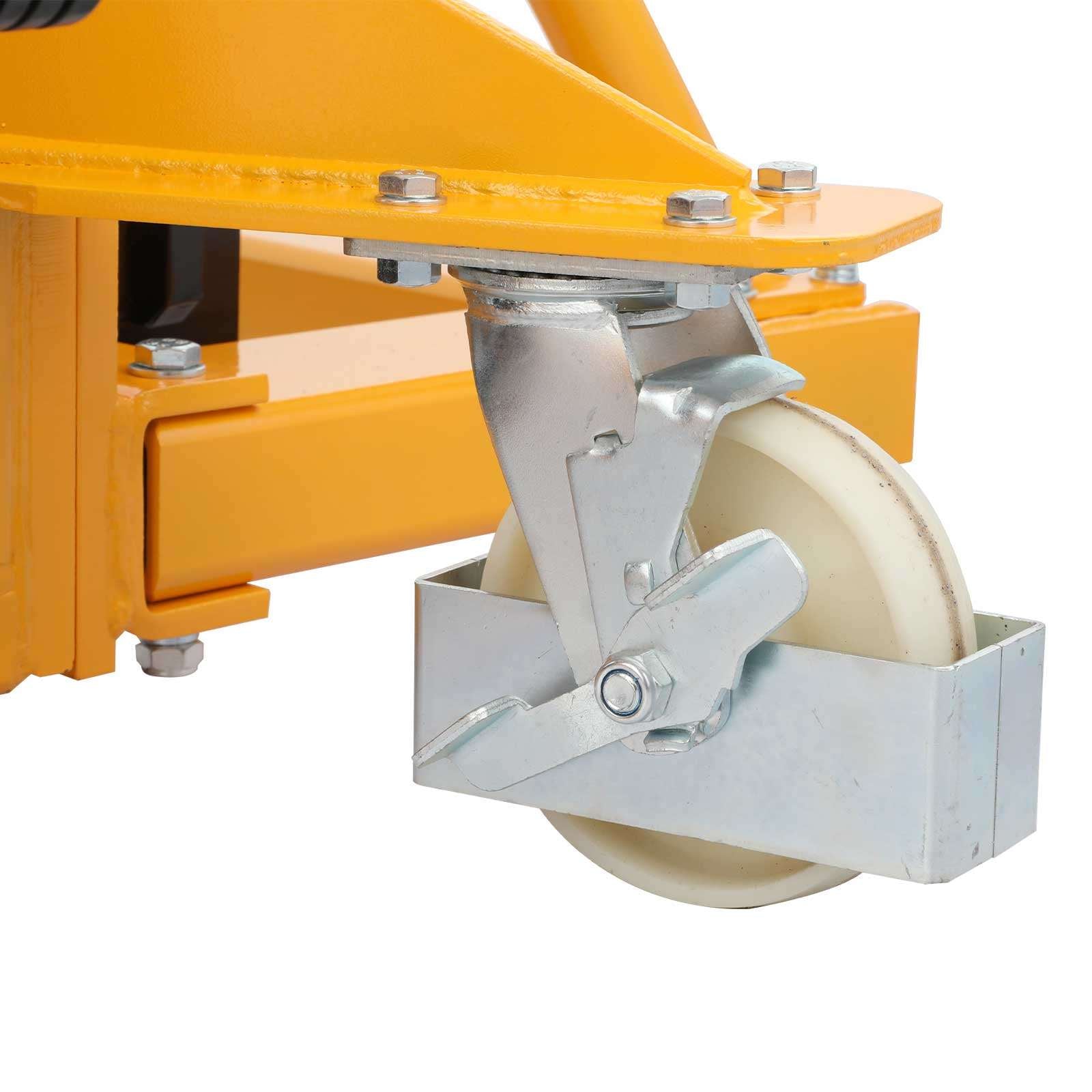

- With safety wheel guard and brake system to ensure safety during operation

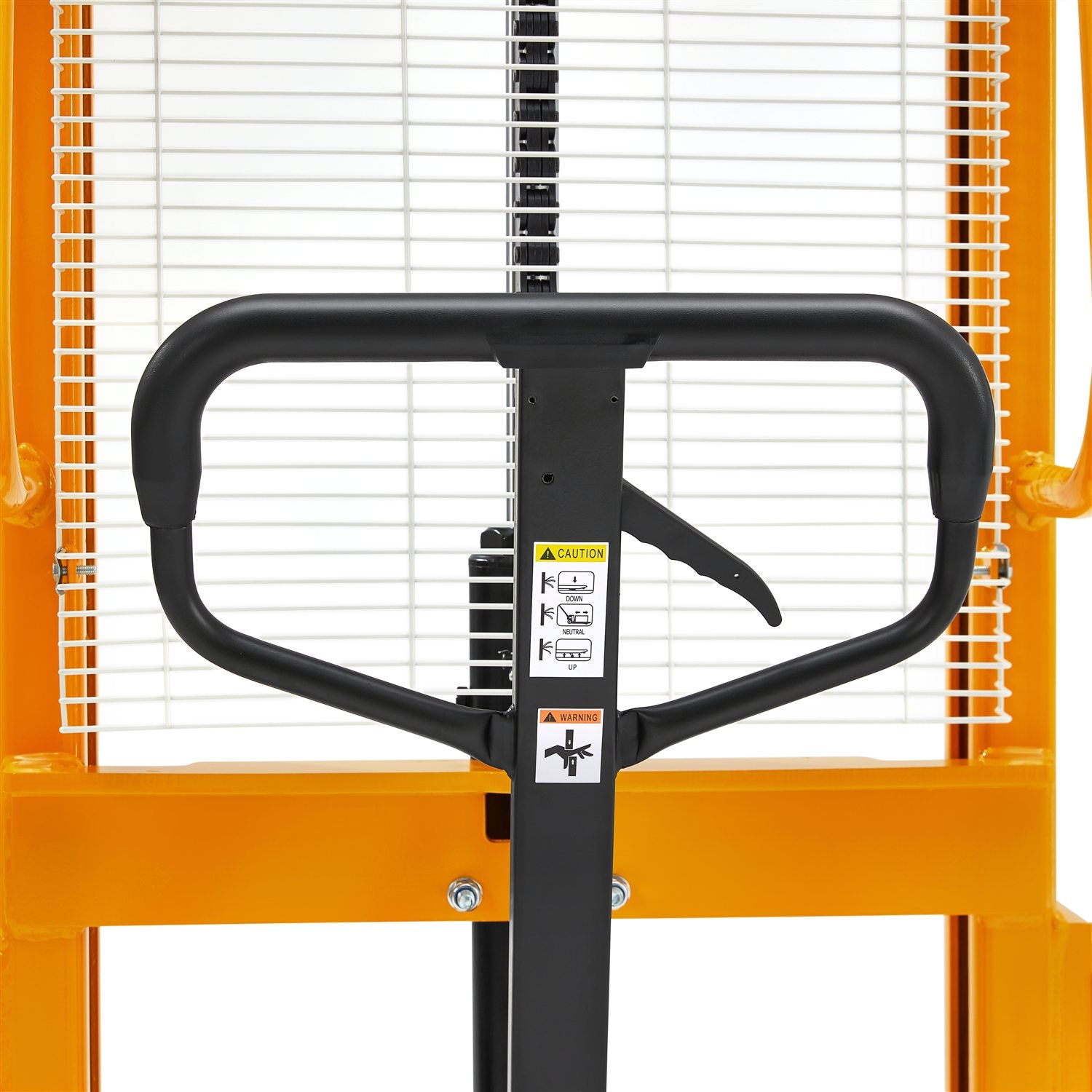

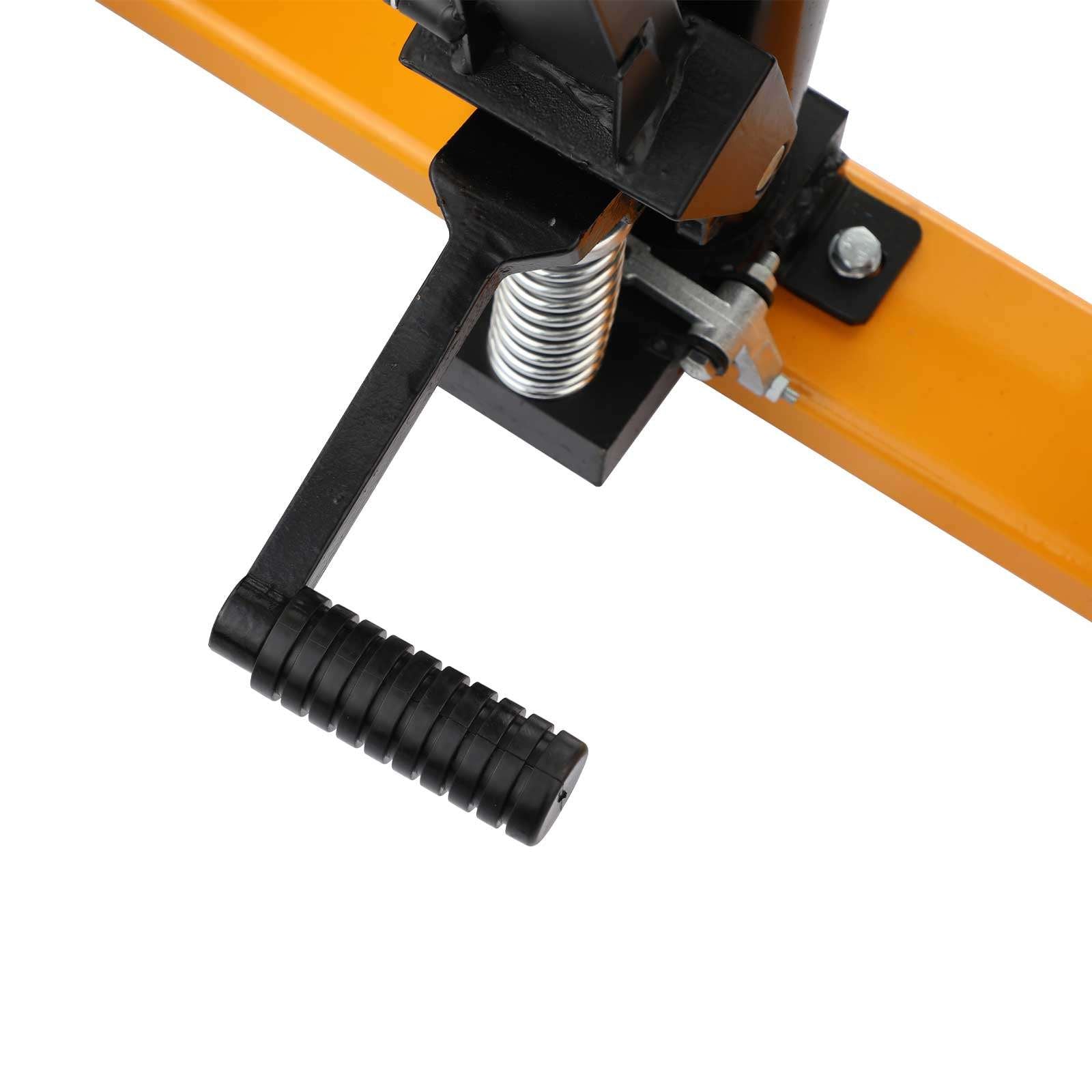

- Manually raise and lower loads with foot pump and handle operation.
| MODEL NO. | CAPACITY | LIFTING HEIGHT | WHEEL DIAMETER | WEIGHT | Price |
| A-3005 | 2200 lbs | 63'' | 5.8'' | 647 lbs | $2200 |
| A-3004 | 1100 lbs | 63'' | 5.8'' | 490 lbs | $2000 |

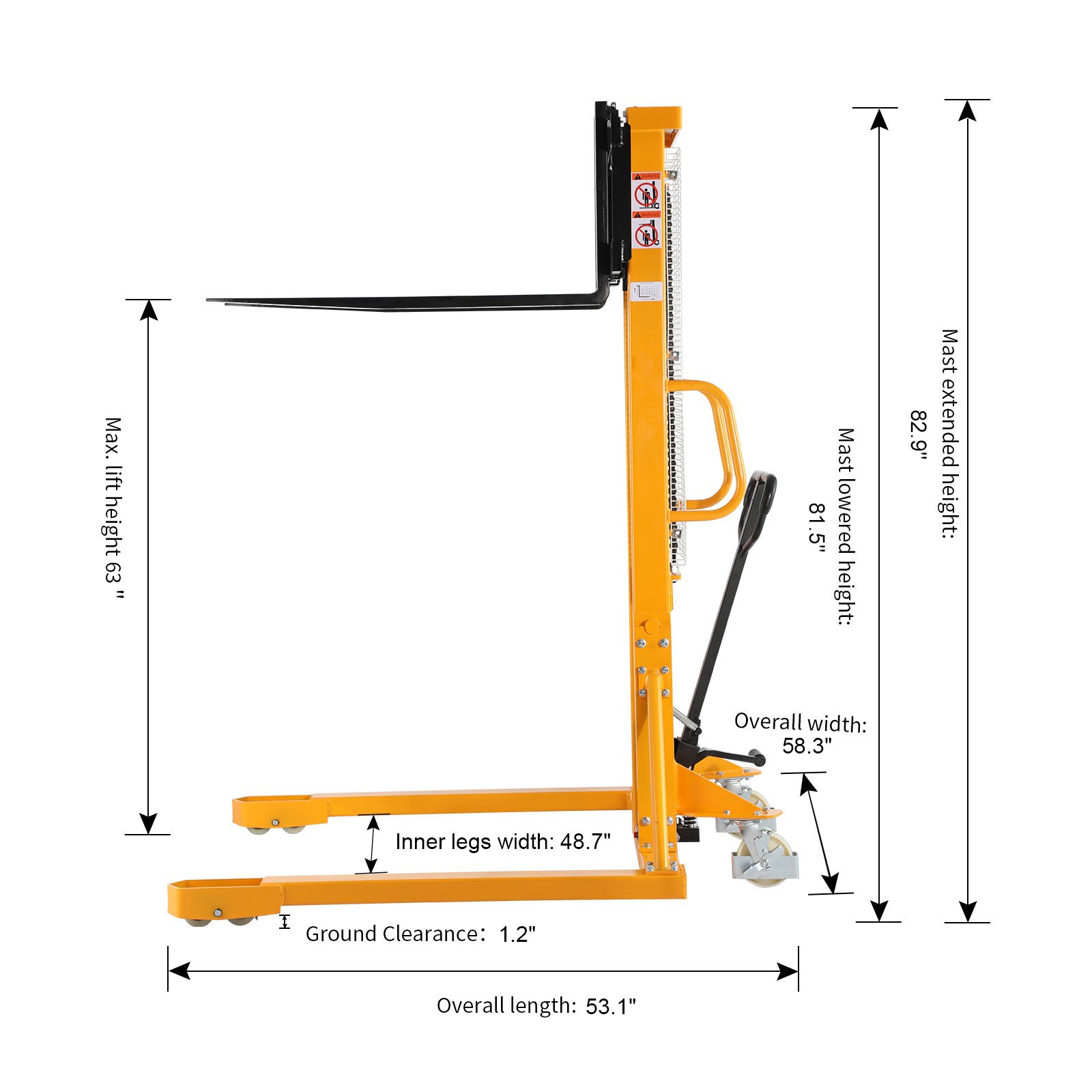

DIMENSIONS:
- Overall width: 58''
- Overall length: 51.2''
- Load center: 19.7''
- Recommended Aisle Width: 77.7"
- Turning radius: 47.2''
- Lifting height: 63''
- Mast lowered height: 80.7''
- Mast extended height: 84.8''

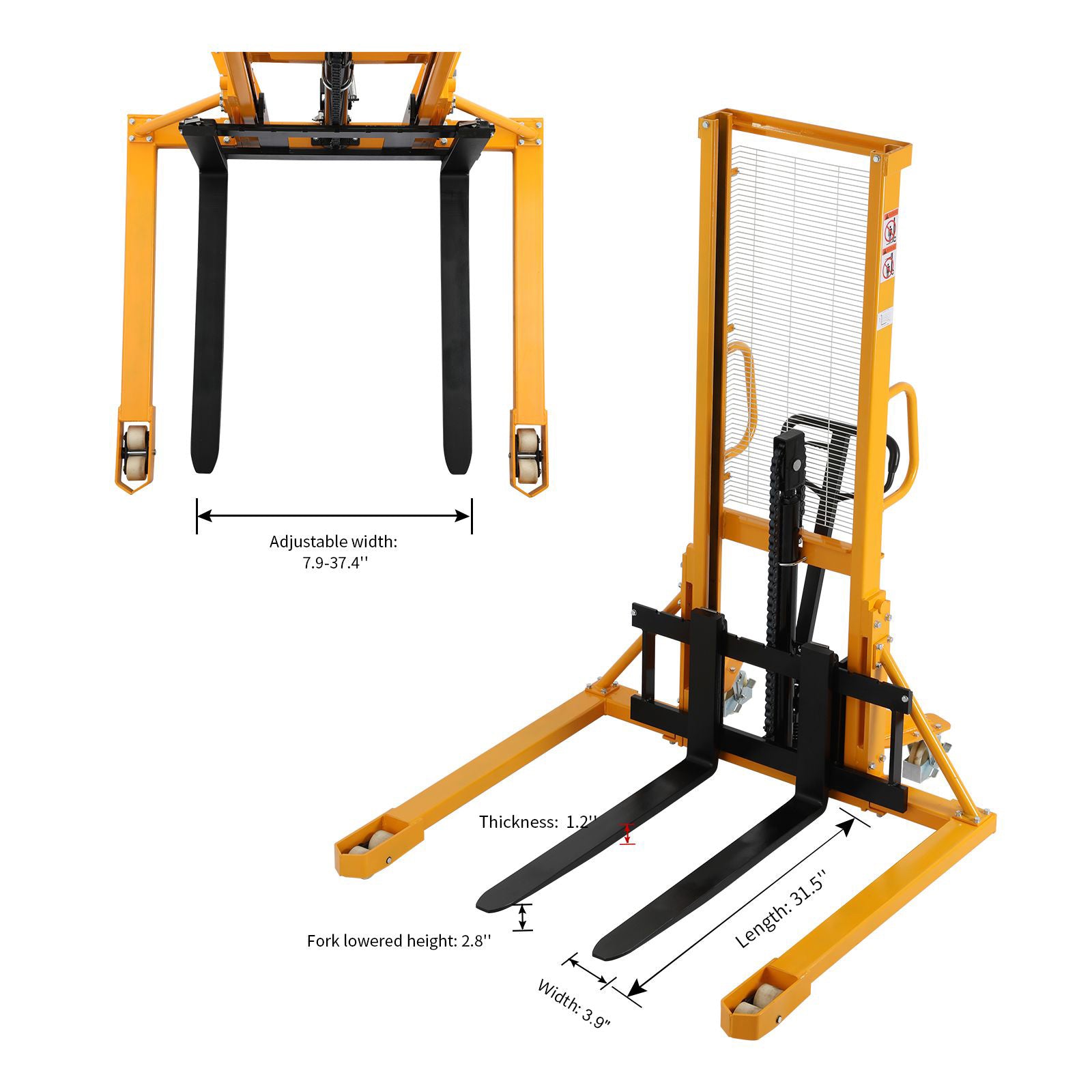

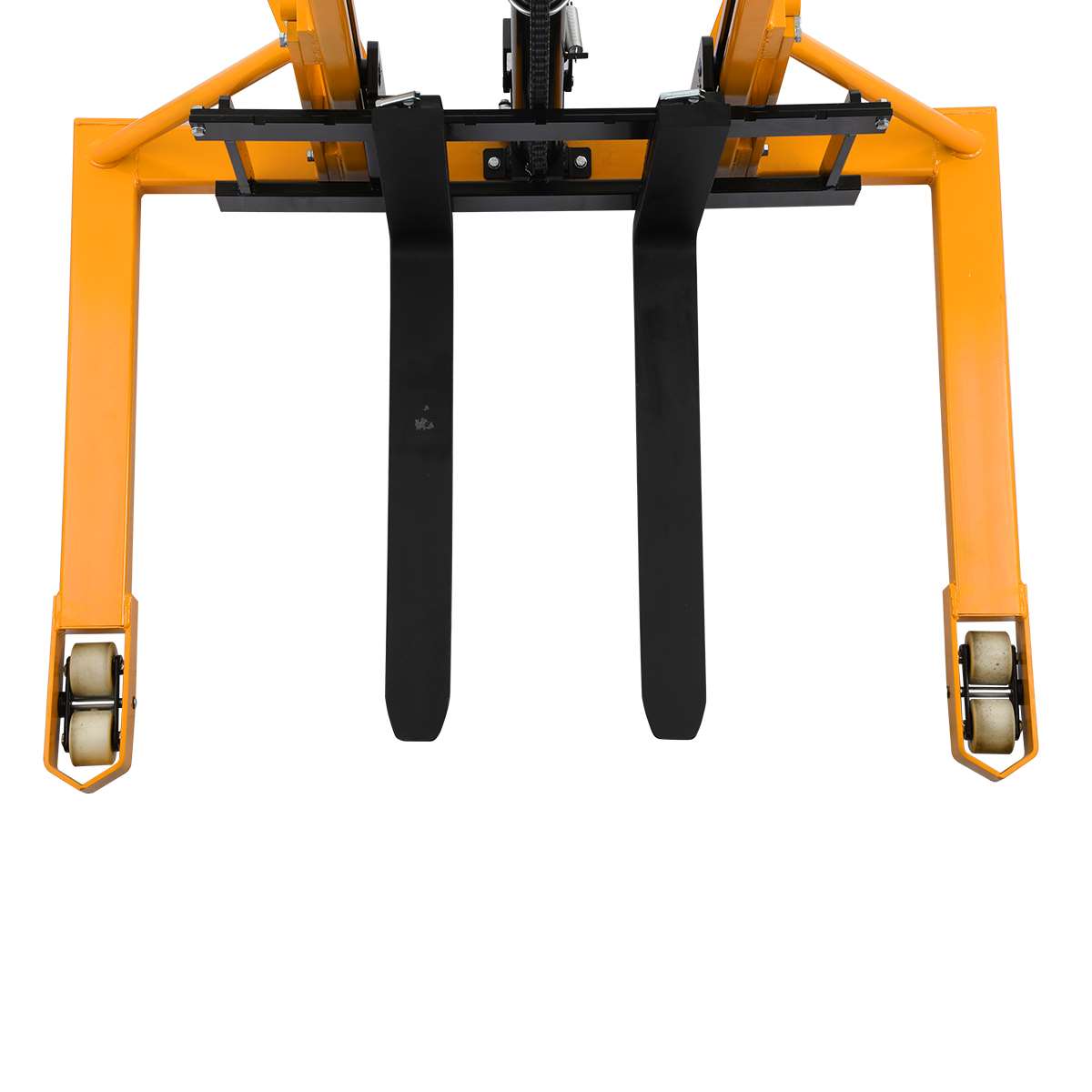

- Adjustable width: 7.9-37.4''
- Thickness: 1.2''
- Width: 3.94''
- Length: 31.5''
- Fork lowered height: 2.8''
- Inner width: 49.2''
- Height: 4.3''
- Foot Operated Pump: Lift Height nearly 1'' per stroke
CLICK HERE :Assemble the staddle leg of Manual Stacker.
