APOLLOLIFT  |  SKU: A-3004

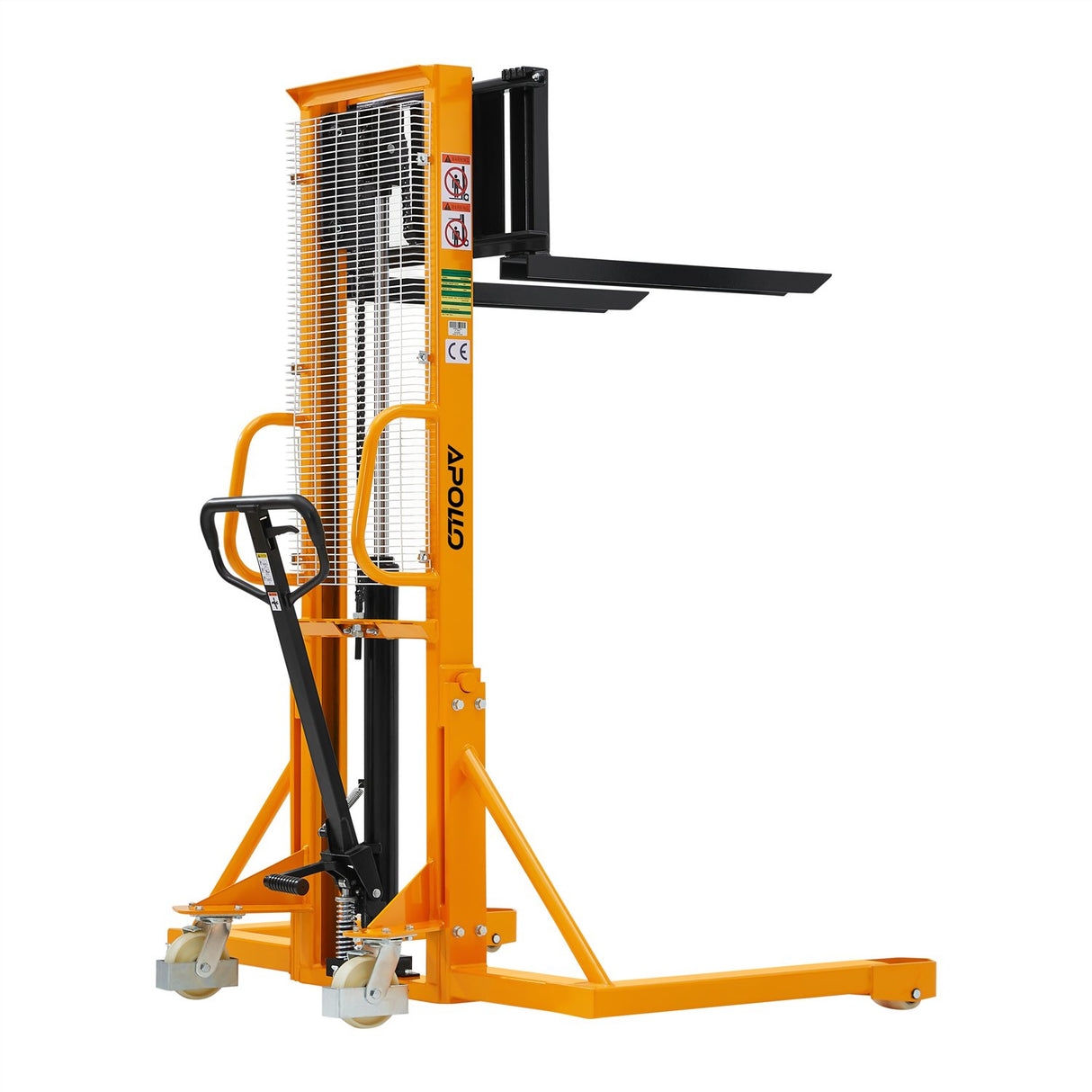

Manual Straddle-Leg Stacker

$1,589.00 $2,200.00
  • Capacity: 1100 lbs.
  • Max.Lifting Height: 63"
  • Support Leg Type: Straddle
Powered by Affirm

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Compact Manual Stacker for Precise Pallet Handling

Featuring a compact design, adjustable forks, high-efficiency hydraulic pump, and full safety protection, this manual stacker delivers reliable pallet handling on hard, flat floors.

Closed-deck safe buying logic for mixed pallet types with straddle legs, Compatible Pallet Types: All, Support Leg Type: Straddle.

Manual operation keeps training and upkeep simple for small teams, Power preference: Manual.

Standard warehouse stacking height without going powered, Capacity: 1100 lbs, Max. Lifting Height: 63".

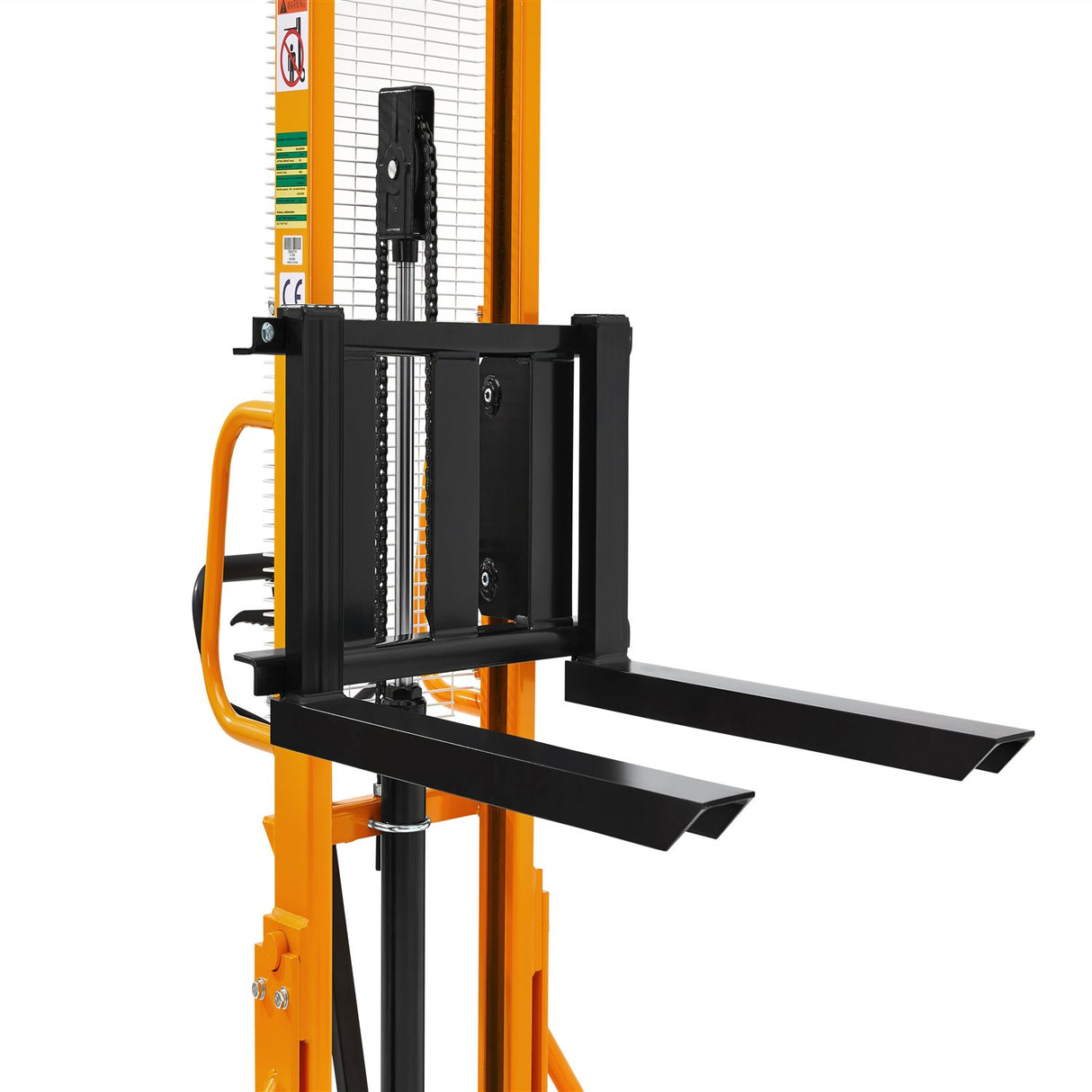

Fits a range of pallet widths with adjustable fork span, Fork Overall Width: 7.9–29.3", Fork Length: 31.5".

Plan clearance and maneuvering space up front for backrooms and aisles, Mast Lowered Height: 78.3", Aisle Width: 81.3".

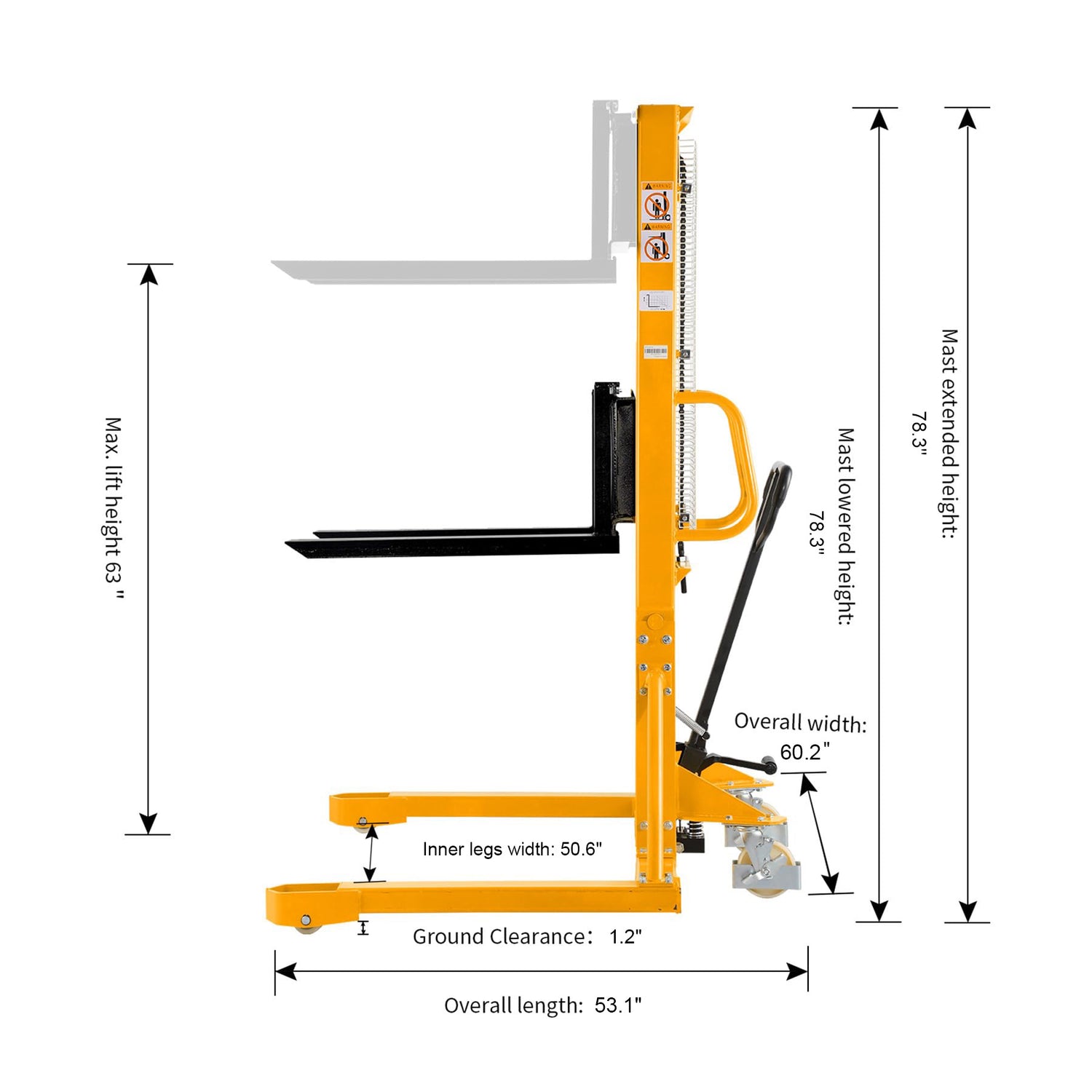

Specifications

  • Capacity
    1100 lbs.
  • Aisle Width
    81.3"
  • Max.Lifting Height
    63"
  • Inside Distance Between Forks
    0.4-21.5"
  • Fork Length
    31.5"
  • Fork Overall Width
    7.9-29.3"
  • Single Fork Width
    3.9"
  • Compatible Pallet Types
    All
  • Overall Height
    78.3"
  • Overall Length
    53.1"
  • Overall Width
    60.2"
  • Support Leg Type
    Straddle
  • Load Wheel Type
    Single Wheel
  • Total Wheel Count
    4
  • Turning Radius
    48"
  • Mast Lowered Height
    78.3"
  • Mast Extended Height
    78.3"
  • Load Centre Distance
    19.7"
  • Fork Thickness
    1.9"
  • Fork Type
    Channel Steel Forks
  • Fork Lowered Height
    2.8"
  • Service Weight
    495 lbs.
  • Gross Weight
    505 lbs.
  • Package Size
    53"x30"x82"

Manual Stacker

Cost-Effective Option for Occasional Lifting

Manual stackers provide a low-cost solution for light, infrequent lifting applications.

  • Manual lift operation
  • Designed for limited daily stacking
  • Budget-friendly alternative to powered units
Best Fit
Small workshops, maintenance areas, and light rack loading.
When to Upgrade:
If lifting becomes part of daily operations, a powered stacker will greatly improve efficiency.

⚠️ Notice:

  • Support legs require installation before use.

Product comparison
Manual Straddle-Leg Stacker
$1,589.00 $2,200.00
Manual Fixed-Leg Stacker
$1,269.00 $1,800.00
Manual Fixed-Leg Stacker
$1,520.00 $2,100.00
Manual Straddle-Leg Stacker
$1,719.00 $2,400.00
Capacity (lb)
Capacity (lb)
1100 lbs.
1100 lbs.
2200 lbs.
2200 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
63"
63"
63"
63"
Max Fork Height (in)
Max Fork Height (in)
2.8"
3.2"
3.5"
2.8"
Service Weight (lb)
Service Weight (lb)
495 lbs.
363 lbs.
566 lbs.
660 lbs.
Fork Size (in)
Fork Size (in)
31.5" x 7.9-29.3"
31.5" x 7.9-29.3"
42" x 11.6-36.6"
31.5" x 7.9-37.4"
Lowered Mast Height (in)
Lowered Mast Height (in)
78.3"
78.3"
81.9"
81.5"
Turning Radius (in)
Turning Radius (in)
48"
46.4"
49.6"
48.6"
Aisle Width (in)
Aisle Width (in)
81.3"
78.6"
80.6"
81.6"
Leg Type
Leg Type
Straddle
Fixed
Fixed
Straddle
Compatible Pallets
Compatible Pallets
All
Open Bottom
Open Bottom
All
Adjustable Forks
Adjustable Forks
Yes
Yes
Yes
Yes
Mast Stages
Mast Stages
1 Stage
1 Stage
1 Stage
1 Stage
Fork Length (in)
Fork Length (in)
31.5"
31.5"
42"
31.5"
Fork Overall Width (in)
Fork Overall Width (in)
7.9-29.3"
7.9-29.3"
11.6-36.6"
7.9-37.4"
Single Fork Width (in)
Single Fork Width (in)
3.9"
3.9"
5.6"
3.9"
Fork Thickness (in)
Fork Thickness (in)
1.9"
1.9"
2.4"
1.2"
Fork Type
Fork Type
Channel Steel Forks
Channel Steel Forks
Pressed Steel Forks
Forged Steel Forks
Fork Lowered Height (in)
Fork Lowered Height (in)
2.8"
3.2"
3.5"
2.8"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.4-21.5"
0.4-21.5"
0.4-25.4"
0.4-29.5"
Wheel Type
Wheel Type
Single Wheel
Single Wheel
Dual Wheel
Dual Wheel
Overall Length (in)
Overall Length (in)
53.1"
54.3"
66.1"
53.1"
Overall Width (in)
Overall Width (in)
60.2"
31.5"
38.2"
58.3"
Overall Height (in)
Overall Height (in)
78.3"
78.3"
81.9"
81.5"
Turtle Speed Mode
Turtle Speed Mode
No
No
No
No

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.
