1 7

2200 lbs.

Capacity

63"

Max Lift Ht.

660 lbs.

Service Weight

81.6"

Aisle Width

APOLLOLIFT | SKU: A-3005

Manual Straddle-Leg Stacker

$1,719.00 $2,400.00

Capacity: 2200 lbs.
Max.Lifting Height: 63"
Support Leg Type: Straddle

Capacity: 2200 lbs.

30-Day Returns

1-Year Warranty

Full-Set Forklift Parts

Wide Straddle Design for Stable and Versatile Handling

Featuring 48.7" straddle legs, adjustable forks, full safety protection, and a durable steel mast, this stacker ensures stable, efficient handling on hard, flat floors.

Most “buy-once” 63" manual choice for pallet compatibility—straddle legs handle closed-deck safely, Compatible Pallet Types: All, Support Leg Type: Straddle.

Heavy-duty capacity with a more planted feel under load for frequent lifting, Capacity: 2200 lbs, Load Wheel Type: Dual Wheel, Total Wheel Count: 6.

Wide fork-span flexibility for different pallets and load shapes, Fork Overall Width: 7.9–37.4", Fork Length: 31.5".

Standard lift height for shelves and staging areas, Max. Lifting Height: 63".

Clearance and aisle planning for real warehouses before purchase, Mast Lowered Height: 81.5", Aisle Width: 81.6".

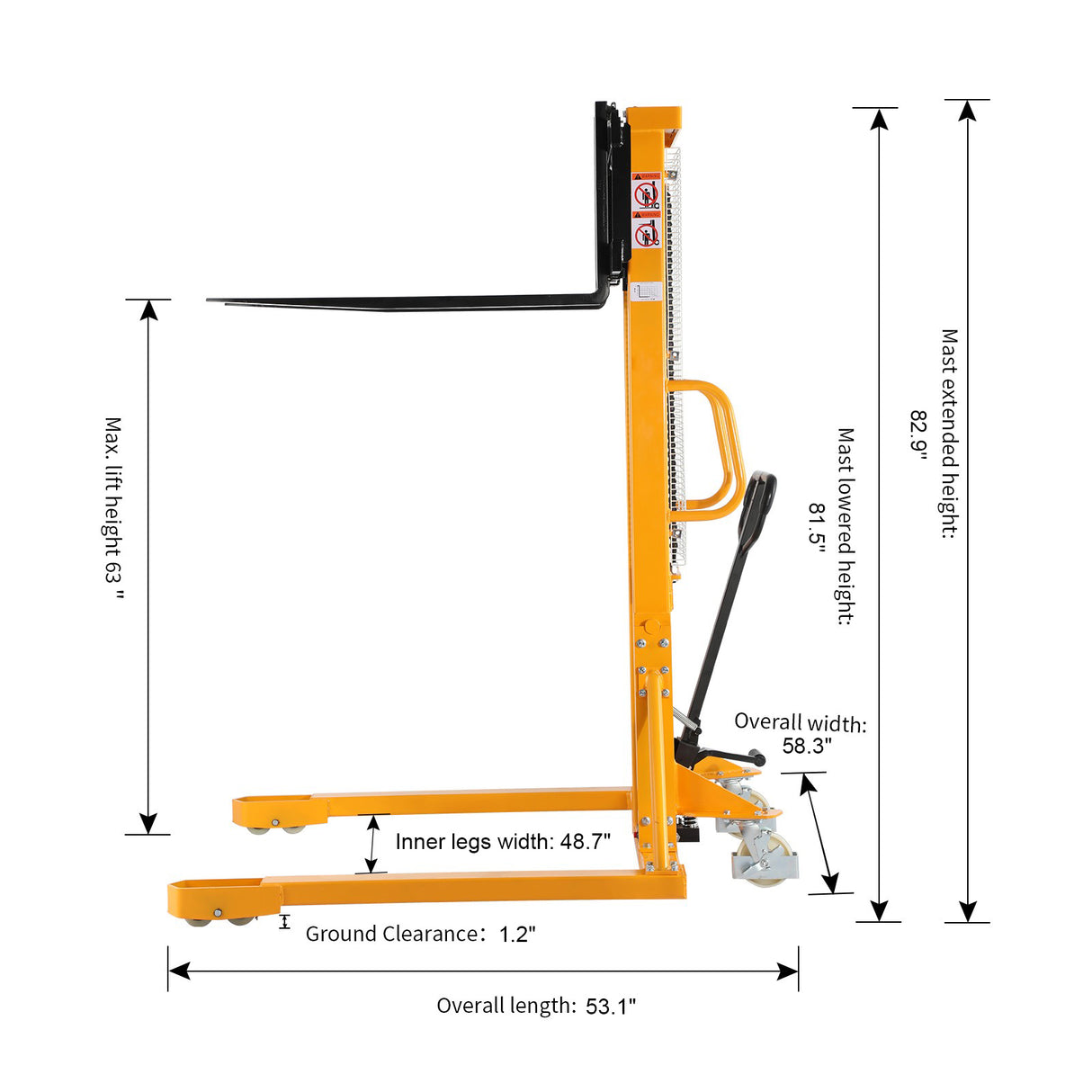

Specifications

Capacity

2200 lbs.
Aisle Width

81.6"
Max.Lifting Height

63"
Inside Distance Between Forks

0.4-29.5"
Fork Length

31.5"
Fork Overall Width

7.9-37.4"
Single Fork Width

3.9"
Compatible Pallet Types

All
Overall Height

81.5"
Overall Length

53.1"
Overall Width

58.3"
Support Leg Type

Straddle
Load Wheel Type

Dual Wheel
Total Wheel Count

6
Turning Radius

48.6"
Mast Lowered Height

81.5"
Mast Extended Height

82.9"
Load Centre Distance

19.7"
Fork Thickness

1.2"
Fork Type

Forged Steel Forks
Fork Lowered Height

2.8"
Service Weight

660 lbs.
Gross Weight

670 lbs.
Package Size

53"x38"x85"

⚠️ Notice:

Support legs require installation before use.

Warranty

1-Year Limited Warranty from the delivery date:

0–30 Days: Free parts + support. If unresolved after two attempts → free return/refund/replacement (shipping included).
30 Days–1 Year: Free parts + support; customer pays shipping to us, return shipping covered; no labor fees.
After 1 Year: Free tech support; parts/labor/shipping billed.
Special: Accessories: 6 months
Exclusions: Wear, misuse, consumables
View the full warranty policy here: https://apolloliftus.com/pages/warranty

A table comparing the facets of 4 products
Facet	Manual Straddle-Leg Stacker	Manual Straddle-Leg Stacker	Manual Fixed-Leg Stacker	Manual Fixed-Leg Stacker
Max.Lifting Height
Max.Lifting Height	63"	63"	63"	63"
Support Leg Type
Support Leg Type	Straddle	Straddle	Fixed	Fixed
Capacity
Capacity	2200 lbs.	1100 lbs.	1100 lbs.	2200 lbs.
Compatible Pallet Types
Compatible Pallet Types	All	All	Open Bottom	Open Bottom

Frequently Asked Questions

How to calculate shipping fee?

At checkout, shipping fees will automatically be calculated based on your delivery address and the items in your order. Standard shipping rates apply to commercial addresses and do not include additional services such as inside delivery. Additional fees may apply for additional services or delivery to remote locations.If you are ordering multiple items, please contact info@apolloliftus.com, as we may be able to offer a shipping discount.

When will I receive my order?

Your order will typically be shipped from our warehouse within 48 business hours. Once shipped, the estimated transit time is 3–5 business days. Actual delivery time may vary depending on the carrier’s schedule, and our logistics team will monitor the process throughout. For pre-sale items, please refer to the estimated delivery time shown on the product page.

How can I get my invoice?

Please email us with your PO number at info@apolloliftus.com. Our team will process and send you the invoice

Can I pick up my order?

Yes. You need to select "Pick Up" for delivery method. After order confirmation, our team will email the pick up slip to you. Please make sure to check your email inbox. Please make sure to bring a copy of your pickup slip and arrive at the designated time and address indicated on the slip. Pickup hours are Monday through Friday, from 9:00 AM to 4:00 PM, excluding public holidays.

What is the difference between the fixed legs and the cross legs of a forklift?

Fixed legs are only suitable for pallets with bottom openings; Straddle legs models are suitable for all standard pallets (the pallet size must be smaller than the straddle leg spacing), and some models have adjustable straddle legs spacing.

Great truck

Small compact and easy to maneuver. Works great for my application.

Wow! Very impressive!

I was compelled to write this to let you know, this is an excellent product and my experience getting it was also - excellent!It came in a crate and I was expecting to have to do a bunch of assembly and generally be disappointed by the quality. I was wrong! The packing was very well done. I pulled the top (box shown one the left) off. I tilted the handle up. It locked in place nice and solid! I pulled the table out of the crate and unlocked the very robust casters and rolled it into my shop! That is it! The table height is perfectly the same as my pick up tail gate. This thing is excellent! Excellent Value! Go For It!

New Shop Stacker

The entire process was easy and pain free due to the great customer service team. Apollo was professional, knowledgeable and very helpful on finding the correct stacker for our application. The delivery was quick as well. I would absolutely use them again if the need came up again. Great company and product.

Excellent service.

I placed the order and the mfg. called to see if orange was OK instead of yellow. It was. They verified the shipping address and contact. Delivery was seamless! This is very sturdy and fits our needs perfectly.

Product Sturdyness and workmanship

Received in a proper pack with minimum onsite assembly. product very strudy and stable. Customer service is the best part. Very Quick and responsive .
