APOLLOLIFT  |  SKU: A-3040

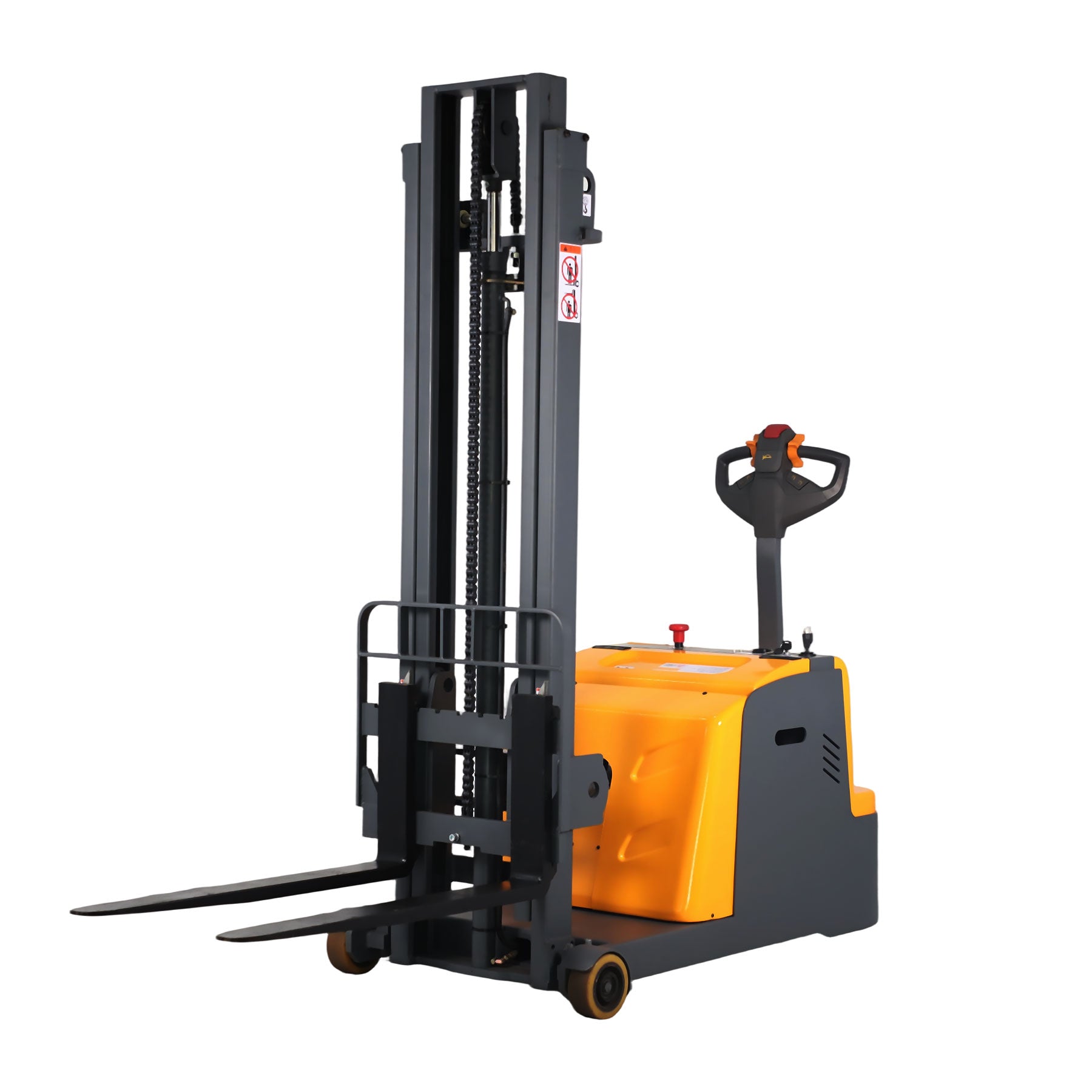

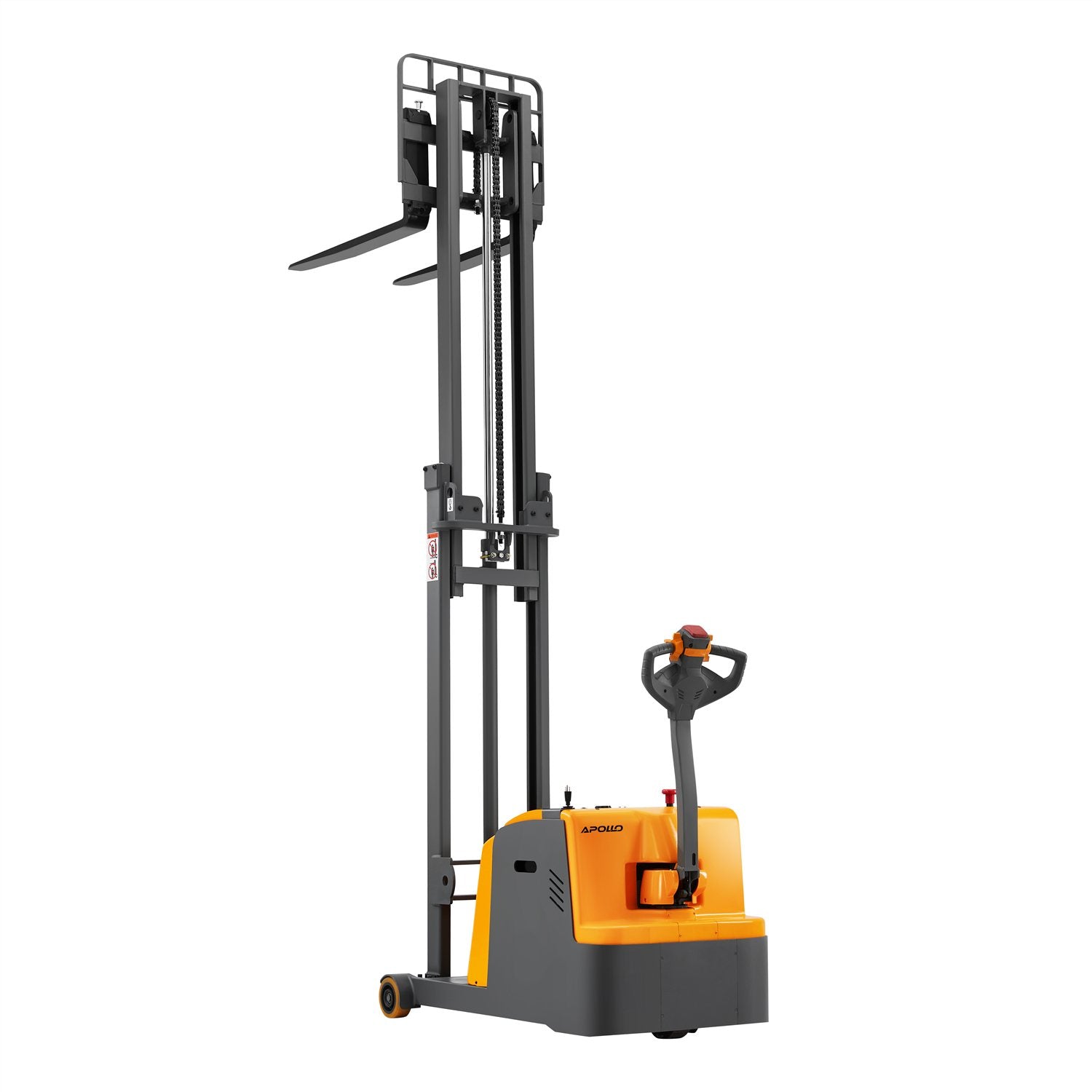

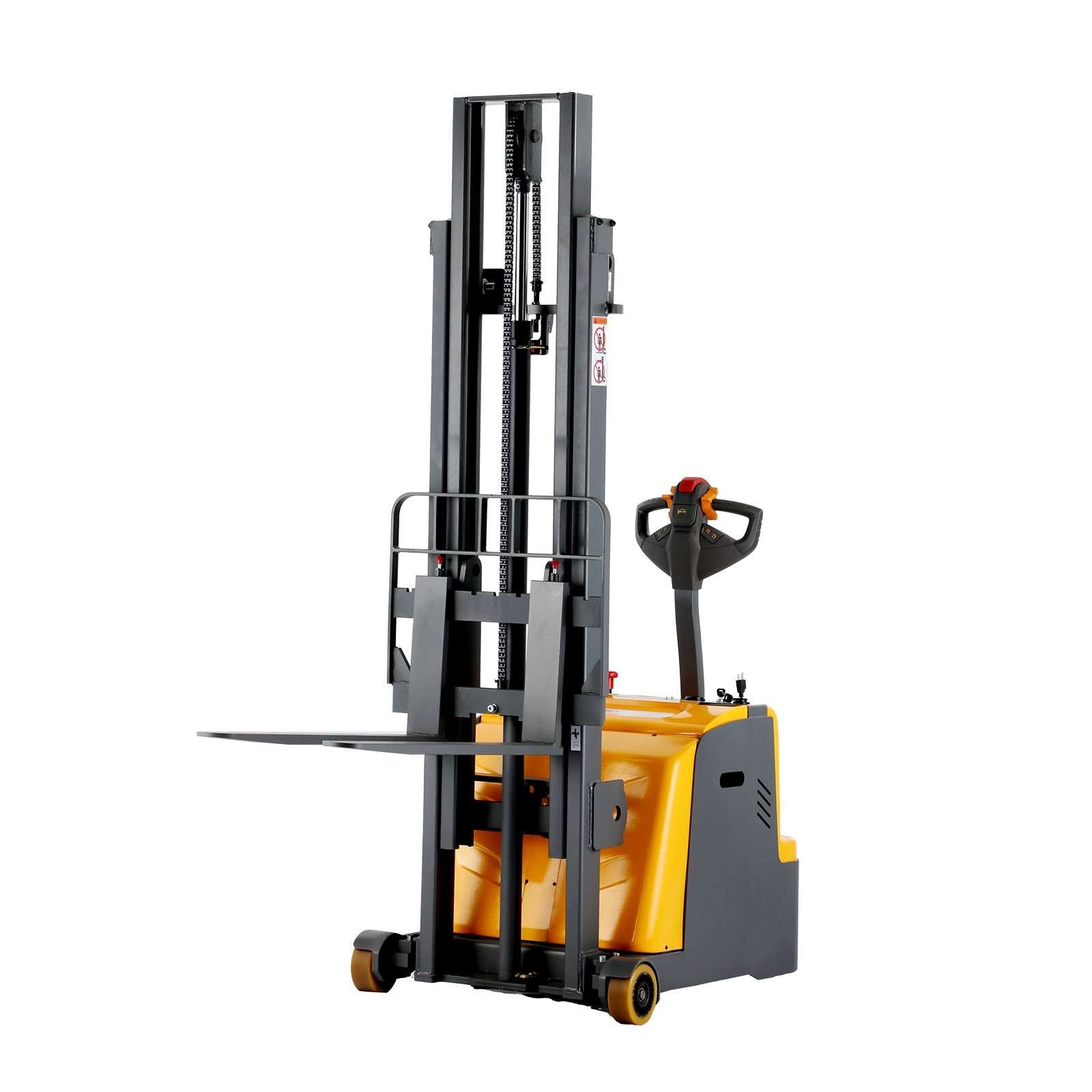

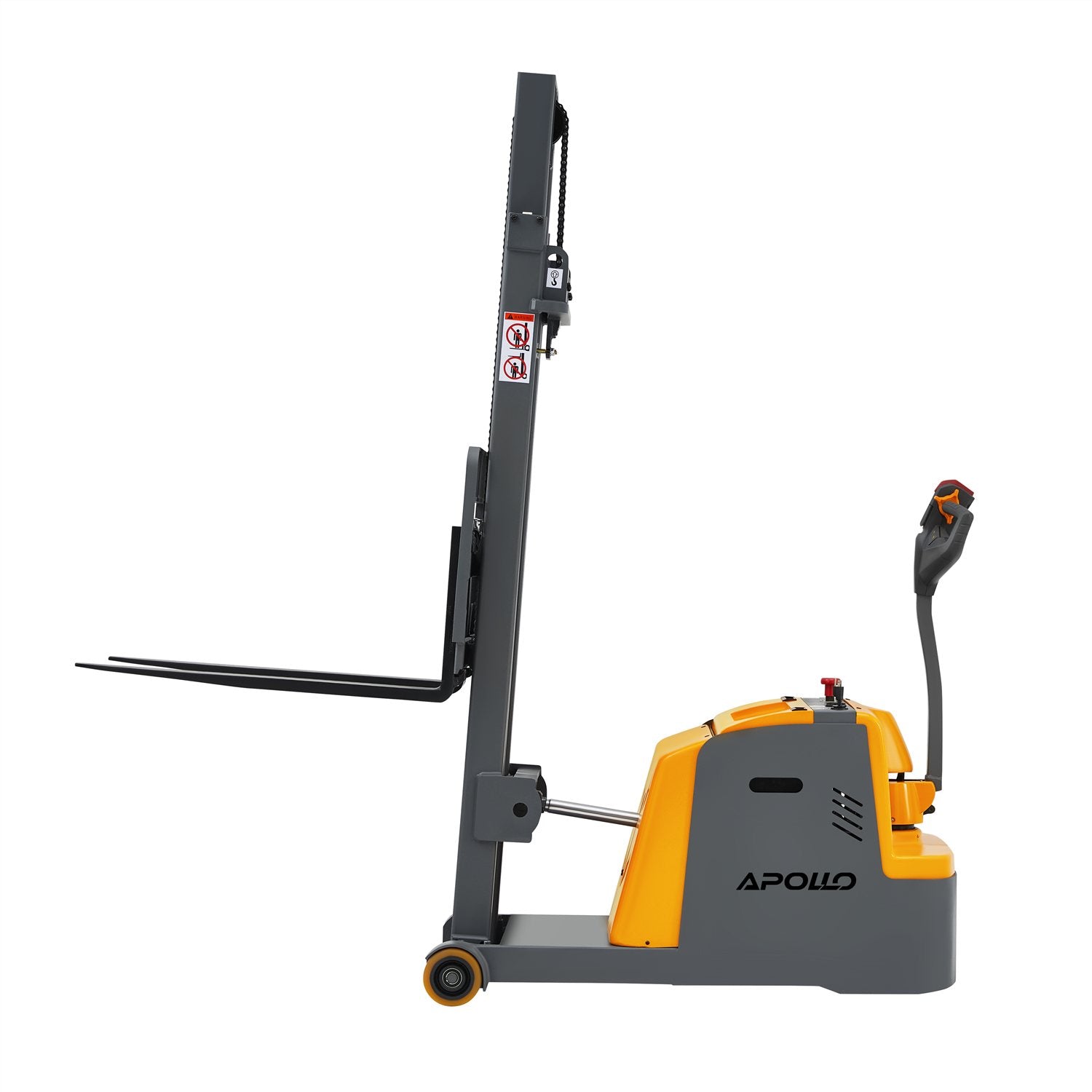

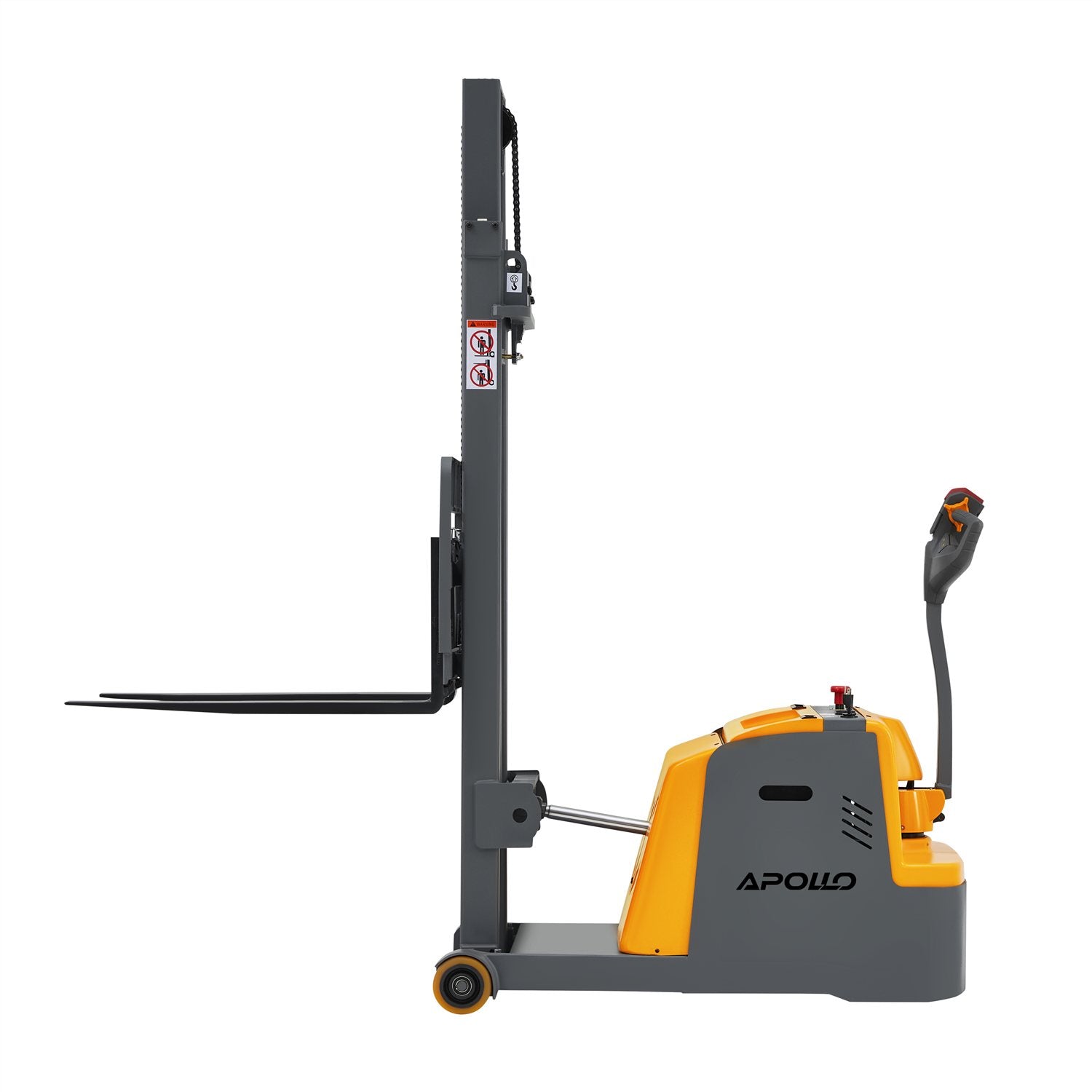

Counterbalanced Electric Stacker

$9,000.00 $9,600.00
  • Capacity: 2200 lbs.
  • Max.Lifting Height: 118"
  • Battery Spec: 24V/125AH
  • Battery Type: GEL battery
  • Mast Lowered Height: 80.8
Powered by Affirm

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Legless Counterbalanced Design for Container Loading

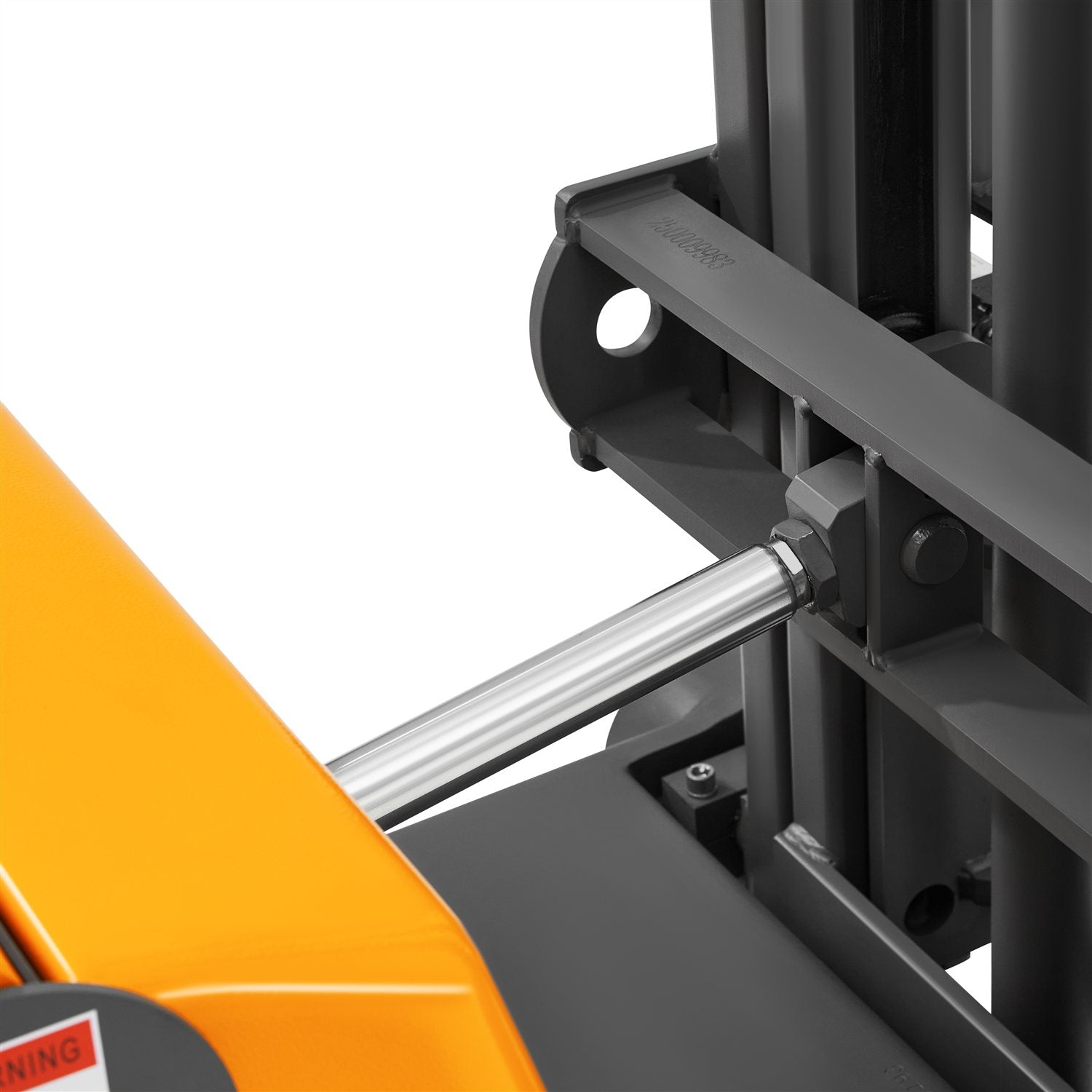

Featuring a legless fork design, tilt system, three-point support, and modular electrics, this truck delivers efficient container loading with reduced downtime on hard, flat floors.

The “Sweet Spot” Capacity for Most Warehouses: Strong enough for heavier pallets without jumping into full heavy-duty size (capacity 2200 lbs).

High Rack Reach for Real Storage Work: Helps you stack and retrieve at higher levels for better space utilization (max lift height 118").

More Battery Reserve for Higher Throughput: Extra capacity supports busier daily operation (24V/125Ah GEL).

Stable, Confident Handling Under Load: Smooth travel speeds keep moves controlled and efficient (driving speed 2.4–2.6 mph, DC system).

Fits Standard Warehouse Layouts Well: A balanced footprint for typical aisles and staging zones (aisle width 113.4").

Shift-Friendly Runtime: Supports routine operations without constantly planning around the charger (continuous working time 6–8 hours).

Specifications

  • Capacity
    2200 lbs.
  • Aisle Width
    113.4"
  • Max.Lifting Height
    118"
  • Inside Distance Between Forks
    0.9-17.6"

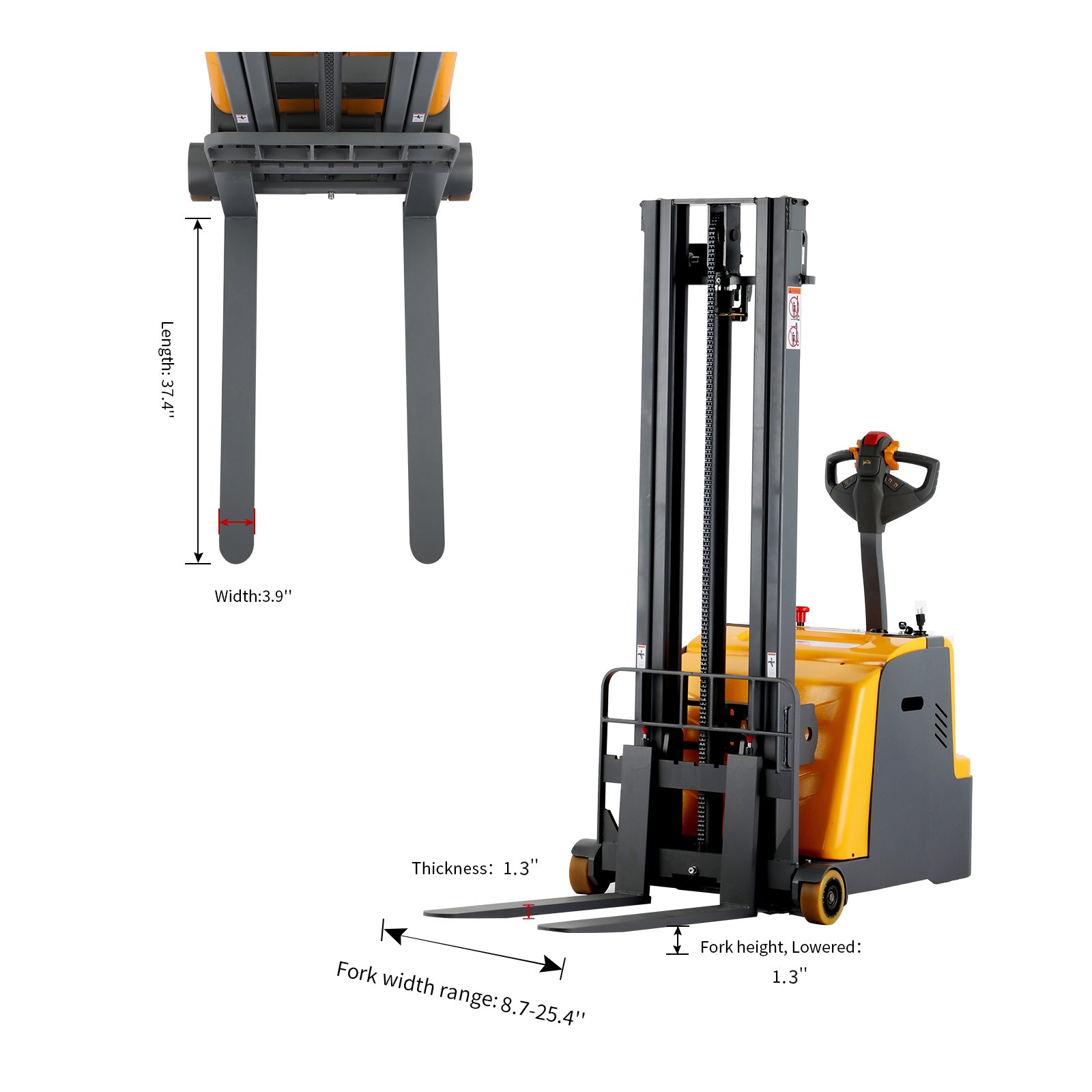

  • Fork Length
    37.4"
  • Fork Overall Width
    8.7-25.4"
  • Single Fork Width
    3.9"

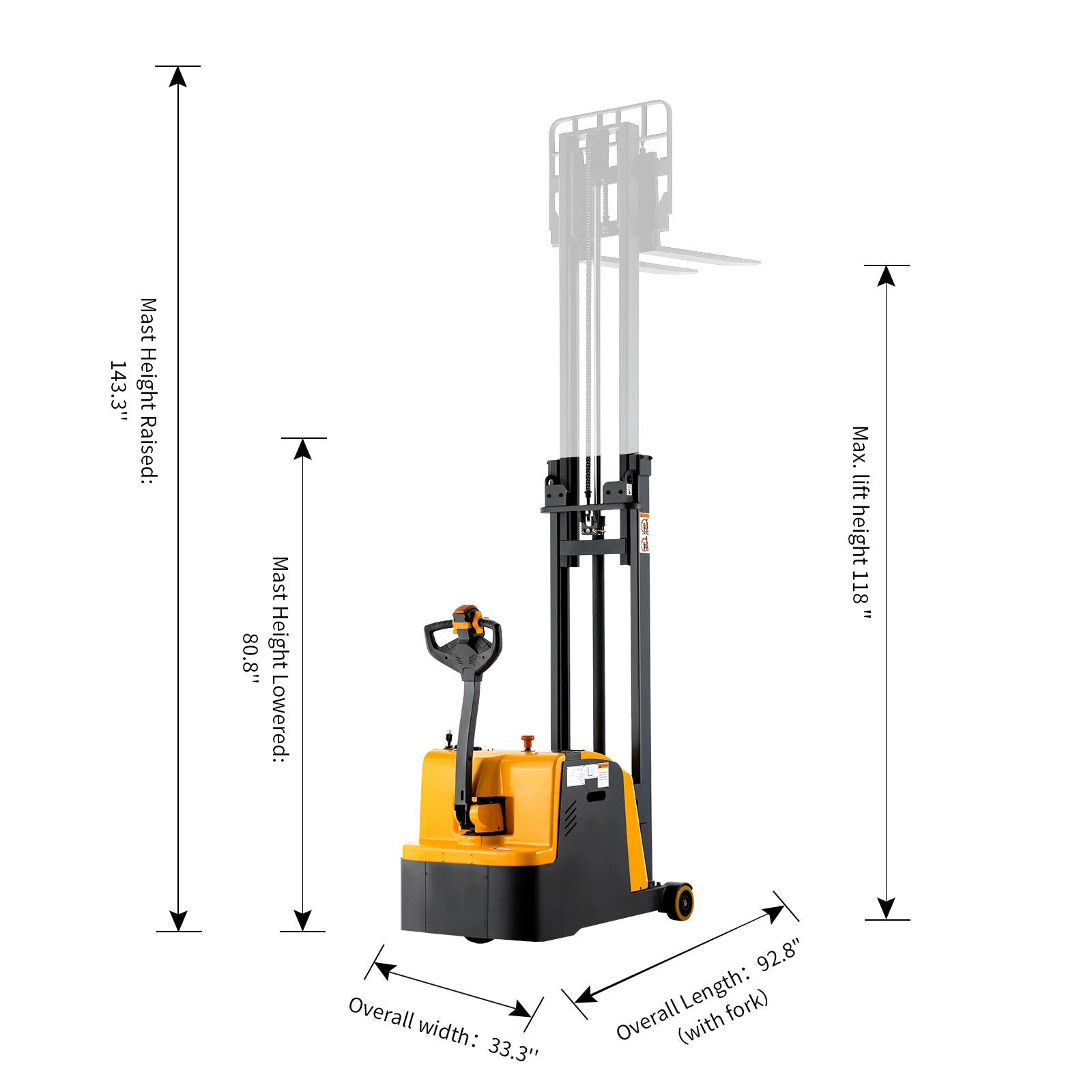

  • Overall Height
    80.8-143.3"
  • Overall Length
    92.8"
  • Overall Width
    33.3"
  • Driving Speed-Unladen
    2.6 mph
  • Driving Speed-Laden
    2.4 mph
  • Lifting Speed/Empty
    5.9 inch/s
  • Lifting Speed/Loaded
    4.3 inch/s
  • Gradeability/Empty
    10%
  • Gradeability/Loaded
    6%
  • Total Wheel Count
    3
  • Turning Radius
    52.5"
  • Mast Lowered Height
    80.8"
  • Mast Extended Height
    143.3"
  • Load Centre Distance
    15.7"
  • Battery Capacity
    125AH
  • Battery Spec
    24V/125AH
  • Battery Voltage
    24V
  • Battery Type
    GEL battery
  • Fork Thickness
    1.3"
  • Control System
    DC
  • Fork Lowered Height
    1.3"
  • Lowering Speed/Empty
    3.2 inch/s
  • Lowering Speed/Loaded
    3.5 inch/s
  • Service Weight
    2720 lbs.
  • Gross Weight
    2730 lbs.
  • Charger
    24V/10A built-in
  • Charging Time
    8-10 Hours
  • Continuous Working Time
    6-8 Hours
  • Package Size
    60"x34"x85"

Links

Load capacity chart
Load capacity chart

⚠️ Notice:

  • Before use: Forks must be installed. Installation Video: https://youtu.be/x9f5pDO8Jxg
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Product comparison
Counterbalanced Electric Stacker
$9,000.00 $9,600.00
Counterbalanced Electric Stacker
$8,700.00
Counterbalanced Electric Stacker A-3031
$8,000.00 $8,097.00
Counterbalanced Electric Stacker A-3032
$15,300.00
Counterbalanced Electric Stacker A-3048
$9,800.00
Capacity (lb)
Capacity (lb)
2200 lbs.
2200 lbs.
1200 lbs.
3300 lbs.
3300 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
118"
98"
118"
177"
118"
Max Fork Height (in)
Max Fork Height (in)
1.3"
1.3"
1.3"
1.4"
1.4"
Service Weight (lb)
Service Weight (lb)
2720 lbs.
2650 lbs.
2038 lbs.
4740 lbs.
3460 lbs.
Fork Size (in)
Fork Size (in)
37.4" x 8.7-25.4"
37.4" x 8.7-25.4"
37.4" x 8.7-25.4"
42" x 8.7-26.8"
42" x 8.7-25.4"
Lowered Mast Height (in)
Lowered Mast Height (in)
80.8"
70.9"
80.8"
82.1"
81.3"
Turning Radius (in)
Turning Radius (in)
52.5"
52.5"
46.1"
61.8"
66.9"
Aisle Width (in)
Aisle Width (in)
113.4"
113.4"
108.3"
120.9"
128"
Adjustable Forks
Adjustable Forks
Yes
Yes
Yes
Yes
Yes
Control System (AC/DC)
Control System (AC/DC)
DC
DC
DC
AC
DC
Charger
Charger
24V/10A built-in
24V/10A built-in
24V/10A built-in
24V/40A built-out
24V10A built-in
Mast Stages
Mast Stages
2 Stage
2 Stage
2 Stage
3 Stage
2 Stage
Fork Length (in)
Fork Length (in)
37.4"
37.4"
37.4"
42"
42"
Fork Overall Width (in)
Fork Overall Width (in)
8.7-25.4"
8.7-25.4"
8.7-25.4"
8.7-26.8"
8.7-25.4"
Single Fork Width (in)
Single Fork Width (in)
3.9"
3.9"
3.9"
3.9"
3.9"
Fork Thickness (in)
Fork Thickness (in)
1.3"
1.3"
1.3"
1.4"
1.4"
Fork Lowered Height (in)
Fork Lowered Height (in)
1.3"
1.3"
1.3"
1.4"
1.4"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.9-17.6"
0.9-17.6"
0.9-17.6"
0.9-19"
0.9-17.6"
Overall Length (in)
Overall Length (in)
92.8"
92.8"
82.8"
109.4"
109.4"
Overall Width (in)
Overall Width (in)
33.3"
33.3"
33.3"
39"
34.6"
Overall Height (in)
Overall Height (in)
80.8-143.3"
70.9-123.6"
80.8-143.3"
82.1-216.5"
81.3-146.1"
Driving Speed - Unladen (mph)
Driving Speed - Unladen (mph)
2.6 mph
2.6 mph
2.8 mph
3.7 mph
2.5 mph
Driving Speed - Laden (mph)
Driving Speed - Laden (mph)
2.4 mph
2.4 mph
2.5 mph
3.6 mph
2.2 mph
Lift Speed - Unladen
Lift Speed - Unladen
5.9 inch/s
5.9 inch/s
9.8 inch/s
7.5 inch/s
4.7 inch/s
Lift Speed - Laden
Lift Speed - Laden
4.3 inch/s
4.3 inch/s
6.7 inch/s
4.7 inch/s
3.2 inch/s
Turtle Speed Mode
Turtle Speed Mode
Yes
Yes
Yes
Yes
Yes
Gradeability (Empty)
Gradeability (Empty)
10%
10%
10%
10%
10%
Gradeability (Loaded)
Gradeability (Loaded)
6%
6%
6%
6%
5%
Mast Tilt Angle
Mast Tilt Angle
1/3°
1/3°
1/3°
3/6°
1/3°
