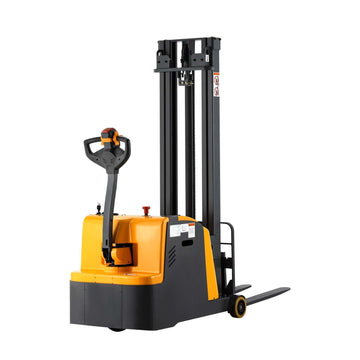

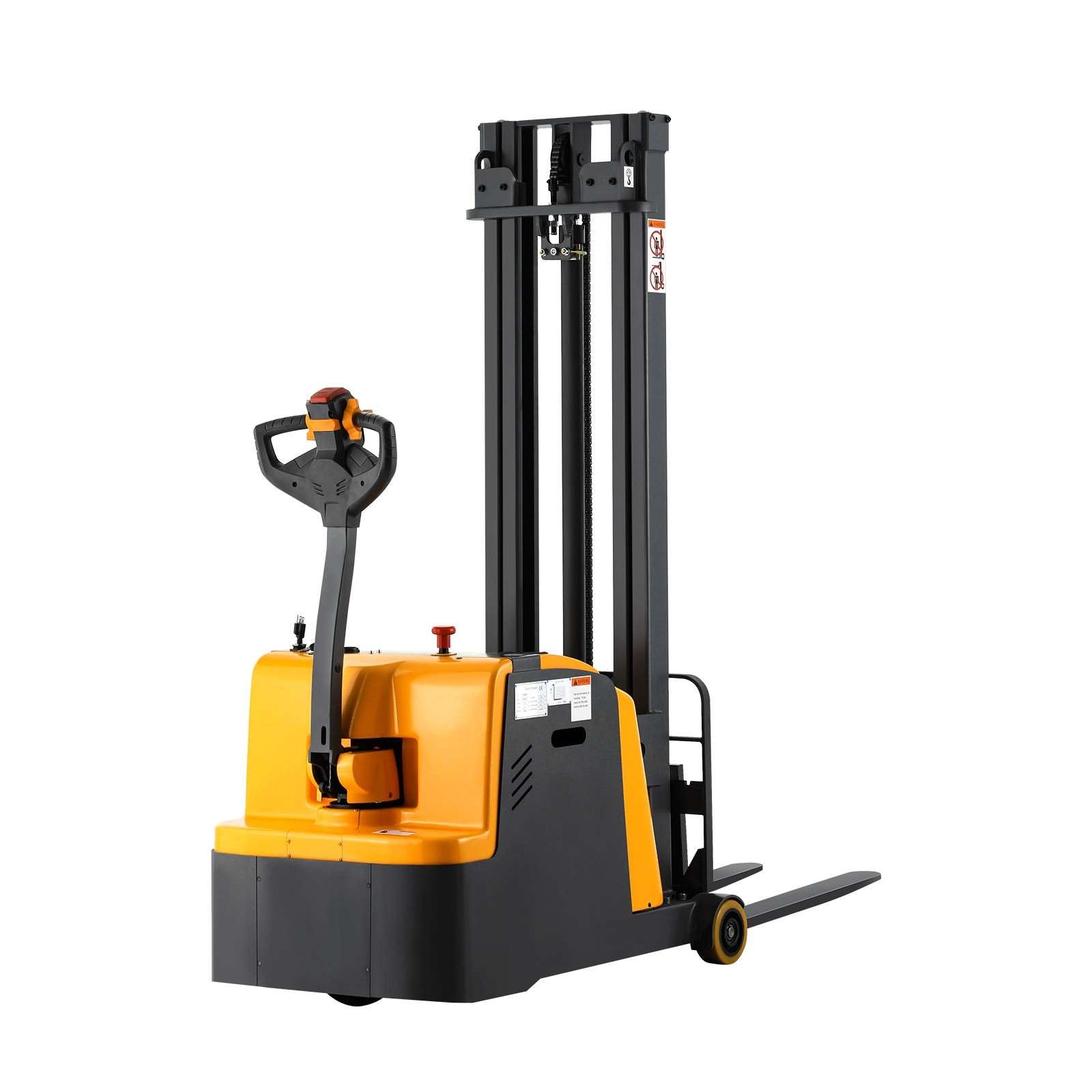

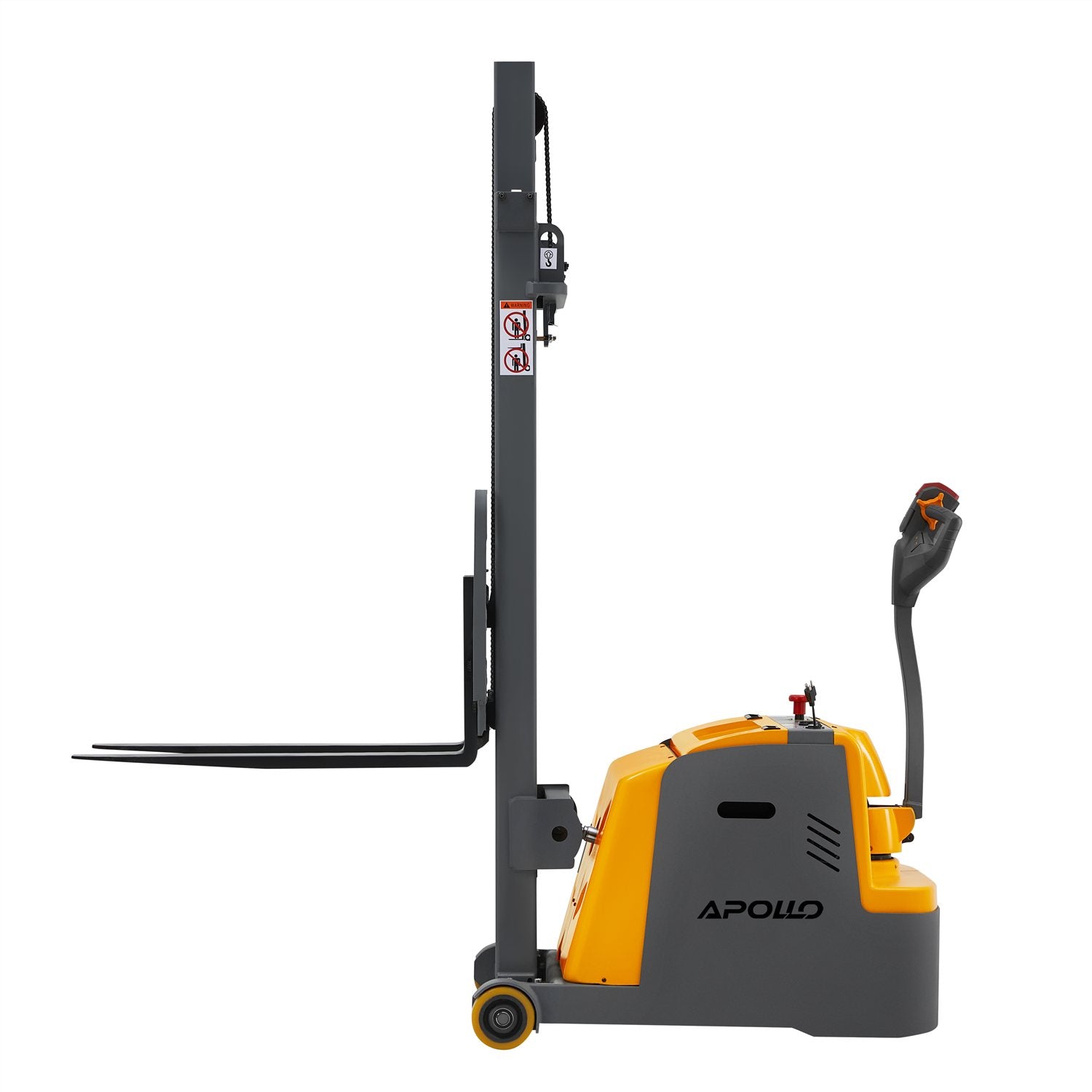

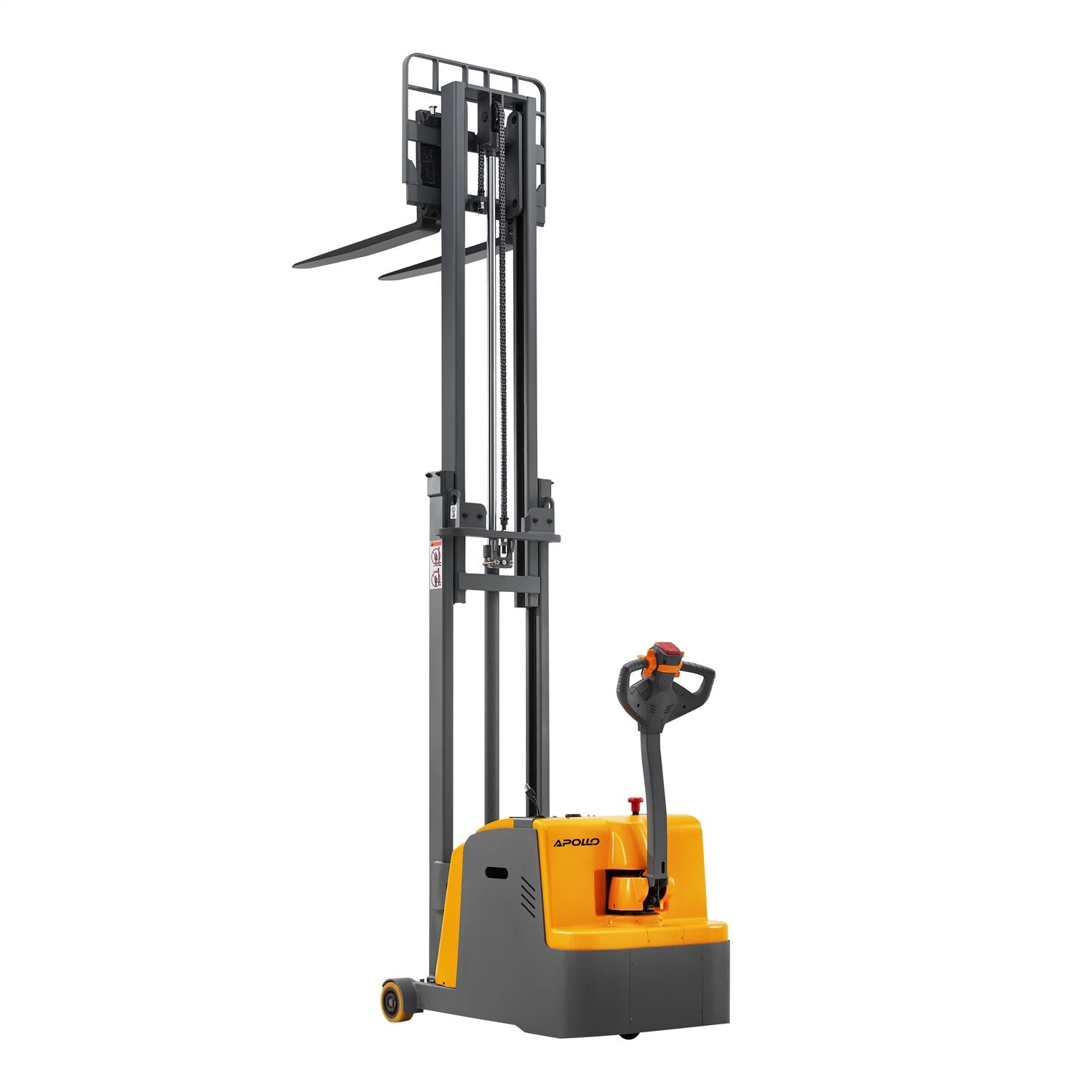

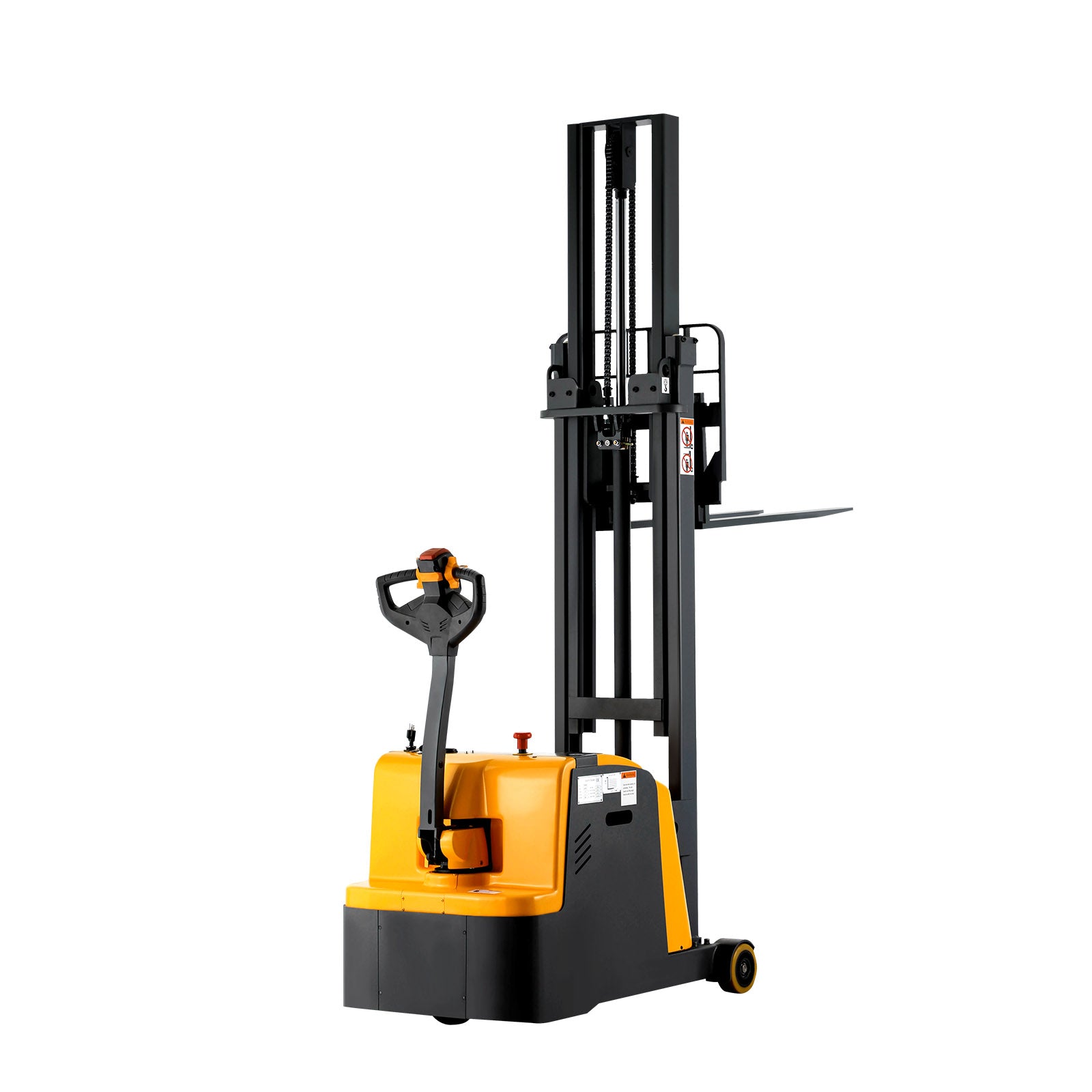

Counterbalanced Electric Stacker 1200lbs 118" High A-3031
Counterbalanced Electric Stacker 1200lbs 118" High A-3031
- 650-watt drive motor, 2,200-watt lift motor.
- Perfect for approaching racks and trucks, as there are no straddle legs to obstruct to close approach.

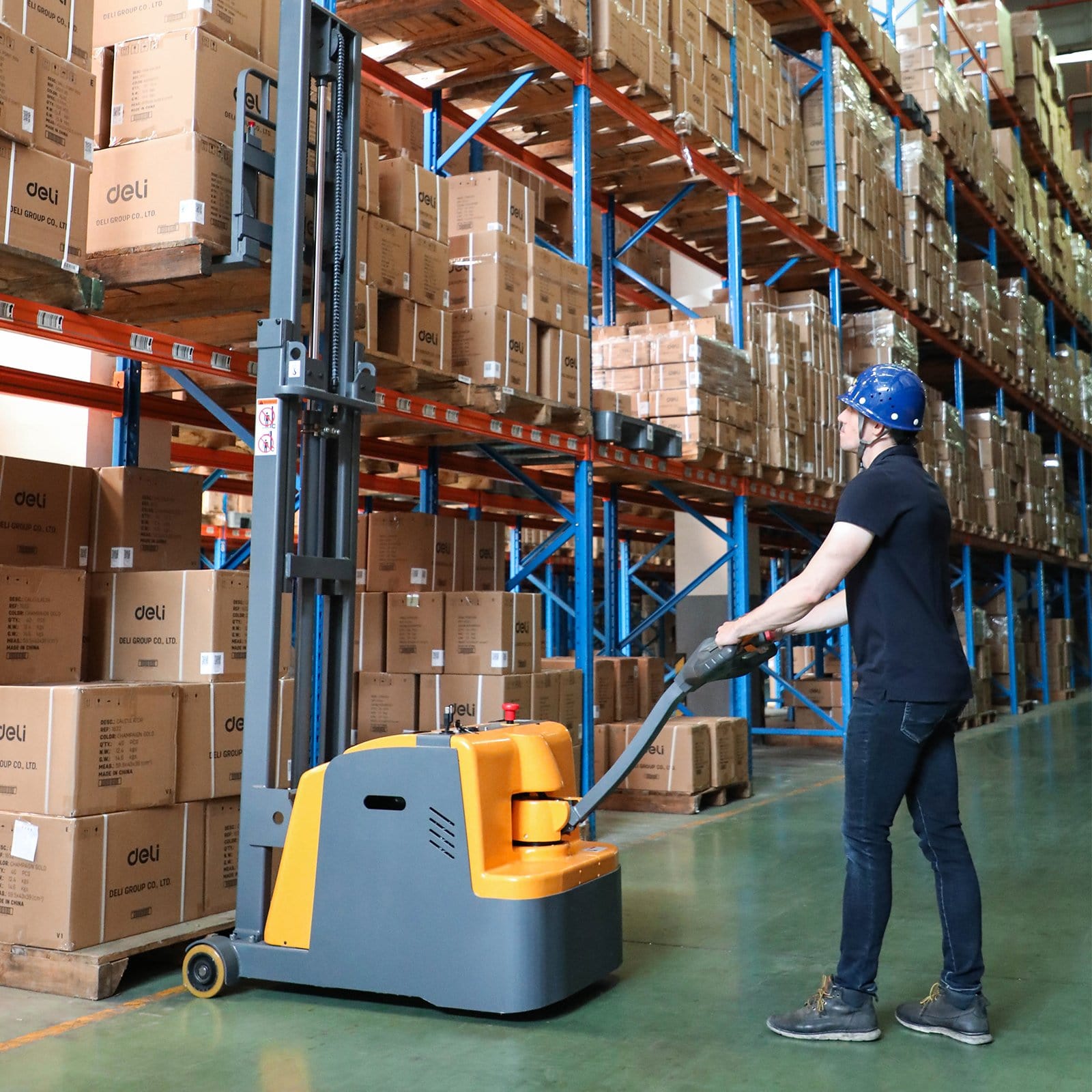

- With upright walking function, especially suitable for narrow aisle.

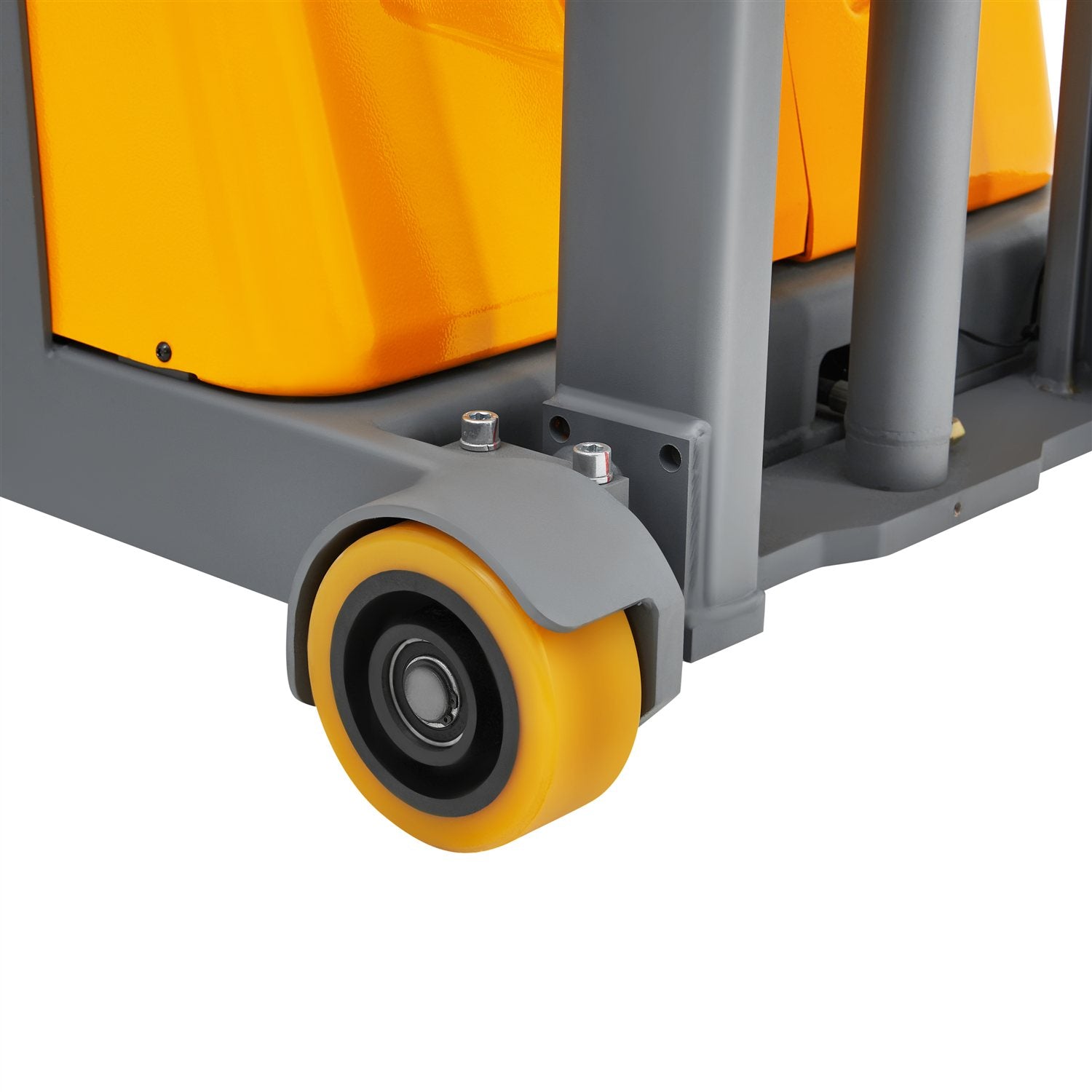

- 2 minutes will replacement thanks to the wheel because of the upper horizontal structure design.
- 4-5 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries

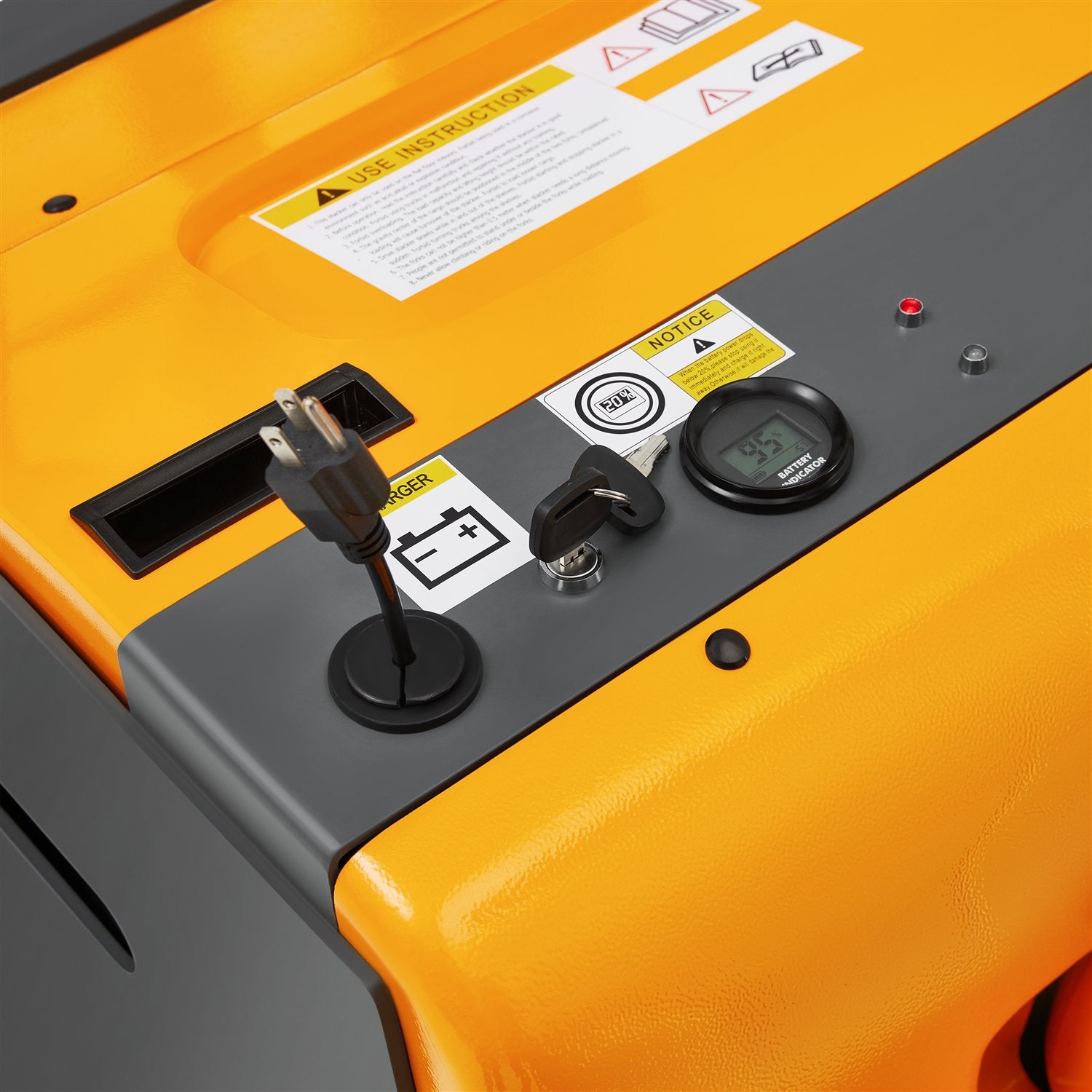

- 24V/10A Built-in charger.
*COUNTERBALACED ELECTRIC STACKERS
| MODEL NO. | DESCRIPTION | LOAD CAPACITY | HEIGHT LOWERED | HEIGHT RAISED | WHEEL DIAMETER | WT (LBS) | PRICE |
| A-3031 | Light duty stacker | 1,200 lbs | 1.38'' | 118'' | 7.7''/5.9'' | 1,920 | $7,447 |
| A-3032 | Heavy duty stacker | 3,300 lbs | 1.38'' | 177'' | 9.8''/7.9'' | 4,580 | $15,397 |

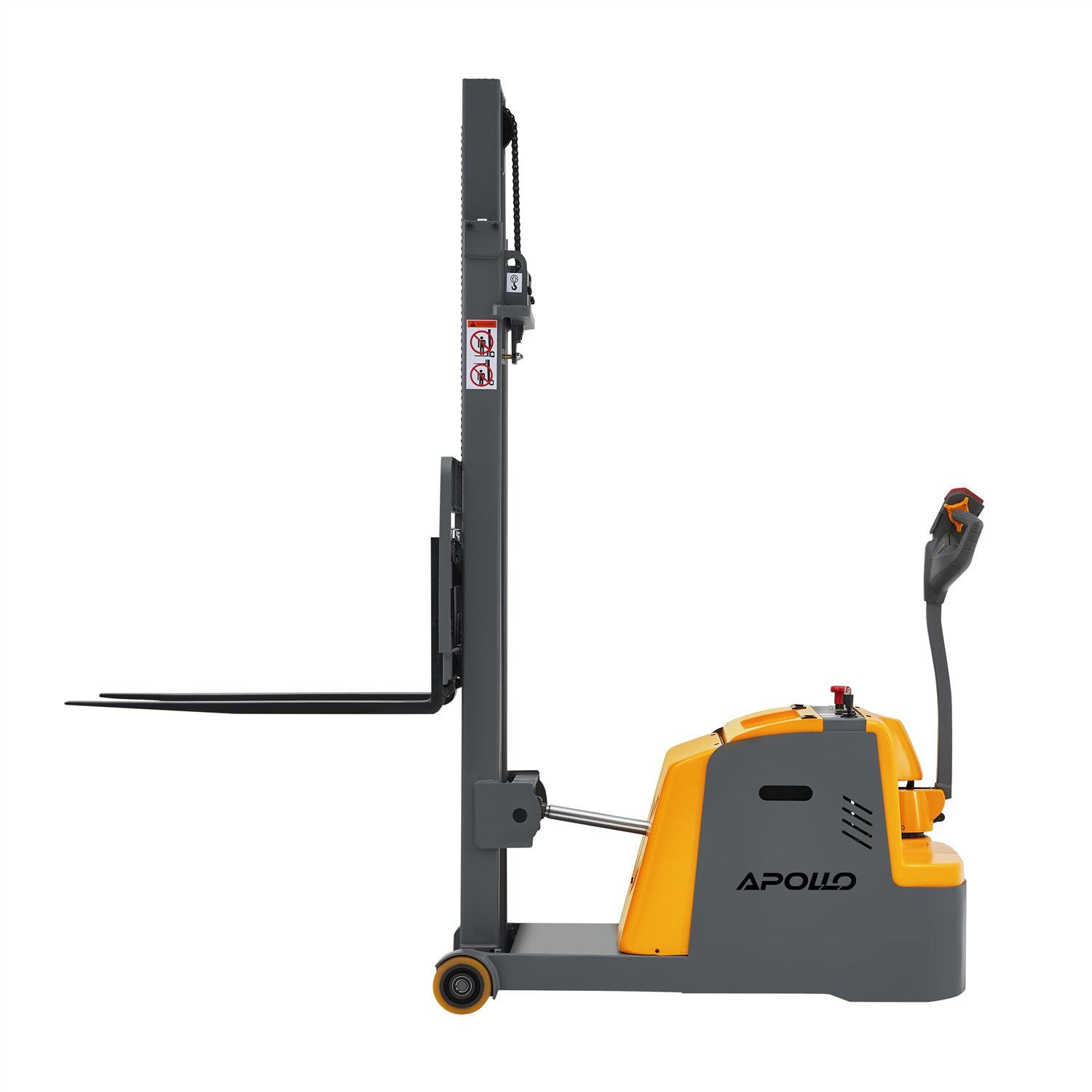

| A-3040 | Medium duty stacker | 2,200 lbs | 1.38'' | 118'' | 7.7''/5.9'' | 2,601.45 | $8,447 |
| A-3043 | Medium duty stacker | 2,200 lbs | 1.38'' | 98'' | 7.7''/5.9'' | $8,147 |
*SHIPS ASSEMBLED VIA MOTOR FREIGHT
REPLACEMENT PARTS
| MODEL NO. | BATTERY TYPE | BATTERY CAPACITY | WT. (LBS) | DIMENSIONS | PRICE EACH | 2 PCS PRICE |
| S-1005 | Gel Battery | 24V/105AH | 115 | 10.2x6.6x8.5" | $600 | $1,150 |

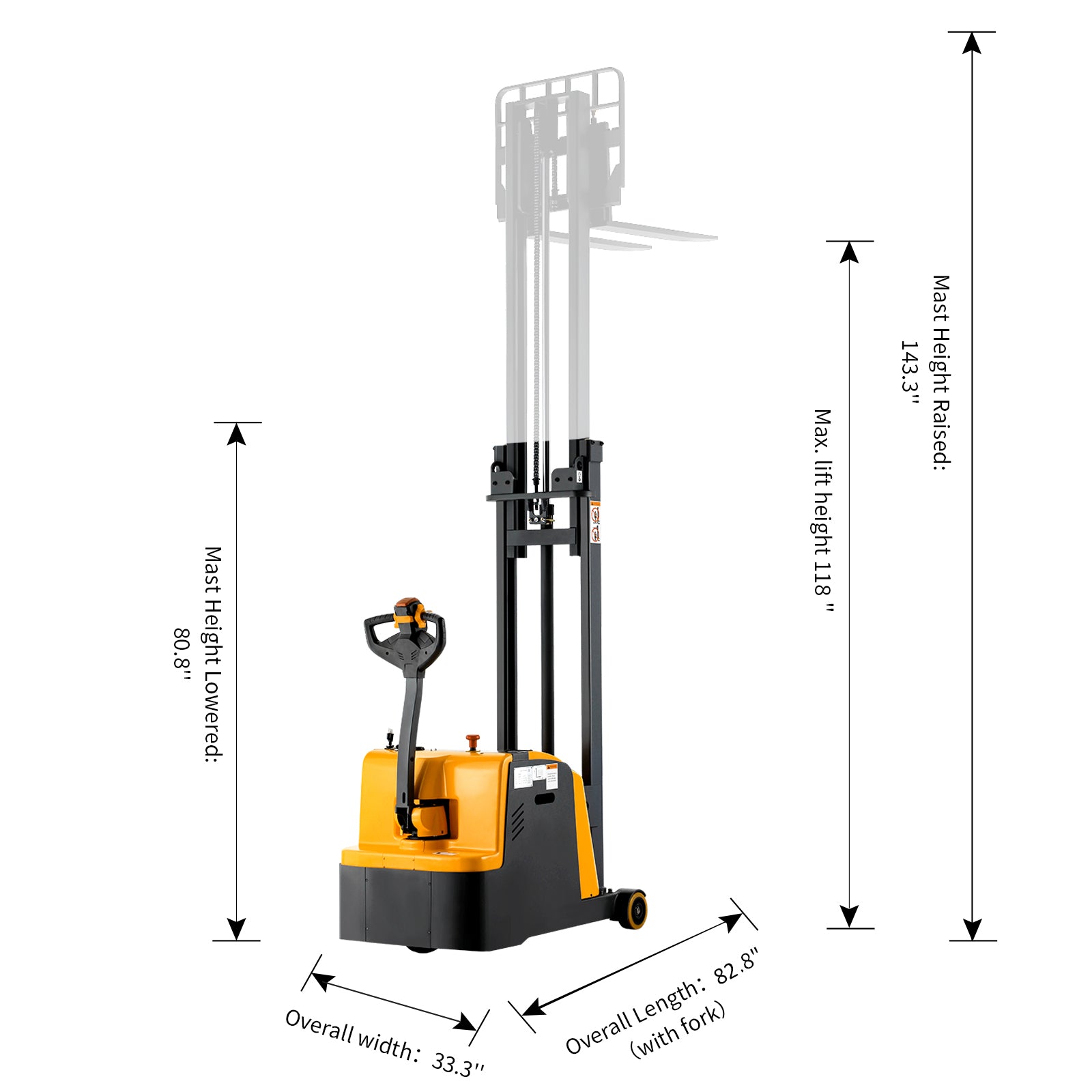

DIMENSIONS
- Overall Length：78.8"
- Overall Width: 33.3''
- Recommended Aisle Width：108.3"/ 9 feet
- Turning Radius:46.1"
- Load Center: 15.7"
- Gradeability(laden/unladen):6%/10%
MAST
- Mast Height Lowered: 80.8''
- Mast Lifting Height: 118''
- Mast Height Raised: 143.3''
- Mast tilt(forward/backward):1°/3°
FORKS
- Thickness: 1''
- Width:3.9''
- Length: 37.4"
- Fork width range: 8.6-25.4''
FEATURES
- Long handle structure makes truck steering light and flexible
- Thoughtful mast design for wide viewing angles
SPEED
- Lifting speed(laden/unladen) : 6.7/9.8 mile/s
- Lowering speed(laden/unladen) : 5½/5½ mile/s
- Travel speed(laden/unladen):2½/2.8 mph
SPECIFICATIONS
- Not explosion proof.
- This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it's not in use.
- Time to fully charge battery: 8 - 10 hrs
Click Here :Assemble the forged fork of stackers.
