1 13
3300 lbs.
3300 lbs.
Capacity
118"
118"
Max Lift Ht.
Open Bottom Pallet
Open Bottom Pallet
Compatible Pallet Types
88.4"
88.4"
Aisle Width
APOLLOLIFT  |  SKU: A-3053

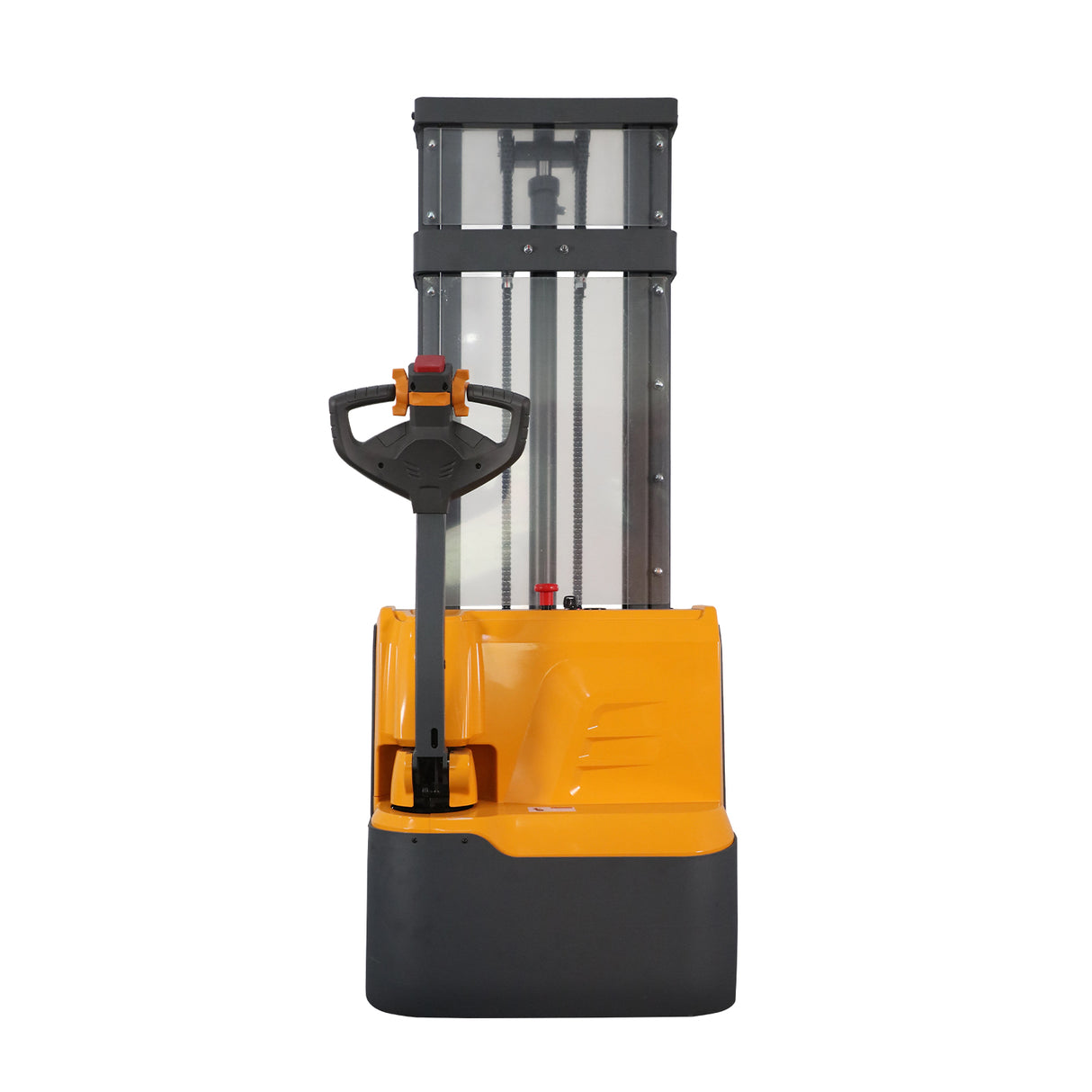

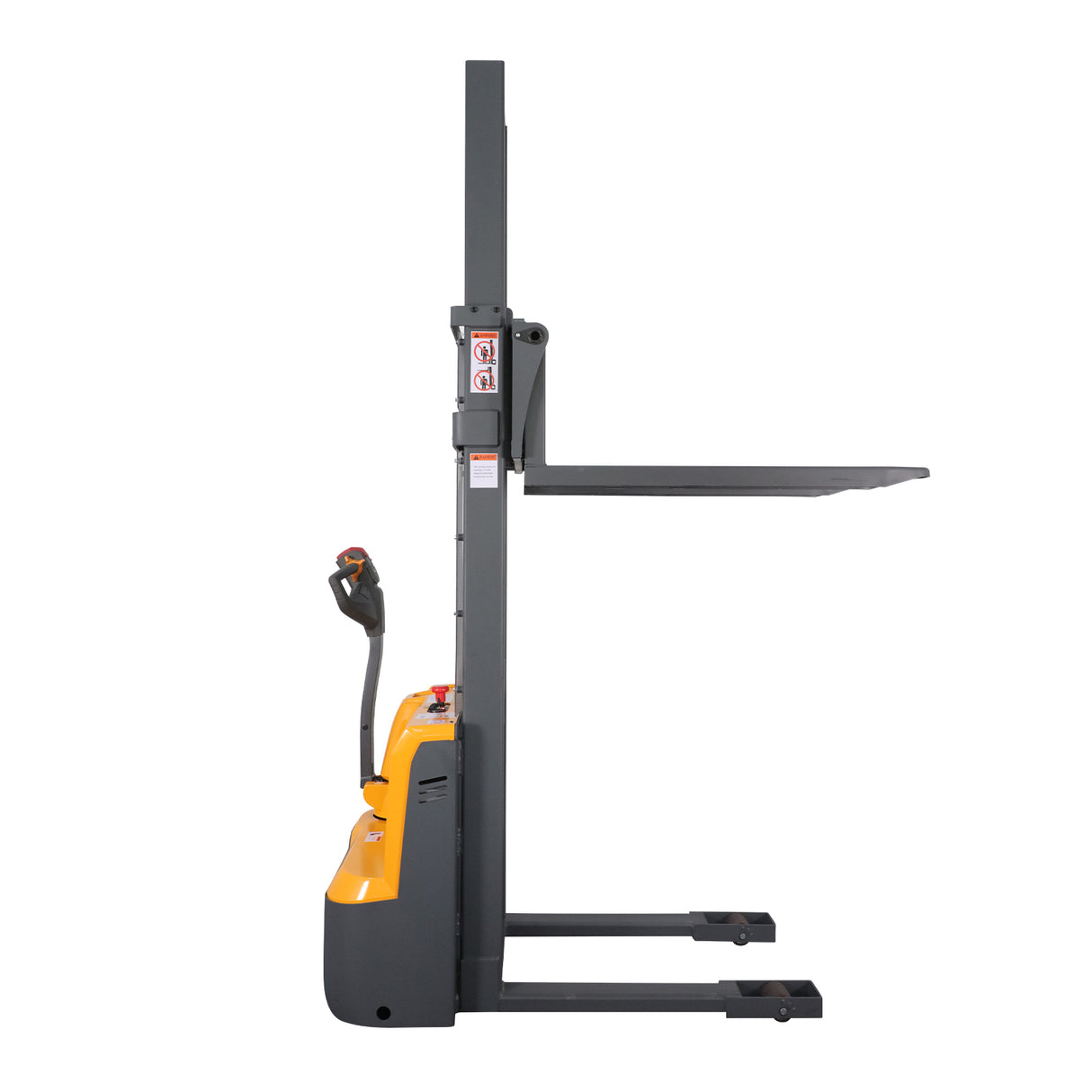

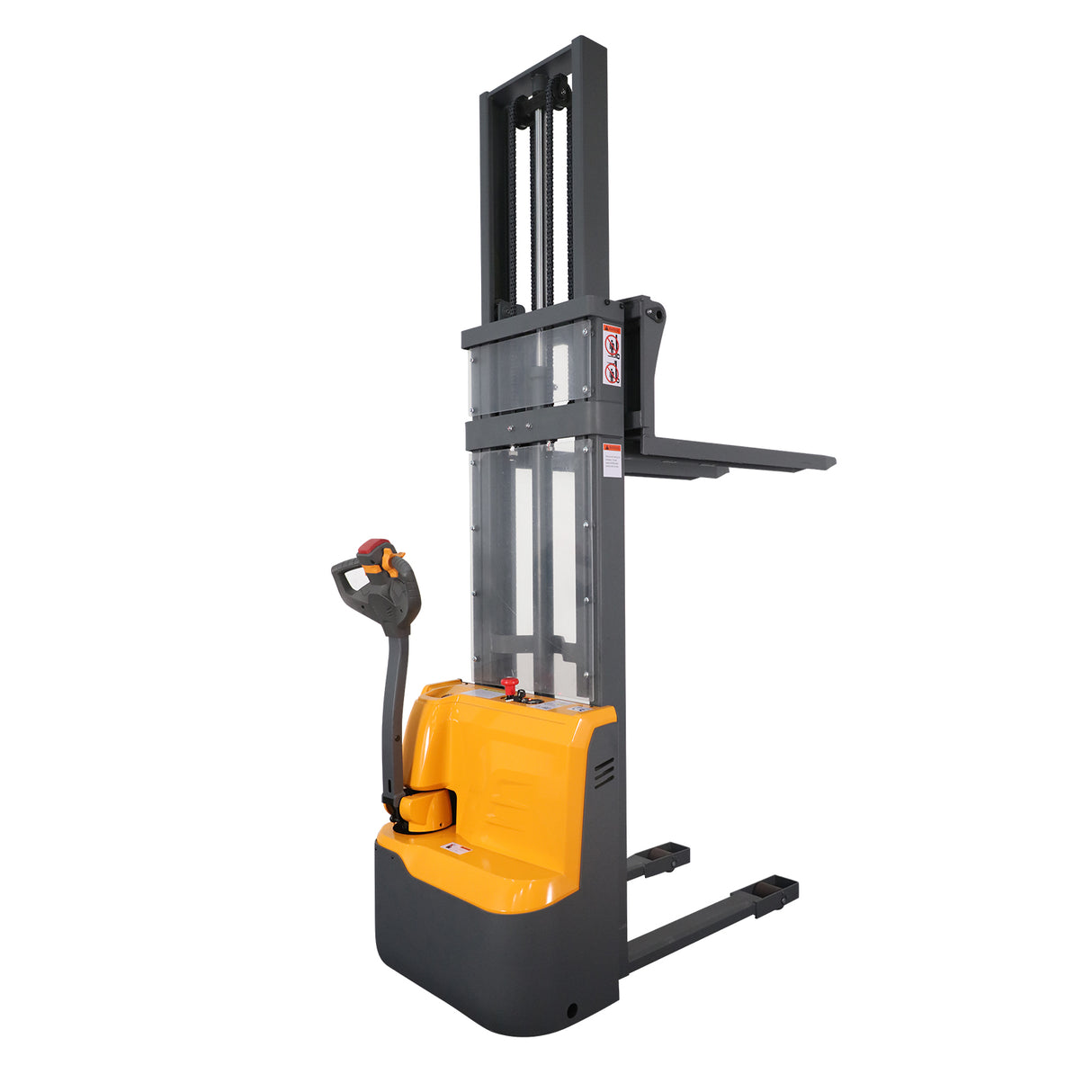

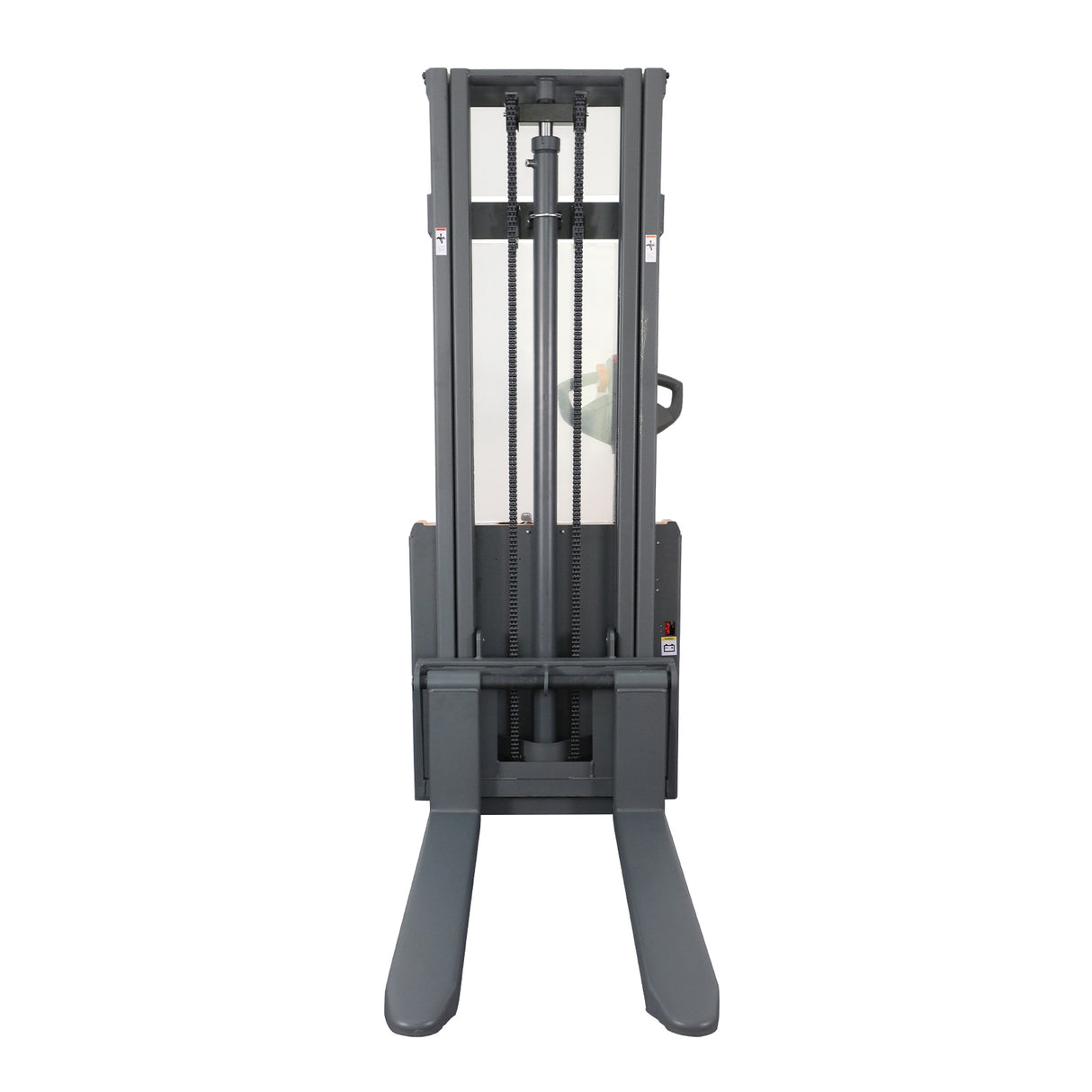

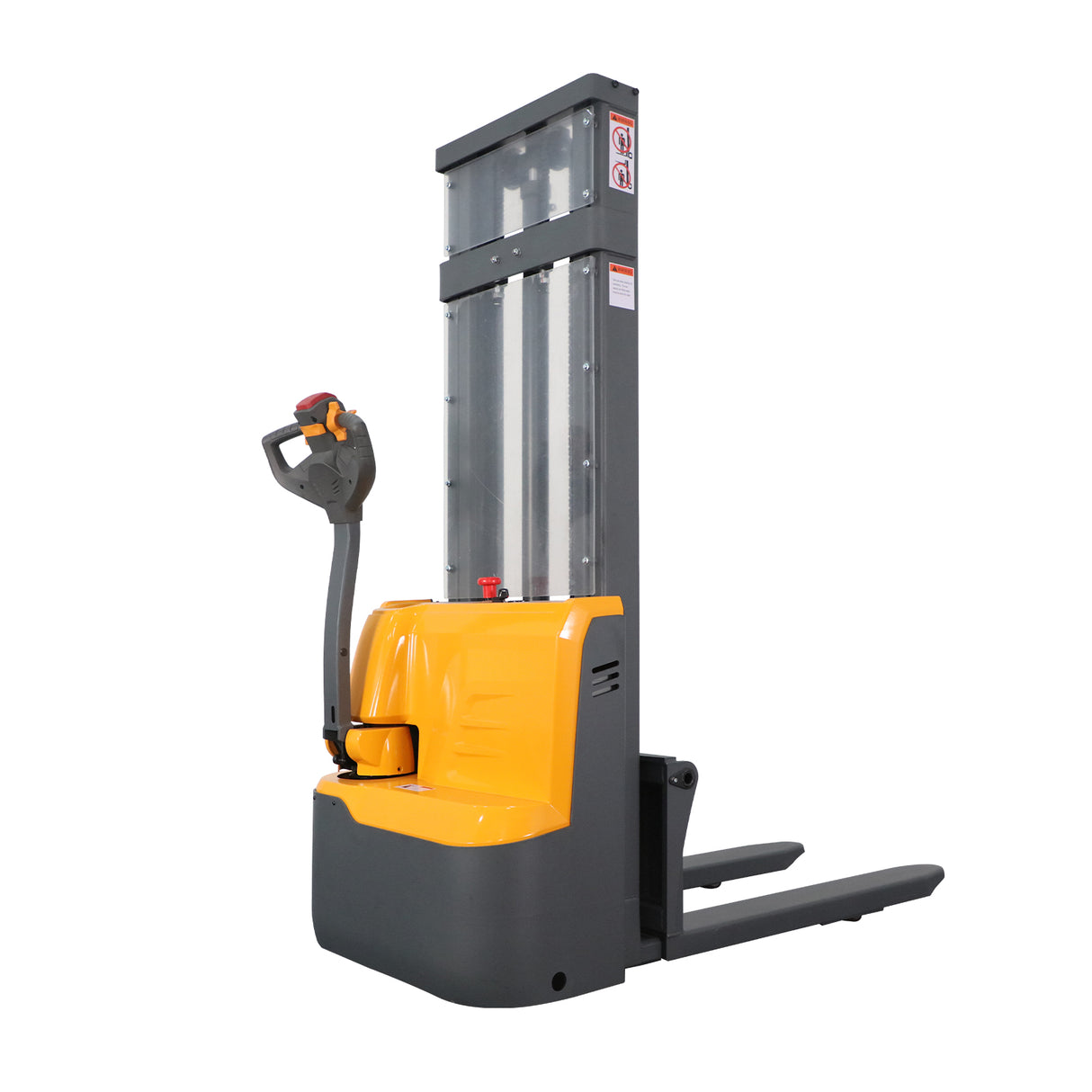

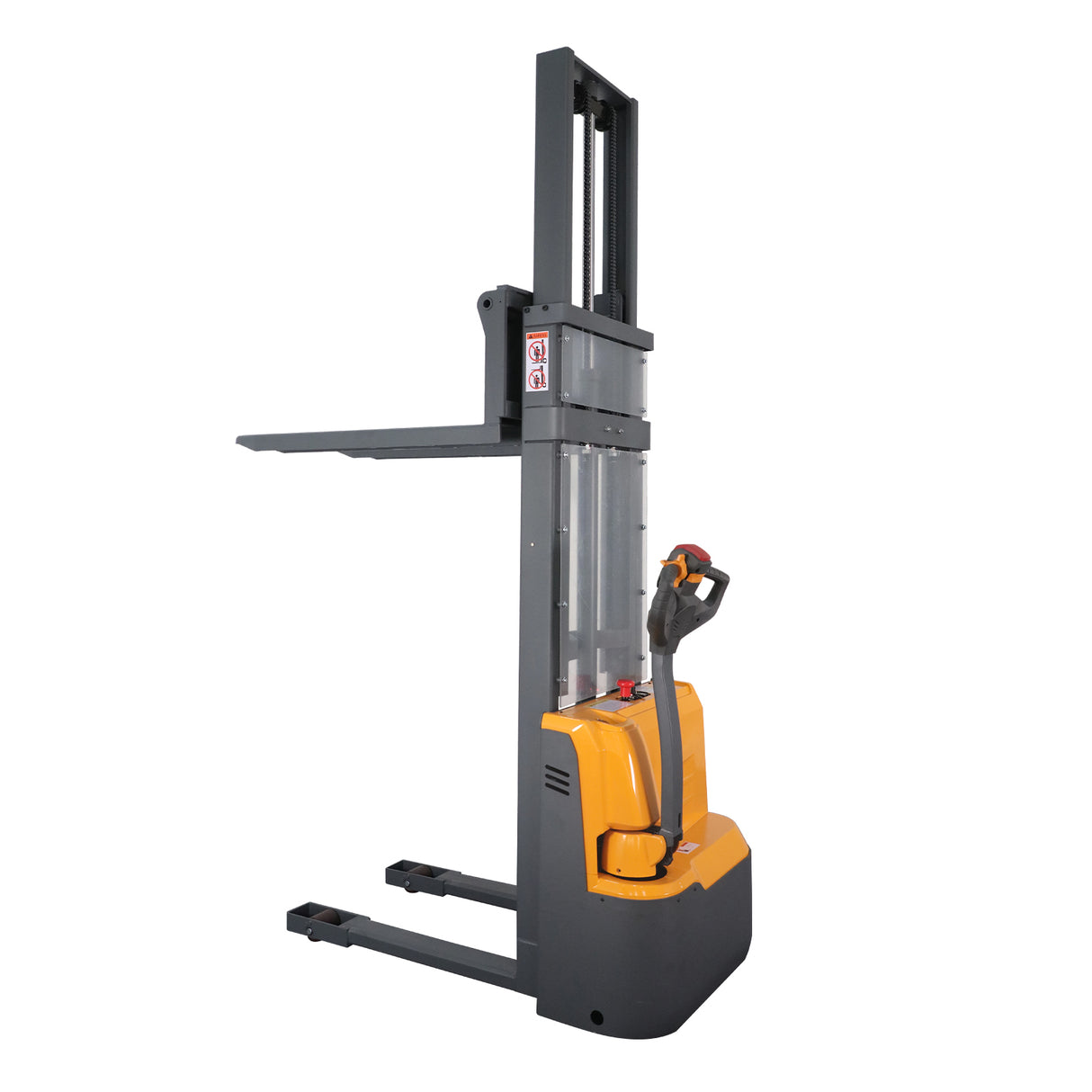

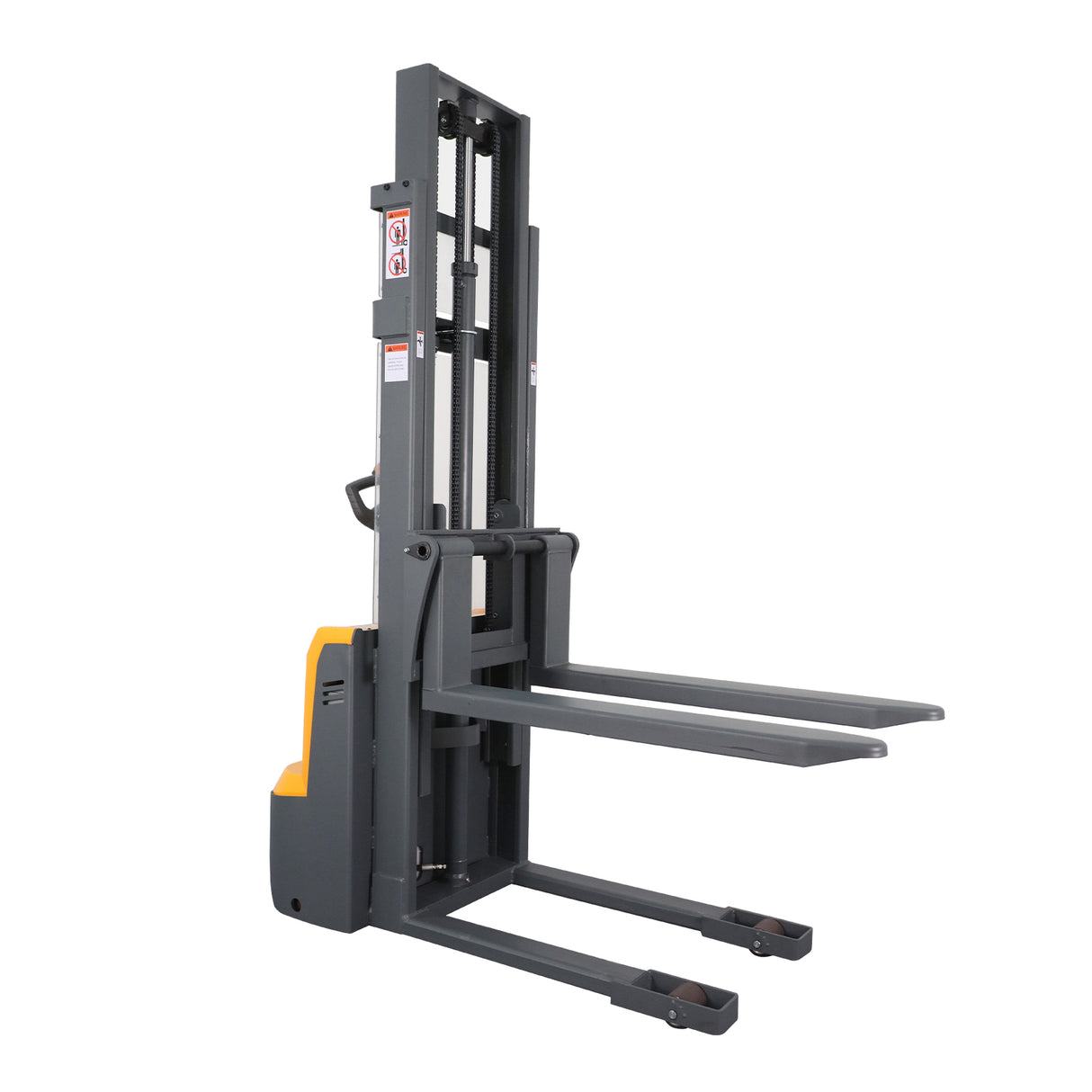

Full Electric Stacker A-3053 | 118" Lift Height

$3,950.00
  • Capacity: 3300 lbs.
  • Max.Lifting Height: 118"
  • Battery Spec: 24V/100AH
Processing Time: Requires 2 business days before shipping.
Powered by Affirm

Replacement Parts

30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

The low-clearance workhorse: Strong capacity for real warehouse tasks without jumping to the heaviest tier (capacity 3300 lbs).

Low mast for “doorway problems”: Designed to get through height limits that stop standard masts (max lift height 118", mast lowered height 82.3").

Long forks for better load support: Helps stabilize deeper pallets and bulky cartons so they don’t feel “half supported” (fork length 45").

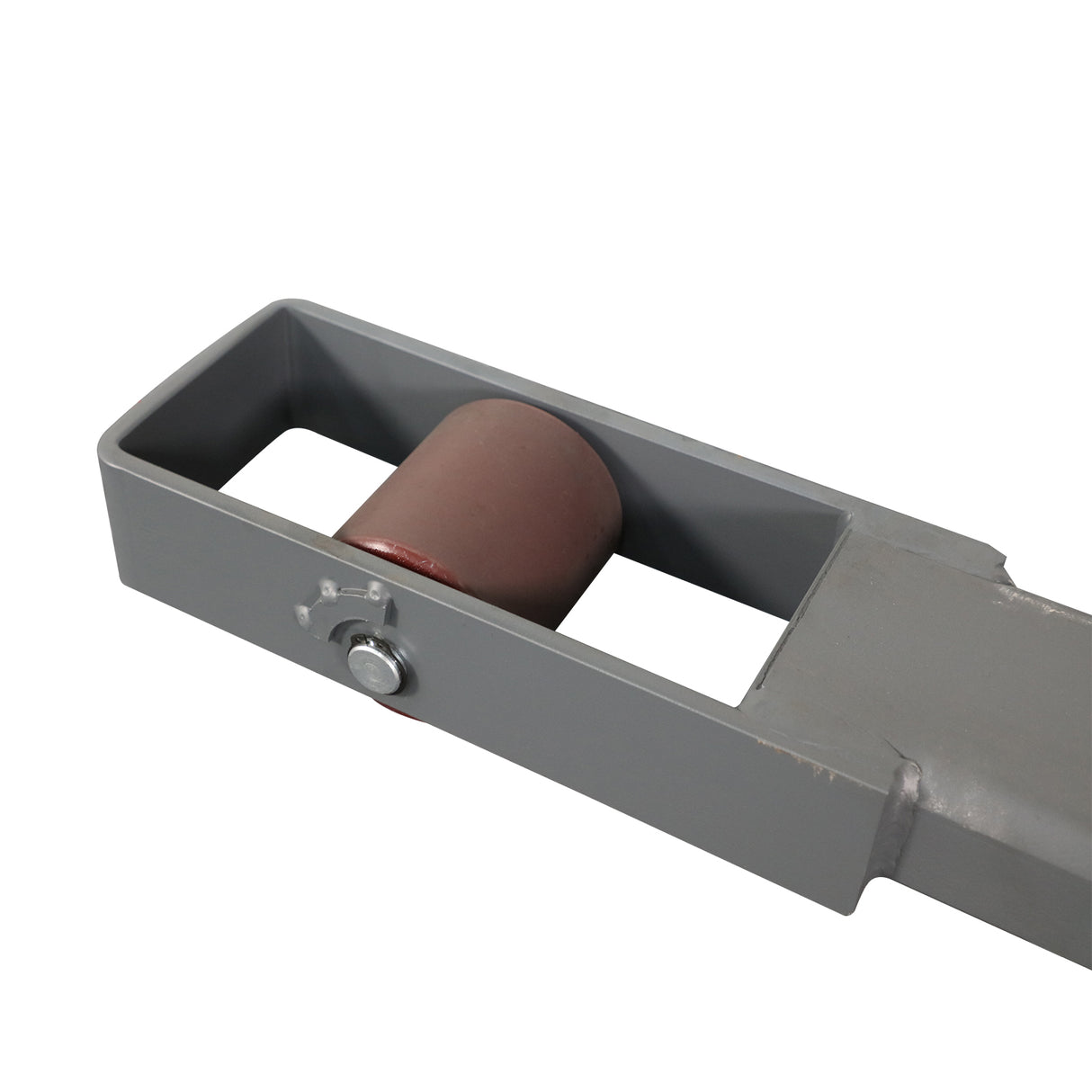

Fixed legs design for open-bottom pallet compatibility: This stacker truck is only suitable for open-bottom pallets. Please verify your pallet type. (support leg type Fixed).

Practical aisle fit: Good for everyday lanes and staging zones (aisle width 88.4").

Reliable everyday battery spec: Balanced for routine warehouse use (battery spec 24V/100Ah).

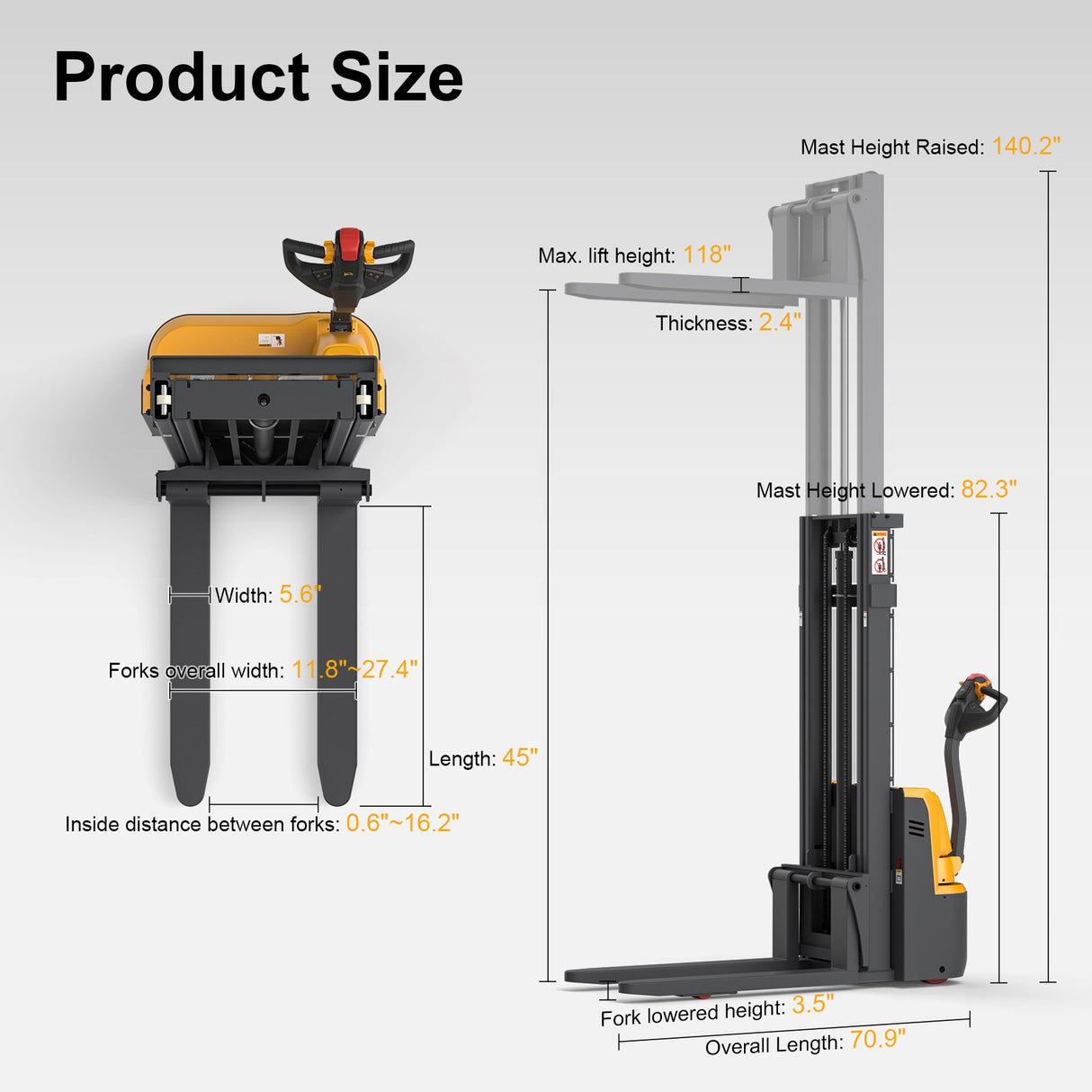

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    88.4"
  • Max.Lifting Height
    118"
  • Inside Distance Between Forks
    16.2"
  • Fork Length
    45"
  • Fork Overall Width
    27.4"
  • Single Fork Width
    5.6"
  • Compatible Pallet Types
    Open Bottom
  • Overall Height
    82.3"
  • Overall Length
    70.9"
  • Overall Width
    31.5"
  • Driving Speed-Unladen
    3.1 mph
  • Driving Speed-Laden
    2.8 mph
  • Lifting Speed/Empty
    5.9 inch/s
  • Lifting Speed/Loaded
    3.5 inch/s
  • Support Leg Type
    Fixed
  • Total Wheel Count
    4
  • Turning Radius
    53.7"
  • Mast Lowered Height
    82.3"
  • Mast Extended Height
    140.2"
  • Load Centre Distance
    23.6"
  • Battery Capacity
    100AH
  • Battery Spec
    24V/100AH
  • Battery Voltage
    24V
  • Battery Type
    GEL battery
  • Fork Thickness
    2.4"
  • Fork Lowered Height
    3.5"
  • Lowering Speed/Empty
    4.3 inch/s
  • Lowering Speed/Loaded
    5.9 inch/s
  • Service Weight
    1685 lbs.
  • Gross Weight
    1685 lbs.
  • Charger
    24V/10A built-in
  • Package Size
    70"x32"x88"

Full Electric Stacker

High-Efficiency Solution for Daily Stacking Operations

Full electric stackers feature powered lift and powered travel, designed for consistent stacking and material handling.

  • Increased productivity
  • Reduced operator fatigue
  • Lower cost and maintenance compared to forklifts
  • Ideal for narrow aisle environments
Best Fit
Medium to large warehouses with regular stacking requirements.
Positioning:
A cost-effective alternative to traditional forklifts for many indoor warehouse applications.

⚠️ Notice:

  • Fix leg is incompatible with US standard pallets and is designed exclusively for open bottom pallet
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Product Comparison
Full Electric Stacker A-3017
$4,870.00
Full Electric Stacker A-3026 | 98" Lift Height
$5,100.00
Full Electric Straddle Stacker A-3021 | 118" Lift Height
$5,300.00
Full Electric Straddle Stacker A-3050 | 98" Lift Height
$4,000.00 $5,900.00
Capacity (lb)
Capacity (lb)
2200 lbs.
2640 lbs.
2640 lbs.
3300 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
98"
98"
118"
98"
Max Fork Height (in)
Max Fork Height (in)
3.1"
3.5"
3.1"
2.8"
Service Weight (lb)
Service Weight (lb)
1543 lbs.
1285 lbs.
1281 lbs.
1350 lbs.
Fork Size (in)
Fork Size (in)
42" x 7.8-31.5"
45" x 27.3"
42" x 7.8-31.5"
42" x 7.9-31.5"
Lowered Mast Height (in)
Lowered Mast Height (in)
74.6"
72.4"
84.4"
74.6"
Turning Radius (in)
Turning Radius (in)
58.6"
53.7"
58.6"
53"
Aisle Width (in)
Aisle Width (in)
89.7"
87.3"
89.7"
87.8"
Leg Type
Leg Type
Straddle
Fixed
Straddle
Straddle
Compatible Pallets
Compatible Pallets
Open Bottom
Open Bottom
All
Adjustable Forks
Adjustable Forks
Yes
No
Yes
Yes
Charger
Charger
24V/10A built-in
24V/10A built-in
24V/10A built-in
24V/10A built-in
Mast Stages
Mast Stages
2 Stage
2 Stage
2 Stage
Fork Length (in)
Fork Length (in)
42"
45"
42"
42"
Fork Overall Width (in)
Fork Overall Width (in)
7.8-31.5"
27.3"
7.8-31.5"
7.9-31.5"
Single Fork Width (in)
Single Fork Width (in)
3.9"
6.7"
3.9"
3.9"
Fork Thickness (in)
Fork Thickness (in)
1.4"
2.4"
1.4"
1.4"
Fork Lowered Height (in)
Fork Lowered Height (in)
3.1"
3.5"
3.1"
2.8"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.1"
14"
0.1"
0.1-23.6"
Overall Length (in)
Overall Length (in)
70"
68.8"
70"
68.9"
Overall Width (in)
Overall Width (in)
46.5"-62.3"
31.5"
46.5-62.3"
45.9-61.6"
Overall Height (in)
Overall Height (in)
74.6"
72.4"
84.4"
74.6-123.8"
Driving Speed - Unladen (mph)
Driving Speed - Unladen (mph)
3.1 mph
3.1 mph
3.1 mph
Driving Speed - Laden (mph)
Driving Speed - Laden (mph)
2.8 mph
2.8 mph
2.8 mph
Lift Speed - Unladen
Lift Speed - Unladen
5.5 inch/s
5.5 inch/s
5.5 inch/s
5.9 inch/s
Lift Speed - Laden
Lift Speed - Laden
3.5 inch/s
3.5 inch/s
3.5 inch/s
3.5 inch/s
Turtle Speed Mode
Turtle Speed Mode
Yes
Yes
Yes
Gradeability (Empty)
Gradeability (Empty)
15%
Gradeability (Loaded)
Gradeability (Loaded)
6%
