APOLLOLIFT  |  SKU: A-3055

Full Electric Straddle Stacker A-3055 | 130" Lift Height

$4,600.00 $6,300.00
Processing Time: Requires 2 business days before shipping.
Powered by Affirm
1-Year Warranty
30-Day Returns
Full-Set Forklift Parts

For Taller Racks & Real Pallet Work

Built for the warehouse grind: higher stacking when you need it, strong pallet handling when it counts, and easy maneuvering for aisles + staging—so daily moves feel simple, not stressful.

GEL battery option with standard lift height: A practical combination for everyday warehouse operations (battery type: GEL; max lift height: 130").

Heavy capacity for demanding loads: Built for serious pallet handling (capacity: 3,300 lbs).

Lowered mast for easier clearance: Helps confirm doorway and overhead clearance before operation (mast lowered height: 90.4").

Straddle design for pallet compatibility: Accommodates a wider range of pallet styles (support leg type: Straddle).

Reliable battery capacity: Equipped with a 24V/100Ah GEL battery for daily warehouse applications.

Aisle-friendly footprint: Designed for typical warehouse lanes and staging areas (recommended aisle width: 87.8").

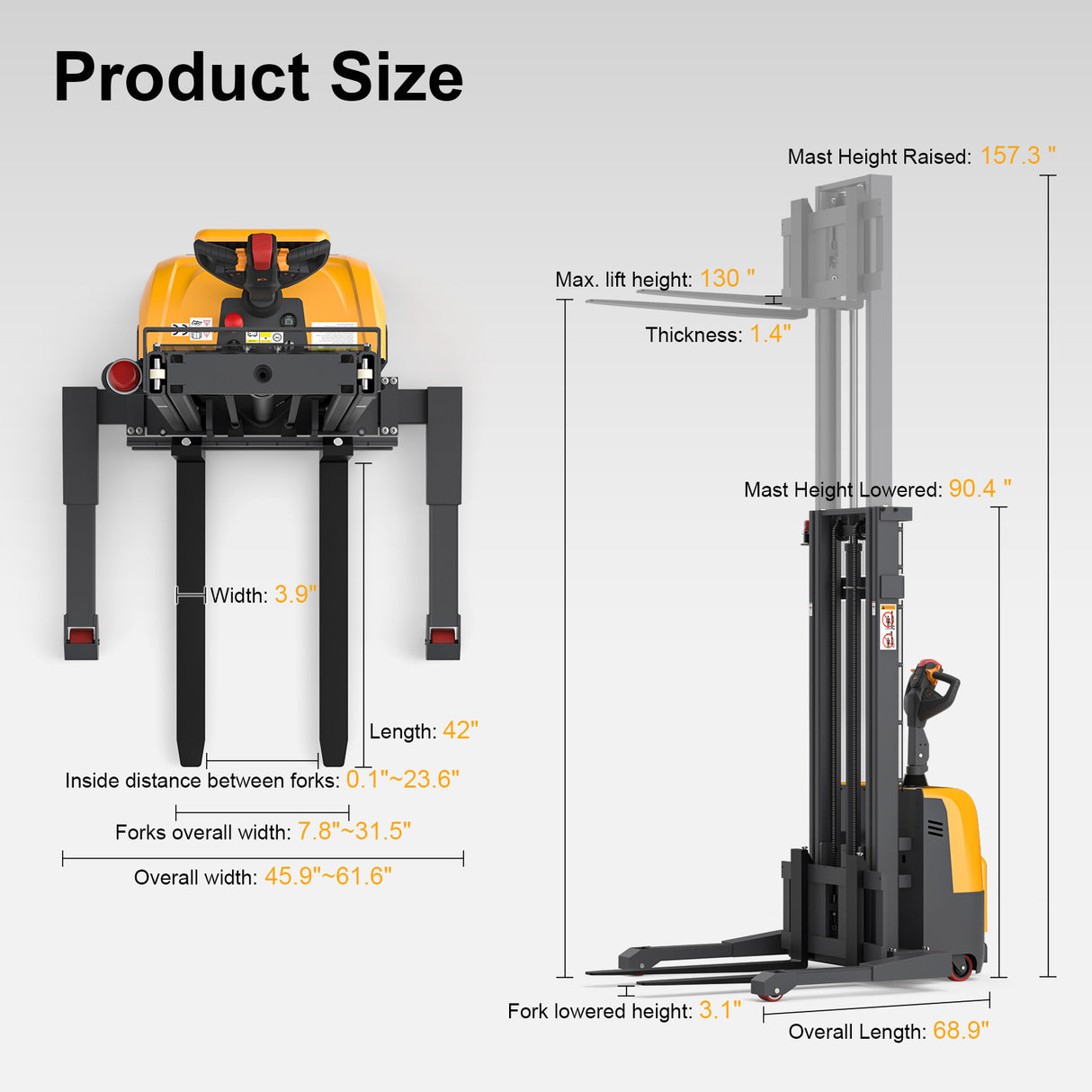

Specifications

  • Capacity
    3300 lbs.
  • Aisle Width
    87.8"
  • Max.Lifting Height
    130"
  • Inside Distance Between Forks
    0.1-23.6"
  • Fork Length
    42"
  • Fork Overall Width
    7.8-31.5"
  • Single Fork Width
    3.9"
  • Compatible Pallet Types
    All
  • Overall Height
    90.4-157.3"
  • Overall Length
    68.9"/86.6"
  • Overall Width
    45.9-61.6"
  • Driving Speed-Unladen
    3.1 mph
  • Driving Speed-Laden
    2.8 mph
  • Lifting Speed/Empty
    5.9 inch/s
  • Lifting Speed/Loaded
    3.5 inch/s
  • Gradeability/Empty
    15%
  • Gradeability/Loaded
    6%
  • Support Leg Type
    Straddle
  • Total Wheel Count
    5
  • Turning Radius
    53"
  • Mast Lowered Height
    90.4"
  • Mast Extended Height
    157.3"
  • Load Centre Distance
    23.6"
  • Battery Capacity
    100AH
  • Battery Spec
    24V/100AH
  • Battery Voltage
    24V
  • Battery Type
    GEL battery
  • Fork Thickness
    1.4"
  • Fork Lowered Height
    3.1"
  • Lowering Speed/Empty
    4.3 inch/s
  • Lowering Speed/Loaded
    5.9 inch/s
  • Service Weight
    1675 lbs.
  • Gross Weight
    1410 lbs.
  • Charger
    24V/10A built-in
  • Charging Time
    8-10 Hours
  • Package Size
    44"x34"x88"

Full Electric Stacker

High-Efficiency Solution for Daily Stacking Operations

Full electric stackers feature powered lift and powered travel, designed for consistent stacking and material handling.

  • Increased productivity
  • Reduced operator fatigue
  • Lower cost and maintenance compared to forklifts
  • Ideal for narrow aisle environments
Best Fit
Medium to large warehouses with regular stacking requirements.
Positioning:
A cost-effective alternative to traditional forklifts for many indoor warehouse applications.

⚠️ Notice:

  • Support legs require installation before use. Installation Video: https://www.youtube.com/watch?v=-qGQwzVQdYAWI
  • For optimal battery longevity and reliable performance, we recommend charging battery-equipped products monthly (even during storage).

Product comparison
Full Electric Straddle Stacker A-3047 | 118" Lift Height
$4,100.00 $6,100.00
Li-ion Powered Electric Straddle Stacker A-304701 | 118" Lift Height
$4,560.00 $6,400.00
Full Electric Straddle Stacker A-3050 | 98" Lift Height
$4,000.00 $5,900.00
Li-ion Powered Electric Straddle Stacker A-305001 | 98" Lift Height
$4,505.00 $6,000.00
Full Electric Straddle Stacker A-3049 | 130" Lift Height
$4,500.00 $6,300.00
Li-ion Powered Electric Straddle Stacker A-304901 | 130" Lift Height
$4,635.00 $6,400.00
Capacity (lb)
Capacity (lb)
3300 lbs.
3300 lbs.
3300 lbs.
3300 lbs.
3300 lbs.
3300 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
118"
118"
98"
98"
130"
130"
Max Fork Height (in)
Max Fork Height (in)
2.8"
2.8"
2.8"
2.8"
2.8"
2.8"
Service Weight (lb)
Service Weight (lb)
1408 lbs.
1408 lbs.
1350 lbs.
1350 lbs.
1450 lbs.
1450 lbs.
Fork Size (in)
Fork Size (in)
42" x 7.9-31.5"
42" x 7.9-31.5"
42" x 7.9-31.5"
42" x 7.9-31.5"
42" x 7.9-31.5"
42" x 7.9-31.5"
Lowered Mast Height (in)
Lowered Mast Height (in)
84.4"
84.4"
74.6"
74.6"
90.4"
90.4"
Turning Radius (in)
Turning Radius (in)
53"
53"
53"
53"
53"
53"
Aisle Width (in)
Aisle Width (in)
87.8"
87.8"
87.8"
87.8"
87.8"
87.8"
Leg Type
Leg Type
Straddle
Straddle
Straddle
Straddle
Straddle
Straddle
Compatible Pallets
Compatible Pallets
All
All
All
All
All
All
Adjustable Forks
Adjustable Forks
Yes
Yes
Yes
Yes
Yes
Yes
Charger
Charger
24V/10A built-in
24V/25A built-in
24V/10A built-in
24V/25A built-in
24V/10A built-in
24V/25A built-in
Mast Stages
Mast Stages
2 Stage
2 Stage
2 Stage
2 Stage
2 Stage
2 Stage
Fork Length (in)
Fork Length (in)
42"
42"
42"
42"
42"
42"
Fork Overall Width (in)
Fork Overall Width (in)
7.9-31.5"
7.9-31.5"
7.9-31.5"
7.9-31.5"
7.9-31.5"
7.9-31.5"
Single Fork Width (in)
Single Fork Width (in)
3.9"
3.9"
3.9"
3.9"
3.9"
3.9"
Fork Thickness (in)
Fork Thickness (in)
1.4"
1.4"
1.4"
1.4"
1.4"
1.4"
Fork Lowered Height (in)
Fork Lowered Height (in)
2.8"
2.8"
2.8"
2.8"
2.8"
2.8"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
0.1-23.6"
0.1-23.6"
0.1-23.6"
0.1-23.6"
0.1-23.6"
0.1-23.6"
Overall Length (in)
Overall Length (in)
68.9"
68.9"
68.9"
68.9"
68.9"
68.9"
Overall Width (in)
Overall Width (in)
45.9-61.6"
45.9-61.6"
45.9-61.6"
45.9-61.6"
45.9-61.6"
45.9-61.6"
Overall Height (in)
Overall Height (in)
84.4-143.5"
84.4-143.5"
74.6-123.8"
74.6-123.8"
90.4-157.3"
90.4-157.3"
Driving Speed - Unladen (mph)
Driving Speed - Unladen (mph)
3.1 mph
3.1 mph
3.1 mph
3.1 mph
3.1 mph
3.1 mph
Driving Speed - Laden (mph)
Driving Speed - Laden (mph)
2.8 mph
2.8 mph
2.8 mph
2.8 mph
2.8 mph
2.8 mph
Lift Speed - Unladen
Lift Speed - Unladen
5.9 inch/s
5.9 inch/s
5.9 inch/s
5.9 inch/s
5.9 inch/s
5.9 inch/s
Lift Speed - Laden
Lift Speed - Laden
3.5 inch/s
3.5 inch/s
3.5 inch/s
3.5 inch/s
3.5 inch/s
3.5 inch/s
Turtle Speed Mode
Turtle Speed Mode
Yes
Yes
Yes
Yes
Yes
Yes
Gradeability (Empty)
Gradeability (Empty)
15%
15%
15%
15%
15%
15%
Gradeability (Loaded)
Gradeability (Loaded)
6%
6%
6%
6%
6%
6%
