1 4
5500 lbs.
5500 lbs.
Capacity
45" x 21"
45" x 21"
Fork Size
132 lbs.
132 lbs.
Service Weight
52.5"
52.5"
Turning Radius
APOLLOLIFT  |  SKU: A-1003

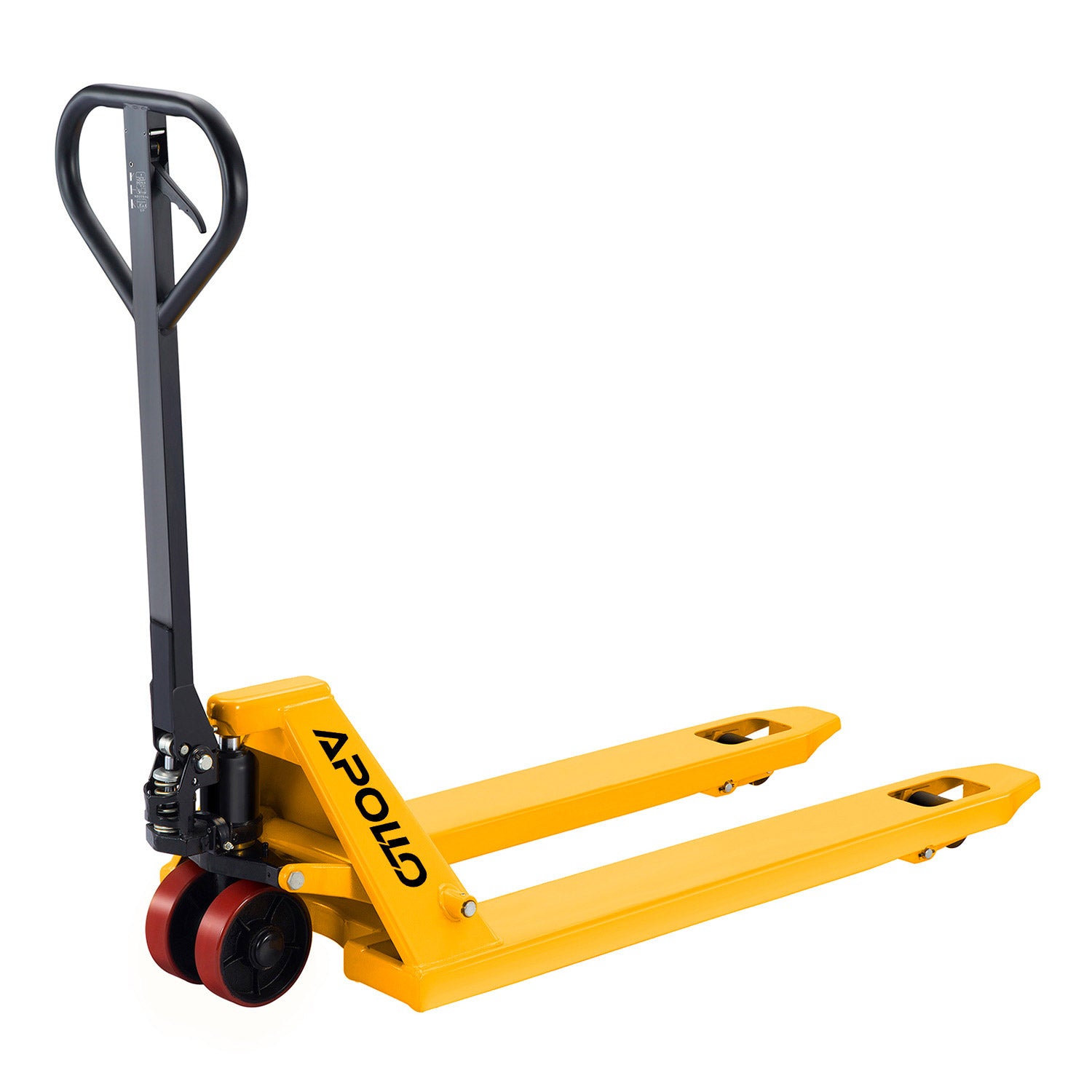

Hand Pallet Truck A-1003

$200.00
  • Capacity: 5500 lbs.
  • Fork Size: 48" x 21"
  • Wheels: PU
Powered by Affirm
Summer Sale: 3% OFF!
Apply code at checkout
30-Day Returns
1-Year Warranty
Full-Set Forklift Parts

Standard type pallet truck for heavy daily handling: Built for common warehouse pallet movement with a stronger 5500 lb capacity. Service weight 132 lbs, gross weight 137 lbs.

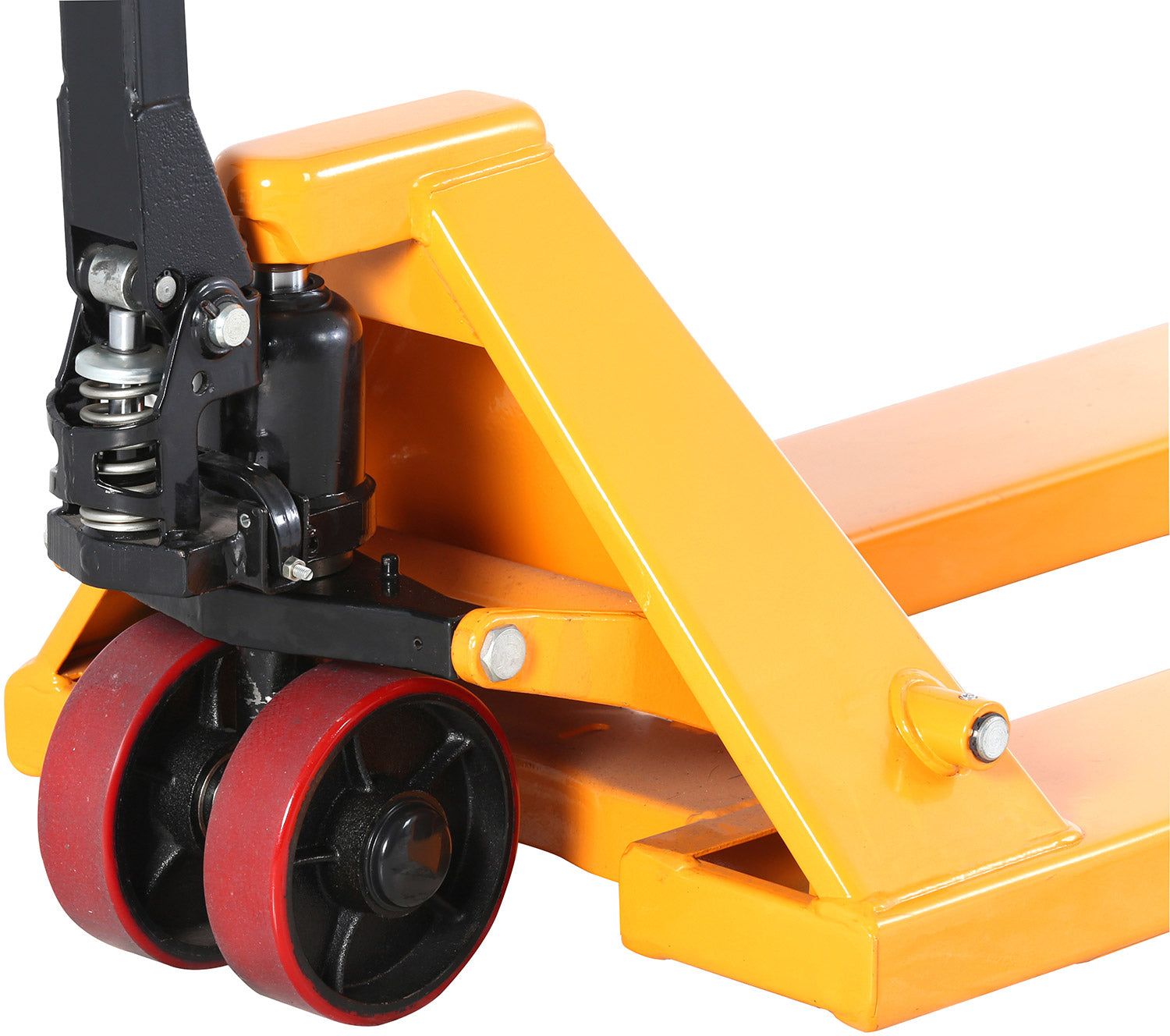

Chrome piston and ram for smoother operation: Designed to reduce excessive wear on the pump and seal during regular lifting and lowering use.

Efficient 10-stroke lifting action: Raises loads with fewer pump strokes for faster daily operation. Number of pump strokes 10 times, lift height per stroke 11 mm.

Standard 48" forks for common pallets: Suitable for all pallet types with a fixed 21" fork width. Fork length 48", forks overall width 21", single fork width 5.9", inside distance between forks 8.7".

Easy turning in warehouse aisles: Designed for tight material handling areas with a 180° turning angle. Turning radius 52.5", aisle width 70.4", max lift height 7.5", fork lowered height 3".

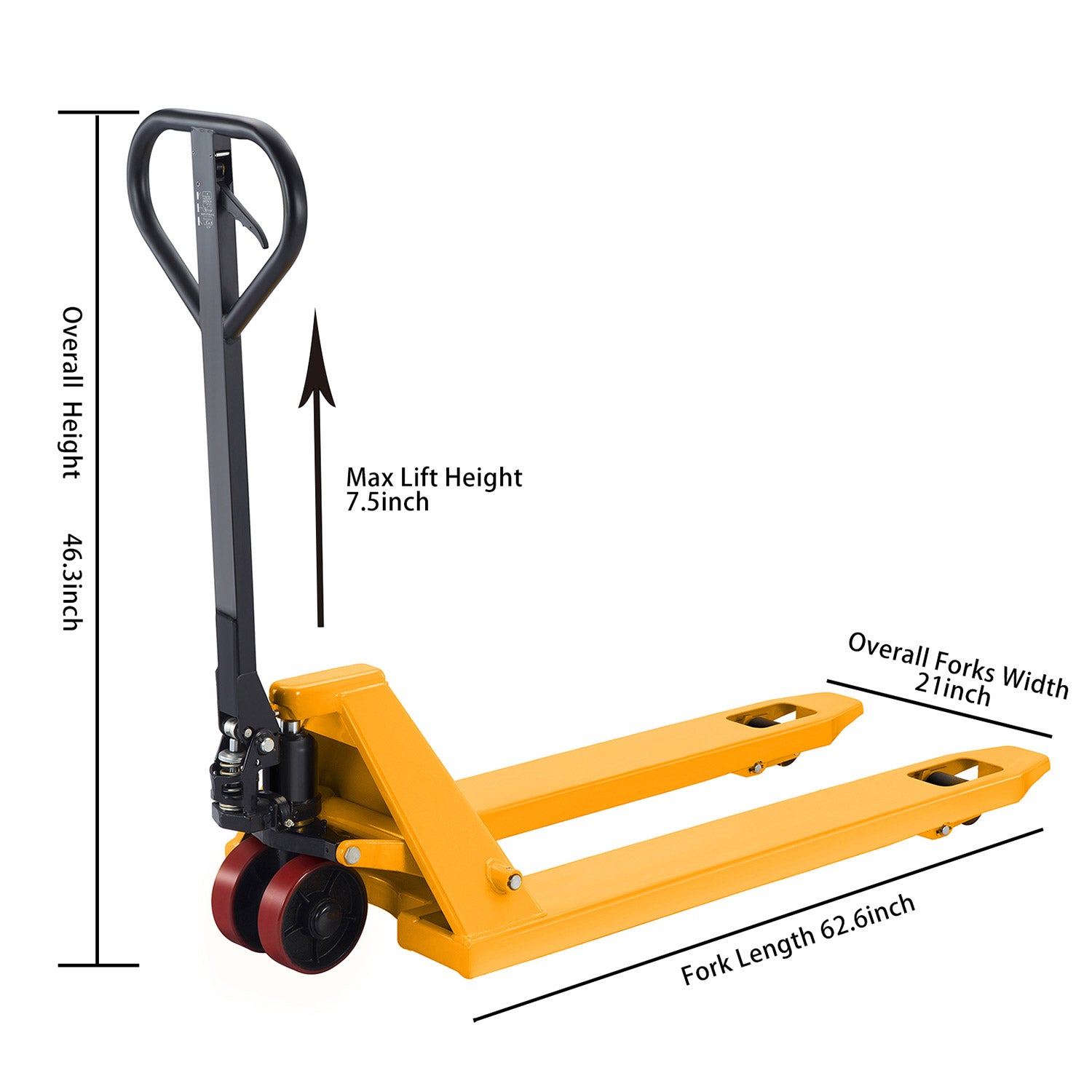

Specifications

  • Capacity
    5500 lbs.
  • Aisle Width
    70.4"
  • Max.Lifting Height
    7.5"
  • Inside Distance Between Forks
    8.7"
  • Fork Length
    48"
  • Fork Overall Width
    21"
  • Single Fork Width
    5.9"
  • Compatible Pallet Types
    All
  • Overall Height
    46.3"
  • Overall Length
    62.5"
  • Overall Width
    21"
  • Load Wheel Type
    Single Wheel
  • Total Wheel Count
    4
  • Turning Radius
    52.5"
  • Lifting Distance
    4.5"
  • Fork Thickness
    2.1"
  • Control Handle Foldability
    NO
  • Fork Lowered Height
    3"
  • Service Weight
    132 lbs.
  • Gross Weight
    137 lbs.
  • Package Size
    63"x21"x18"

Manual Pallet Jack

Entry-Level Solution for Light-Duty Handling

Manual pallet jacks are designed for low-frequency, short-distance pallet movement. They are the most economical option for basic ground-level transport.

  • Ideal for occasional use
  • Simple, durable, and low maintenance
  • No power source required
  • Best suited for tight spaces and light workloads
Best Fit
Retail stockrooms, small backrooms, delivery unloading, or as backup equipment.
When to Upgrade:
If daily movement becomes frequent or operator fatigue becomes a concern, an Electric Pallet Jack is recommended.

⚠️ Notice:

  • Handle Self-Installation Required

Product Comparison
Hand Pallet Truck A-1003
$200.00
Hand Pallet Truck A-1004
$210.00
Hand Pallet Truck A-1005
$250.00
Capacity (lb)
Capacity (lb)
5500 lbs.
5500 lbs.
6600 lbs.
Max Lifting Height (in)
Max Lifting Height (in)
7.5"
7.5"
7.5"
Max Fork Height (in)
Max Fork Height (in)
3"
3"
3"
Service Weight (lb)
Service Weight (lb)
132 lbs.
138 lbs.
155 lbs.
Fork Size (in)
Fork Size (in)
48" x 21"
48" x 27"
48" x 27"
Turning Radius (in)
Turning Radius (in)
52.5"
52.5"
52.5"
Aisle Width (in)
Aisle Width (in)
70.4"
70.4"
70.4"
Compatible Pallets
Compatible Pallets
All
All
All
Fork Length (in)
Fork Length (in)
48"
48"
48"
Fork Overall Width (in)
Fork Overall Width (in)
21"
27"
27"
Single Fork Width (in)
Single Fork Width (in)
5.9"
5.9"
5.9"
Fork Thickness (in)
Fork Thickness (in)
2.1"
2.1"
2.1"
Fork Lowered Height (in)
Fork Lowered Height (in)
3"
3"
3"
Inside Distance Between Forks (in)
Inside Distance Between Forks (in)
8.7"
15"
15"
Wheel Type
Wheel Type
Single Wheel
Single Wheel
Single Wheel
Overall Length (in)
Overall Length (in)
62.5"
62.5"
62.5"
Overall Width (in)
Overall Width (in)
21"
27"
27"
Overall Height (in)
Overall Height (in)
46.3"
46.3"
46.3"
